1U 48 PORTS SC SX/LC DX PRETERM PIVOT PATCH PANEL - RP01xxx

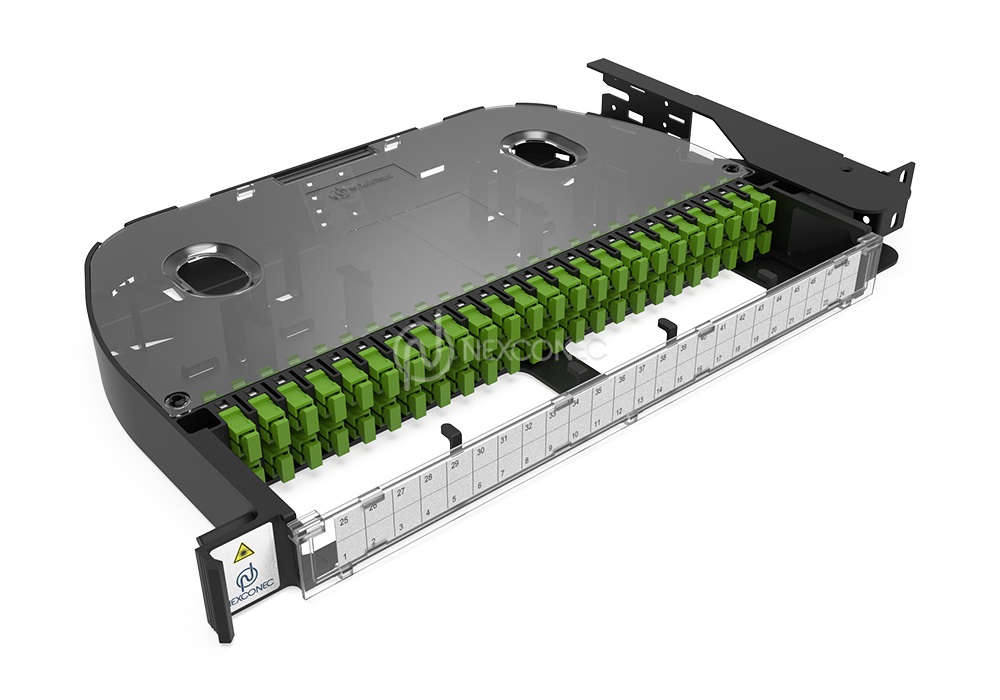

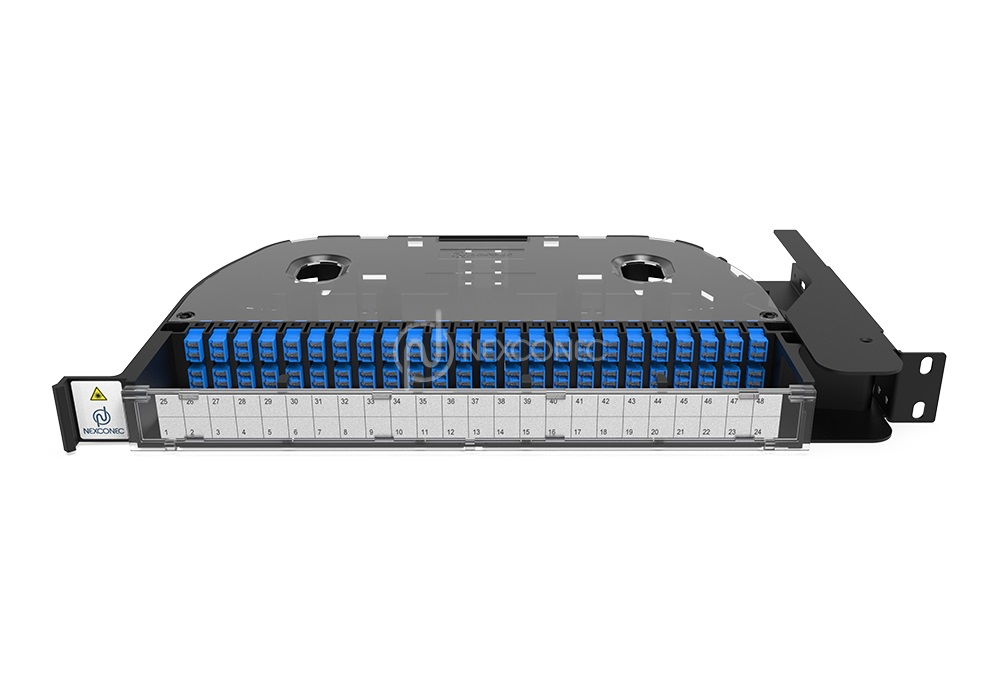

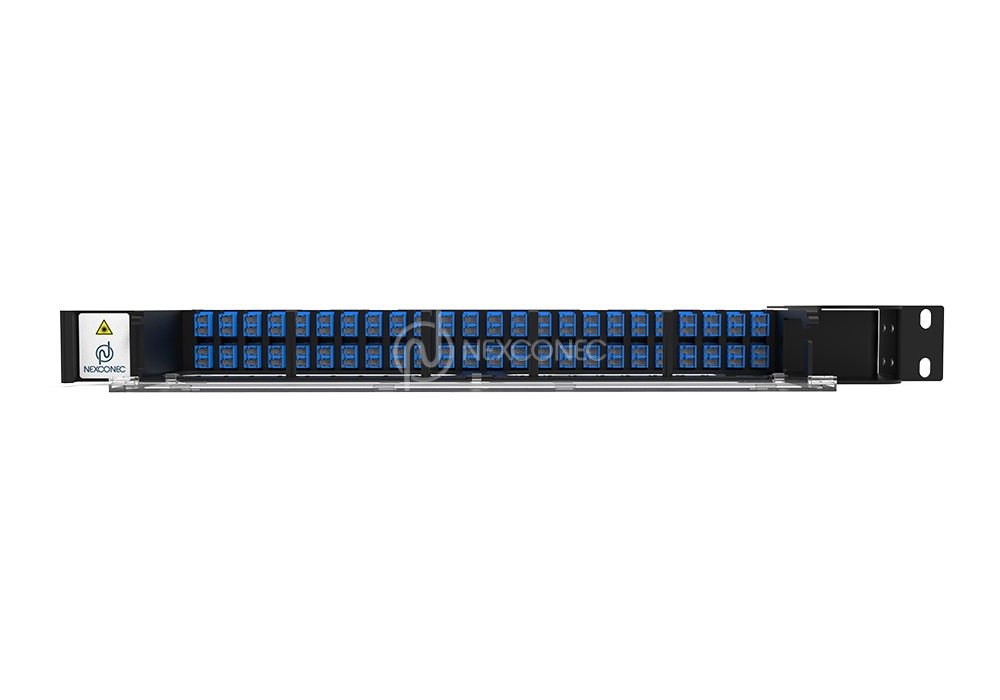

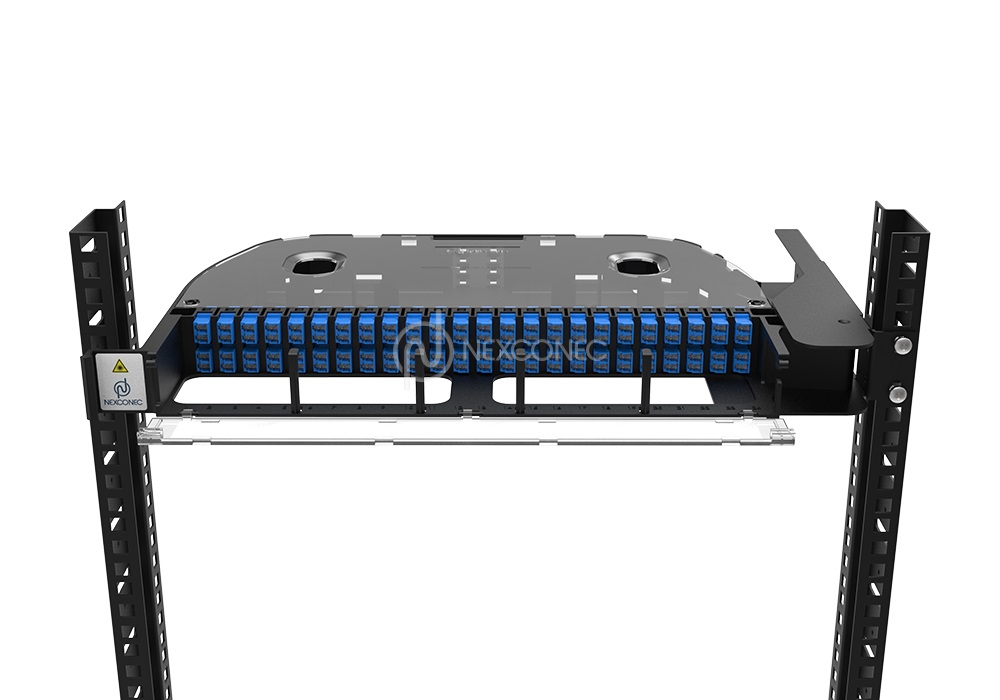

The NEXCONEC® 1U Preterm Pivot Patch Panel is a cutting-edge, high-density solution designed to accommodate 48 SC Simplex or LC Duplex adapters within a compact 1U space, supporting up to 96 fibers in LC configuration. Engineered for efficiency, the panel tray ensures seamless organization of incoming fibers, pre-terminated cables, and pigtails.

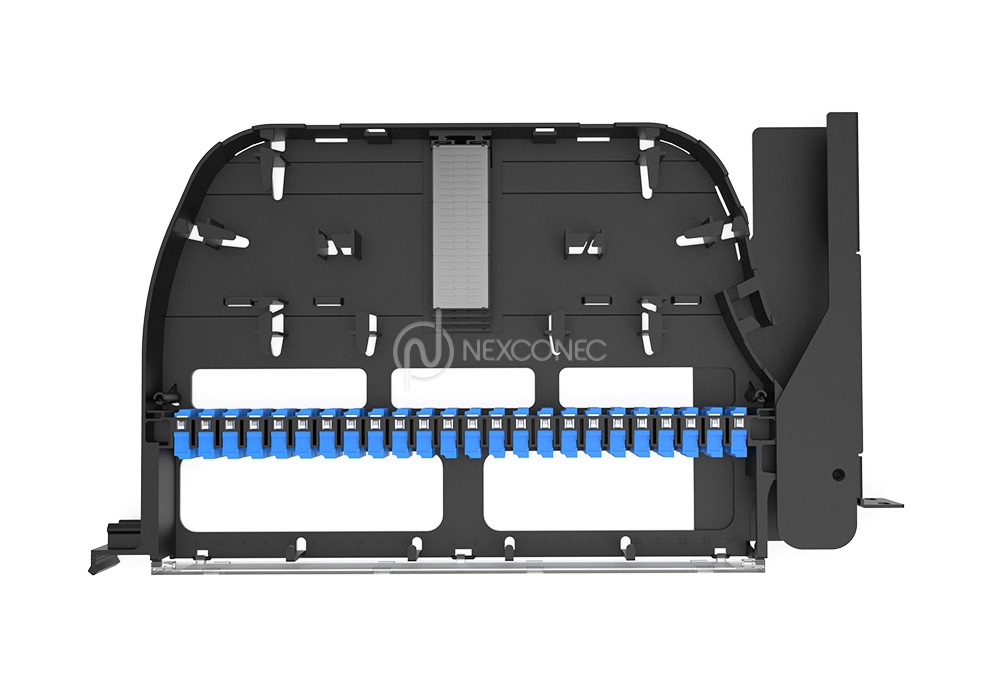

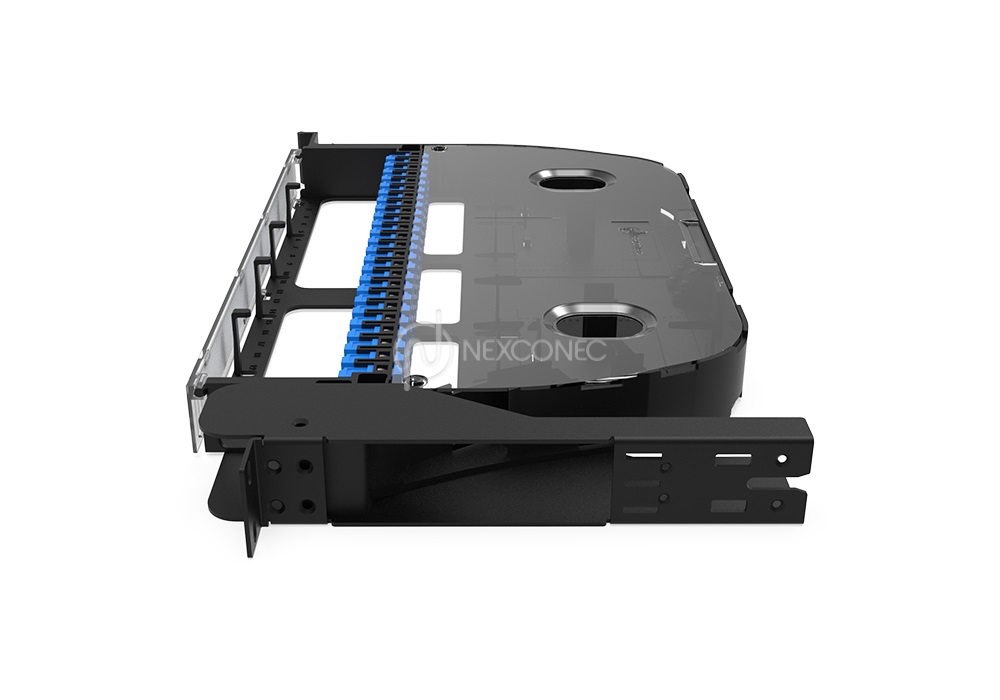

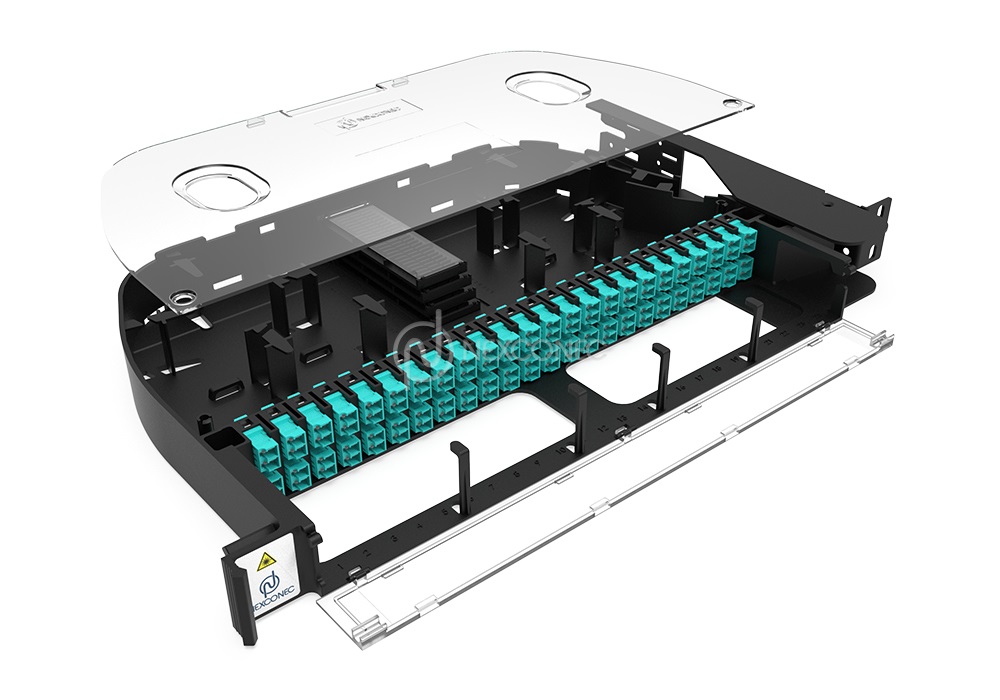

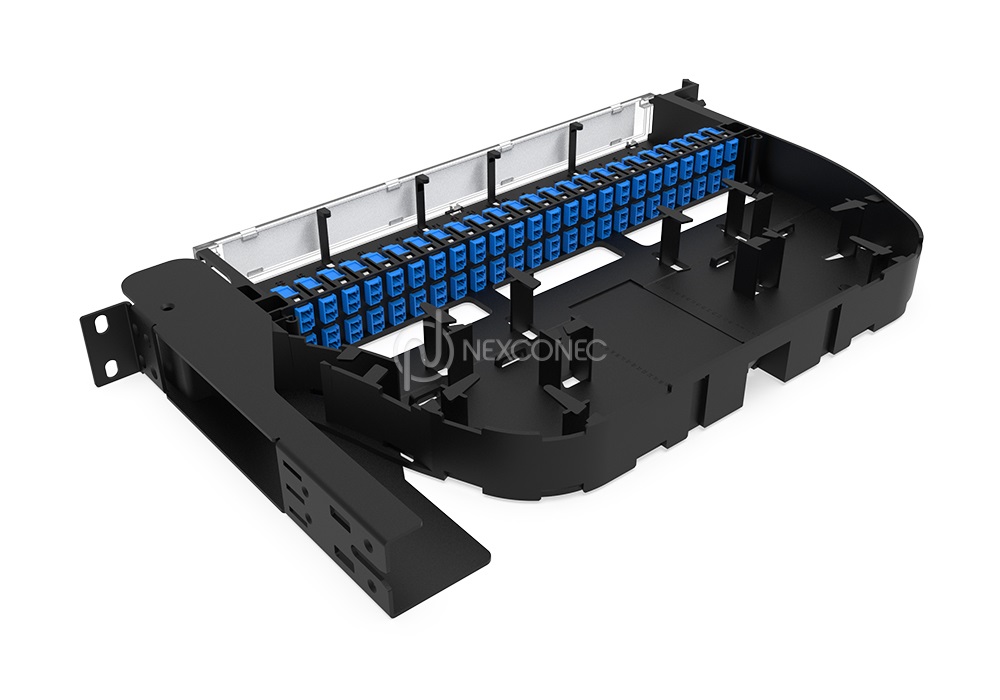

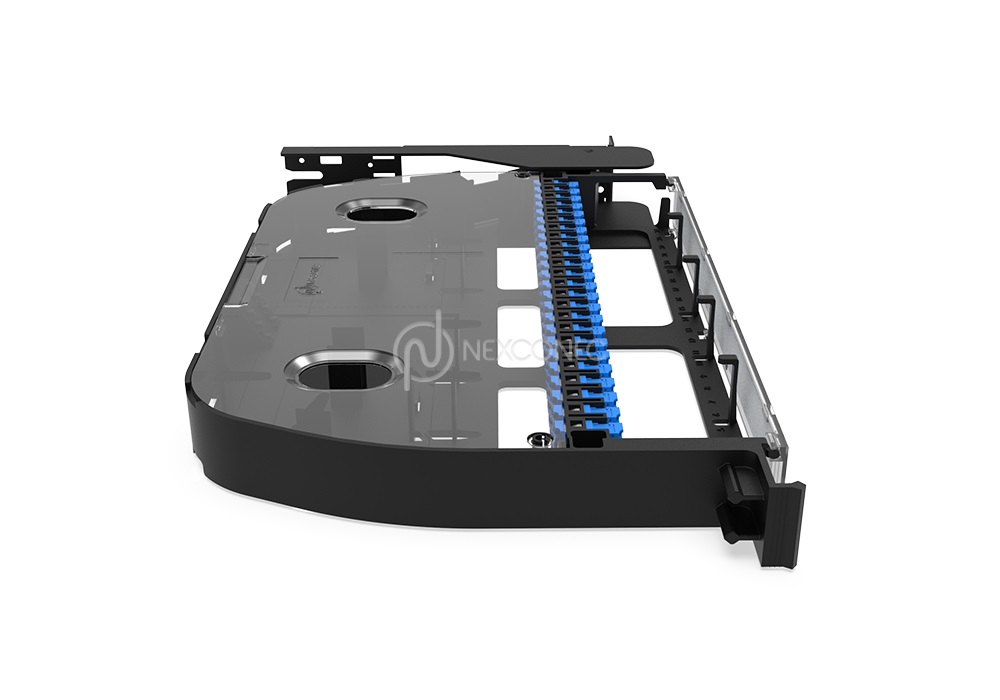

Featuring a 120° pivoting tray, the panel allows effortless access for installation and maintenance without disrupting existing cables or fibers. Its innovative design includes a detachable transparent lid and a hinged drop-down door, enhancing visibility, simplifying labeling, and streamlining maintenance tasks. Integrated ventilation tracts promote continuous airflow, ensuring effective cooling for active equipment.
The pivot panel can be fully pre-loaded with the necessary adapters and pigtails, delivering a ready-to-use fiber management solution.
PRODUCT HIGHLIGHTS
- Up to 48FO in SC or 96FO in LC within 1U Space
- Standard 19” or 21” Rack mounting type
- Transparent lid for easier maintenance and verification
- Right or Left Hinged Swing-out
FEATURES
- Up to 48FO in SC or 96FO in LC within 1U Space
- Accepts loose tube, distribution and pre-terminated cables
- Standard 19” or 21” Rack mounting type
- High durability & light weight PC & PC+ABS material
- Transparent lid for easier maintenance and verification
- Enhanced labelling on the front door providing patch cords protection and better identification
- Available in shuttered dust proof LC adapters
- Simple and easy installation with integrated fiber routing
- Right or Left Hinged Swing-out
APPLICATIONS
- Datacenter storage area & Central office, POP
- Fiber to the home (FTTH)
- Ethernet, Fiber Channel, ATM, LAN, MAN and WAN
- Data communication and Telecommunication networks
PANEL SPECIFICATIONS
| Parameters | Value |
|---|---|
| Mounting Type | Rack 19” or 21" |
| Opening Type | Right or Left Hinge Swing-out - 120° degrees |
| Access Type | Front and Side access |
| Front Cable Management | Front manager with Hinged transparent drop-down door |
| Cable Entry Direction | Side Cable Entry |
| Side Cable Management | Supports up to 8 tubes of 5mm |
| Slot Type | SC Simplex/ LC Duplex Footprint |
| Number of Ports | 48 Ports |
| Fiber Capacity | 48FO in SC, 96FO in LC |
| Splicing Kit (Splice Kit Need to Order Separately) |
Supplied Separately, ref# KIT-SPROP1 (4x Splice Holders, Foam insert, 100x Splice protectors 40mm, 1x metal comb holder, 5mm conduit slots) |
| Accessories | Included in package: 4x Cage Nuts & Screws, 1x Side Cable Manager |
| Height Unit | 1U |
| Dimensions (W x D x H in MM) | 421.5 x 270.06 x 42.5 mm |
| Material | PC & PC + Fiber Glass (20%) |
| Housing Color | Black or Grey (RAL 7035) |
| Compliance | RoHS, REACH SvHC |
| Application | Indoor IP20 |
| Lockable | No |
| Net Weight | 2 Kg |
| Part Number | Product Description |
|---|---|
| RP01R | 1U 48 Ports SC Simplex/LC Duplex Pre-Terminated Pivot Patch Panel (Right Side Bracket) |
| RP01L | 1U 48 Ports SC Simplex/LC Duplex Pre-Terminated Pivot Patch Panel (Left Side Bracket) |
