1U 5 SLOTS UPX MODULAR FIXED FRAME (Up to 120FO in LC) - UPXPP01

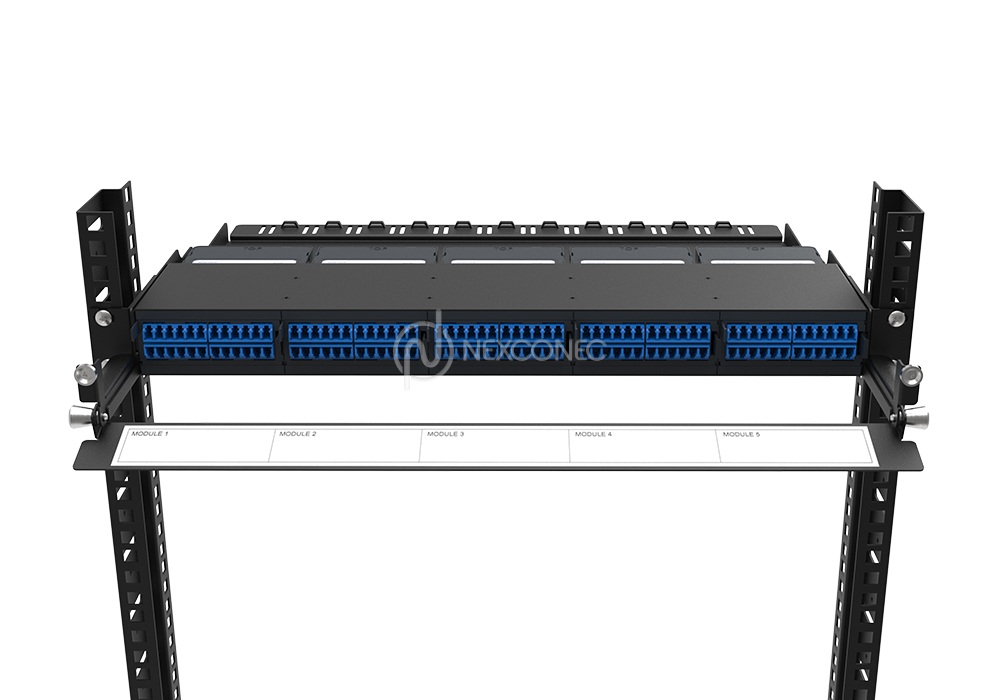

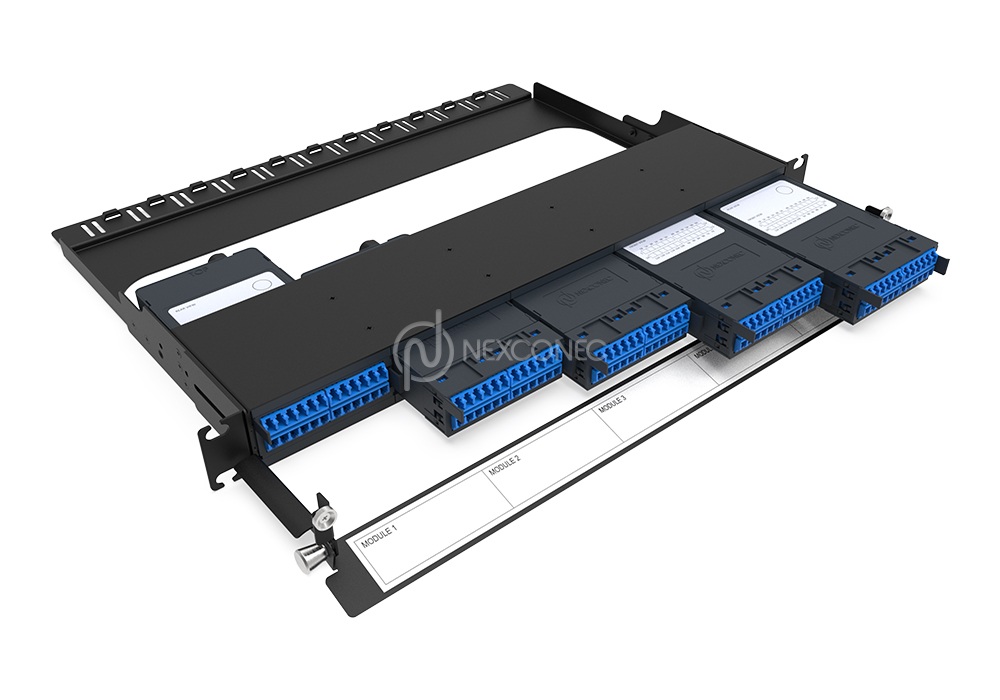

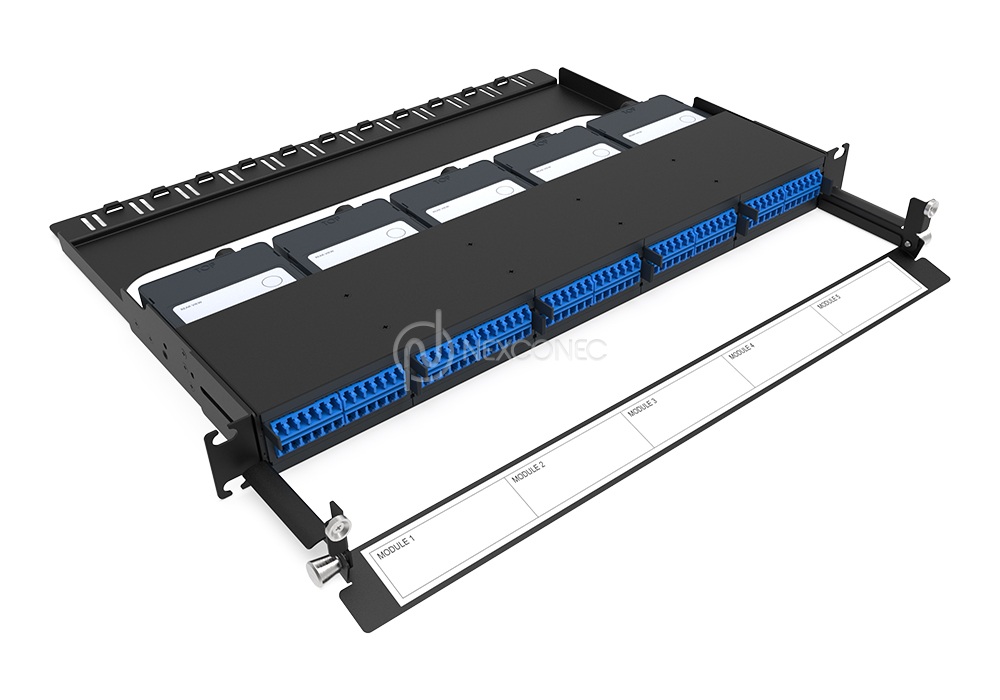

NEXCONEC® UPX (Uptime Cross-Connect Solution) High-Density Fiber Optic 1U Patching Panel (fixed frame design) supports up to 5 UPX cassettes or adapter plates, accommodating up to 120 fibers with LC or a maximum of 240 fibers with SN configuration.
This modular frame is designed for versatile applications, including MPO systems, pre-terminated custom modules, patchthrough plates, next-generation transition modules (100G/40G to 25G/10G), or traditional splicing. The multi-functional chassis provides easy access during installation or rework without disturbing existing cables or fibers.

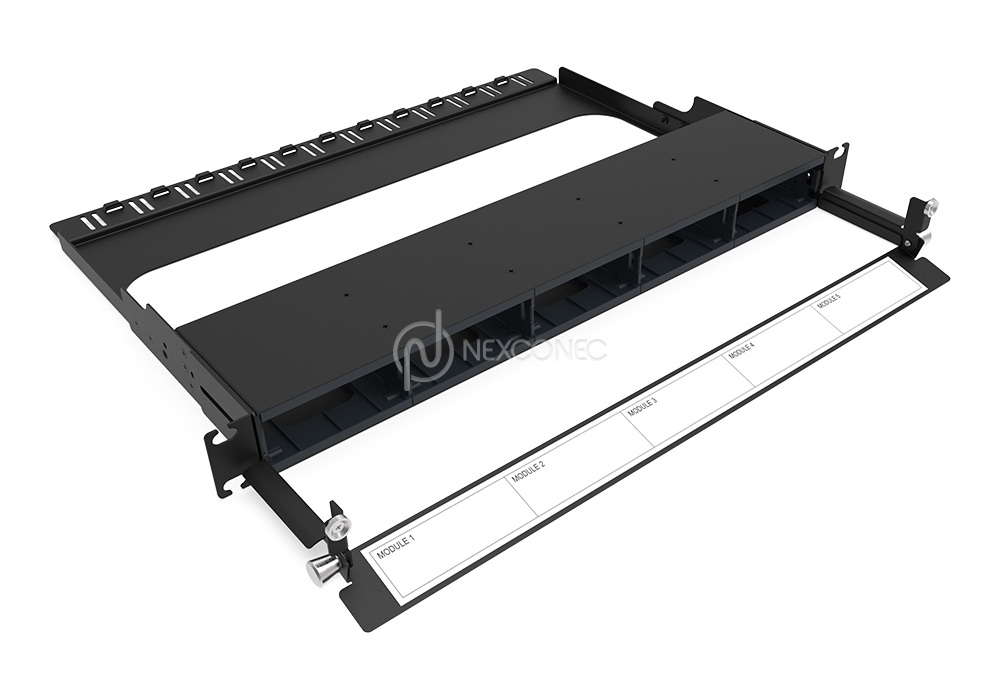

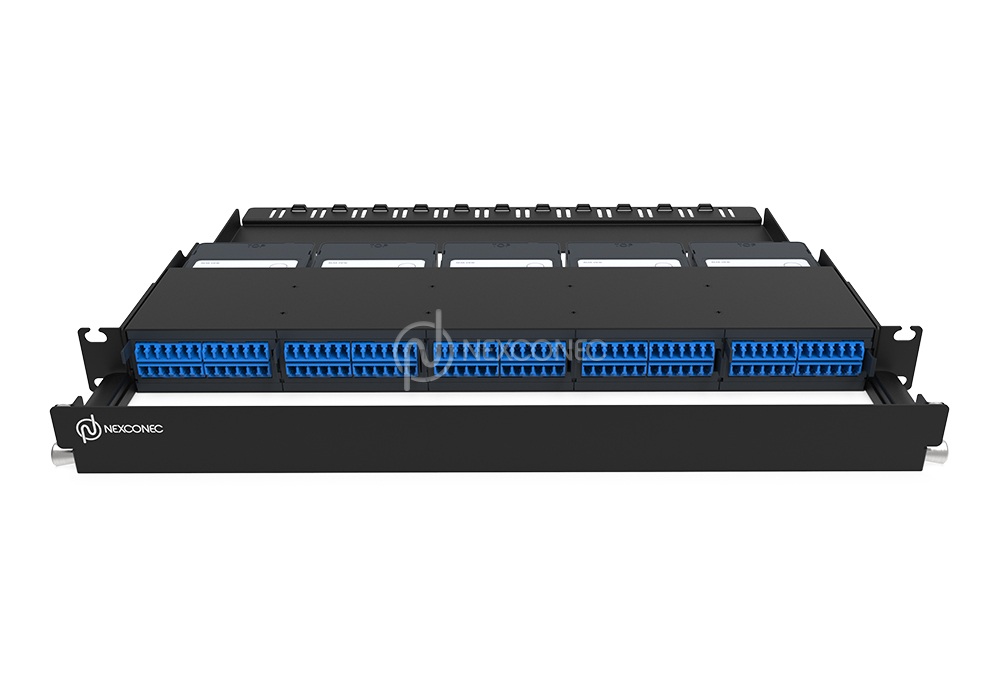

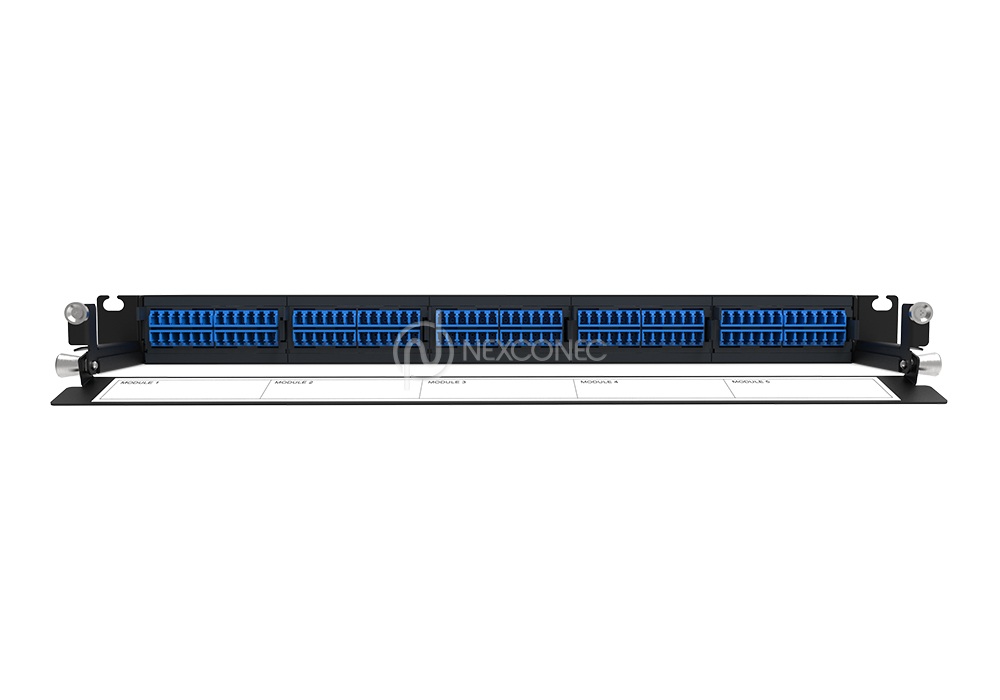

The frame is supplied unloaded, with modules and plates available separately.
PRODUCT HIGHLIGHTS
- 5 Slots UPX in 1U space
- Compact size for installation shallow-depth racks
- Up to 120FO in LC, 60FO in SC, 180FO in CS & 240FO in SN

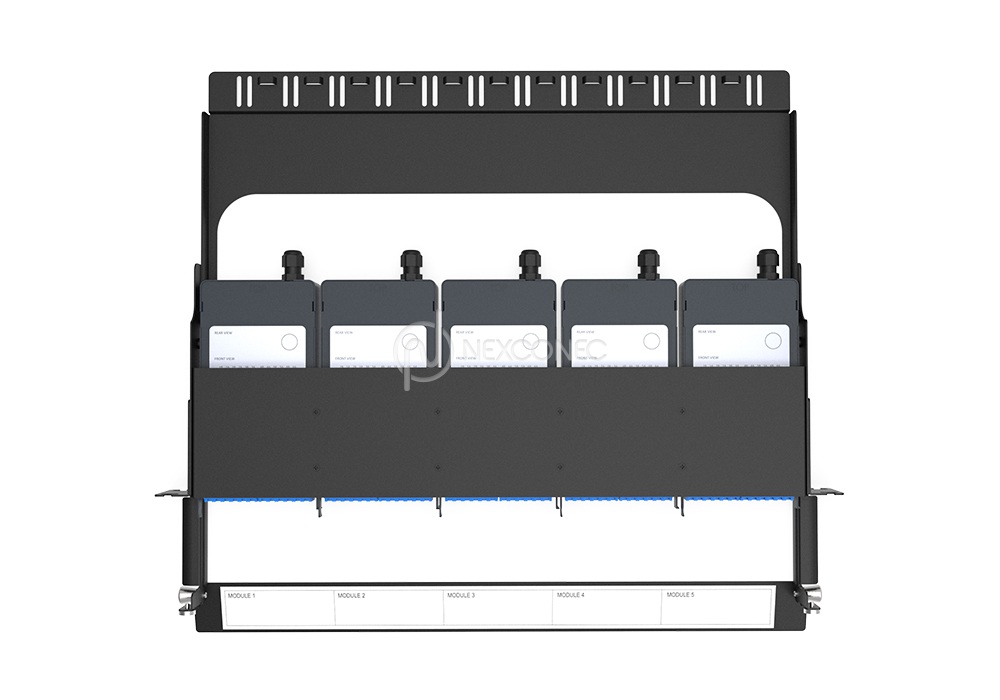

- Fully integrated fiber management with Facilitated patch cord installation
- Modular with MTP®/MPO, Splicing Cassette or Adapter plates or copper module
FEATURES
- 5 Slots UPX in 1U space
- Compact size for installation shallow-depth racks
- Up to 120FO in LC, 60FO in SC, 180FO in CS & 240FO in SN
- Fully integrated fiber management with Facilitated patch cord installation
- Individually labelled ports
- Modular with MTP®/MPO, Splicing Cassette or Adapter plates or copper module
APPLICATIONS
- Datacenter storage area network & Central Office, POP
- Indoor application
- Enterprise/Campus
PANEL SPECIFICATIONS

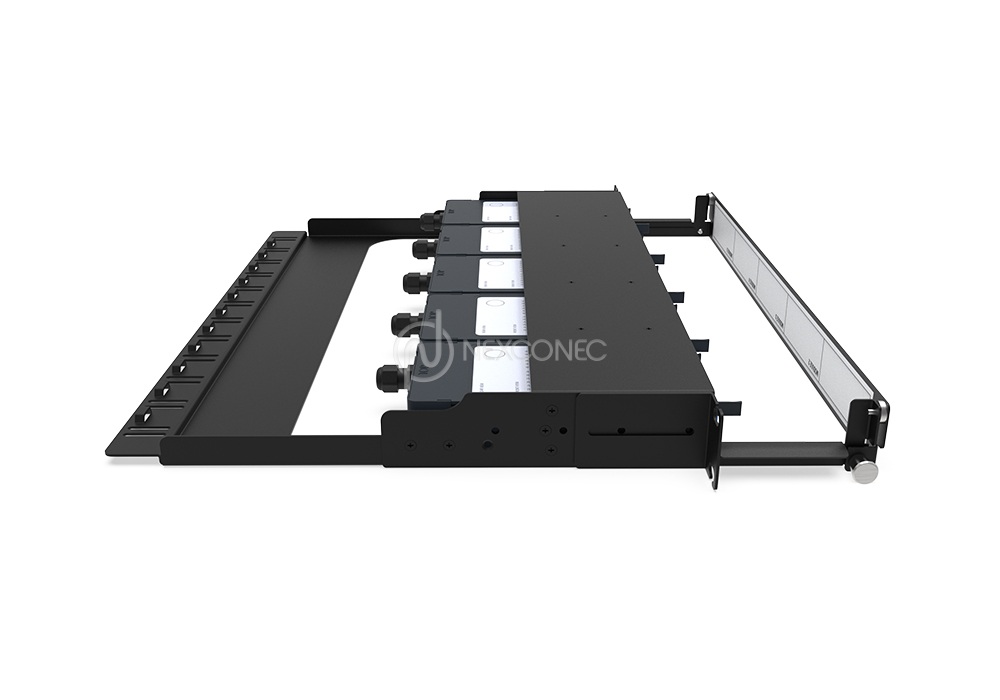

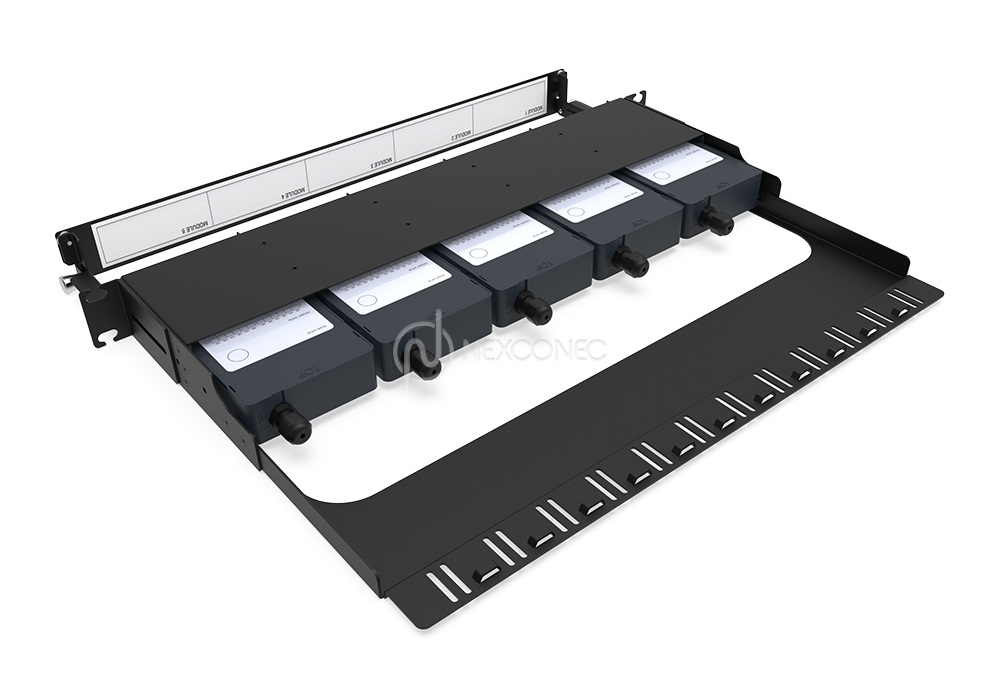

| Parameters | Value |
|---|---|
| Mounting Type | Rack 19” |
| Opening Type | Fixed Chassis |
| Access Type | Front Access |
| Front Cable Management | Removable Hinged Drop-Down Door |
| Cable Entry Direction | Rear, left and right |
| Height Unit | 1U |
| Slot Type | UPX Modules and UPX Plates |
| Number of Slots | 5 Slots |
| Fiber Capacity | Up to 120FO in LC, 60FO in SC, 180FO in CS, 240FO in SN |
| Material | Metal Part: Cold Rolled Steel | Plastic Part: PC+ABS |
| Housing Color | Metal Part: Black (RAL 9004) Plastic Part: Grey Blue (RAL 5008) |
| Application | Indoor IP20 |
| Dimensions (W x D x H) | 449 x 404.20 x 43.9 mm |
| Net Weight | 1.5 Kg |
| Material Compliant | RoHS, REACH / SVHC |
| Telecommunication Standards | TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754 |
| Part Number | Product Description |
|---|---|
| UPXPP01 | 1U 5 Slots UPX Modular Fixed Frame (Including Front Management) |
