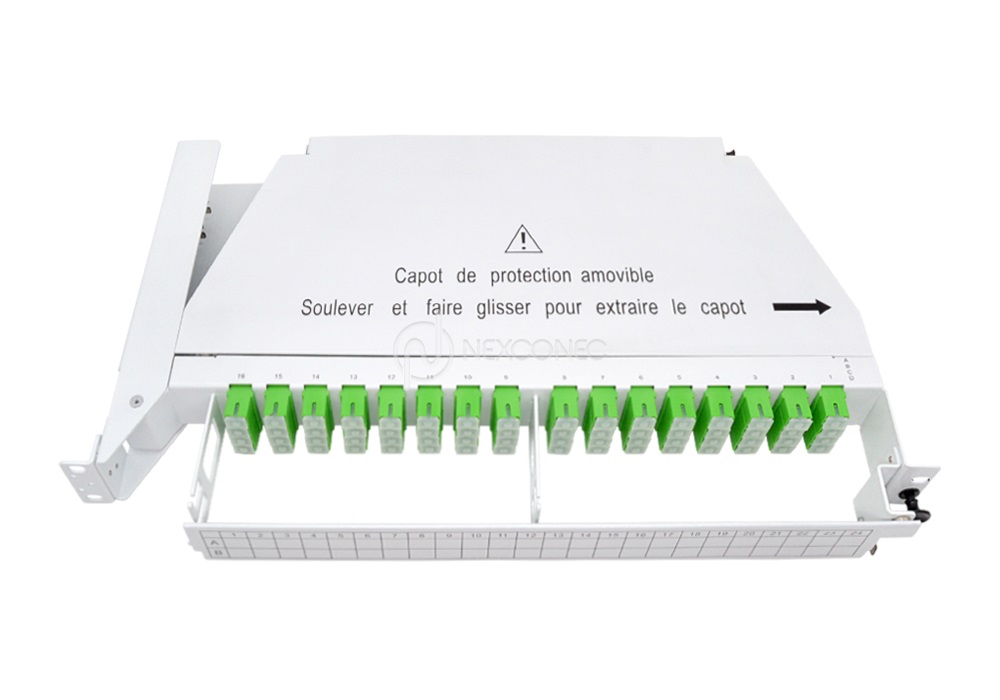

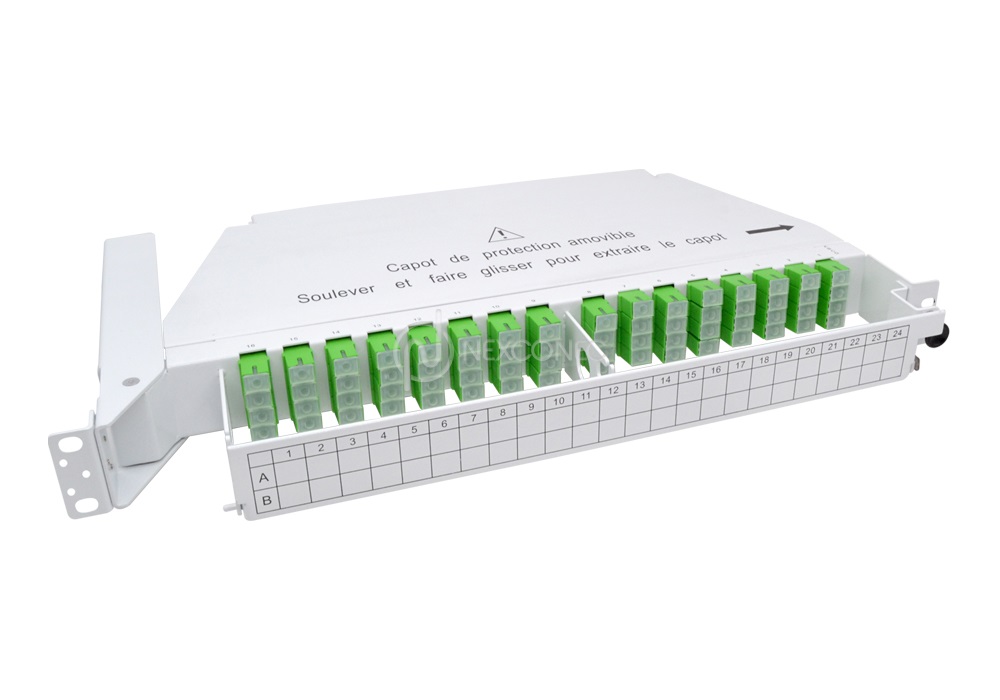

1U FIBER OPTICAL ROTARY SPLITTER PANEL - SW02-000-xx

SW02-000-xx
SW02-000-xx
SW02-000-xx
SW02-000-xx
SW02-000-xx
SW02-000-xx
SW02-000-xx
SW02-000-xx
SW02-000-xx
SW02-000-xx
SW02-000-xx
SW02-000-xx
SW02-000-xx SW02-000-xx SW02-000-xx SW02-000-xx SW02-000-xx SW02-000-xx SW02-000-xx SW02-000-xx SW02-000-xx SW02-000-xx SW02-000-xx SW02-000-xx

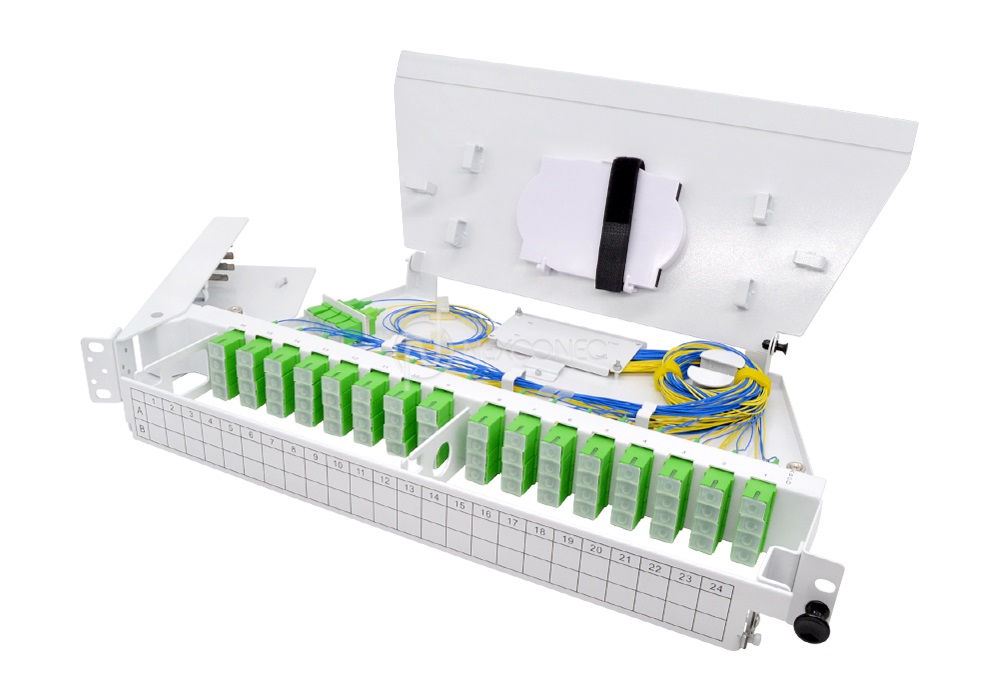

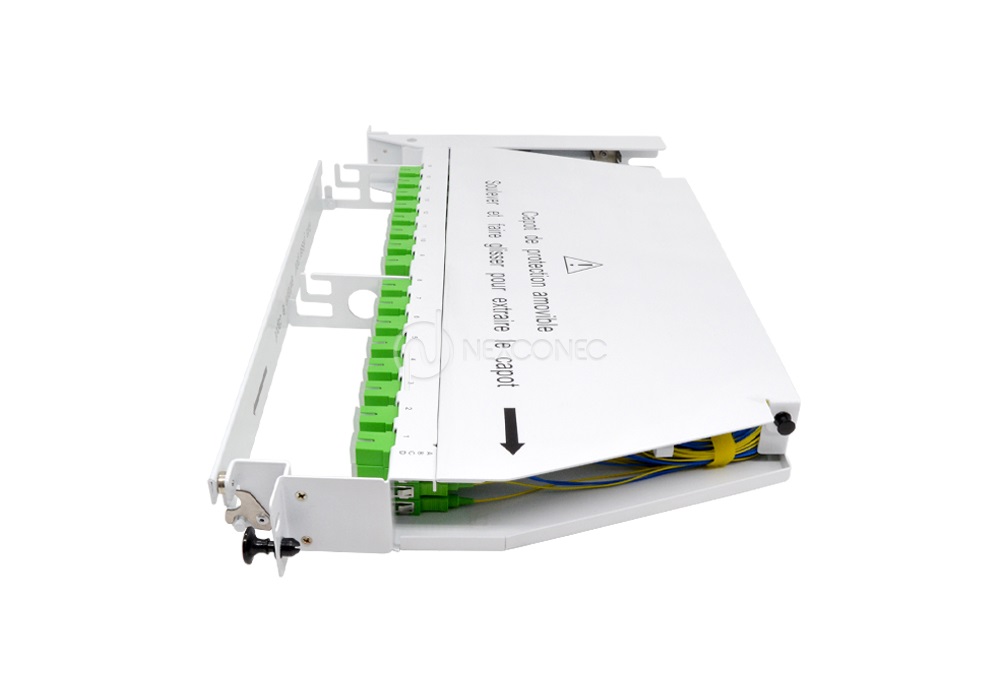

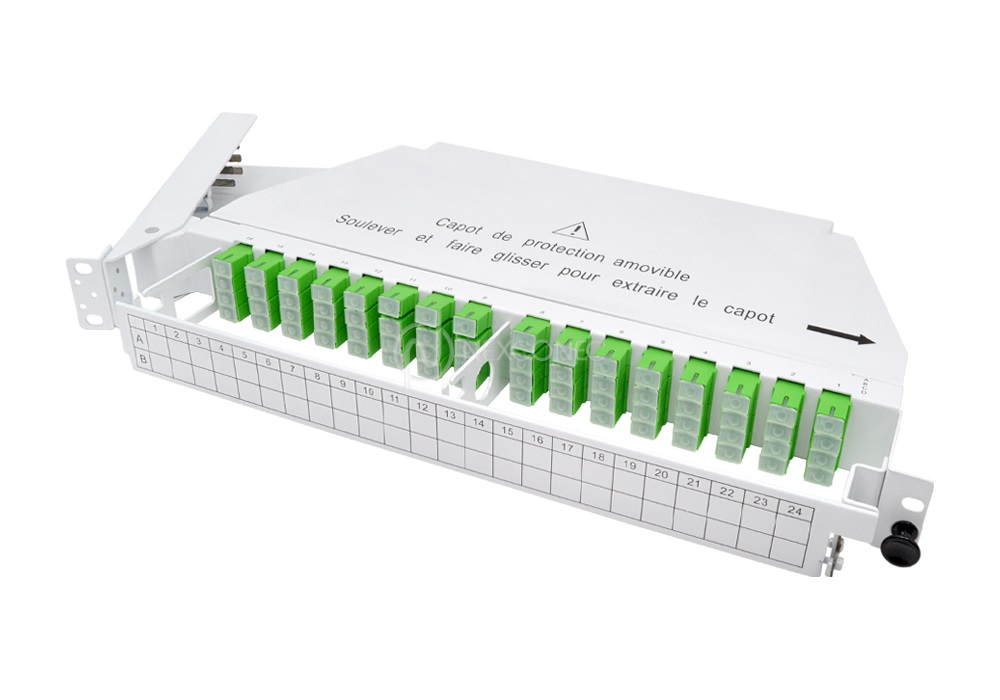

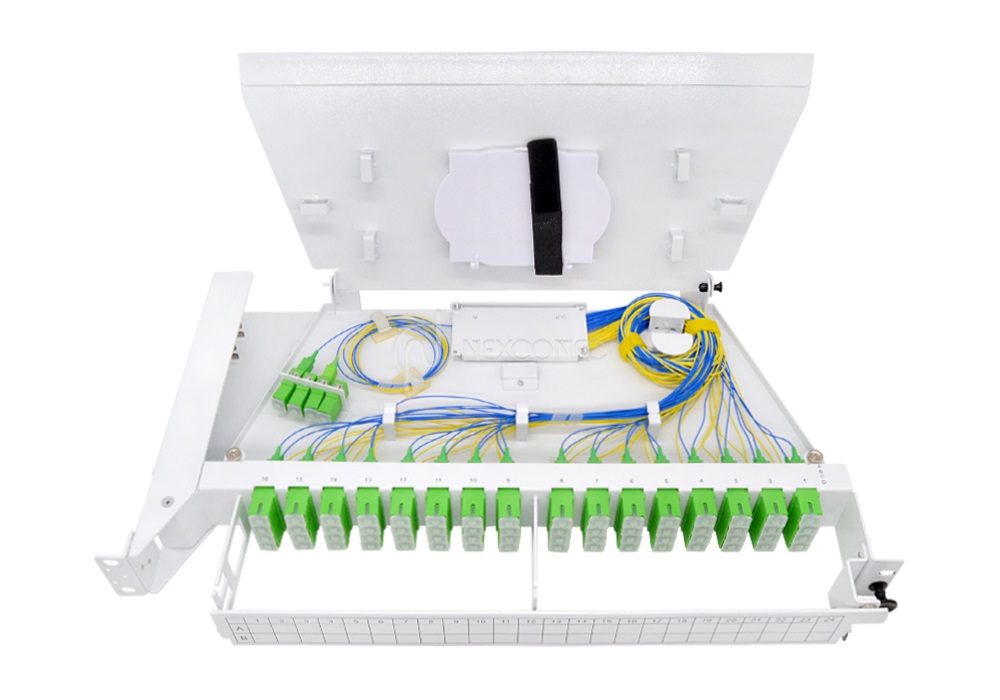

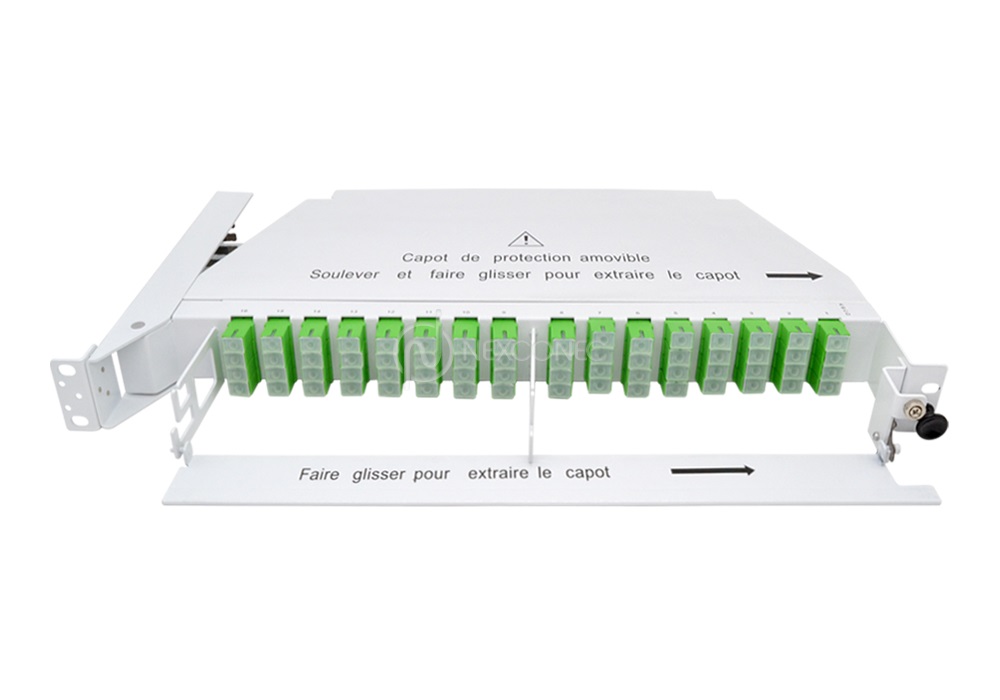

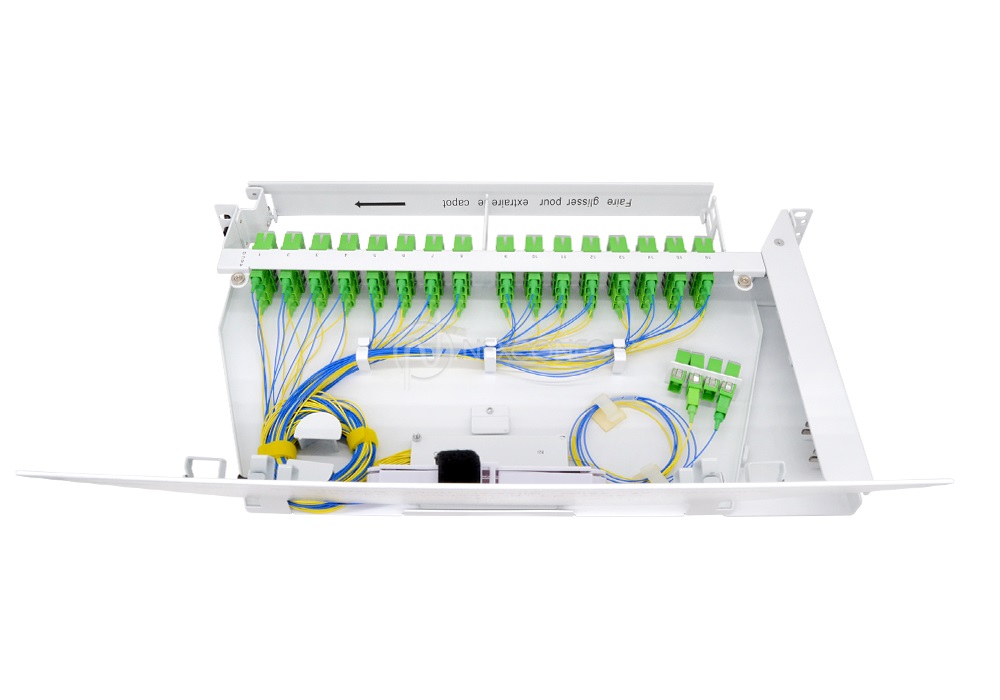

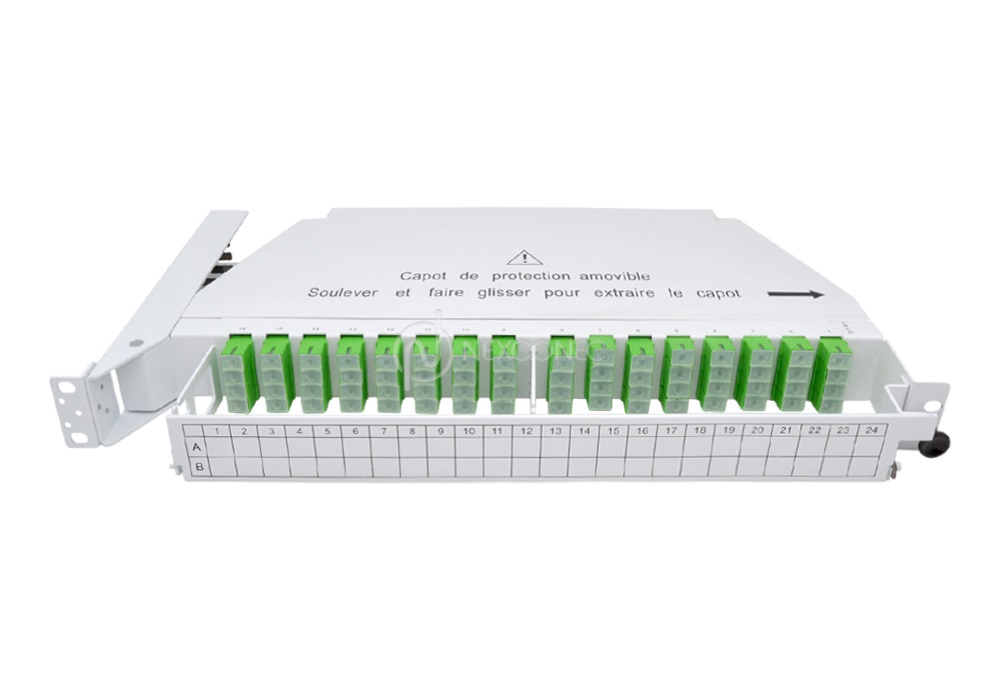

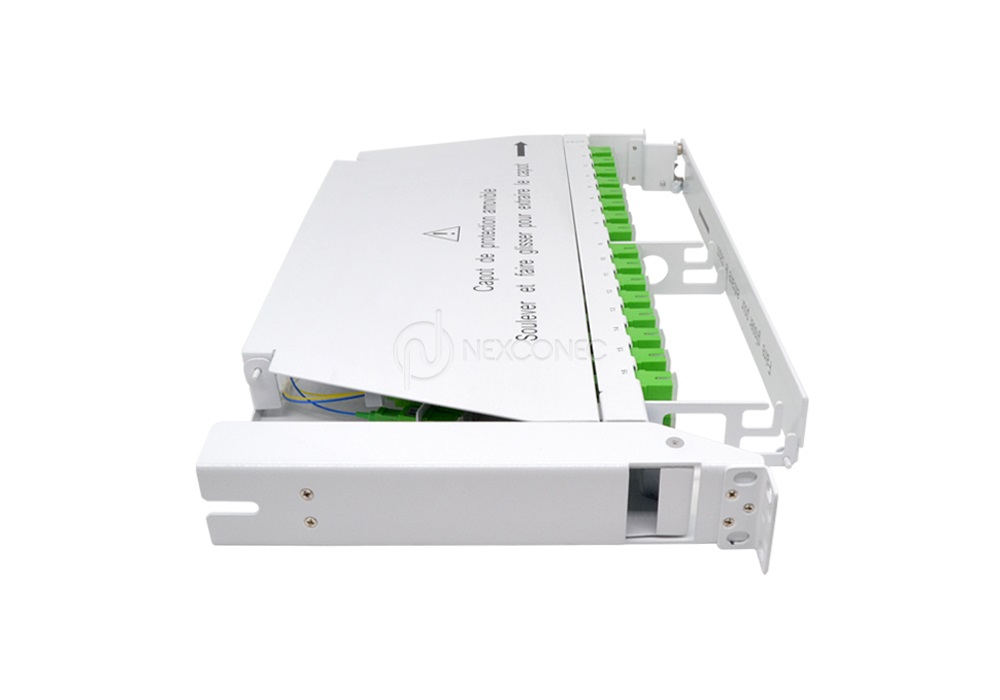

Nexconec 1U rotary splitter panel is widely used in optical communication networks, completing such functions as splicing, splitting and 64-fiber distribution. It can be installed optical splitter (maximum splitting ratio: one 1X64 optical splitter) to implement optical splitting and capacity expansion. After the product left-handed rotated, fixing optical splitter and back panel of splicing tray left-handed rotated. Backbone inlets adopt embedded way, convenience for operation and maintenance.

FEATURES AND APPLICATIONS
  • 64 SC Simplex adapters for the output of the splitter
  • 4 SC Simplex adapters for the input of splitters
  • Splitter type, 1pc-1X64 or 2pcs-1X32, or 4pcs 1X16 and so on

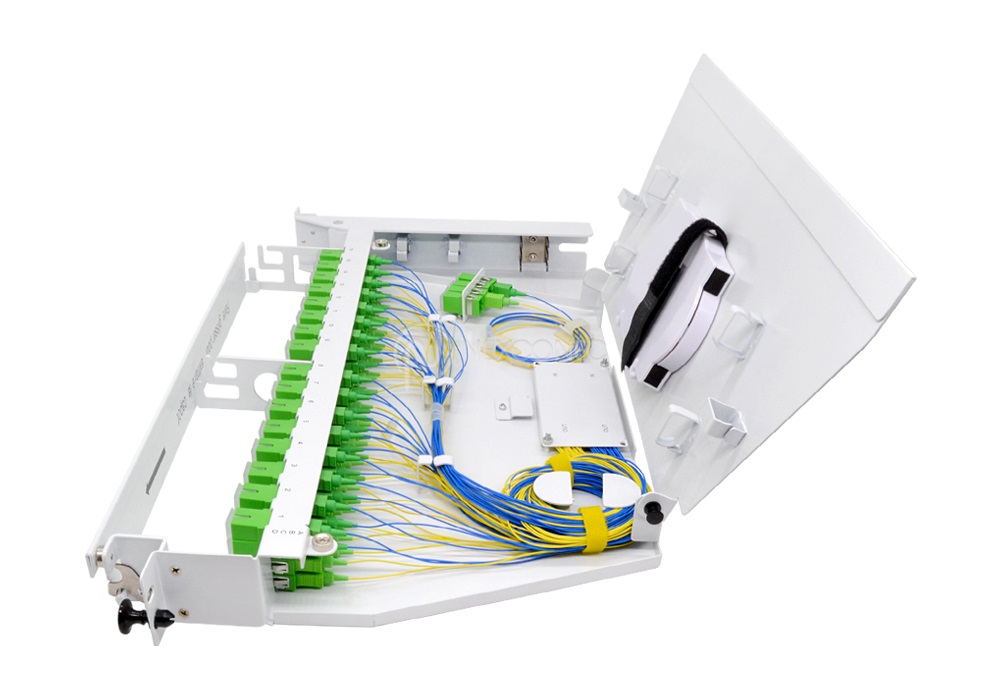

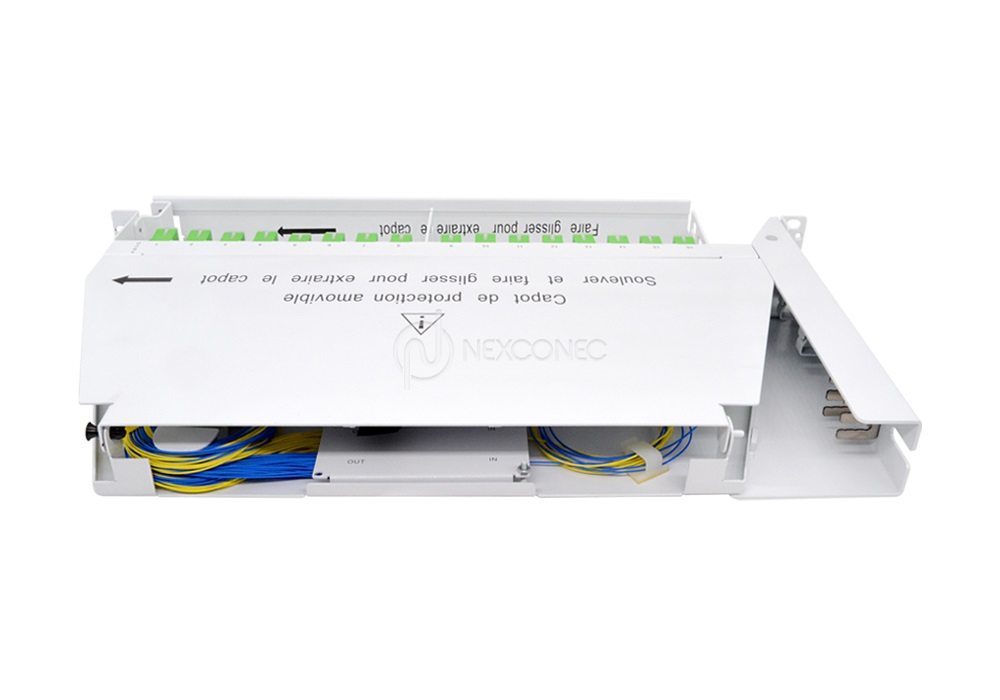

  • Easy to operate, Right or Left Hinge swing out
  • Standard 19/21 inch installation
  • Maintain the bend radius of all fibers inside the module at 30mm
  • Datacenter storage area & Central office, POP
  • Fiber to the home (FTTH) Street cabinets
  • LAN/WAN

Product Information

pdfDATASHEET.pdf View Download
Mounting Type 19” and compatible ETSI 21”
Opening Type Right or Left Hinge swing out
Dimension 44 x 482 x 260 mm
Material Anticorrosive Steel and FR polymer
Housing Color Painted light grey RAL7035
Maximum Capacity 12 Splice + 64 SC adapter
Maximum Splice Tray 1x12 Fibers/tray
Operating Temperature －25℃～＋55℃(5 to 95% RH)
Net Weight 3 Kg
Slot Type SC Simplex adapters
Number of Slots 64
Part Number Product Description
SW02-000-LF 1U Splitter Pivot Panel, 64 SC Adapters Ports Unloaded, Left Opening
SW02-000-RI 1U Splitter Pivot Panel, 64 SC Adapters Ports Unloaded, Right Opening
