3U 14 slots LGX Modular Frame (up to 336FO)

Products | Fiber Systems | Rack Mount Housing | LGX Range

3U 14 slots LGX Modular Frame (up to 336FO) - LGX3U

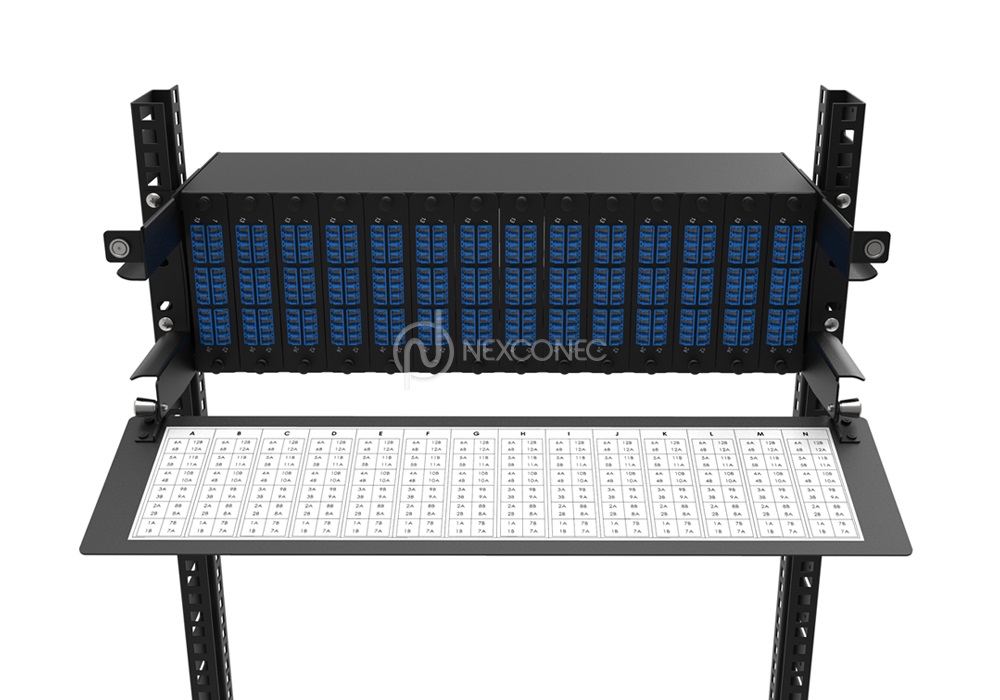

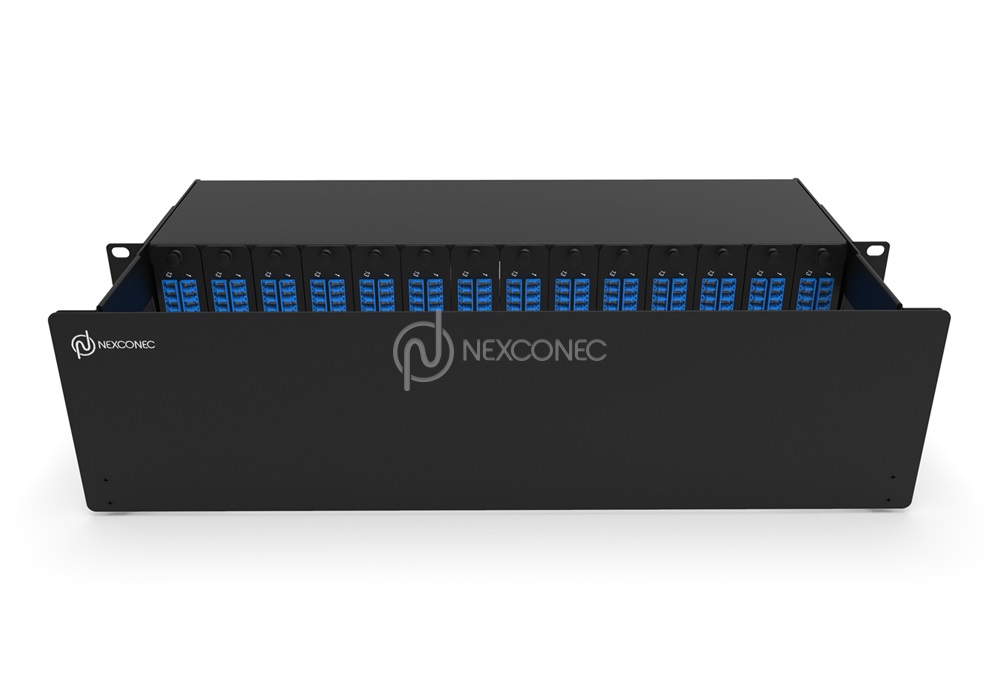

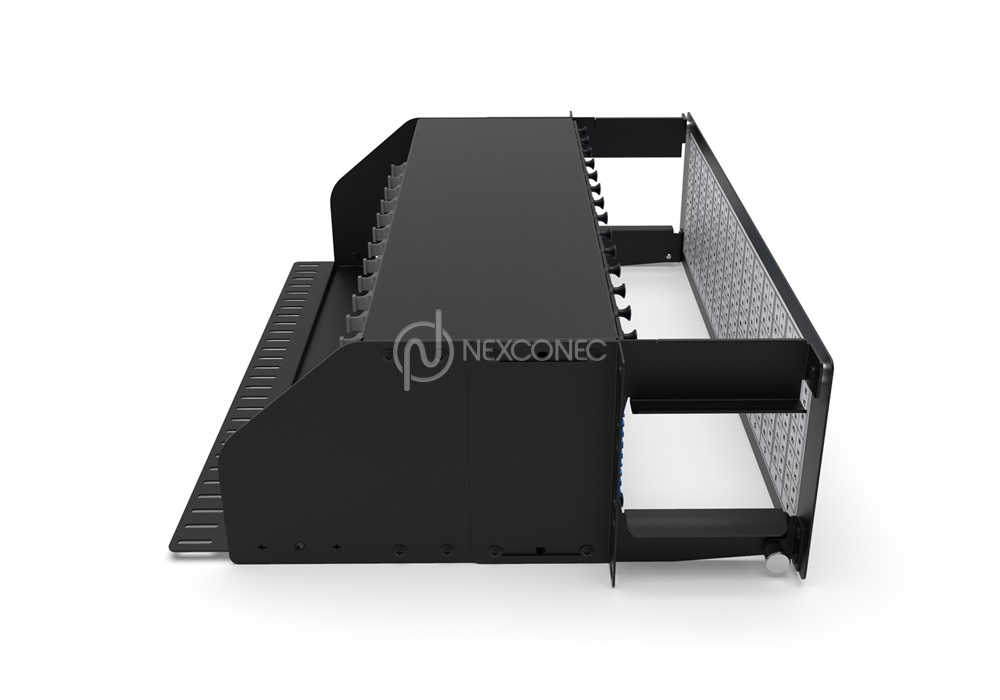

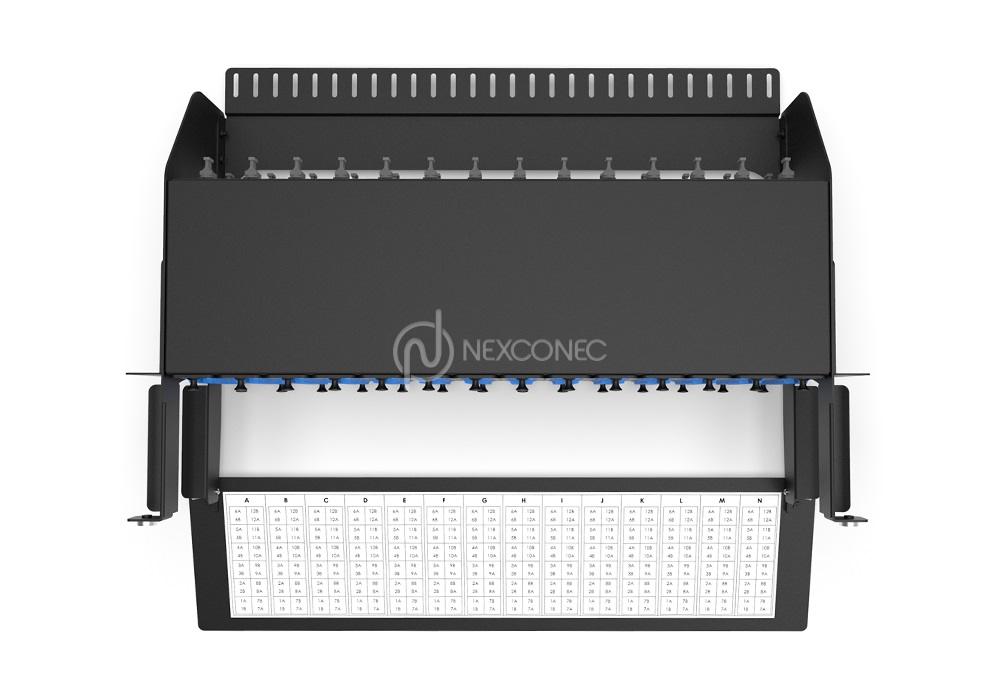

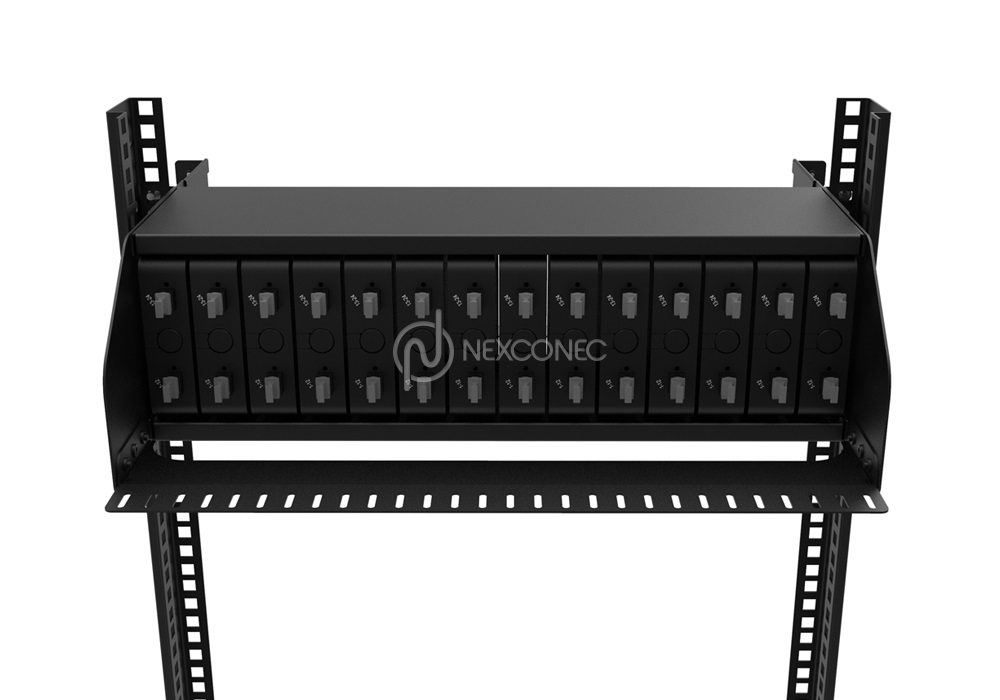

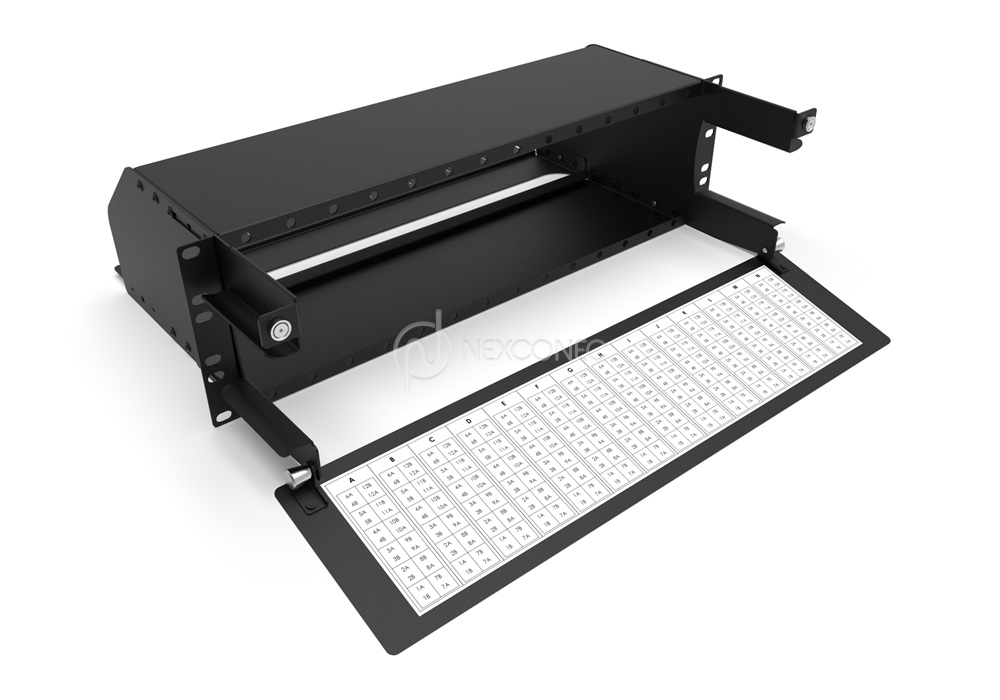

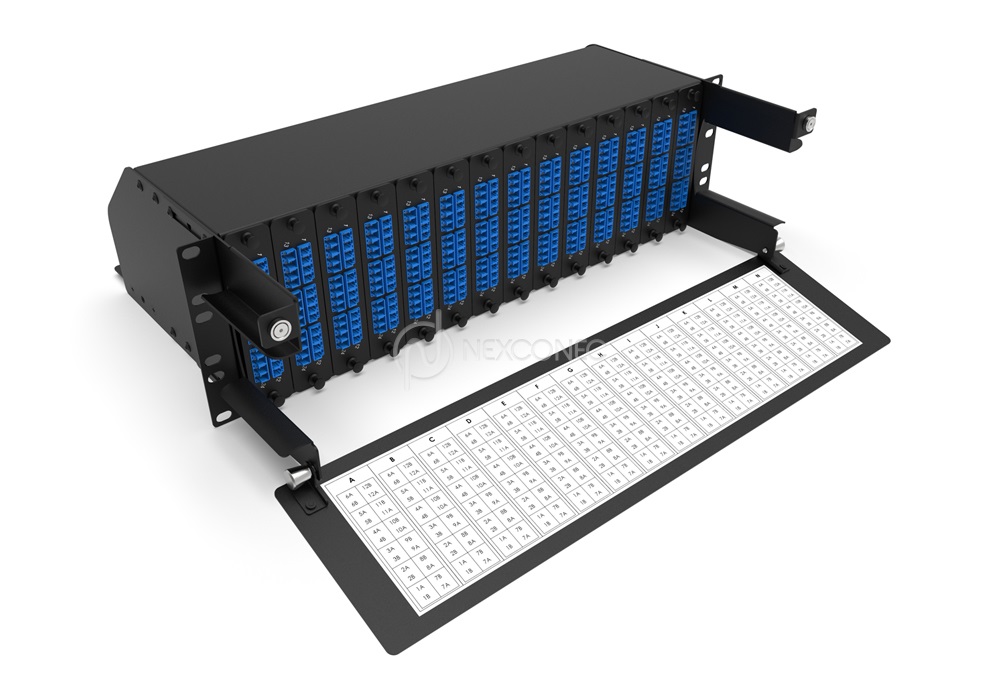

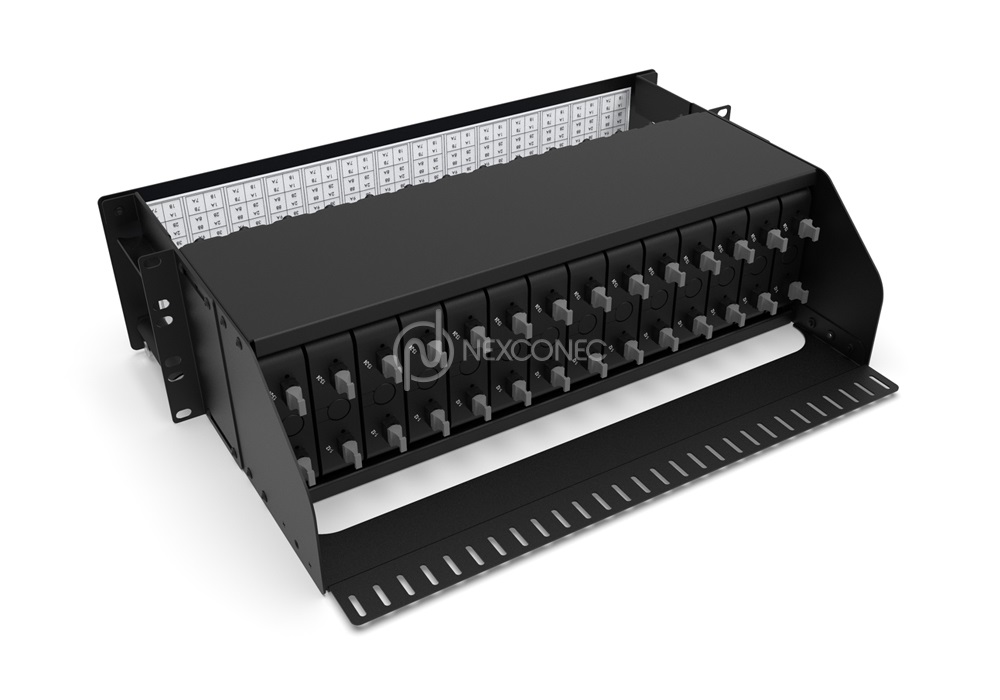

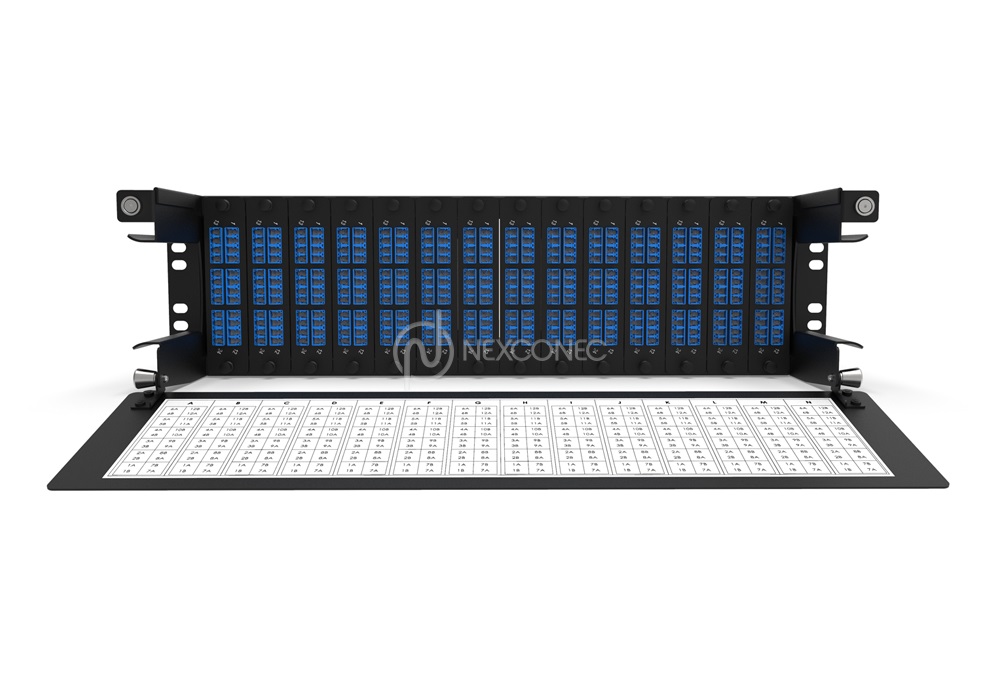

NEXCONEC^® 3U LGX High Density frame allows scale up to 14 LGX MTP^®/MPO, splicing modules or adapter plates for a total of 336FO in LC ports in a compact chassis. Multi-functional chassis which allows easy access during installation or rework with no disturbance of the existing cables or fibers.

Frame is supplied unloaded and the modules and plates are supplied separately.

PRODUCT HIGHLIGHTS

14 Slots LGX in 3U space
Up to 336FO in LC / 168FO in SC
Fully integrated fiber management
Individually labelled ports
MTP^®/MPO, Splicing, Patching Cassettes
RoHS, REACH and SVHC

PRODUCT INFORMATION

DATASHEET.pdf	View	Download
TECHNICAL DRAWING.pdf	View	Download
VISIO.vsdx		Download

FEATURES

14 Slots LGX in 3U space
Up to 336FO in LC / 168FO in SC
Fully integrated fiber management
Individually labelled ports
MTP^®/MPO, Splicing, Patching Cassettes
RoHS, REACH and SVHC

APPLICATIONS

Datacenter storage area network & Central Office, POP
Indoor applications
Accepts Indoor and Outdoor Pre-terminated cables, MTP^®/MPO trunks and Splicing

SPECIFICATIONS

Parameters	Value
Mounting Type	Rack 19”
Opening Type	Fixed Chassis
Access Type	Front access
Front Cable Management	Removable Hinged drop-down door
Cable Entry Direction	Rear
Rear Cable Management	Yes
Height Unit	3U
Slot Type	LGX Modules and LGX Plates
Number of Slots	14 Slots
Fiber Capacity	336FO in LC / 168FO in SC
Material	Cold Rolled Steel
Housing Color	Black
Application	Indoor IP20
Lockable	No
Dimensions (W x D x H)	485 x 338.7 x 132 mm
Net Weight	4 kg
Material Compliant	RoHS, REACH / SVHC
