Breakout Cable

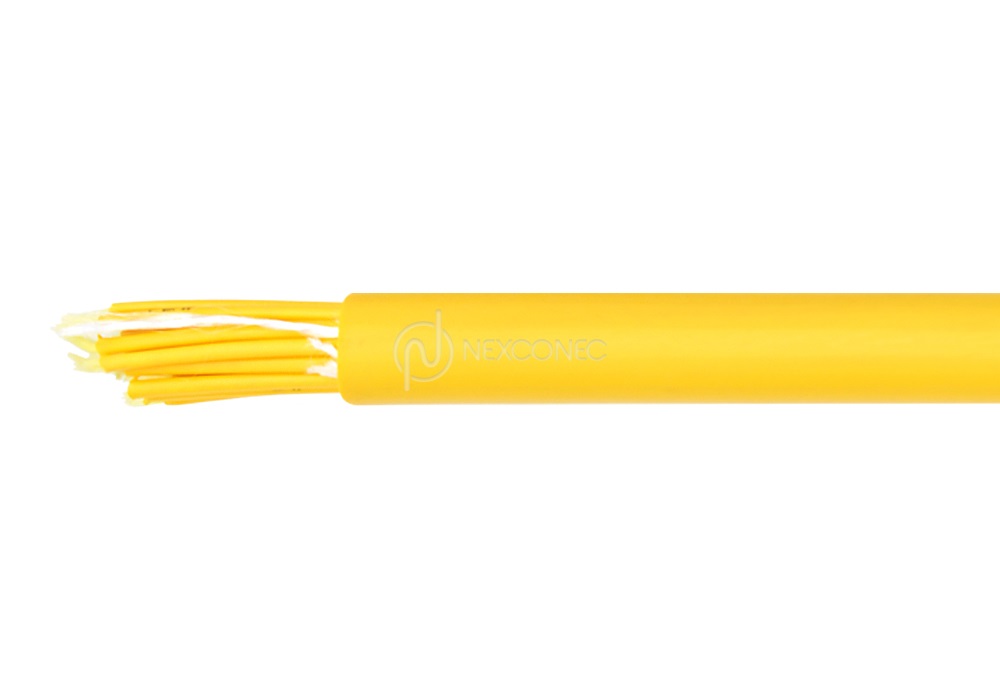

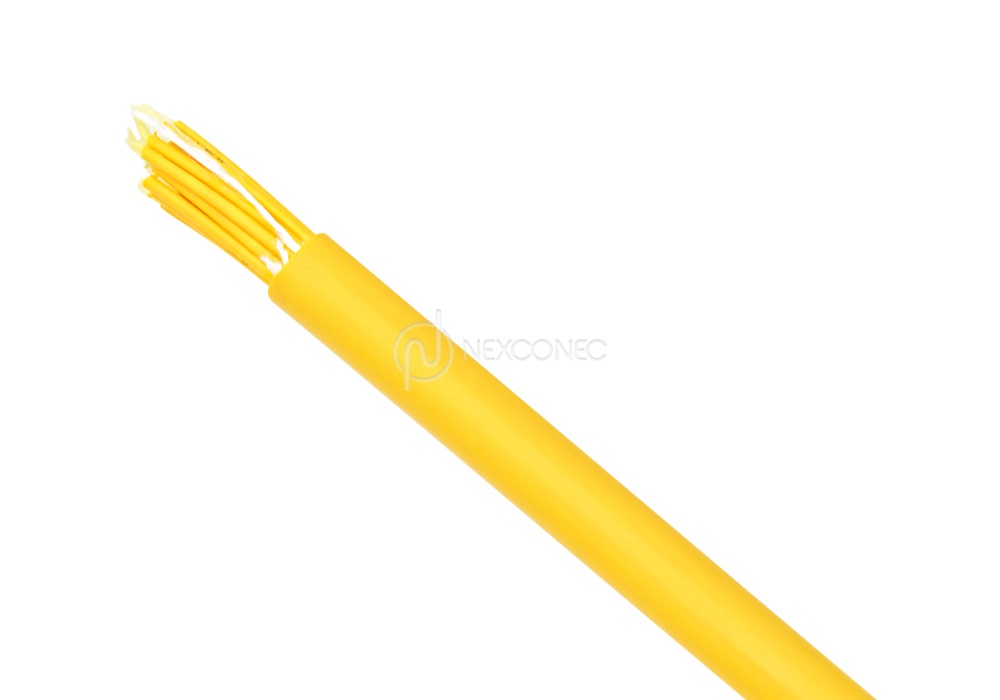

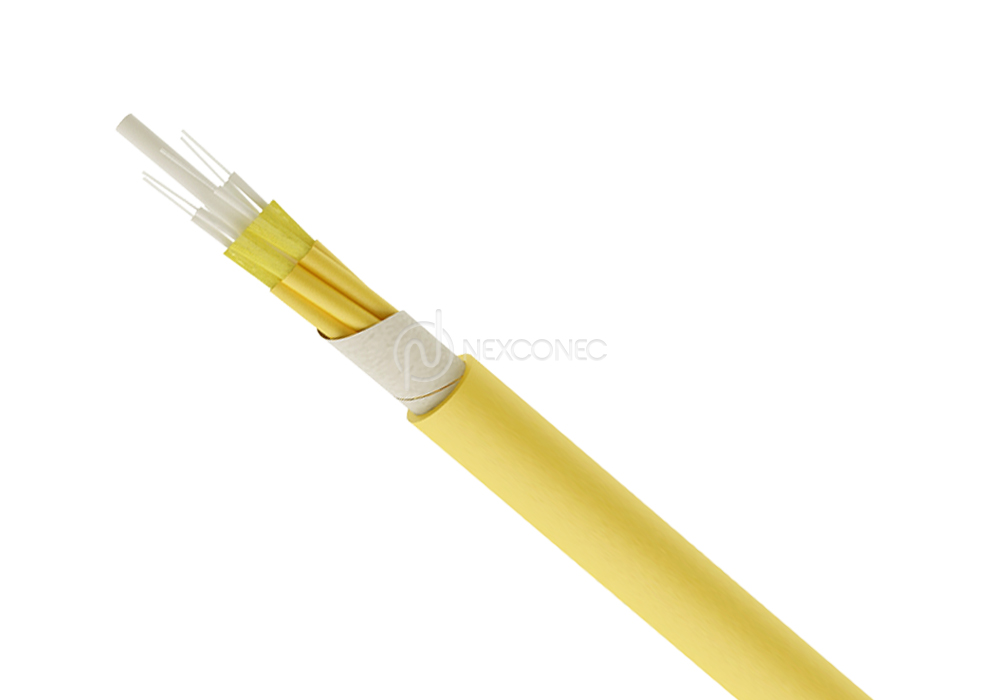

NEXCONEC Breakout cable is made of 2.0 mm Low Smoke Zero Halogen (LSZH) or PVC Simplex cables which are helically stranded in- two layers around a LSZH or PVC jacketed Fiber Reinforced Plastic (FRP) non-metallic central strength member with polyester wrapping tape and LSZH or PVC final jacket.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA and Telcordia performance requirements
- Standard SM and MM options available
- Custom cable printing available
- RoHS, REACH & SvHC compliant
- Indoor use, horizontal distribution
- Telecommunication networks
- Data centres
| Parameter | Unit | Value | ||||
|---|---|---|---|---|---|---|
| Fiber Core | 4 | 6 | 8 | 12 | 24 | |
| Outer Diameter | mm | 7.0 | 8.3 | 9.5 | 12.2 | 15.5 |
| Long Term Tensile Strength | N | 500 | ||||
| Short Term Tensile Strength | N | 1500 | ||||
| Long Term Crush Resistance | N/100mm | 300 | ||||
| Short Term Crush Resistance | N/100mm | 1000 | ||||
| Storage Temperature | °C | -20 ~ +60 | ||||
| Operating Temperature | °C | -20 ~ +60 | ||||
| Cable Weight | Kg/Km | 47 | 64 | 88 | 140 | 168 |
