Flat Duplex Fiber Cable

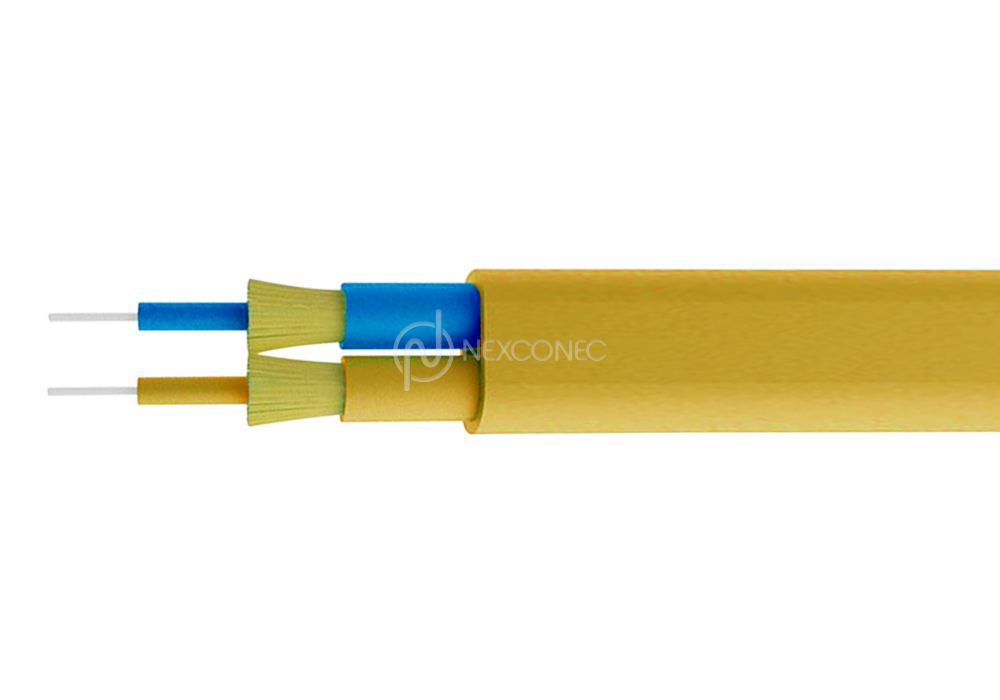

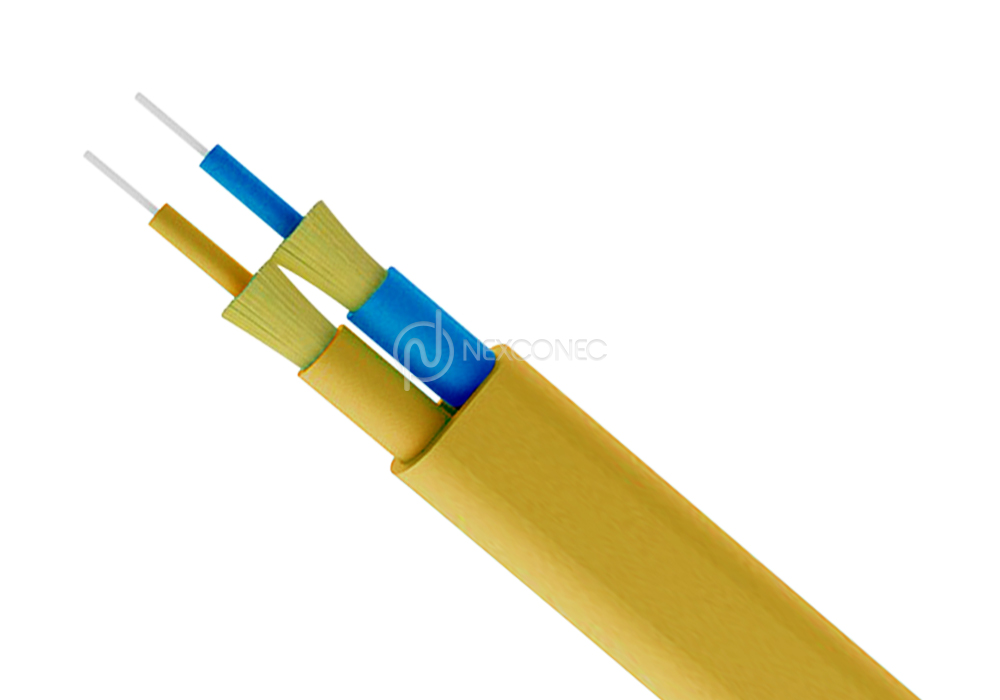

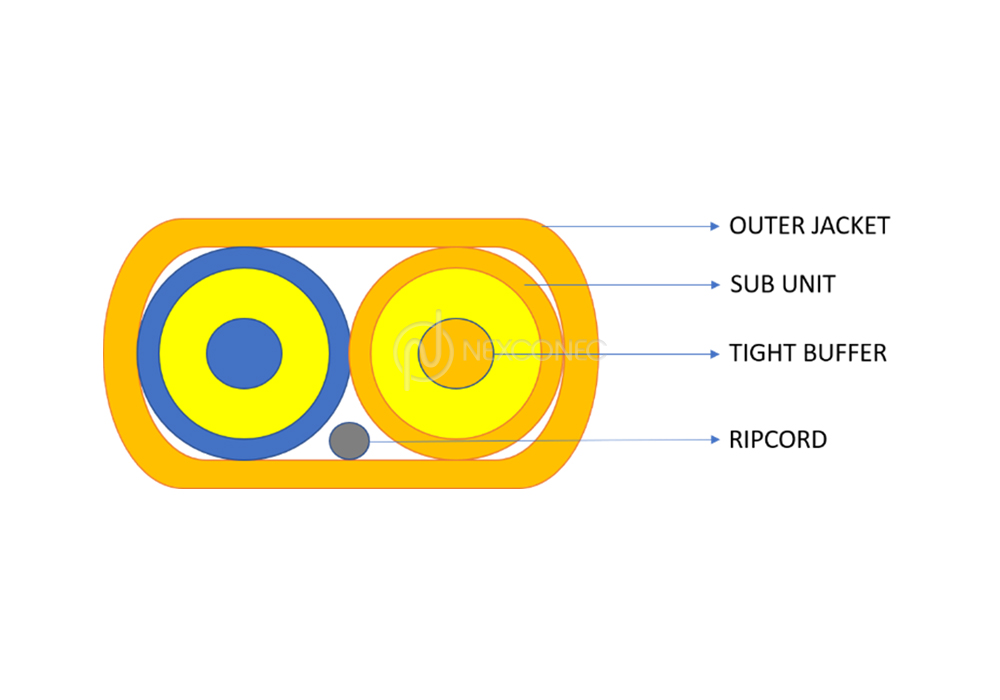

NEXCONEC Flat Duplex Fiber Optic Patch Cable is manufactured with two simplex units held together with an overall Low Smoke Zero Halogen (LSZH) or PVC jacket. Ideal for use in office LAN connections, Patch Cords, and internal point-to-point links where frequent handling is likely.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA and Telcordia performance requirements
- Standard SM and MM options available
- Custom cable printing available
- RoHS, REACH & SvHC compliant
- Connection between equipment
- Indoor Distribution
| Parameter | Unit | Value | |
|---|---|---|---|
| Outer Diameter | mm | 3.0 x 5.0 | 3.8 x 6.6 |
| Inner Simplex Cable Diameter | mm | 2.0 | 3.0 |
| Long Term Tensile Strength | N | 100 | 160 |
| Short Term Tensile Strength | N | 200 | 300 |
| Long Term Crush Resistance | N/mm | 300 | |
| Short Term Crush Resistance | N/mm | 1000 | |
| Minimum Static Bending Radius | 30 | 38 | |
| Minimum Dynamic Bending Radius | 60 | 76 | |
| Storage Temperature | °C | -20 ~ +60 | |
| Operating Temperature | °C | -5 ~ +50 | |
| Cable Weight | Kg/Km | 18 | 31 |
| Part Number | Product Description |
|---|---|
| NX00000 | DefaultDefault |
