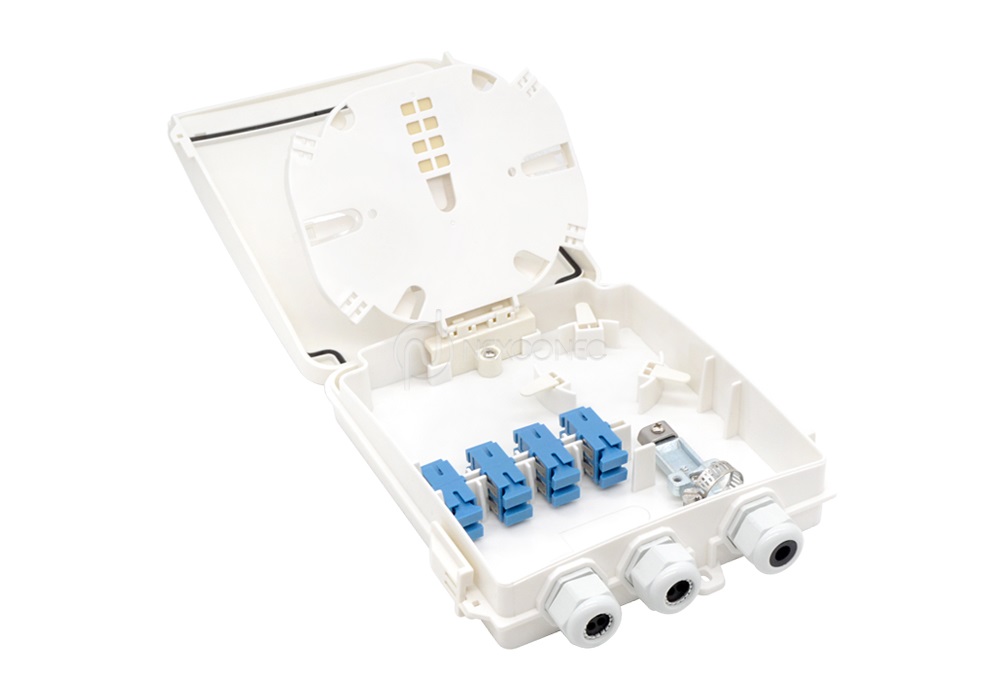

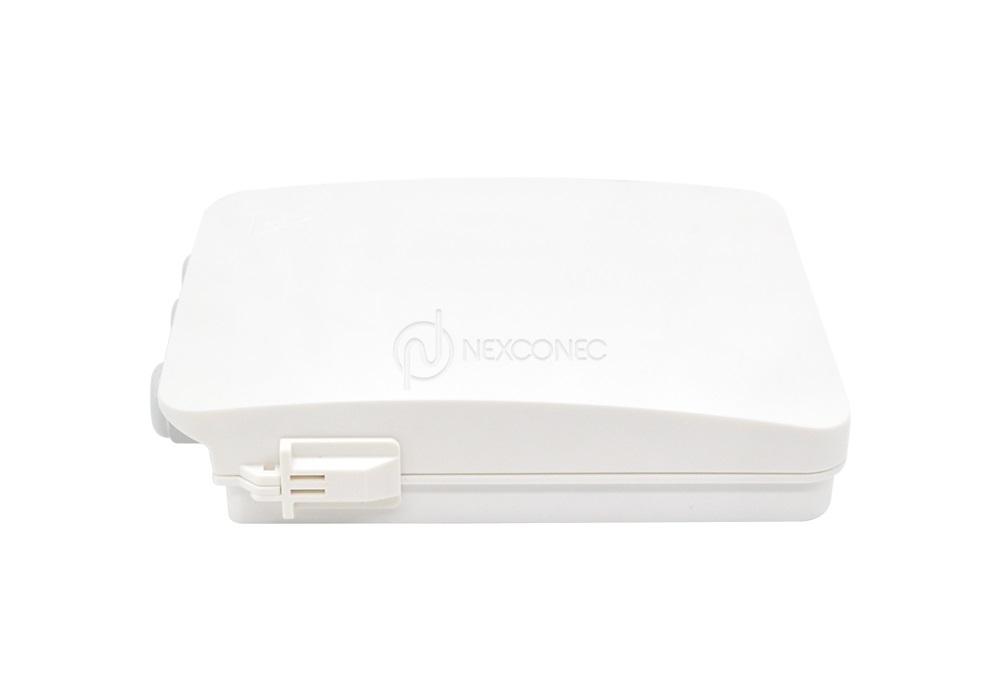

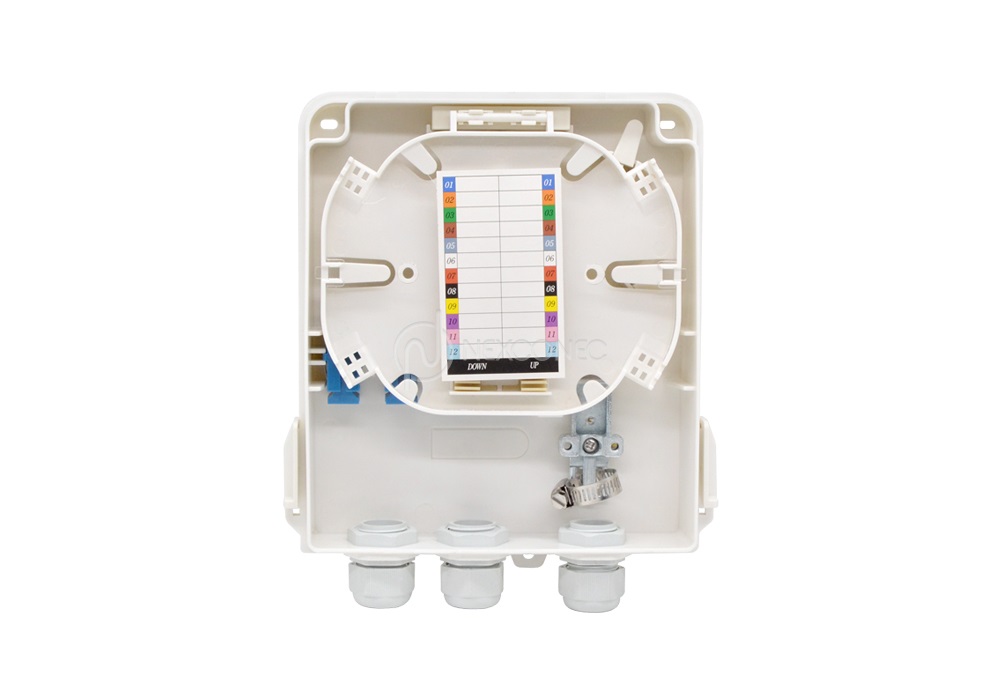

Indoor/Outdoor Wall Box 8 Ports SC - WP08U1

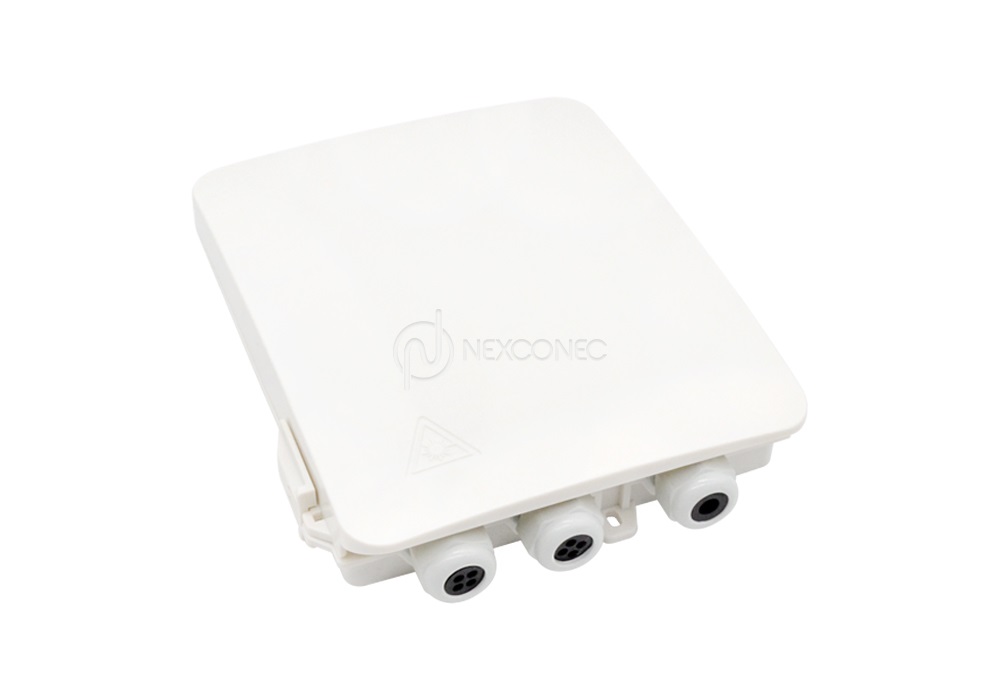

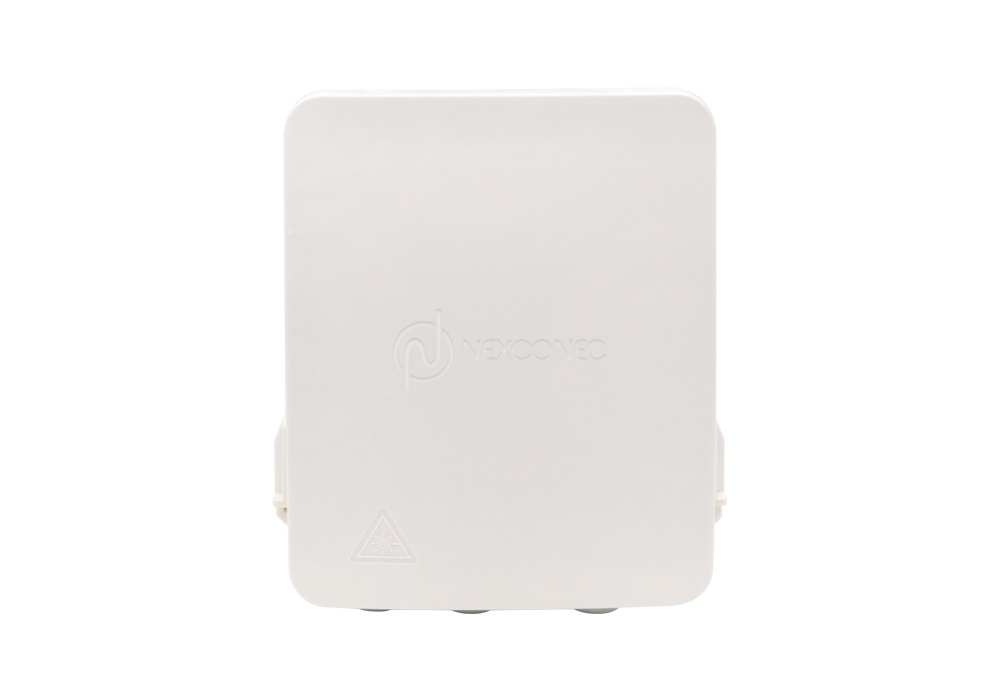

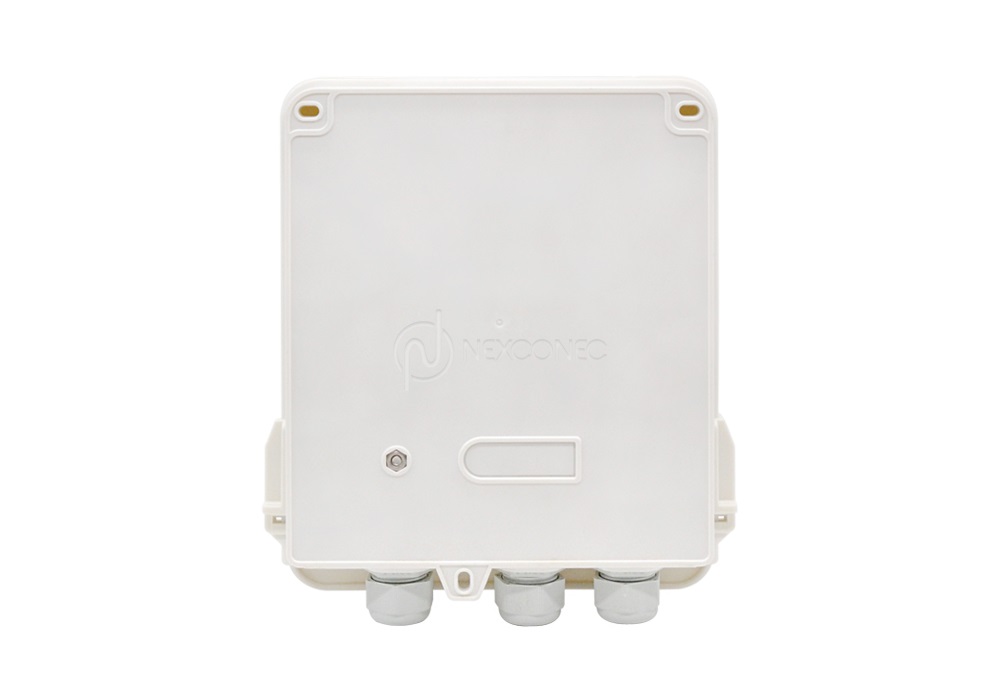

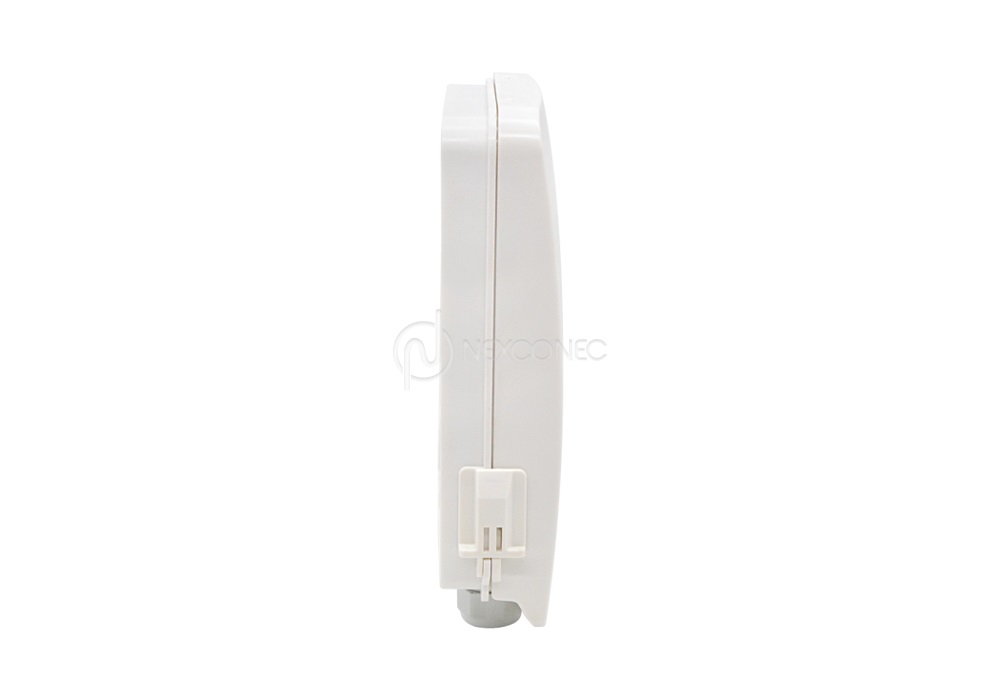

NEXCONEC® WP08U1 IP65 distribution box offers the ability to terminate 8 fibers housed in a strong robust ABS enclosure for indoor and outdoor applications.

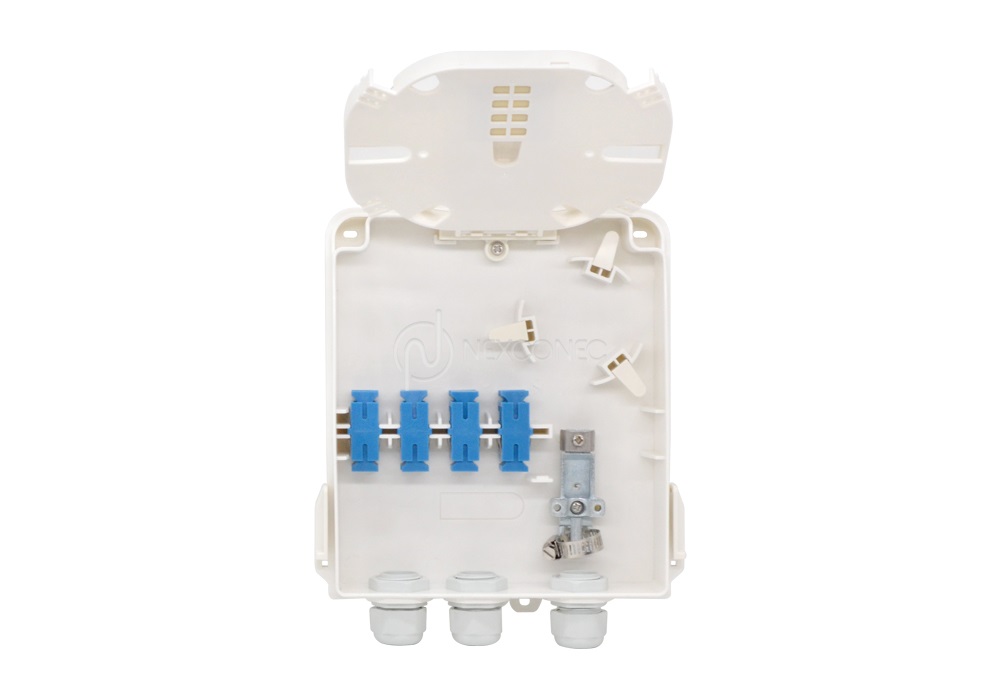

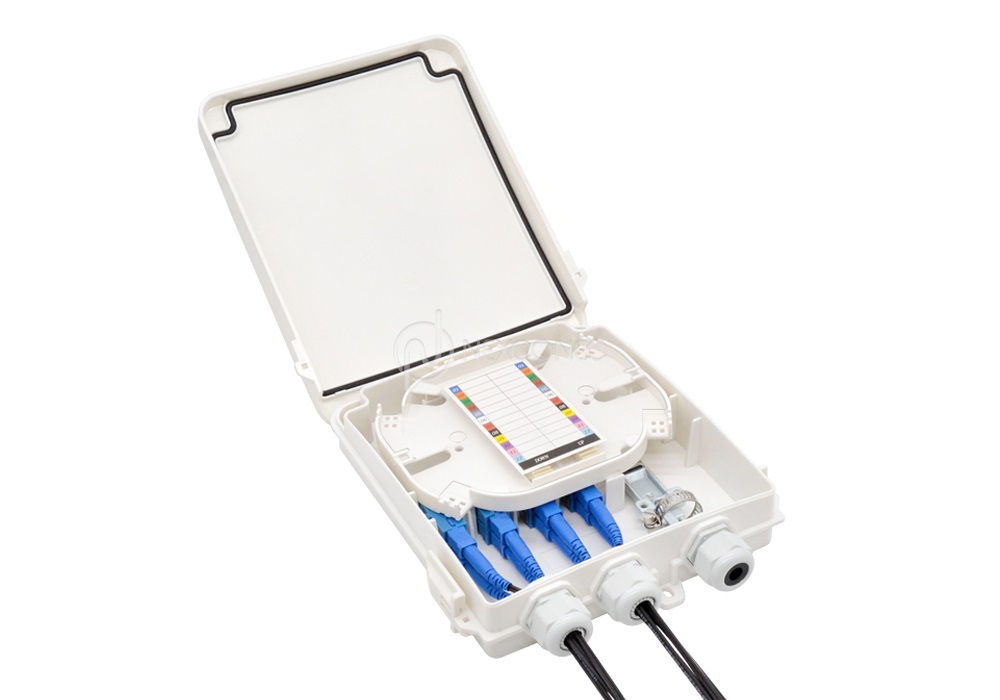

With the ability to use both SC Simplex and LC Duplex adapter types offering a flexible solution to the end user, enabling them to incorporate a multi-functional enclosure which allows easy access during installation or re-work with no disturbance of the existing cable or fibers.
FEATURES AND APPLICATIONS
- Up to 8FO
- 8 adapter positions SC simplex or LC duplex

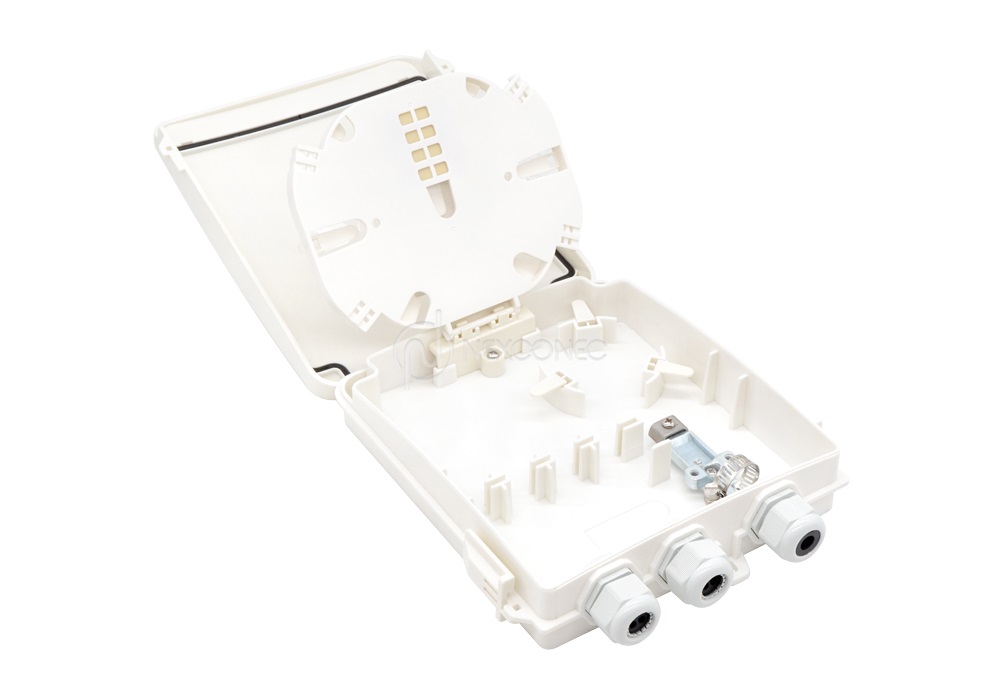

- Removable cover for ease of installation

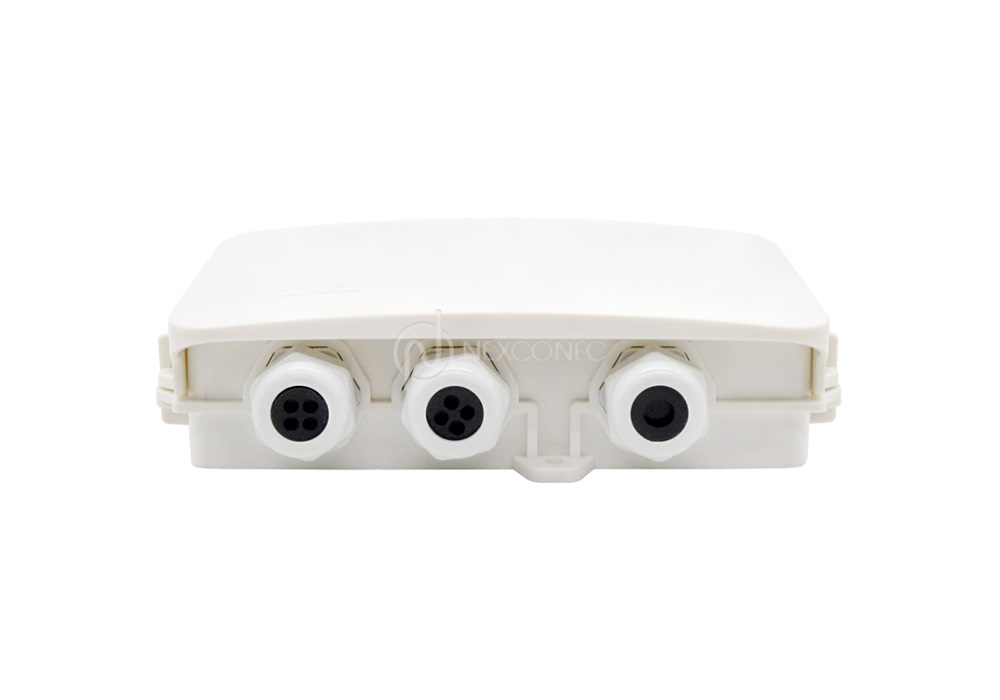

- Sealing glands for up to 8 exiting cables + 1 incoming cable
- Accepts loose tube, distribution and pre terminated cables
- RoHS, REACH & SvHC compliant material
- Premise installations, telecom networks
- Data communication networks
- Indoor/outdoor networks applications
| Parameters | Value |
|---|---|
| Dimensions (H x W x D mm) | 210 x 175 x 50mm |
| Max. Fiber Count | 8FO |
| Suitable Adapter Types | SC Simplex, LC Duplex |
| Number of Adapter Positions | 8 |
| Cable Entry Port (20mm) | 1 |
| Cable Exit Port (20mm) | 2 |
| IP Rating | IP65 |
| Material | ABS |
| Color | White |
| Operating Temperature | -40 ~ +60 ℃ |
| Weight | 0.52 Kg |
| Part Number | Product Description |
|---|---|
| WP08U1 | Wall Termination Box Indoor/Outdoor 8 Ports SC Simplex, UV Resistant, IP65, Unloaded |
