Inline Enclosure - OC-DO03A

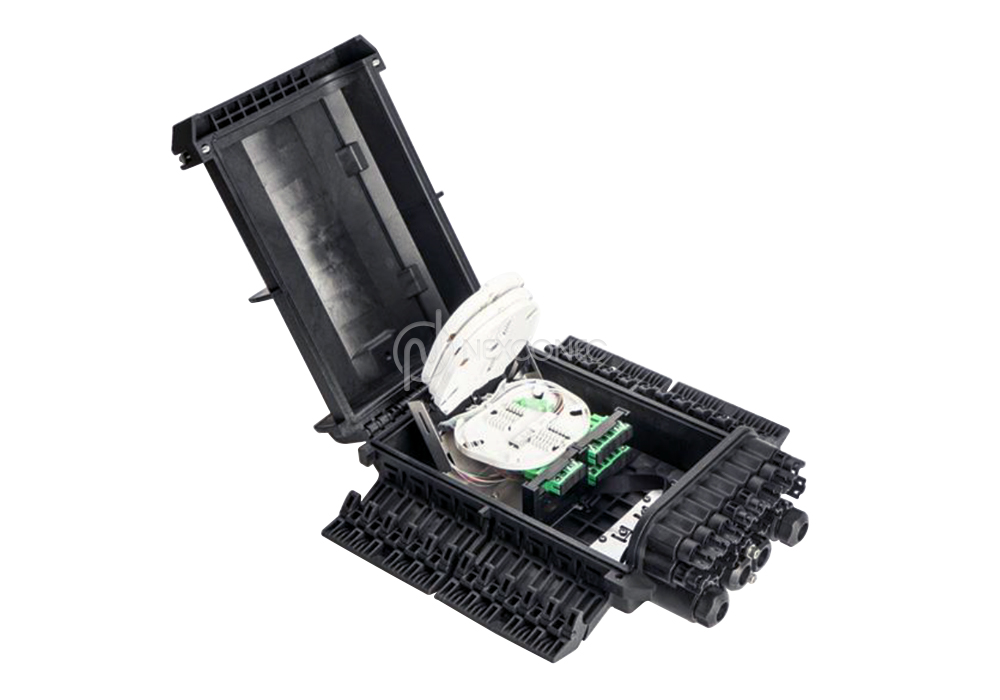

OC-DO03A is designed to seal without screws. The compact size and flip-over cover bring easy operation as well as complete function. The splice trays are jointed with a hinge at one side, which makes the operation in each tray easier. It is designed to prevent from operation damage.
FEATURES AND APPLICATIONS
- Total 4 trays with maximum capacity of 96 cores.
- 16 SC adapter and micro splitter can be installed.
- This connector box is suitable for wall mounting and pipeline.
- The hinge is used for the fiber trays, which is convenient for the operation of each fiber trays.
- No screw page-turning structure plug and play, fast response for new subscribers.
- Production grade: IP68
| Parameters | Value |
|---|---|
| Style | In-line/ Horizontal |
| Dimensions (LxWxH) | 380 x 245 x 130 mm |
| Weight (Kg) | 3.0 - 4.0 Kg |
| Material | PP+GF |

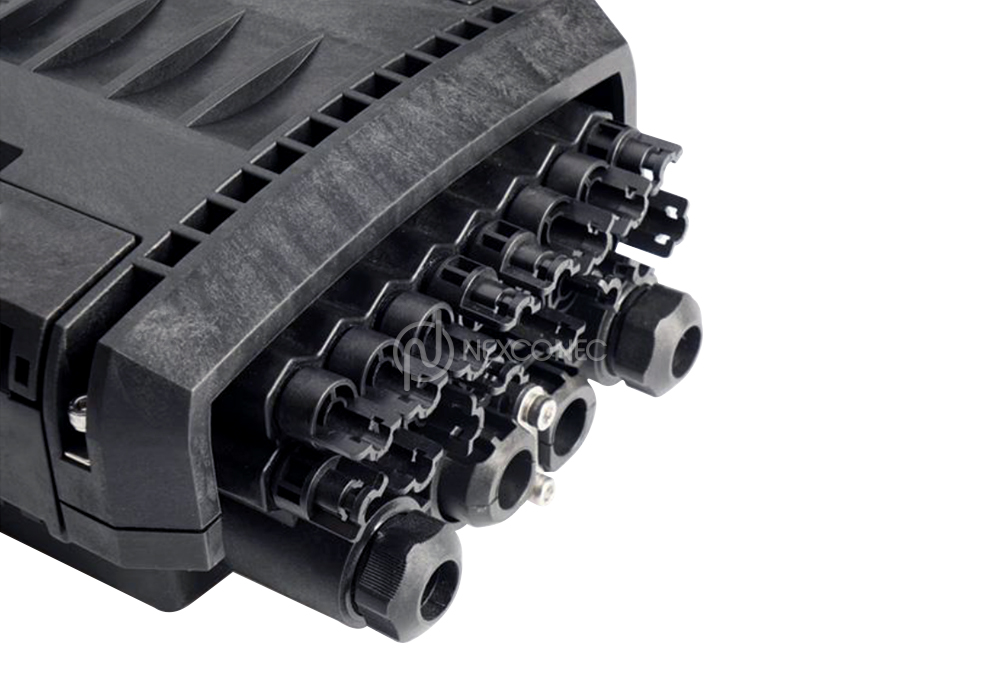

| Cable Ports | 1 uncut port (Φ10～17.5 mm); 2 branch ports (Φ10～17.5 mm) 16 drop cable ports (2*3 mm soft cable or Φ3～8 mm round cable) |
| Fiber Splice Capacity | 144 |
| Tray Capacity | 24F/96F |
| Tray Count | 4 |
| Application | Wall /Pole Mounting |
| Sealing Structure | Mechanical Seal |
| Sealing Rating | IP68 |
| Operating Temperature | -40℃ ~ +65℃ |
| Impact Strength | 16 N.m / IK09 |
SPLICE TRAY SPECIFICATIONS
| Type | 38# |
|---|---|
| Tray Capacity | 4 x 24F/96F |
| Dimensions | 112 x 68 x 8 mm |
| Splitter | None |
| Single Core | Yes |
| Ribbon Core | No |
| Part Number | Product Description |
|---|---|
| OC-DO03A | Fiber Optic Inline Enclosure up to 96 Splices Incl. 16 Ports SC SX Adapter Ports |
