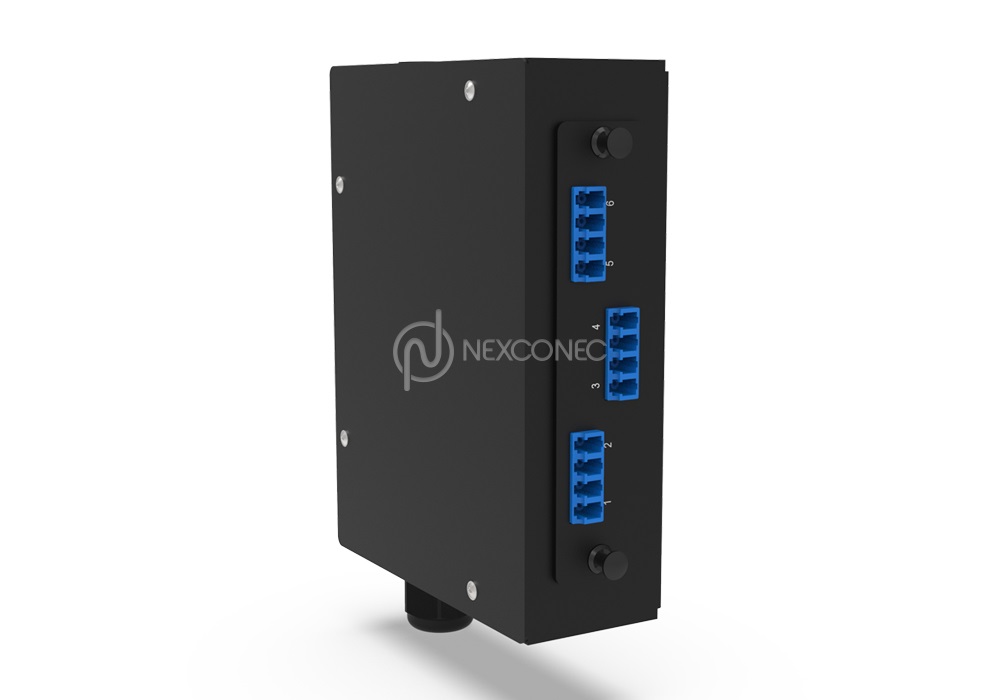

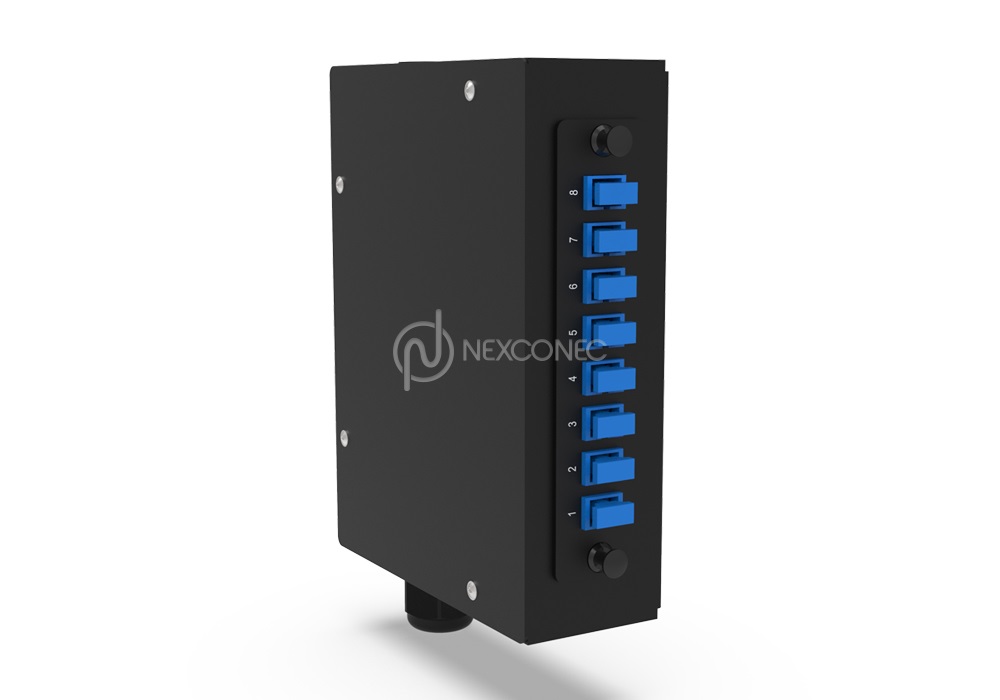

LGX Din Rail Mounted Box - FD03
Nexconec compact & low-profile modular LGX DIN RAIL MODULAR BOX is designed for use in a wide range of industrial applications. Accepts 1 LGX Adapter Plate. Modular small factor box for multi-application for Pre-terminated cables or conventional splicing.
FEATURES AND APPLICATIONS

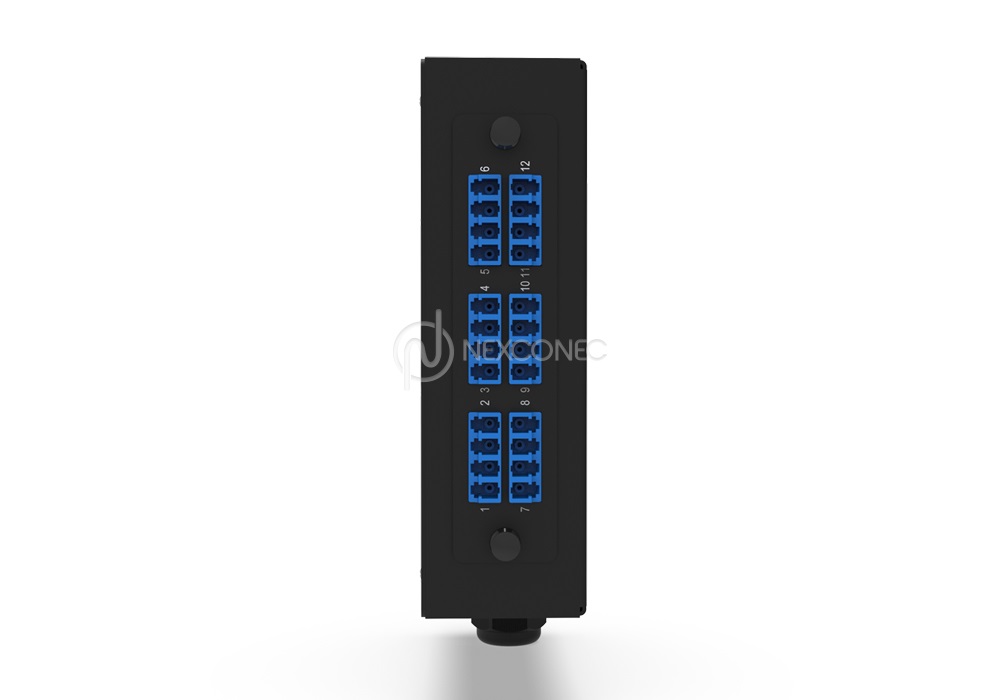

- Accommodates 1 Plate LGX

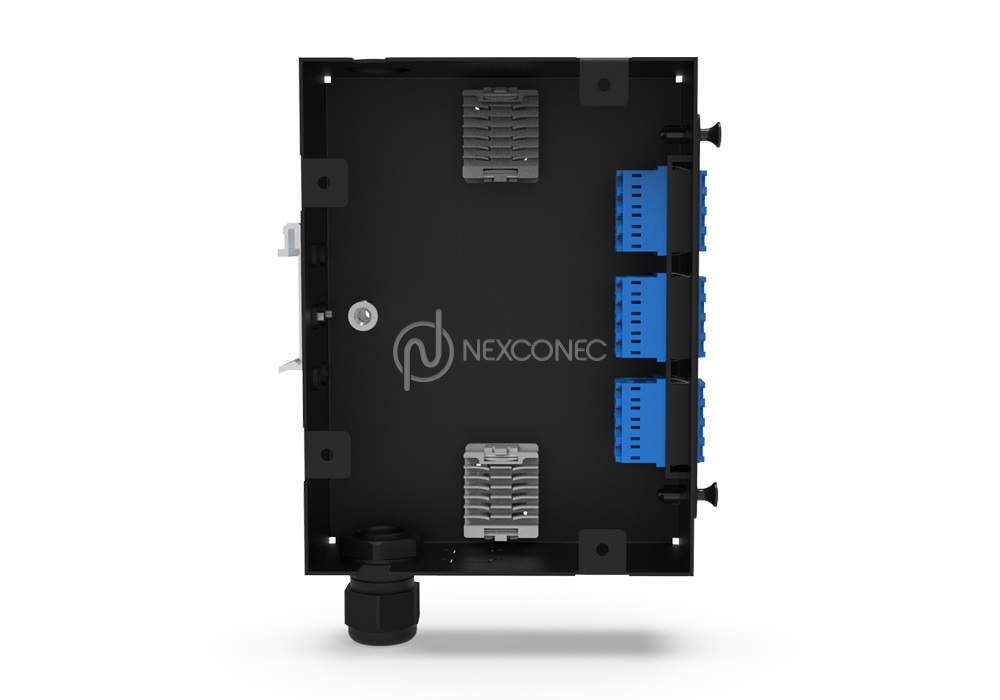

- Fusion splicing, pre-terminated loose tube and tight buffered cables
- MTP/MPO Pre-terminated cabling solution
- Top and Bottom cable entries
- FTTx Deployment & Enterprise network
- Industrial, Power system and control
- Rail signalling and control networks

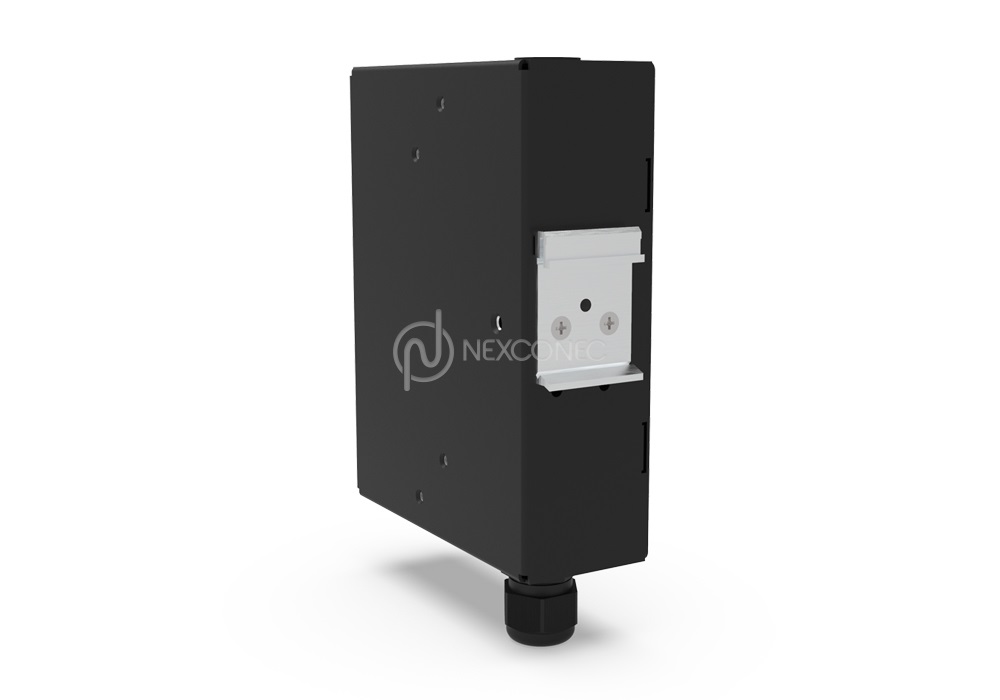

| Mounting Type | Din Rail |
|---|---|
| Material | Cold rolled steel |
| Housing Color | Black |
| Application | Indoor IP20 |
| Dimensions (W x D x H in MM) | 48 x 123.20 x 162 |
| Net Weight | 1.20Kg |
| Opening Type | Side Wall Screws |
|---|---|
| Cable Entry Direction | Top and Bottom |
| Port | 1 Plate LGX |
| Splicing Capacity | 24 Splices |
| Part Number | Product Description |
|---|---|
| FD03 | LGX DIN Rail Compact Splice Box |
