Lockable Indoor/Outdoor Wall Box 12 Ports SC - WP12U1
NEXCONEC® Lockable IP65 & UV Resistant distribution box is supplied unloaded as standard and offers the ability to terminate 12 fibers housed in a strong robust ABS enclosure for indoor and outdoor applications.

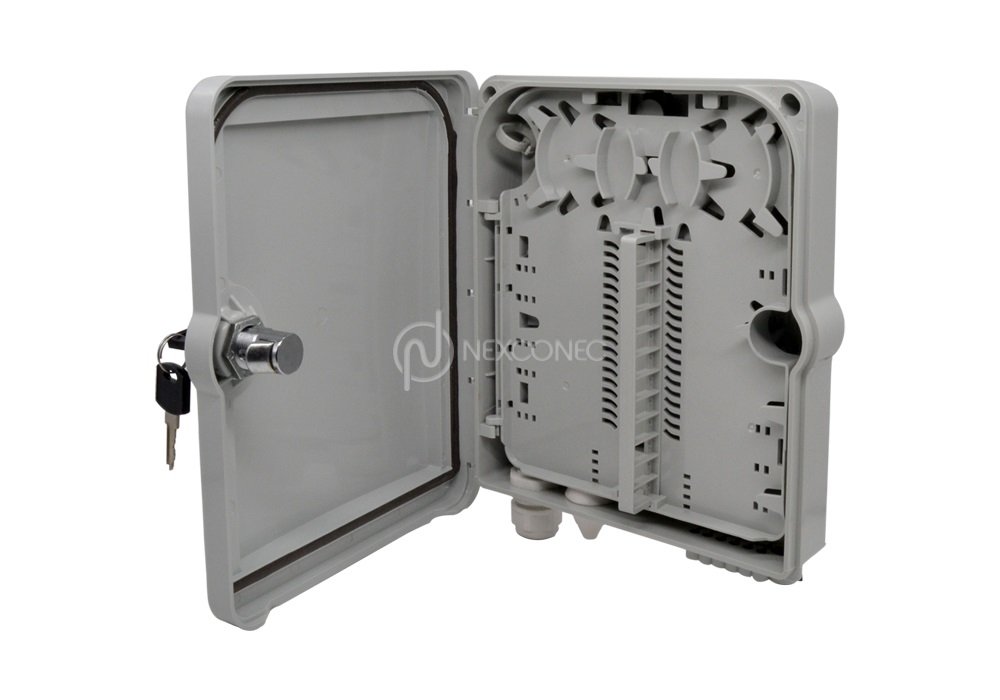

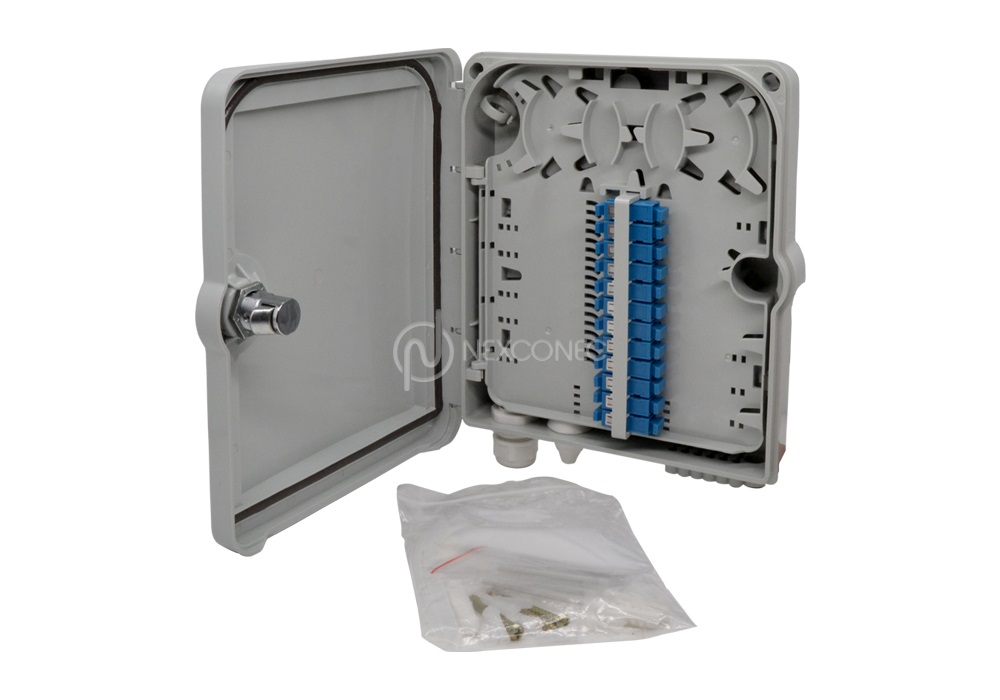

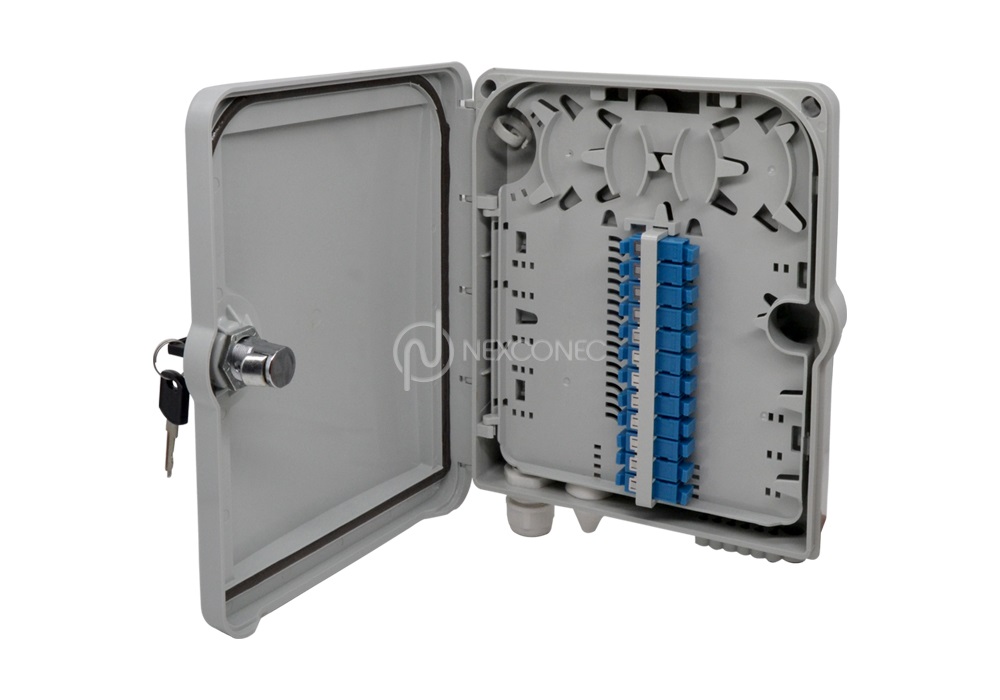

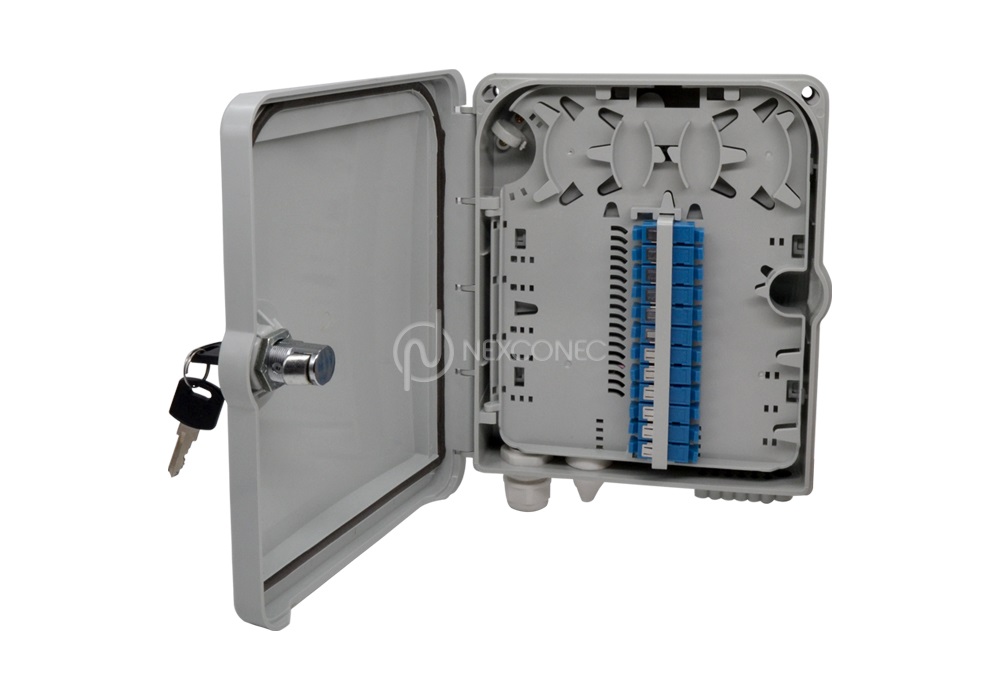

An internal detachable tray provides a neat and tidy solution for housing 12 SC simplex connections and splices. The box has 12 patch cord exit points and up to 2 cable entry points which maintain the IP65 rating.
FEATURES AND APPLICATIONS
- UV Resistant & IP65 Rating for external use
- 12 SC Simplex Adapter type
- Accepts loose tube, distribution and pre-terminated cables

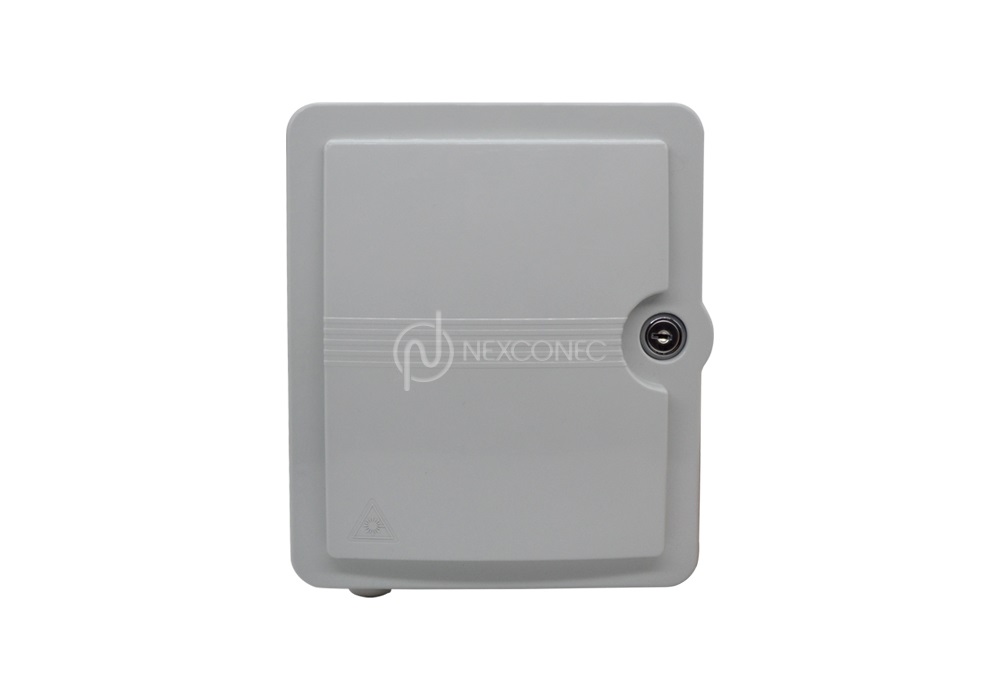

- Lockable Door
- Sealing glands for up to 12 exiting cables + 2 x 8.5mm ~ 13mm incoming
- Cable

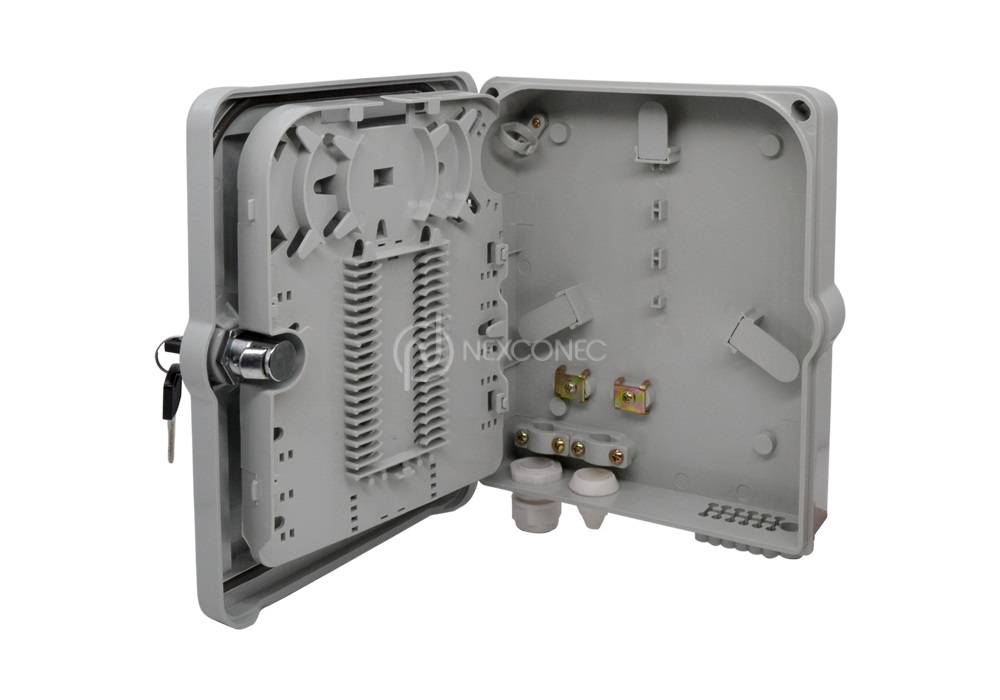

- Removable splice tray for easy installation
- FTTH / FTTx Networks
- Data communication Networks
- Indoor/Outdoor Application
| Parameters | Value |
|---|---|
| Width | 205 mm |
| Height | 235 mm |
| Depth | 60 mm |
| Number of Ports | 12 SC Simplex |

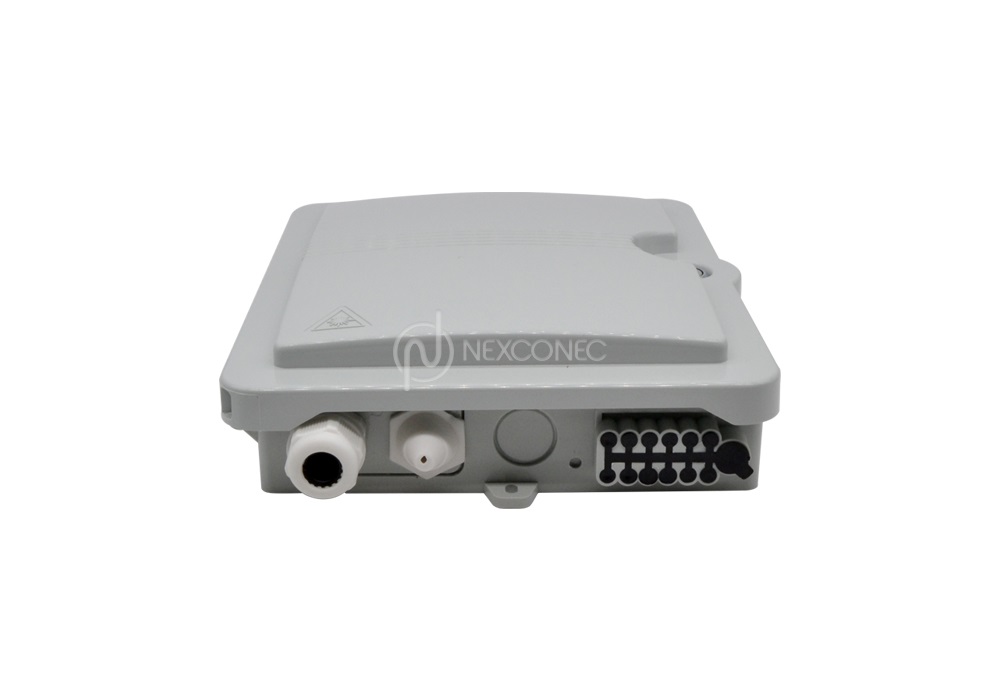

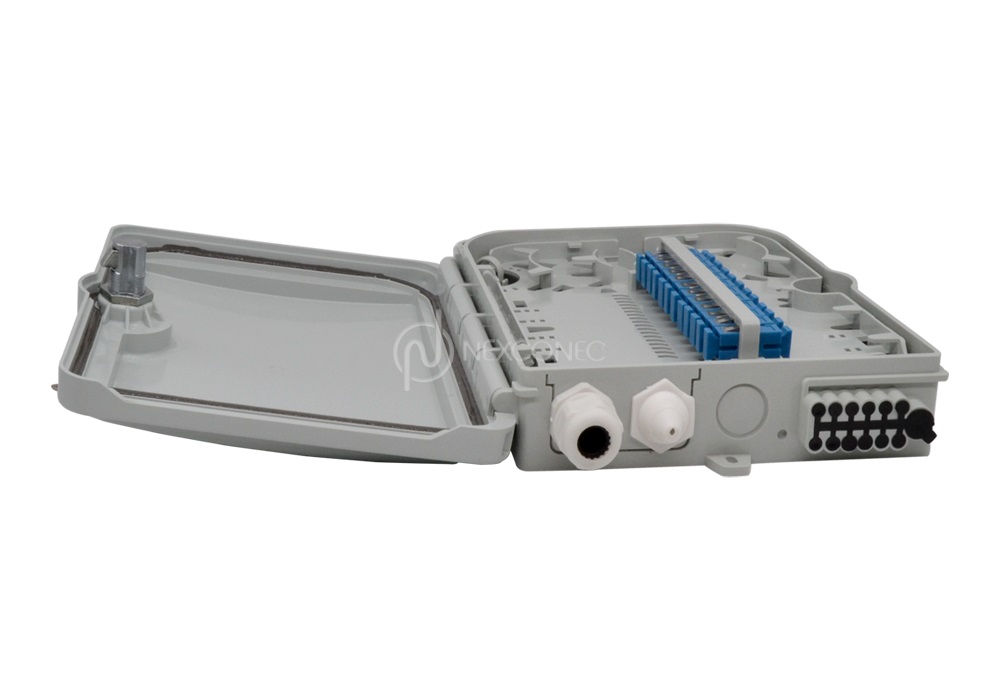

| Number of Cables Entry | Left: 2x Ports (for 8.5 to 13mm OD) Middle: 1x Optional Uncut Round Ports, with 20mm diameter, to load PG16 Gland for cables OD 3mm to 17mm |
| Number of Cables Exit | Right: 12x Ports (for 2x3mm FTTH Flat Drop Cables) |
| Max. Splicing Capacity | 12 Splices |
| Material | ABS |
| Color | Grey RAL7035 |
| Net Weight (Kg) | 0.9 Kg |
| Operating Temperature | -40 °C ~ +60°C |
| Compliant to | RoHS, REACH, SVHC |
| Part Number | Product Description |
|---|---|
| WP12U1 | In/Out Lockable Wall Box IP65 UV Resistant 12 Positions SC Simplex Unloaded |
