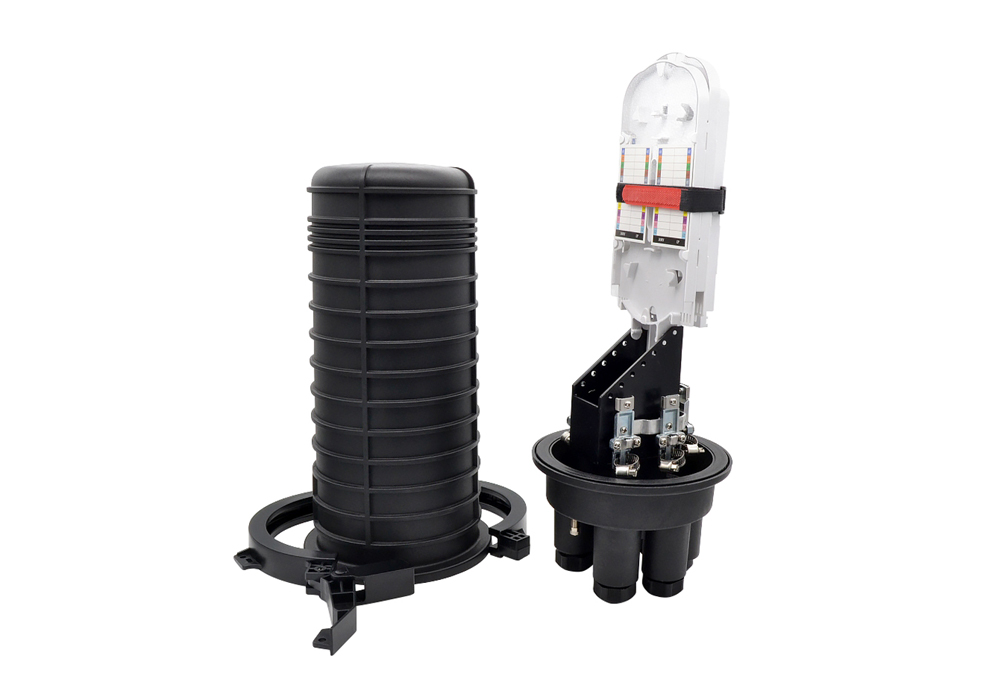

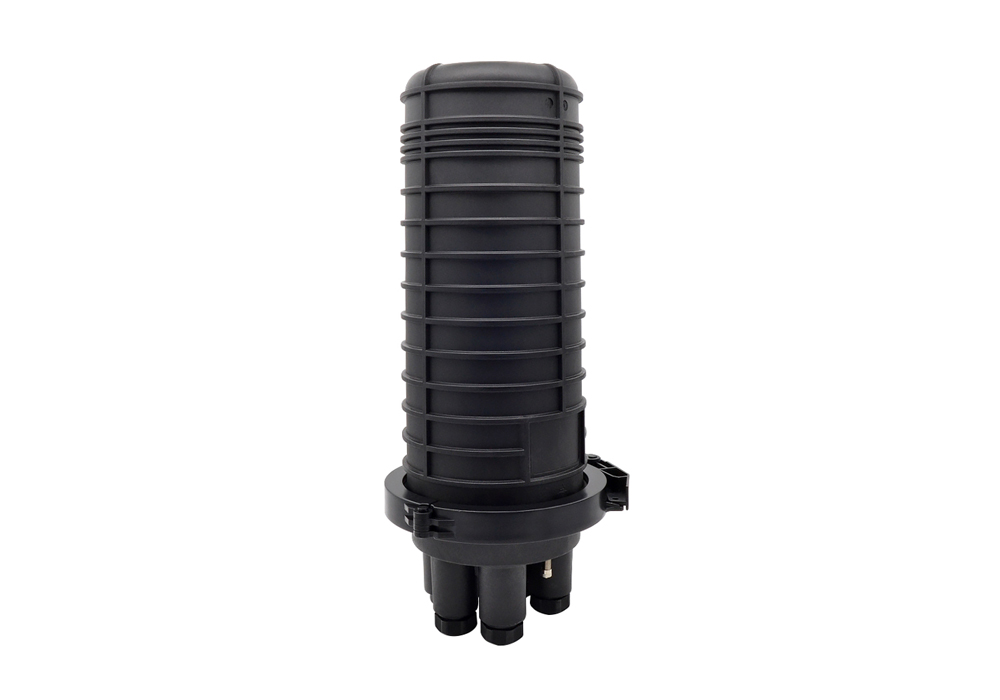

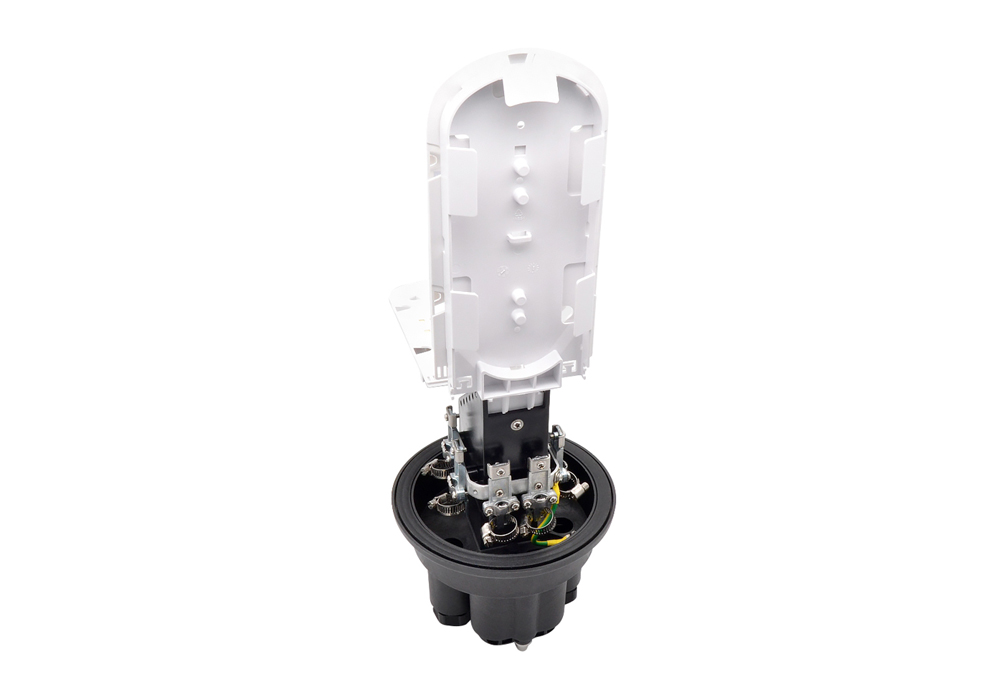

Mechanical Dome Enclosure - OC-DO02
NEXCONEC Dome closure is the best designed and innovative solution for fiber cabling installation. It adopts fully-mechanical sealing structure for good sealing performance of fiber cable over 144 fibers. The different sizes of cable entrances provide the great flexibility for cables installation.
FEATURES AND APPLICATIONS
- Up to 144 cores capacity
- Mechanical Sealing of cables entries
- Airproofing performance IP68
- Voltage Resistance up to 15kvDC
- Insulation Resistance
| Parameters | Value |
|---|---|
| Dimensions (HxD) | 450 x 230 mm |
| Weight (Kg) | 4.20-4.80 Kg |
| Material | PP+GF |
| Max. Capacity (Fibers) | 144 |

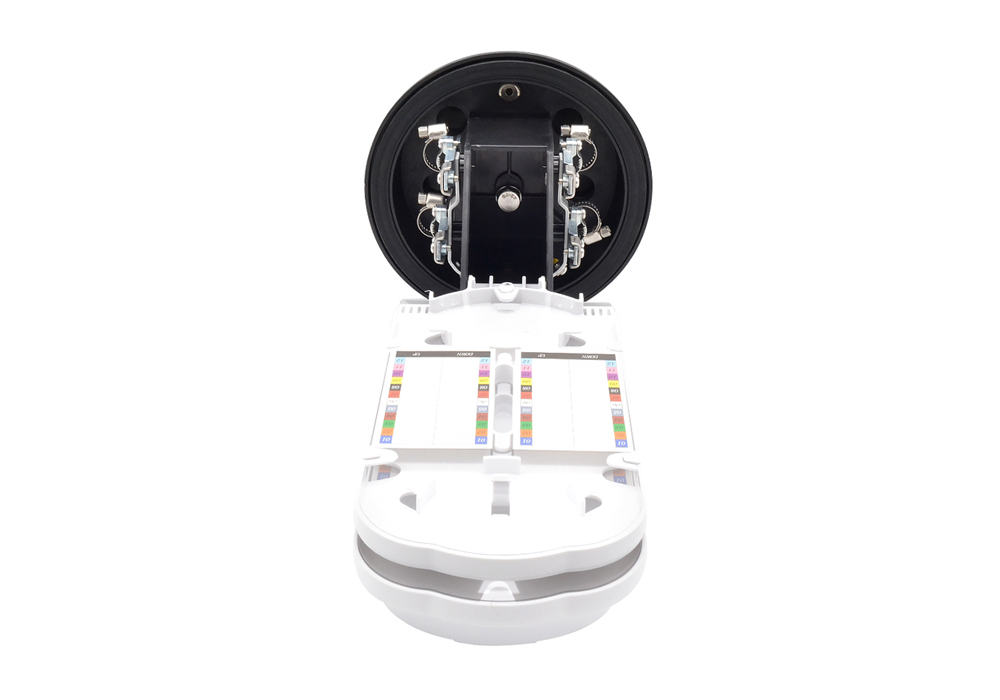

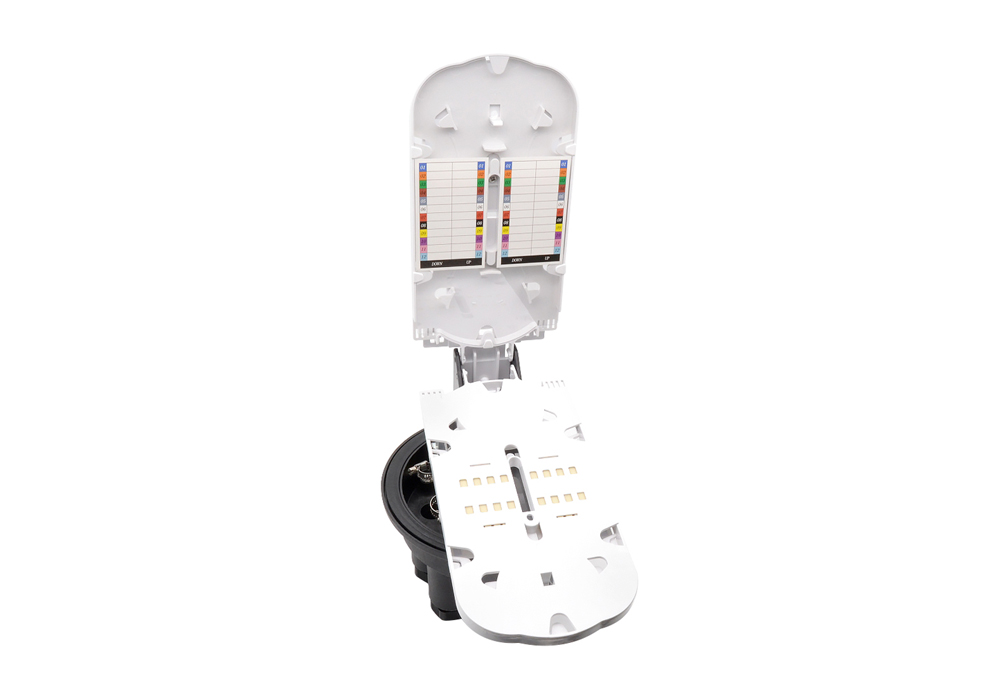

| Maximum Number of Splice Trays | 6 |
| Capacity of Splice Tray | Max 24 single Fusion splices |

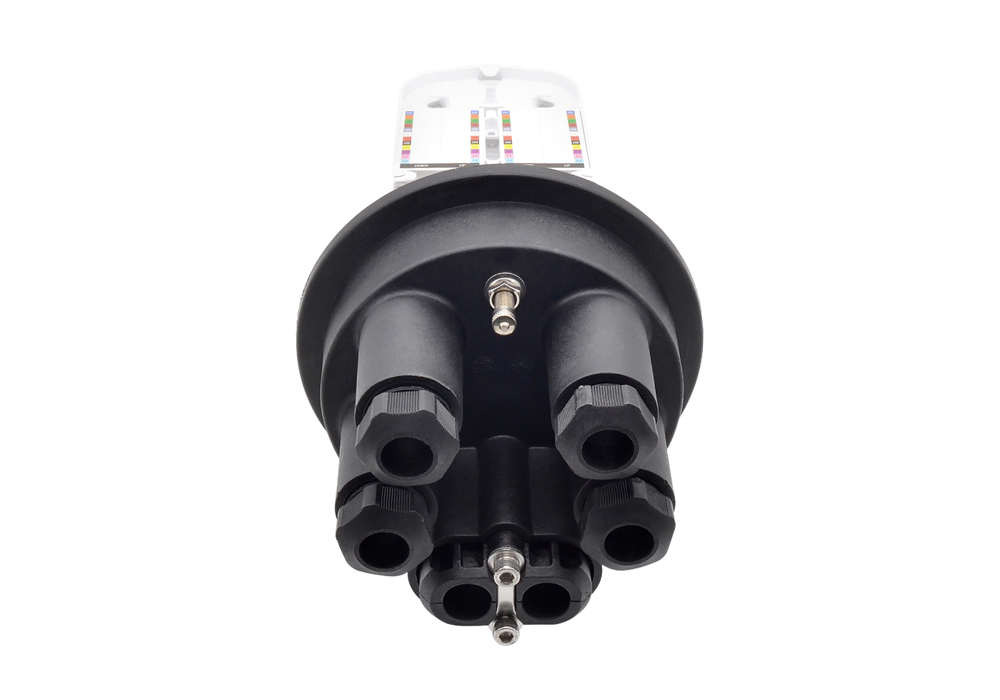

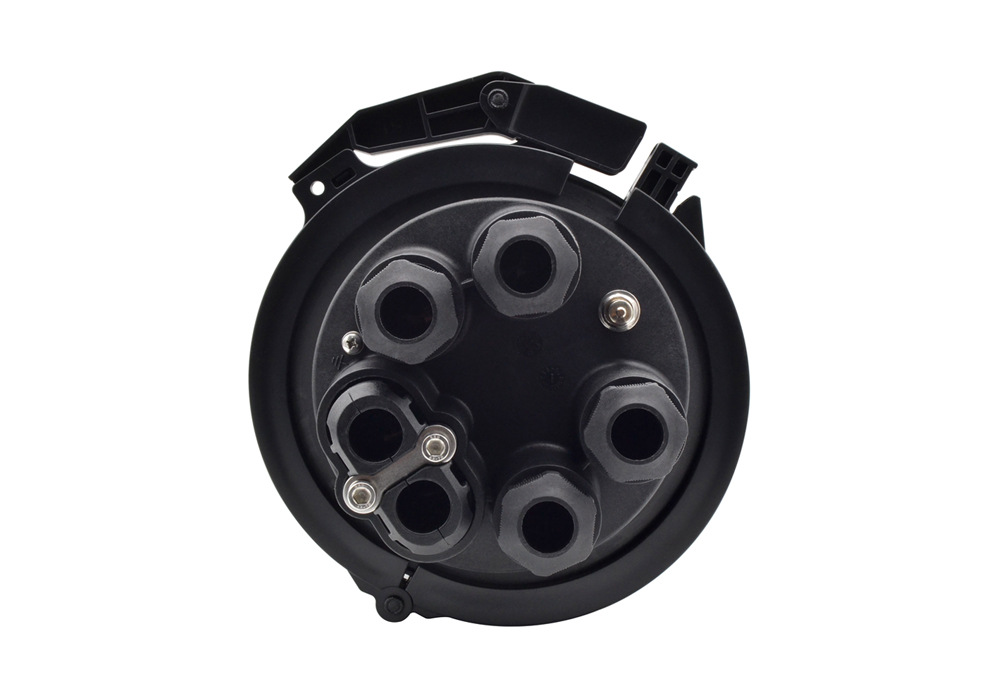

| Cable Entrances | 5 |
| Suitable Fiber Cable OD | Small port : Φ5-Φ7, 4ports Elliptique port : Φ10-Φ17.5, 1port |
| Sealing Structure | Mechanical |
| Sealing Rating | IP68 |
| Operating Temperature | -40℃～+55℃ |
| Impact Strength | 16 N.m / IK09 |
| Part Number | Product Description |
|---|---|
| OC-DO02-24 | FO Dome Enclosure 24FO MEC |
| OC-DO02-48 | FO Dome Enclosure 48FO MEC |
| OC-DO02-72 | FO Dome Enclosure 72FO MEC |
| OC-DO02-96 | FO Dome Enclosure 96FO MEC |
| OC-DO02-144 | FO Dome Enclosure 144FO MEC |
