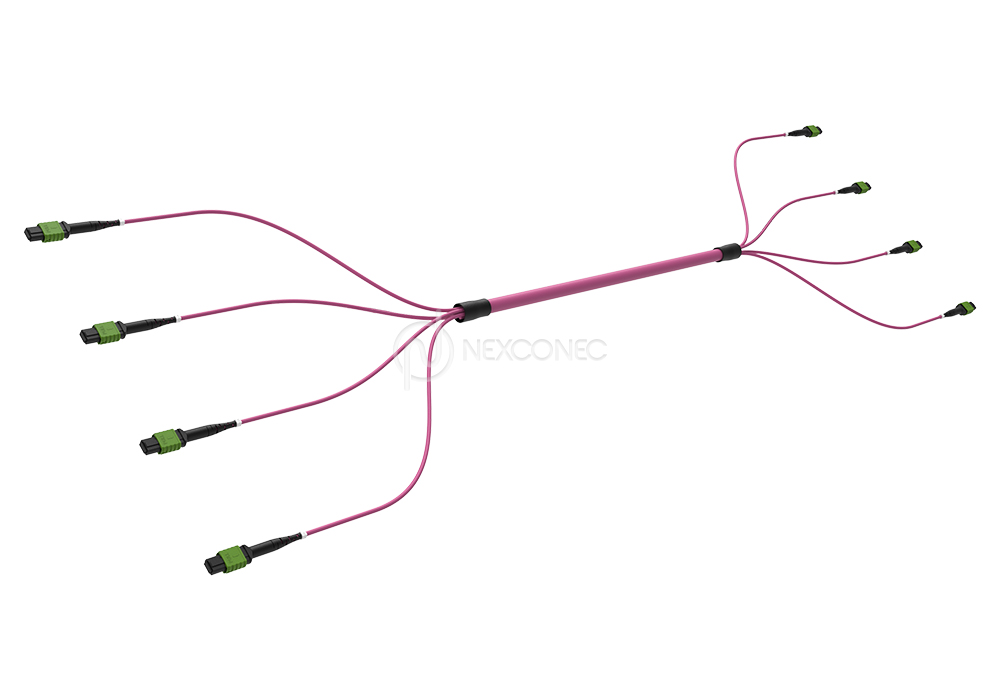

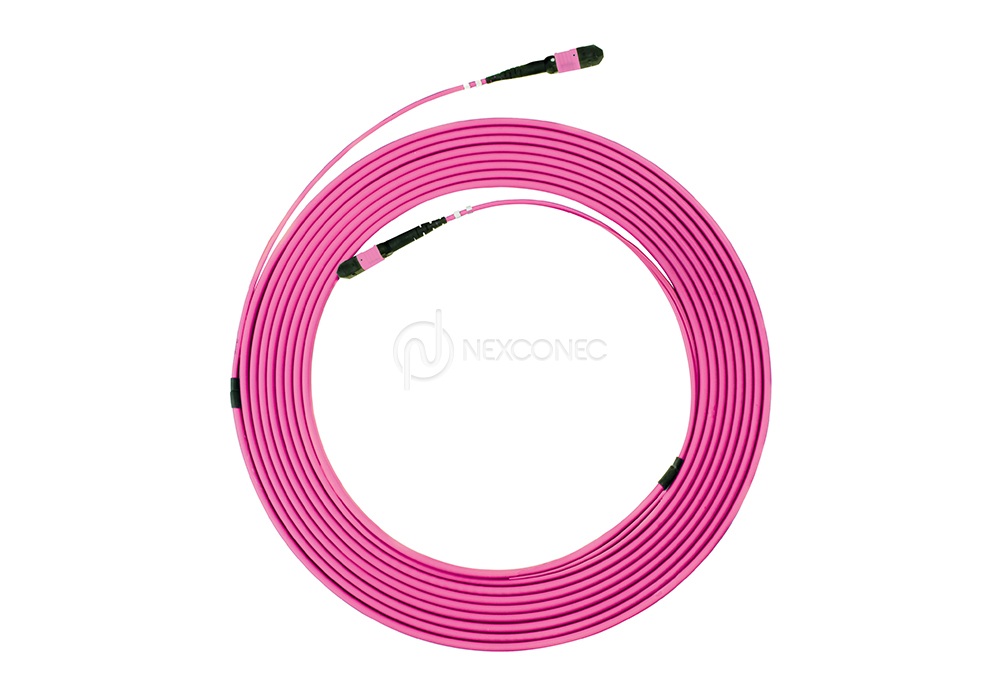

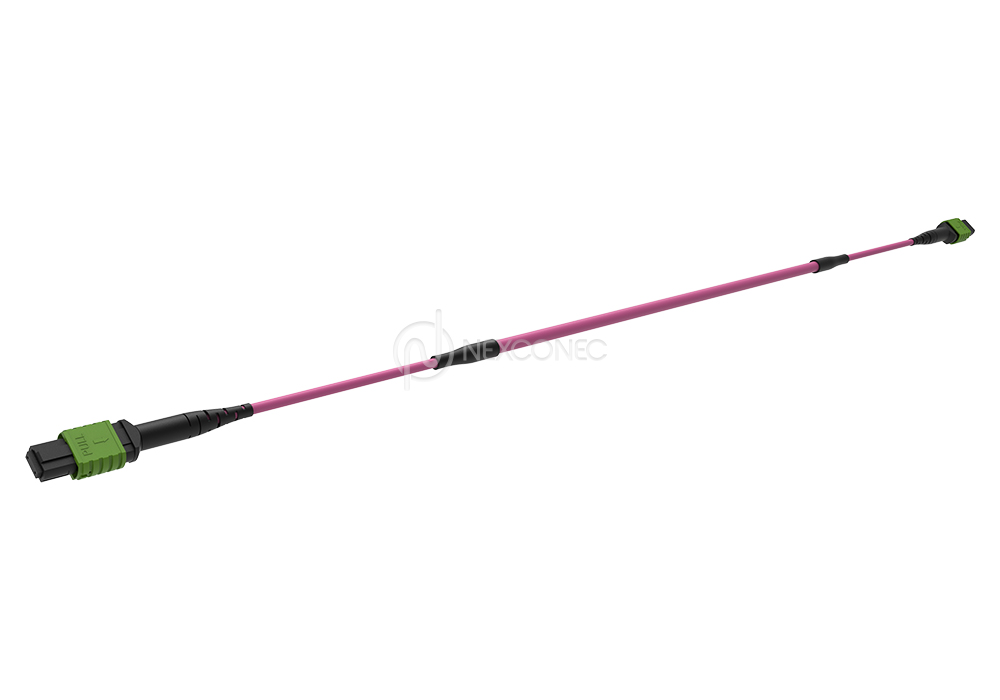

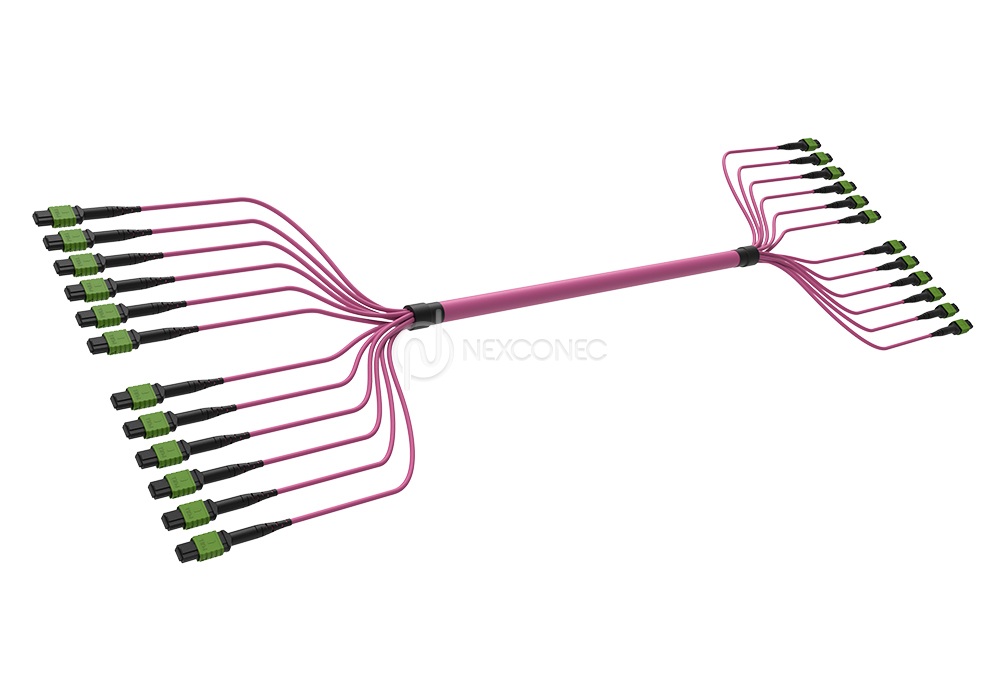

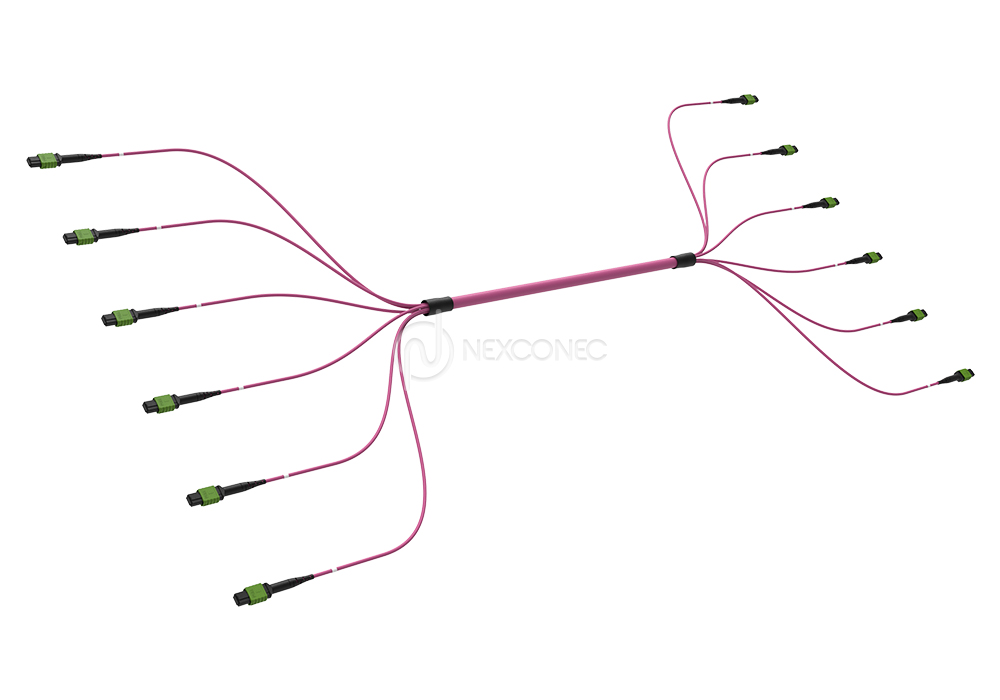

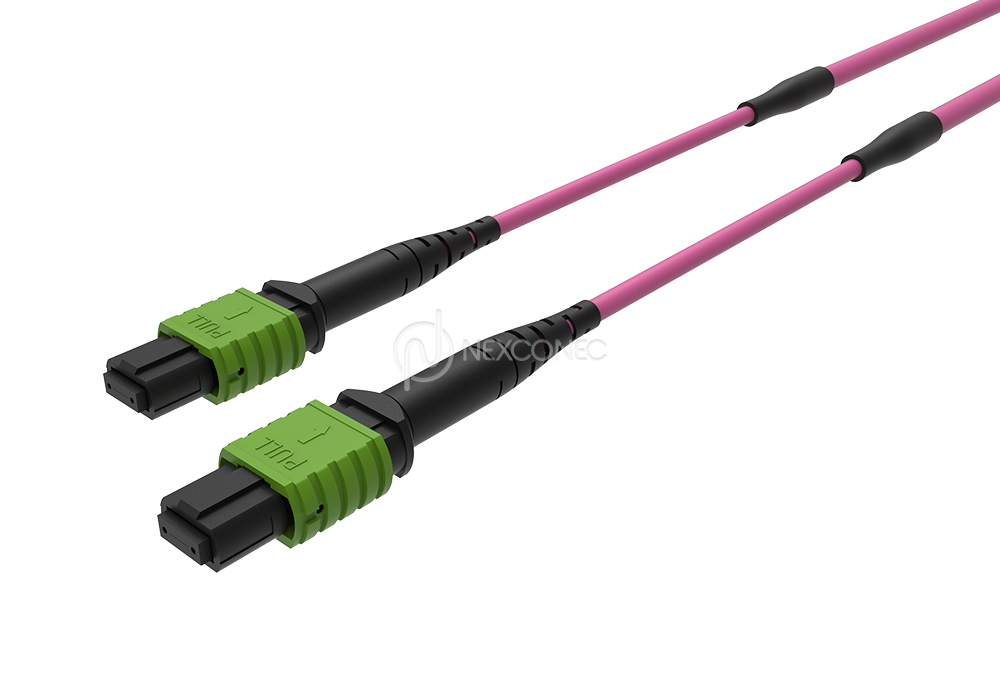

MTP®/MPO (APC) MM OM4 Trunks Base-12
NEXCONEC® MTP®/MPO (APC) MM OM4 Trunks BASE-12 are compact, high-density fiber connector assemblies designed for demanding high-bandwidth applications. Ideal for up to 200G/400G data transfer rates, these trunks facilitate seamless connectivity between equipment or modules/panels in data centers. Our MTP®/MPO connectors are available in both Standard and Elite versions to meet varying power budget needs.
These MPO trunks are fully compatible with NVIDIA/Mellanox MFP7E10-N001, making them the perfect choice for AI and machine learning solutions, where speed and reliability are paramount.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements

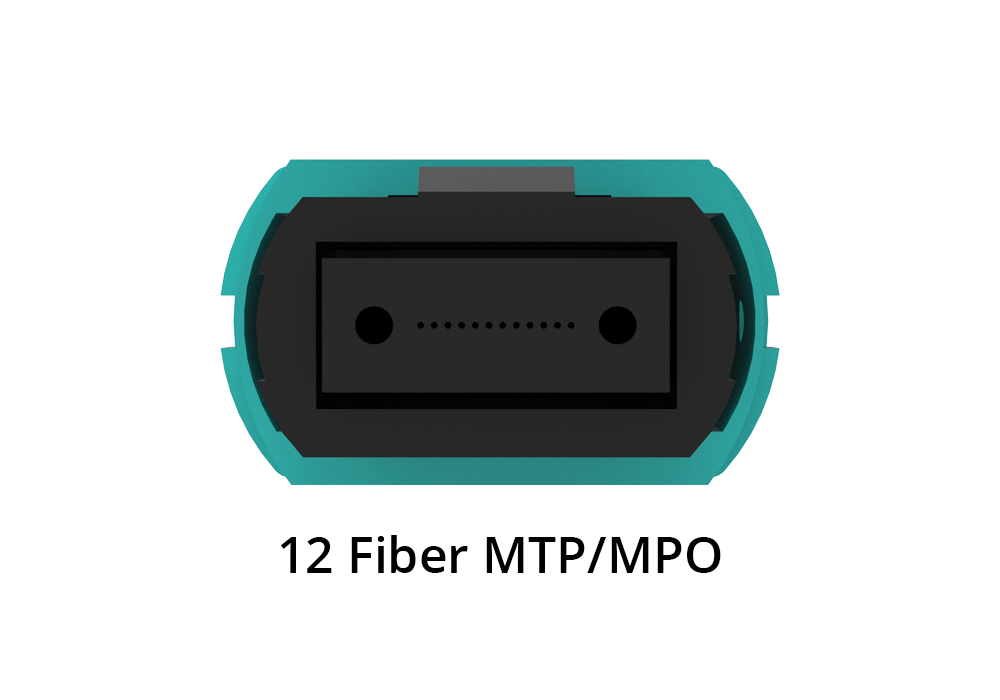

- Cable terminated with Base-12 fiber MTP®/MPO Connectors
- Available in custom length and cable construction from 12 to 144 fibers
- CPR Euro classes certified on demand
- AI & Machine Learning, Big Data Analytics
- Supports up to 200G/400G applications
FEATURES
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- All Assemblies are machine polished providing highest quality
- Cable terminated with Base-12 fiber MTP®/MPO Connectors
- MPO push/pull release boot
- Available in custom length and cable construction from 12 to 144 fibers
- All Assemblies are factory tested and come with test certificate
- Factory pre-terminated assemblies with protocol for constant and reliable quality
- CPR Euro classes certified on demand
APPLICATIONS
- Telecommunication and Enterprise networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- AI & Machine Learning, Big Data Analytics
- Supports up to 200G/400G applications
| Parameters | IL – Max | IL – Typical | RL |
|---|---|---|---|
| SM – Standard | 0.75 dB | 0.40 dB | > 60 dB |
| SM – Premium | 0.35 dB | 0.20 dB | > 60 dB |
| MM – Standard | 0.60 dB | 0.40 dB | > 20 dB |
| MM – Premium | 0.35 dB | 0.20 dB | > 20 dB |
| Cable Characteristics | Units | Microcable |
|---|---|---|
| 111111111 | 22222222 | 333333333 |
