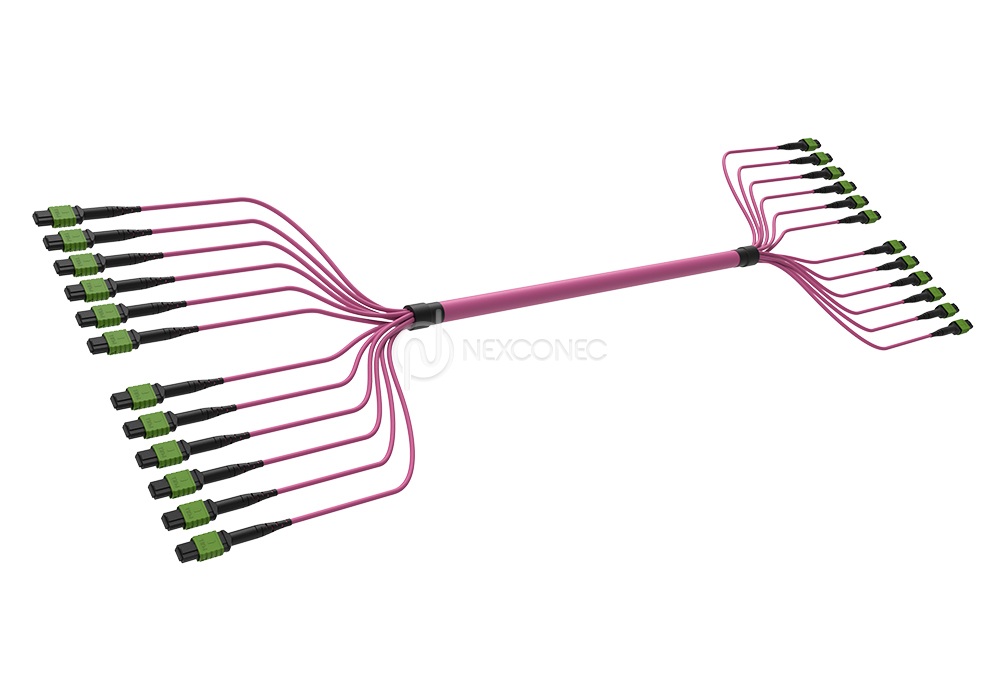

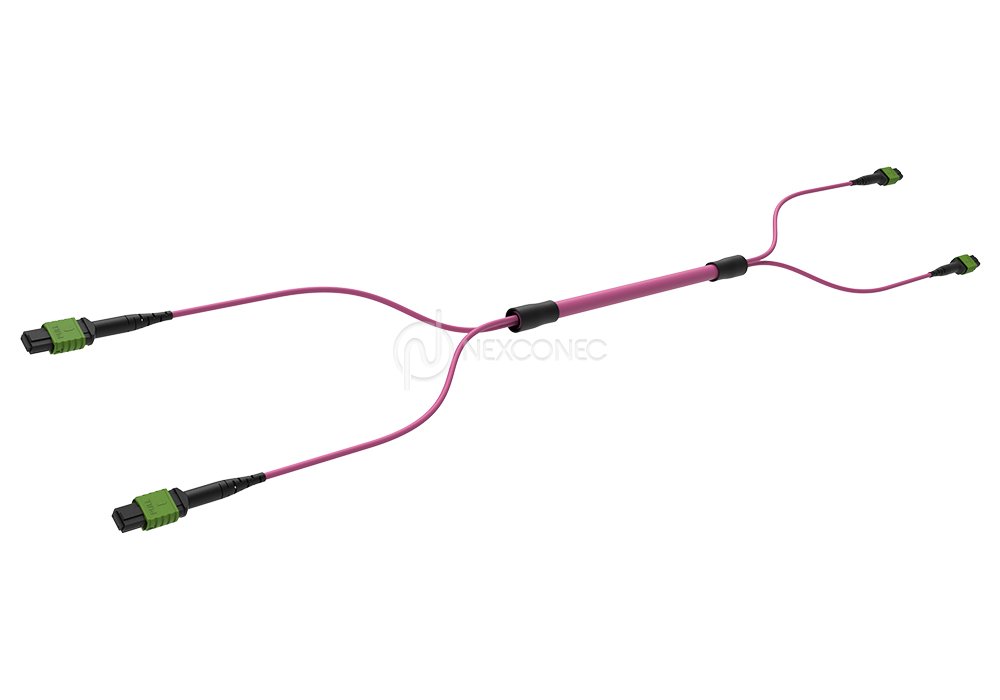

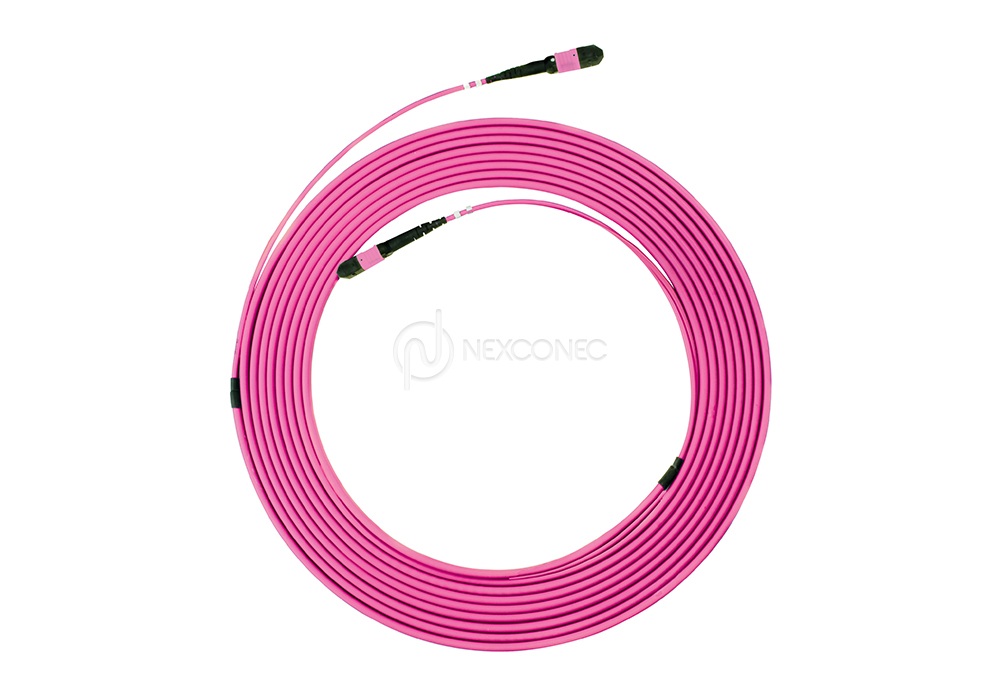

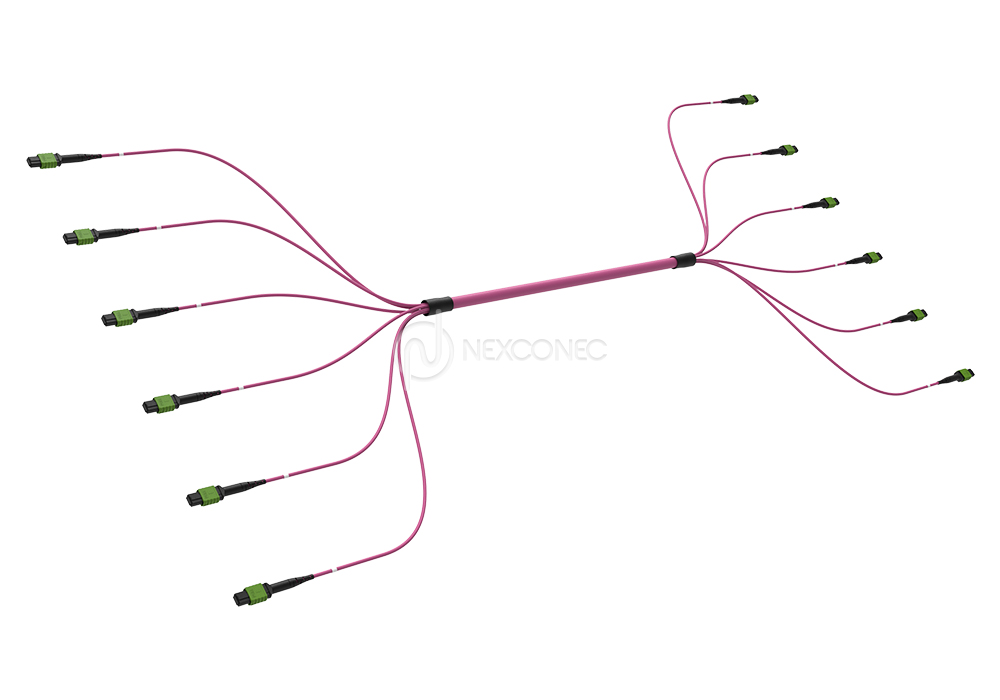

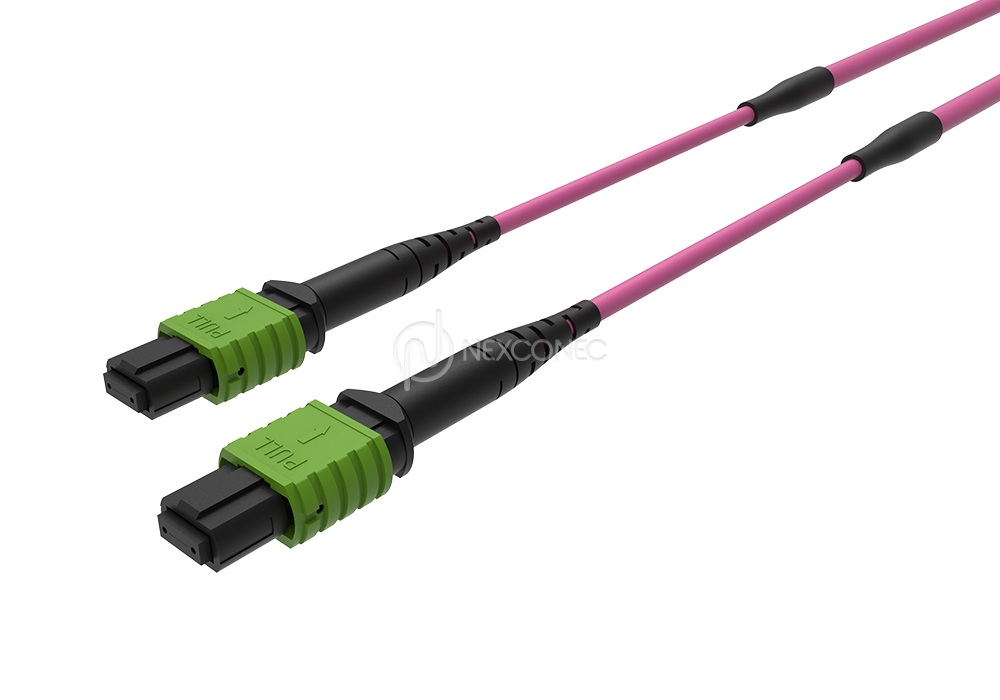

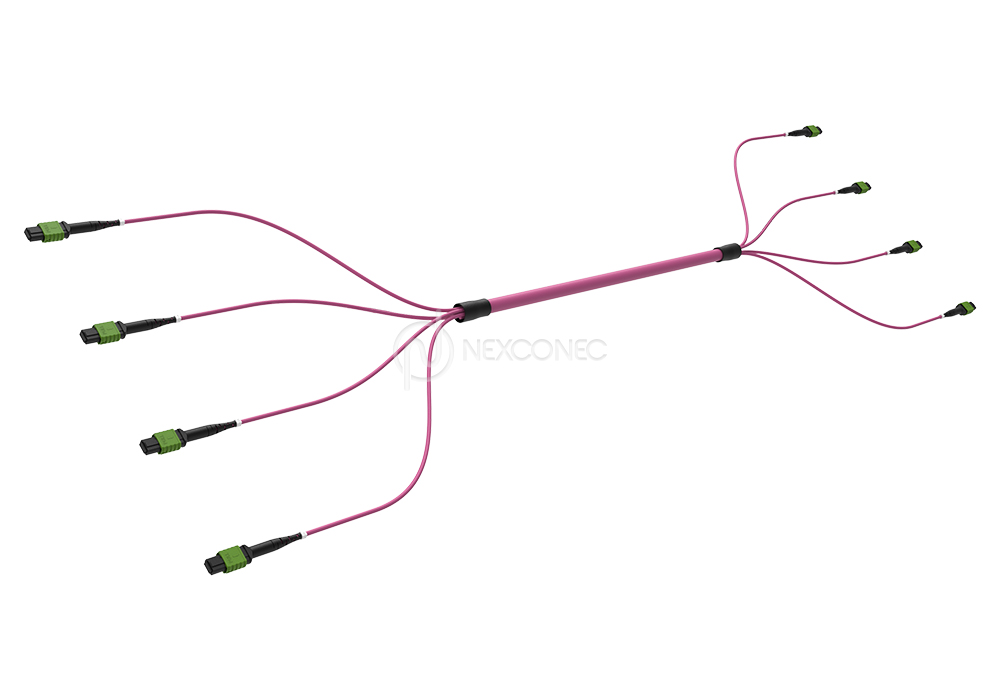

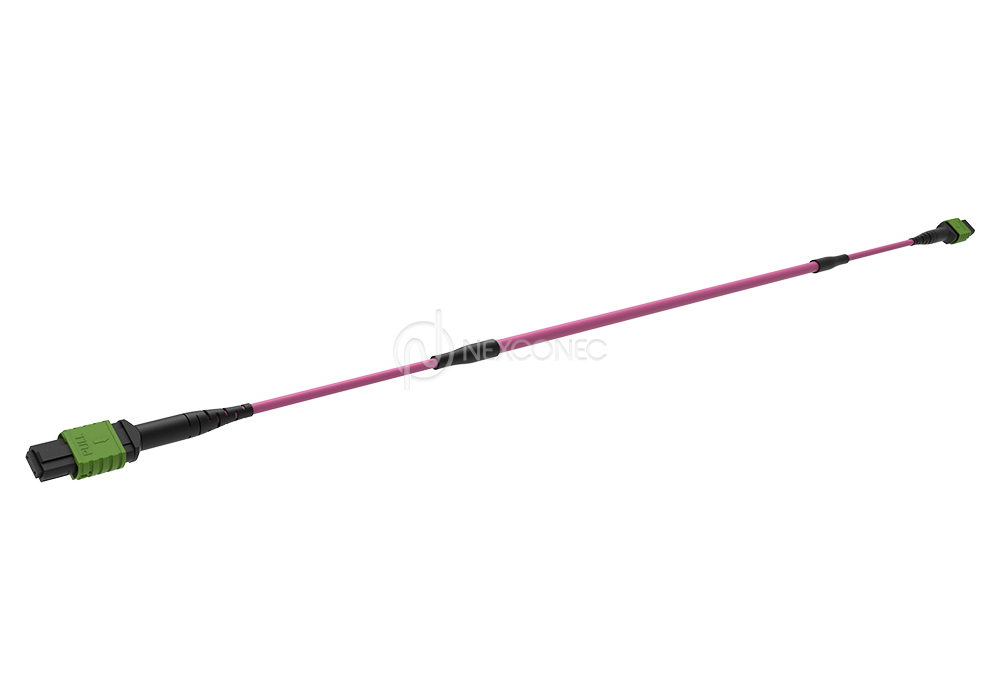

MTP®/MPO (APC) MM OM4 Trunks Base-8
NEXCONEC® MTP®/MPO (APC) MM OM4 Trunks (BASE-8) are compact, high-density fiber connector assemblies designed for demanding high-bandwidth applications. Our MTP®/MPO Trunks are specifically designed for high-speed applications ranging from 40G up to 800G, including Twin-port OSFP environments. Supporting two 4-channel fiber links, these trunks enable seamless connectivity to other twin-port OSFP, single-port OSFP, or QSFP112 400G transceivers. Ideal for 200G, 400G, and 800G data transfer rates, they provide reliable interconnection between equipment, modules, and panels in high-density data centers.
Our MTP®/MPO connectors are available in both Standard and Elite versions to meet varying power budget needs. These MPO trunks are fully compatible with NVIDIA/Mellanox MFP7E10-N001, making them the perfect choice for AI and machine learning solutions, where speed and reliability are paramount.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements

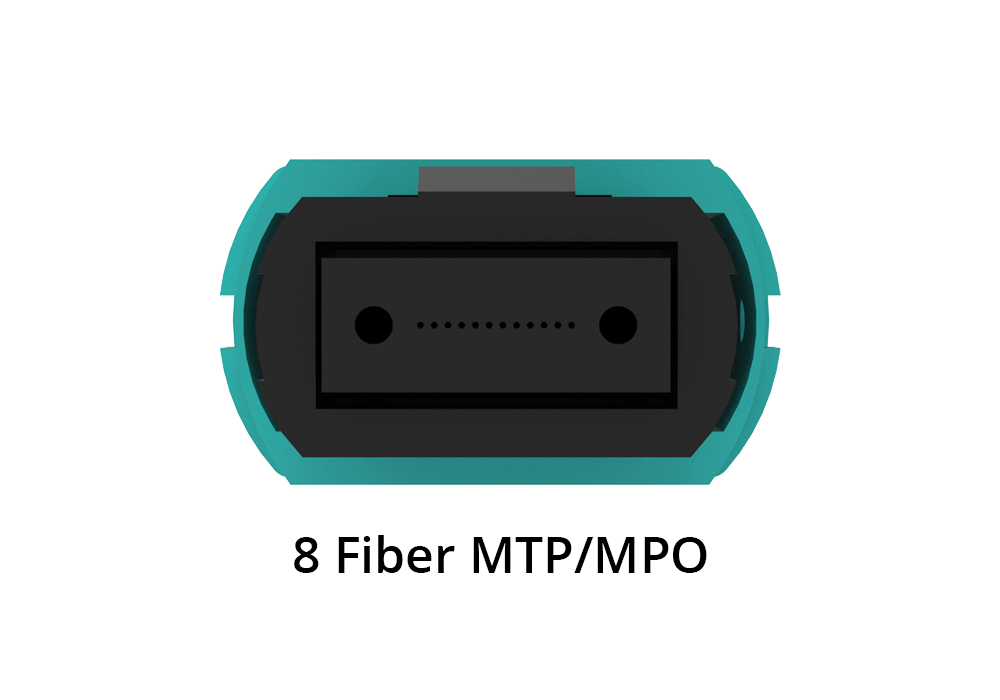

- Cable terminated with Base-8 fiber MTP®/MPO Connectors
- Available in custom length and cable construction from 8 to 96 fibers
- CPR Euro classes certified on demand
- AI & Machine Learning, Big Data Analytics
- Supports from 40G up to 800G applications
FEATURES
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- All Assemblies are machine polished providing highest quality
- Cable terminated with Base-8 fiber MTP®/MPO Connectors
- MPO push/pull release boot
- Available in custom length and cable construction from 8 to 96 fibers
- All Assemblies are factory tested and come with test certificate
- Factory pre-terminated assemblies with protocol for constant and reliable quality
- CPR Euro classes certified on demand
APPLICATIONS
- Telecommunication and Enterprise networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- AI & Machine Learning, Big Data Analytics
- Supports from 40G up to 800G applications
| Parameters | IL – Max | IL – Typical | RL |
|---|---|---|---|
| SM – Standard | 0.75 dB | 0.40 dB | > 60 dB |
| SM – Premium | 0.35 dB | 0.20 dB | > 60 dB |
| MM – Standard | 0.60 dB | 0.40 dB | > 20 dB |
| MM – Premium | 0.35 dB | 0.20 dB | > 20 dB |
| Cable Characteristics | Units | Microcable |
|---|---|---|
| 111111111 | 22222222 | 333333333 |
