MTP®/MPO to LC/SC Fanouts Base-16

MTP LC Fan-out base-16
MTP LC Fan-out base-16
MTP LC Fan-out base-16
MTP LC Fan-out base-16
MTP LC Fan-out base-16
MTP LC Fan-out base-16
MTP LC Fan-out base-16
MTP LC Fan-out base-16
MTP LC Fan-out base-16
MTP LC Fan-out base-16
MTP LC Fan-out base-16 MTP LC Fan-out base-16 MTP LC Fan-out base-16 MTP LC Fan-out base-16 MTP LC Fan-out base-16 MTP LC Fan-out base-16 MTP LC Fan-out base-16 MTP LC Fan-out base-16 MTP LC Fan-out base-16 MTP LC Fan-out base-16

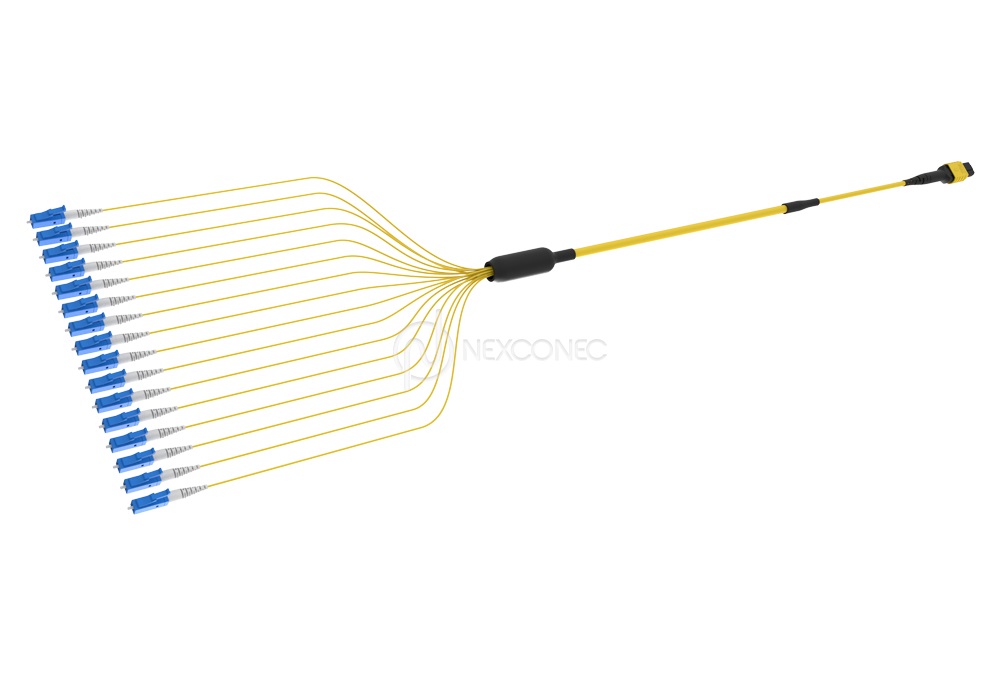

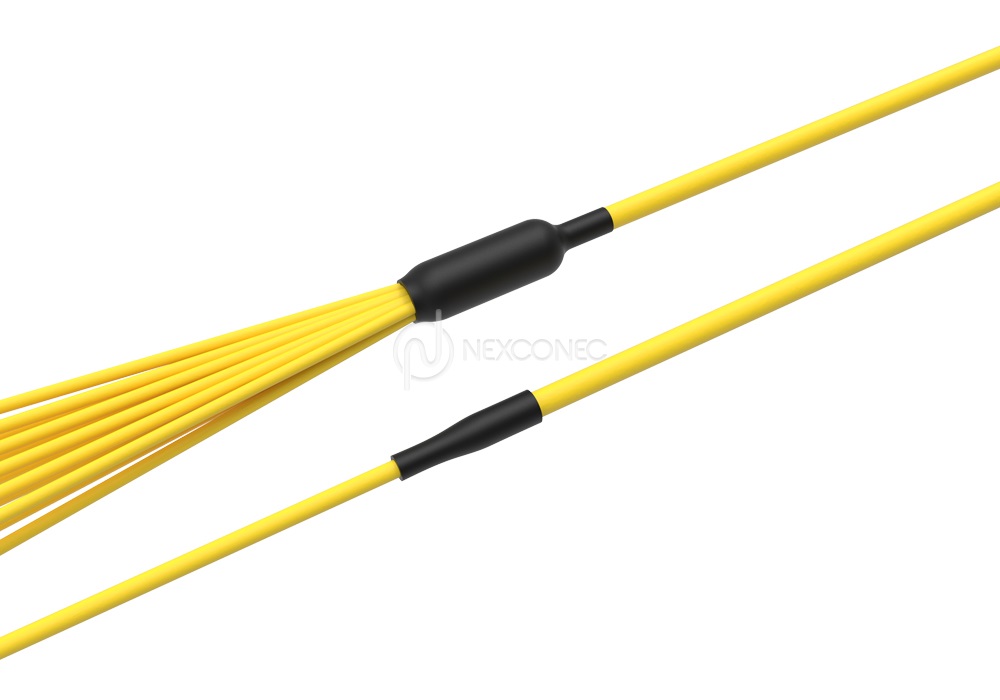

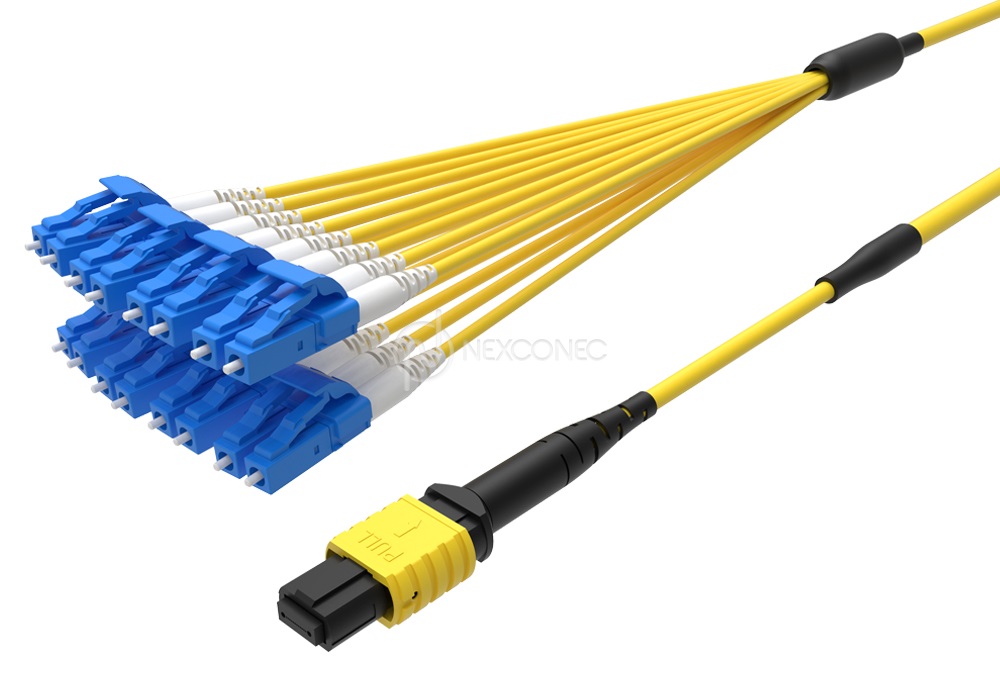

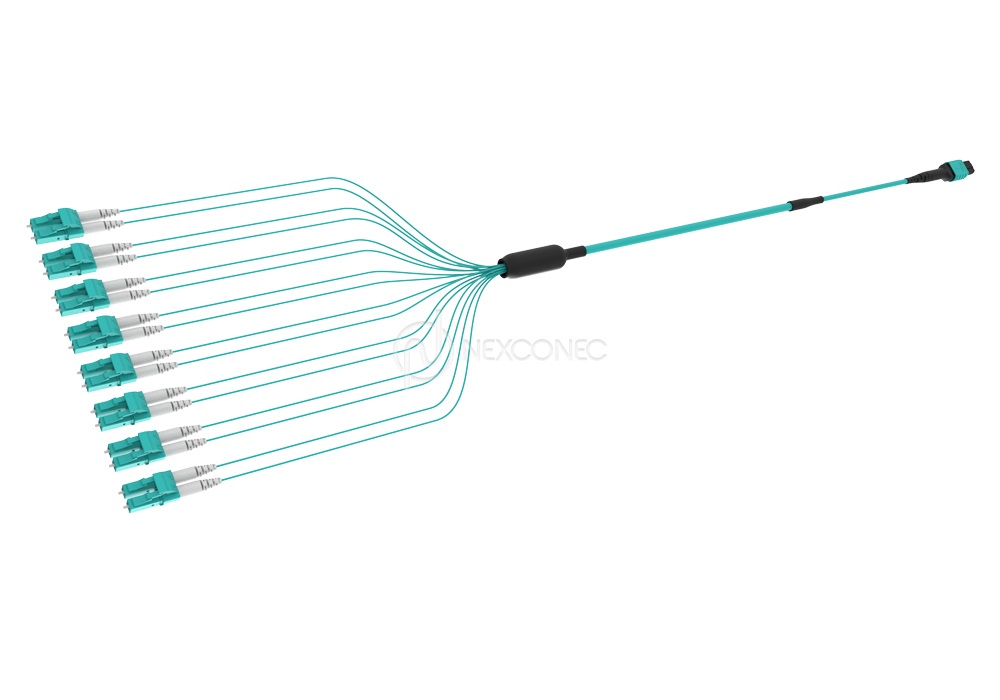

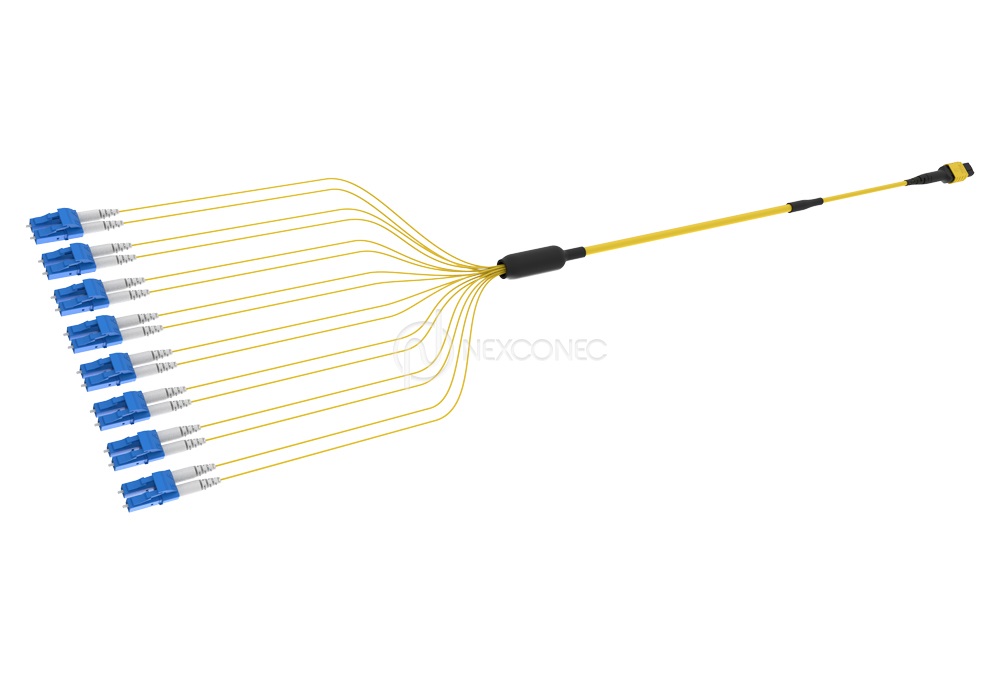

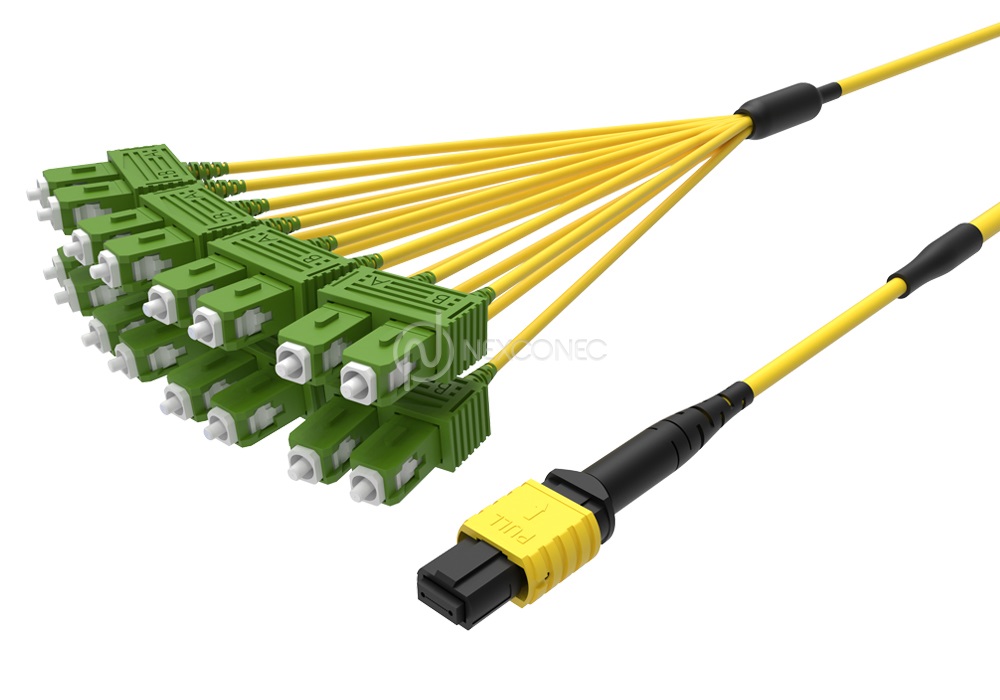

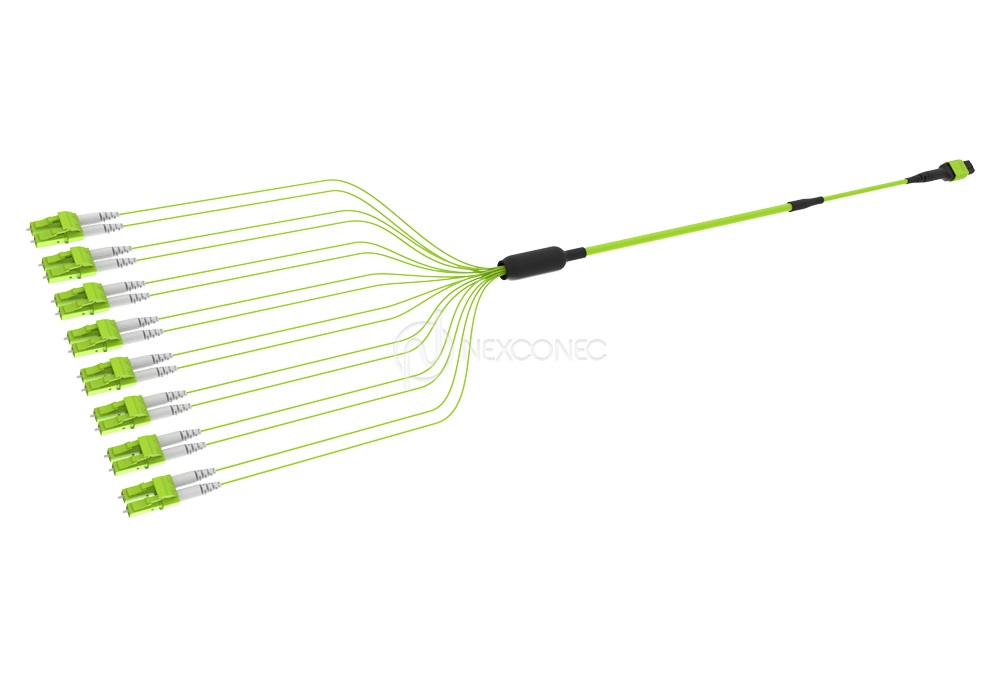

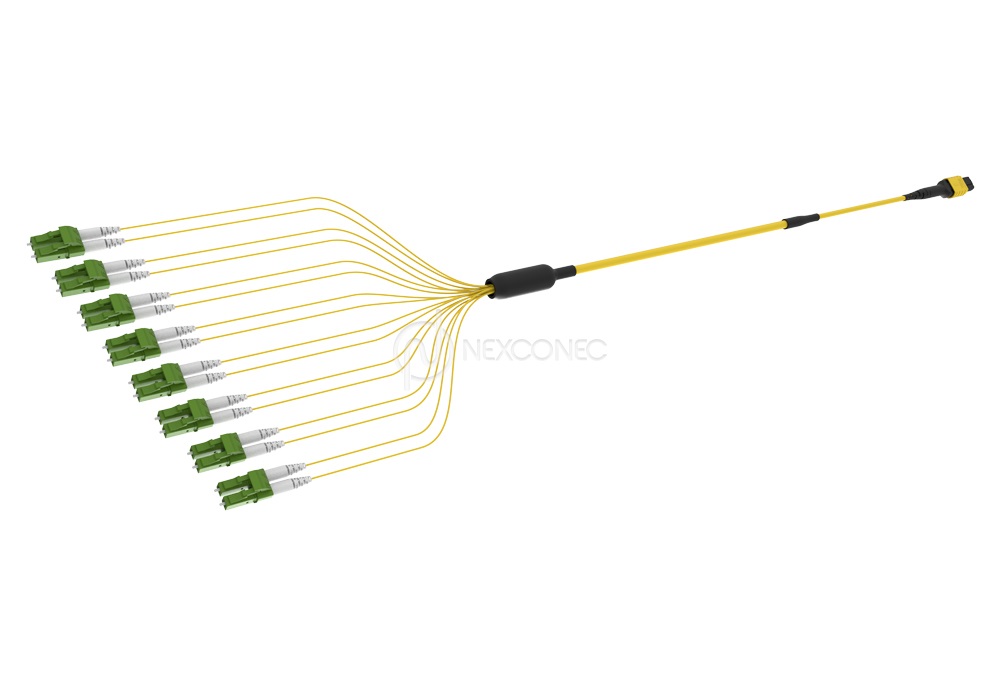

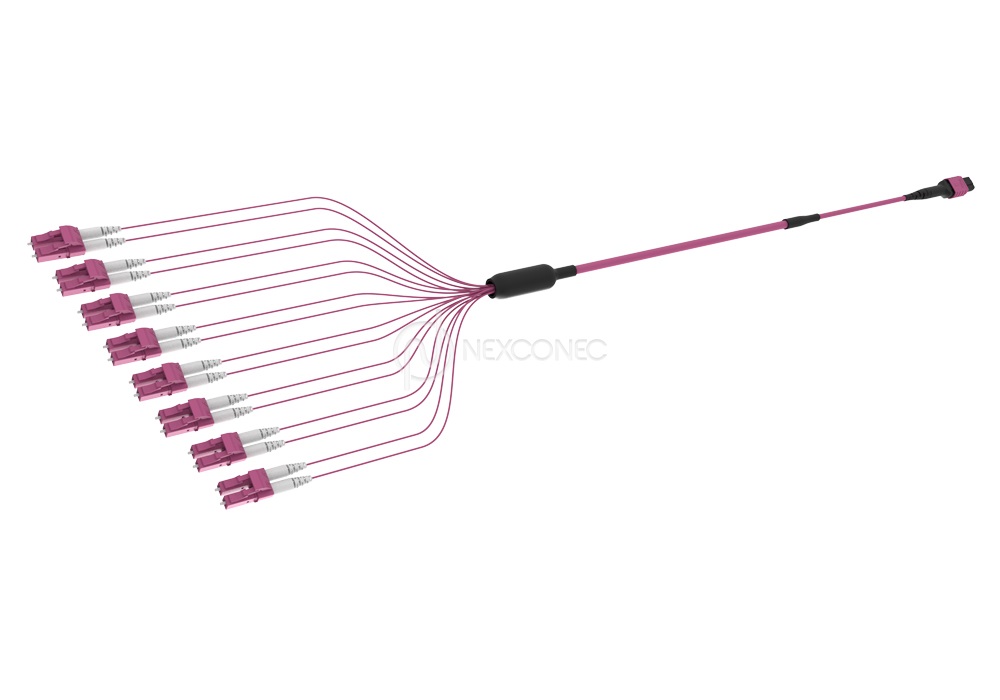

NEXCONEC® MTP®/MPO to LC/SC Fanouts BASE-16 are compact, high-density fiber optic assemblies designed to break out a BASE-16 MTP®/MPO connector into discrete LC or SC connectors. Ideal for high-performance data center environments, these fanouts support 100G, 400G, 800G and emerging 1.6T applications, enabling reliable connectivity between active equipment or interconnecting structured cabling modules and panels.

These fan-out assemblies facilitate seamless transitions between high-bandwidth MTP®/MPO trunk cables and lower-bandwidth devices or patching environments. Available in micro-cable constructions with single or double jacket options, they offer flexibility and durability even in space-constrained deployments. The LC/SC connectors are available in simplex, duplex, or round-duplex variants, while the MTP®/MPO and single-ferrule connectors are offered in both Standard and Elite grades to meet a range of power-budget requirements.

FEATURES AND APPLICATIONS
  • Small factor breakout module from MTP®/MPO to LC or SC tails 2.0mm SX, DX or Uniboot

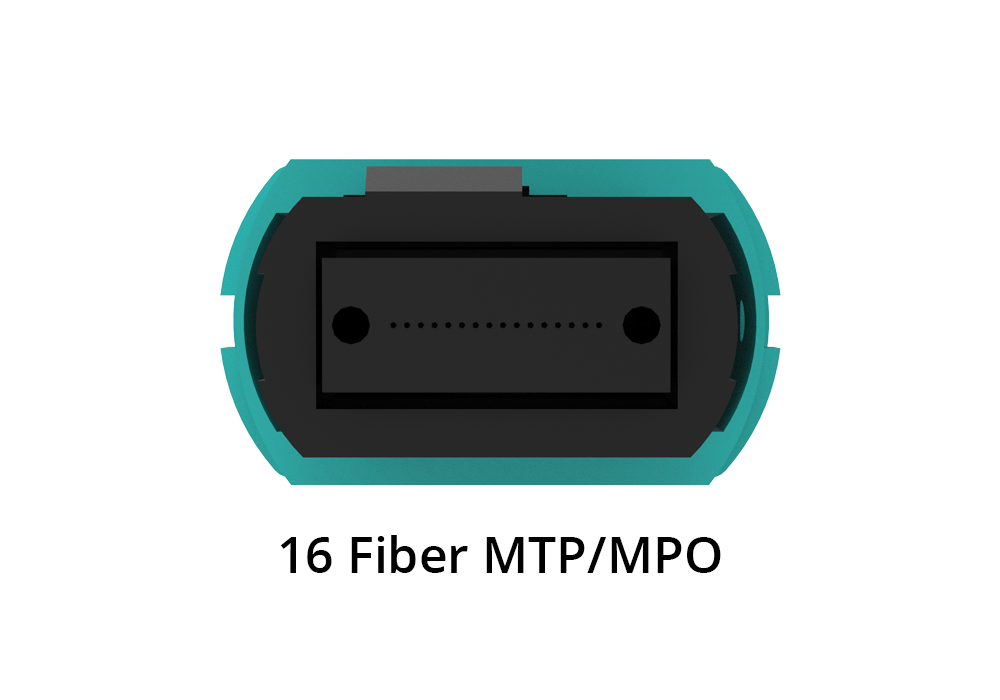

  • Cable terminated with Base-16 fiber MTP®/MPO Connectors
  • Available in custom length and cable construction from 16 to 144 fibers
  • All Assemblies are factory tested and come with test certificate
  • CPR Euro classes certified on demand

Product Information

pdfDATASHEET.pdf View Download

MTP/MPO CONNECTOR

Parameters IL – Max IL – Typical RL
SM APC – Standard 0.75 dB 0.40 dB > 60 dB
SM APC – Premium 0.35 dB 0.20 dB > 60 dB
MM – Standard 0.60 dB 0.40 dB > 20 dB
MM – Premium 0.35 dB 0.20 dB > 20 dB
Note: MTP®/MPO Single mode (SM) Connectors are APC by default. But Multimode (MM) Connectors are available in UPC and APC options.

SINGLE FERRULE CONNECTOR

Parameters IL – Max IL – Typical RL (PC/APC)
SM – Standard ≤ 0.30 dB ≤ 0.20 dB > 55/65 dB
SM – Premium ≤ 0.15 dB ≤ 0.12 dB > 55/65 dB
MM – Standard ≤ 0.30 dB ≤ 0.18 dB > 28 dB
MM – Premium ≤ 0.15 dB ≤ 0.08 dB > 28 dB

CABLE CHARACTERISTICS

Cable Characteristics Units Value
Cable Material LSZH/PVC
Strength Member Aramid/FRP
Cable Diameter mm Single jacket 24F - 3.0
Double jacket 24F - 4.5
Tensile Strength N Single jacket 24F - 200/100
Double jacket 24F - 400/150
Crush N/100mm Single jacket - 500
Double jacket - 1000
Operating Temperature ˚C -20 ~ +70
Minimum Bending Radius mm 10D (Static) / 20D (Dynamic)
CPR Reaction to Fire Classification Certified (24F– 4.5) Cca-s1a,d0,a1

FANOUT CABLE CHARACTERISTICS

Cable Characteristics Units Simplex Duplex Round Duplex
Cable Material LSZH or PVC LSZH or PVC LSZH or PVC
Strength Member Aramid Aramid Aramid
Crush N 500 500 500
Operating Temperature ˚C -20 ~ +70 -20 ~ +70 -20 ~ +70
