MTP®/MPO Conversion Trunks 1x(Base-8) to 2x(Base-4)

MTP/MPO Trunks 1x(Base-8) to 2x(Base-4)
MTP/MPO Trunks 1x(Base-8) to 2x(Base-4)
MTP/MPO Trunks 1x(Base-8) to 2x(Base-4)
MTP/MPO Trunks 1x(Base-8) to 2x(Base-4)
MTP/MPO Trunks 1x(Base-8) to 2x(Base-4)
MTP/MPO Trunks 1x(Base-8) to 2x(Base-4)
MTP/MPO Trunks 1x(Base-8) to 2x(Base-4)
MTP/MPO Trunks 1x(Base-8) to 2x(Base-4) MTP/MPO Trunks 1x(Base-8) to 2x(Base-4) MTP/MPO Trunks 1x(Base-8) to 2x(Base-4) MTP/MPO Trunks 1x(Base-8) to 2x(Base-4) MTP/MPO Trunks 1x(Base-8) to 2x(Base-4) MTP/MPO Trunks 1x(Base-8) to 2x(Base-4) MTP/MPO Trunks 1x(Base-8) to 2x(Base-4)

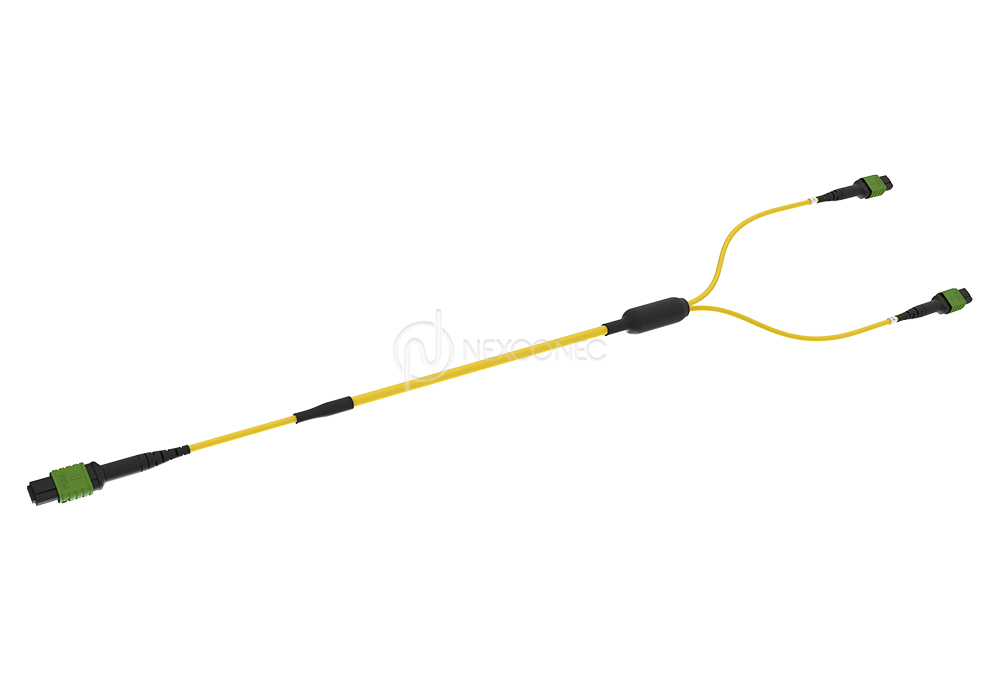

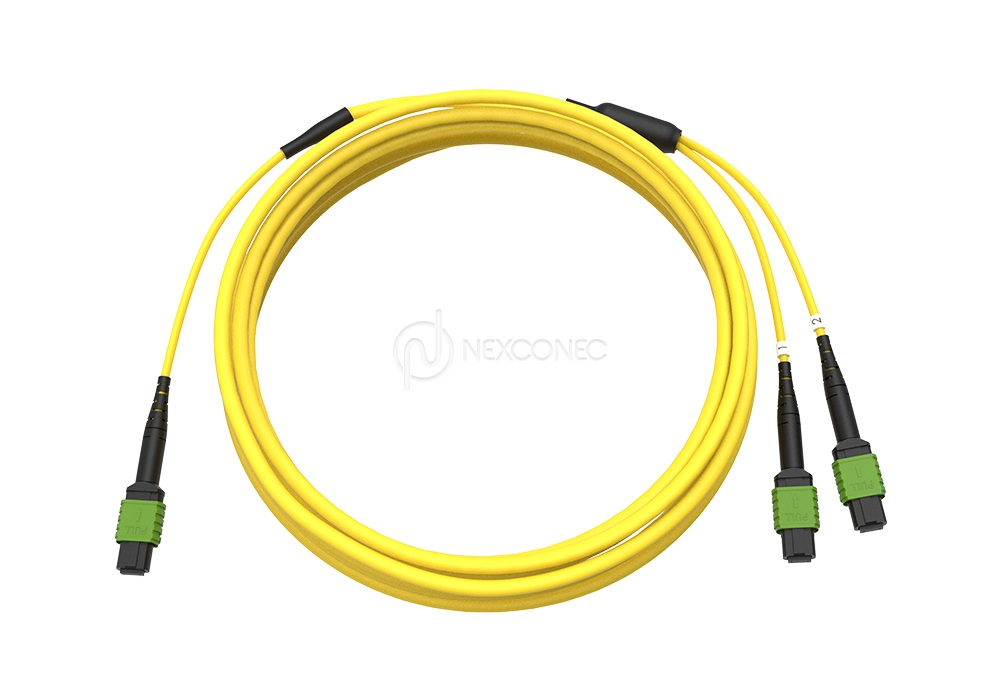

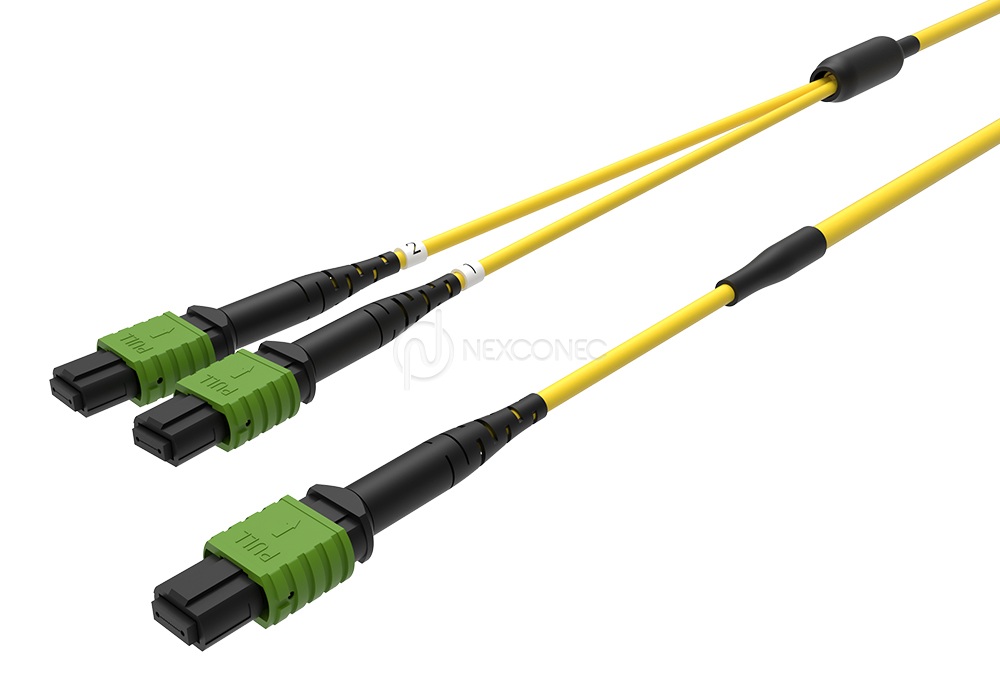

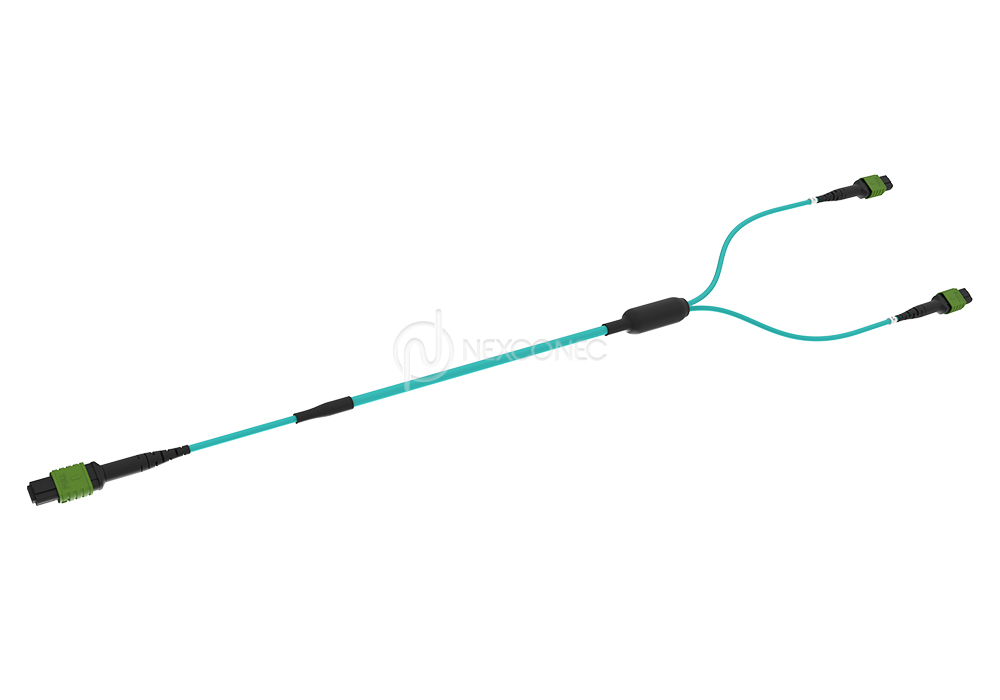

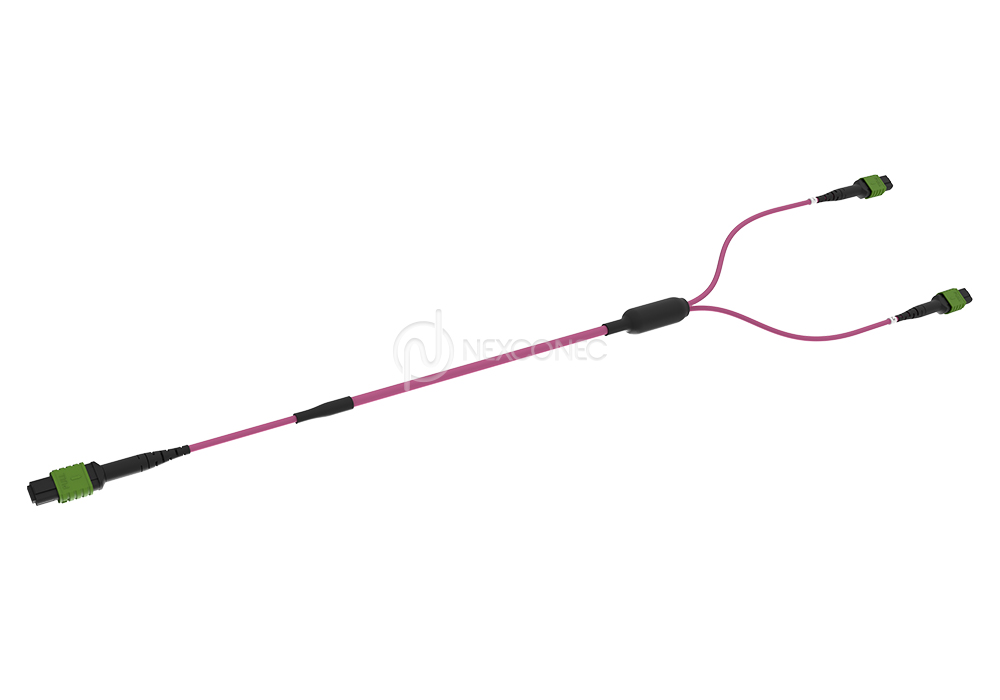

NEXCONEC® MTP®/MPO (Base-8) Conversion Trunks are compact, high-density fiber assemblies designed to optimize cabling architecture in high-speed environments. Unlike standard trunks, these conversion assemblies provide a 1x8F to 2x4F breakout configuration, offering critical flexibility for next generation 400G, 800G architectures.

These trunks are specifically engineered for Twin-port OSFP 800G transceiver applications where signal splitting is required. In this configuration, the 4-channel (8-fiber) end connects to one port of a Twin-port OSFP transceiver. The signal is then split into two separate 2-channel ends, which connect to single-port 400G OSFP or QSFP112 transceivers, enabling 200G transmission rates using just 2 lanes per link.

PRODUCT HIGHLIGHTS
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • All Assemblies are machine polished providing highest quality

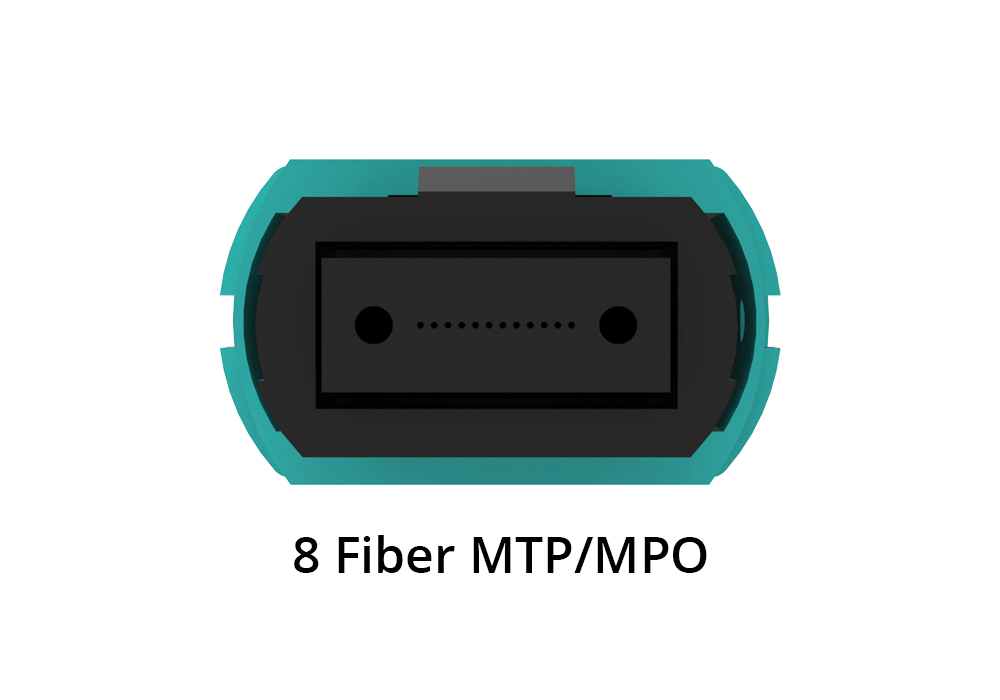

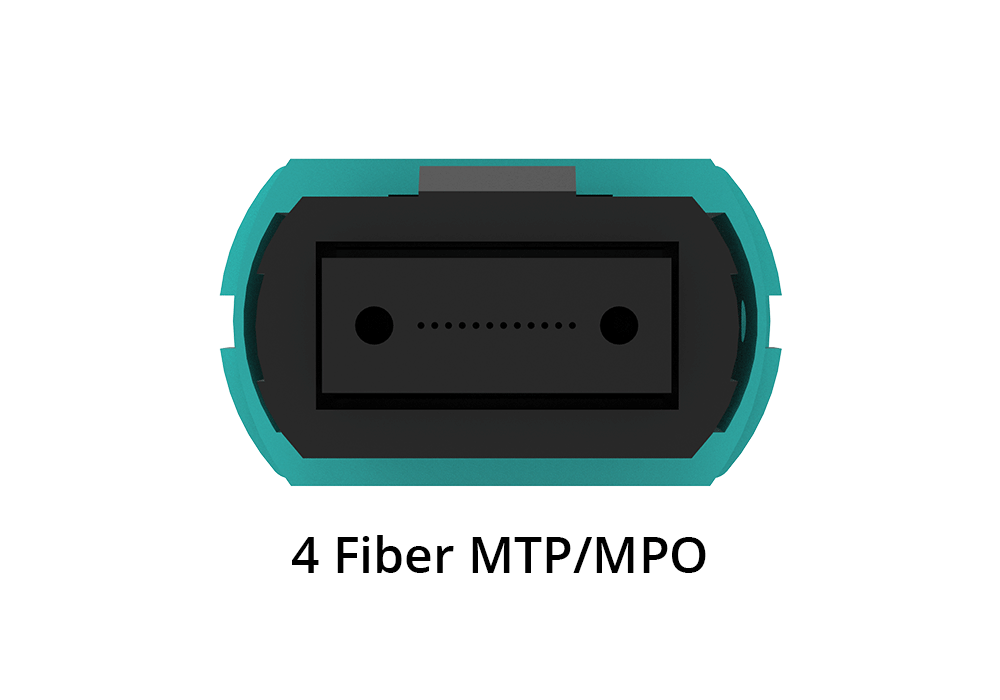

  • Cable terminated with 1x (base-8) & 2x (base-4) fiber MTP®/MPO Connectors
  • Optional MPO push/pull release boot
  • CPR Euro classes certified on demand
PRODUCT INFORMATION
pdfDATASHEET.pdf View Download
FEATURES
  • Conform to IEC, EIA-TIA, and Telcordia performance requirements
  • All Assemblies are machine polished providing highest quality
  • Cable terminated with 1x (base-8) & 2x (base-4) fiber MTP®/MPO Connectors
  • Optional MPO push/pull release boot
  • Available in custom length and cable construction is 8 fibers
  • All Assemblies are factory tested and come with test certificate
  • Factory pre-terminated assemblies with protocol for constant and reliable quality
  • CPR Euro classes certified on demand
APPLICATIONS
  • Telecommunication networks
  • Data centers, Co-location DC
  • LAN or Campus wide Network
  • Supports 400G/800G applications

MTP®/MPO CONNECTOR SPECIFICATIONS

Parameters IL – Max IL – Typical RL
SM APC – Standard 0.75 dB 0.40 dB > 60 dB
SM APC – Premium 0.35 dB 0.20 dB > 60 dB
MM – Standard 0.60 dB 0.40 dB > 20 dB
MM – Premium 0.35 dB 0.20 dB > 20 dB
*** For single mode premium grade is only available with Usconec MTP.
Note: MTP®/MPO Single mode (SM) Connectors are APC by default. But Multimode (MM) Connectors are available in UPC and APC options.

CABLE CHARACTERISTICS

Parameters Units Value
Fiber Count 8F
Number of Fibers per Tube 8
Number of Micro Tubes 1
Outer Diameter mm Single jacket 8F – 3.0mm
Tail Diameter mm 3.0
Tensile Strength (Long Term) N 60
Tensile Strength (Short Term) N 200
Crush Resistance (Long Term) N/100mm 200
Crush Resistance (Short Term) N/100mm 500
Min. Bending Radius mm 10D (Static) / 20D (Dynamic)
Polarity “Crossover” Type-B Polarity
Cable Jacket Material LSZH or PVC
Strength Member Kevlar, Aramid Yarn
Storage Temperature ˚C -20 ~ +70
Operating Temperature ˚C -20 ~ +70
Installation Temperature ˚C -10 ~ +50
Compliance RoHS, REACH & SvHC
CPR Reaction to Fire Classification Certified Cca-s1a,d0,a1

Ask Sales for Order Details: sales[at]nexconec.com
