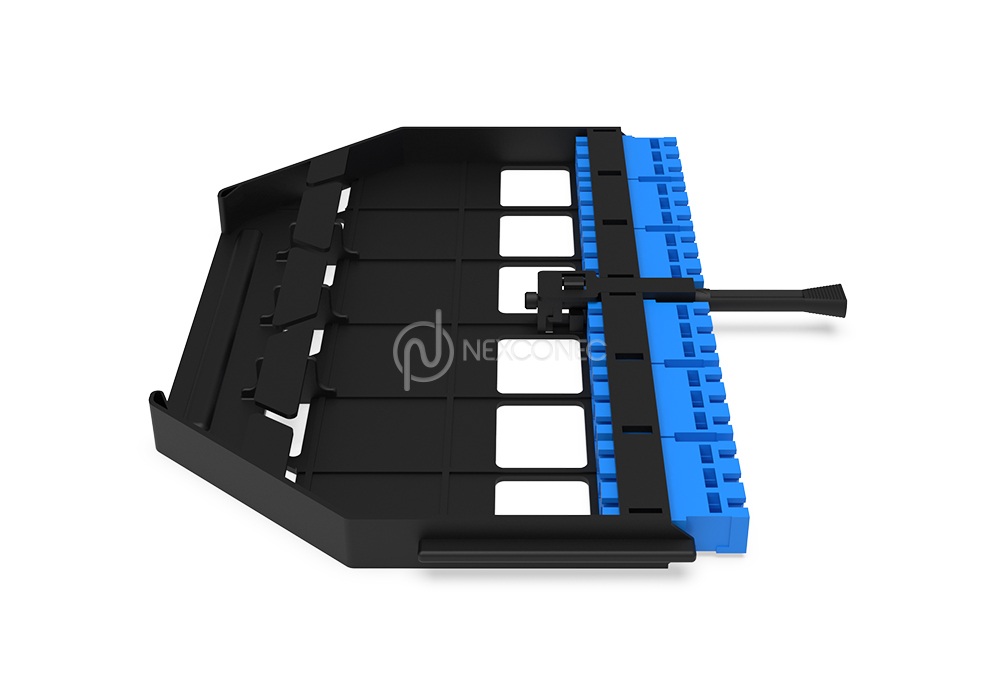

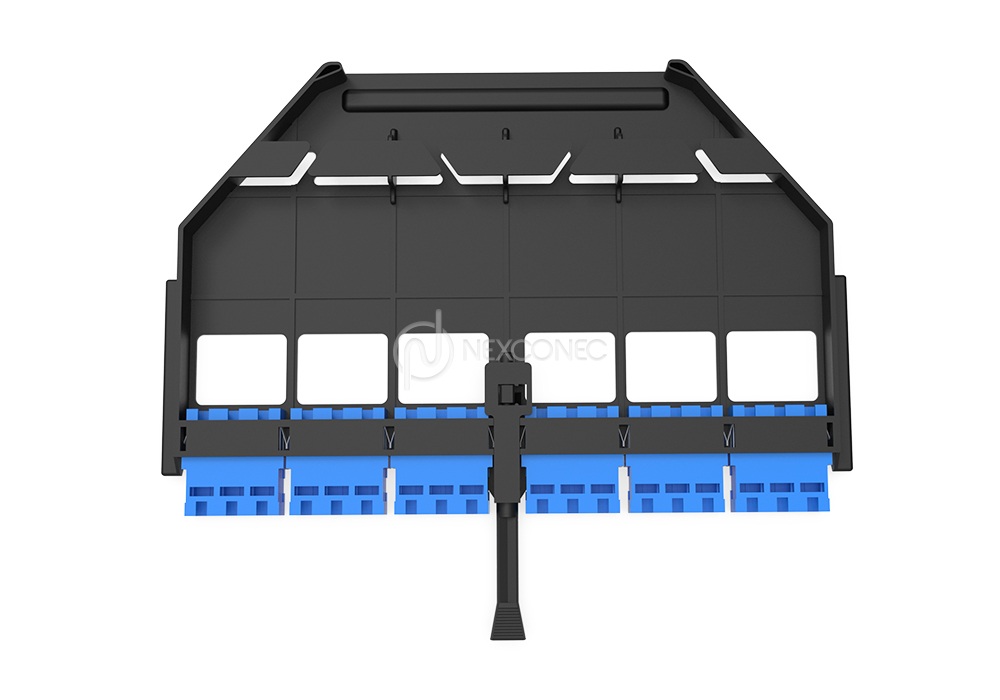

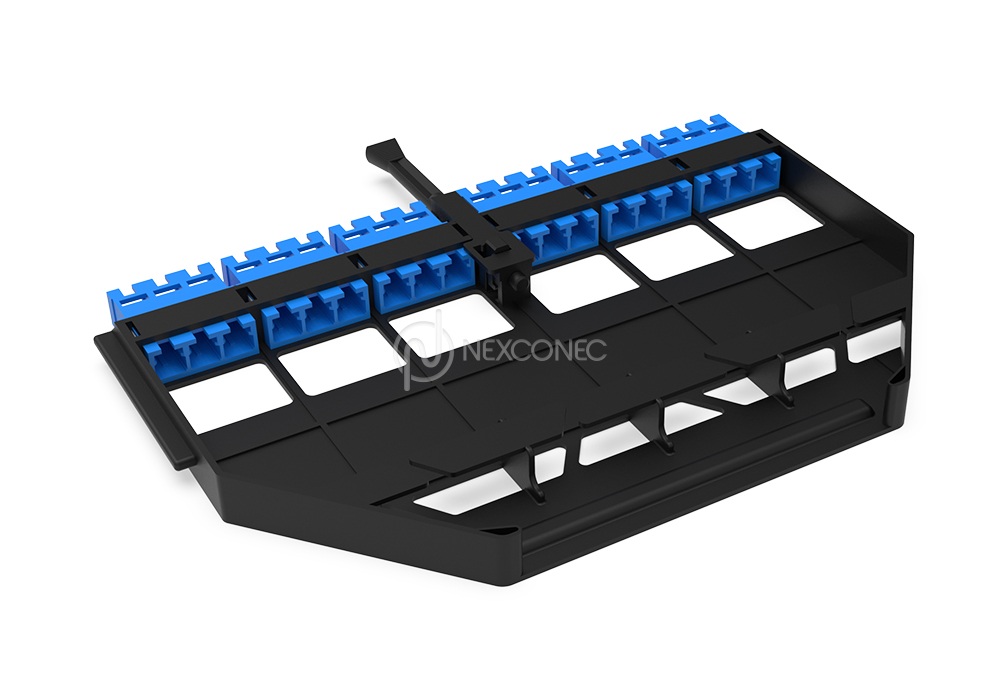

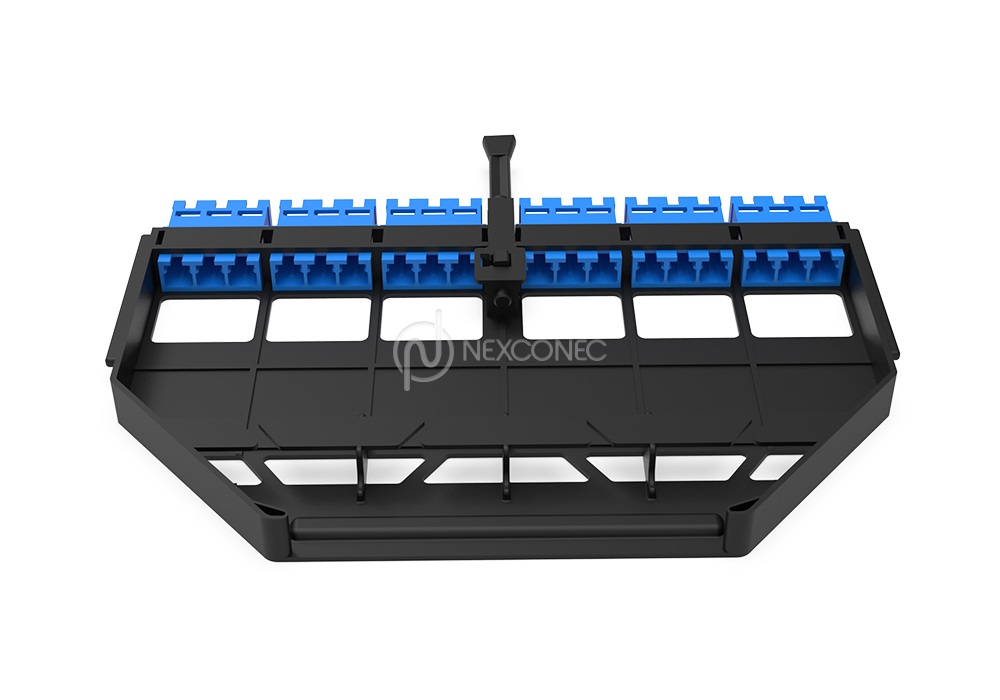

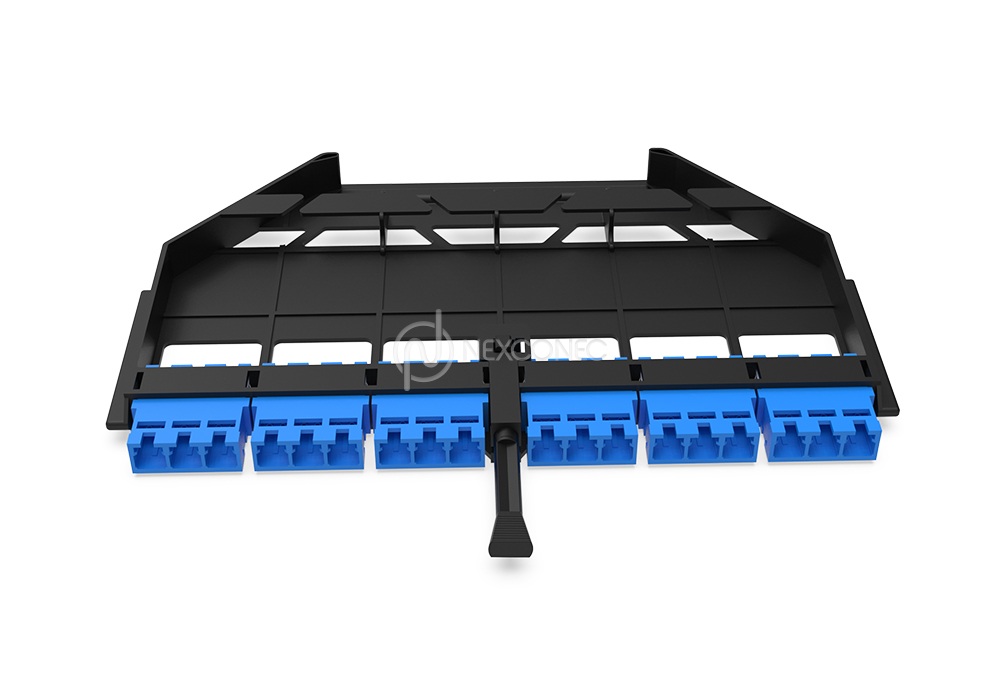

NGX CS® PATCHING CASSETTE - NGXPTCxx
NEXCONEC® NGX CS® Patching Cassettes are specifically designed for direct patching of assemblies, eliminating the need for transitions or splicing and thereby significantly reducing link loss. Each cassette comes preloaded with high-quality CS® adapters, ensuring seamless and reliable connections.
Offering an ultra-high-density solution, these cassettes support up to 216 fibers (6 x 36F) while occupying just 1U of rack space when installed in the NGX 1U 6-slot chassis, making them ideal for maximizing fiber capacity in space-constrained environments.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Preloaded with high-performance CS® adapters
- Available in standard Single mode and Multimode options
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
- Supports SFP, QSFP, CFP applications
FEATURES
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Preloaded with high-performance CS® adapters
- Available in standard Single mode and Multimode options
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
- Flame retardant PC+ABS material
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus Wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Footprint | NGX |
| Dimensions (WxDxH) | 191.20 x 116 x 12.60 mm |
| Material | PC+ABS |
| Housing Color | Black |
| Application | NGX Panels |
| Fiber Capacity | Up to 36FO |
| Adapter Type | CS® Triple Channel 6F |
| Number of CS® Adapter Ports | 6 Ports |
| Compliance | RoHS, REACH & SvHC |
| Operating Temperature | -10 ~ +60°C |
| Weight | 0.25 Kg |
| Part Number | Product Description |
|---|---|

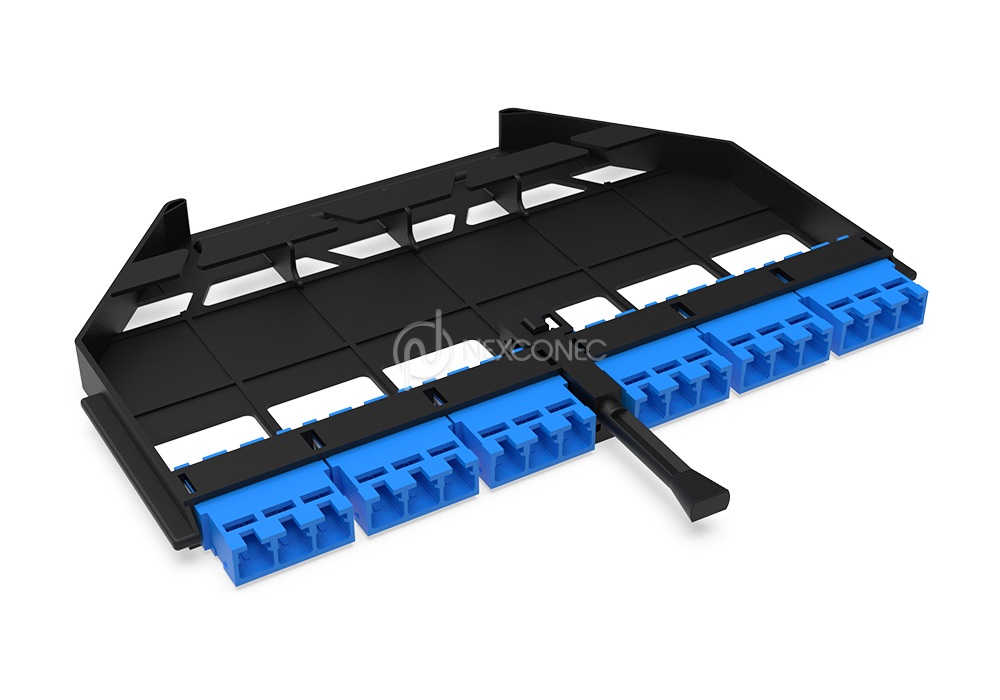

| NGXPTC01 | NGX Patching Module 36FO CS® SM Blue Adapters |
| NGXPTC02 | NGX Patching Module 36FO CS® SM Green Adapters |

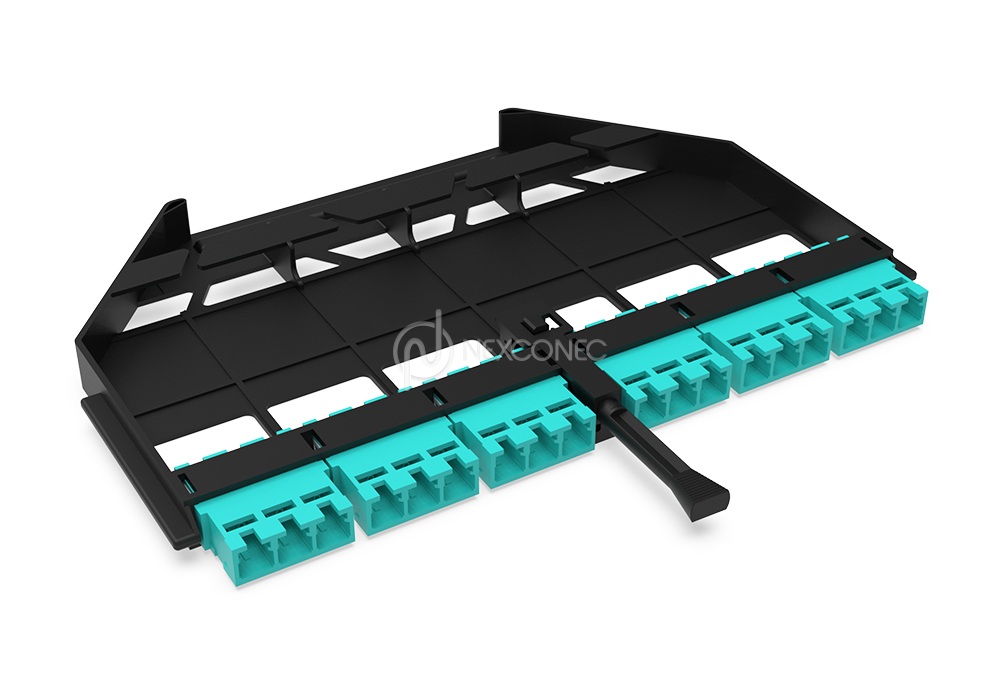

| NGXPTC03 | NGX Patching Module 36FO CS® MM Aqua Adapters |
