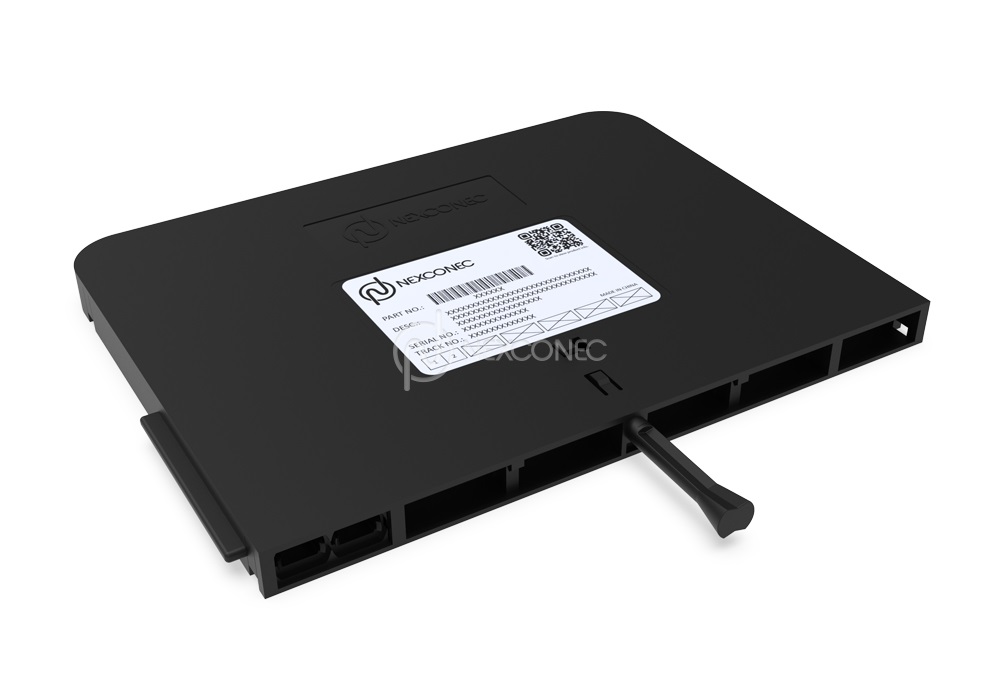

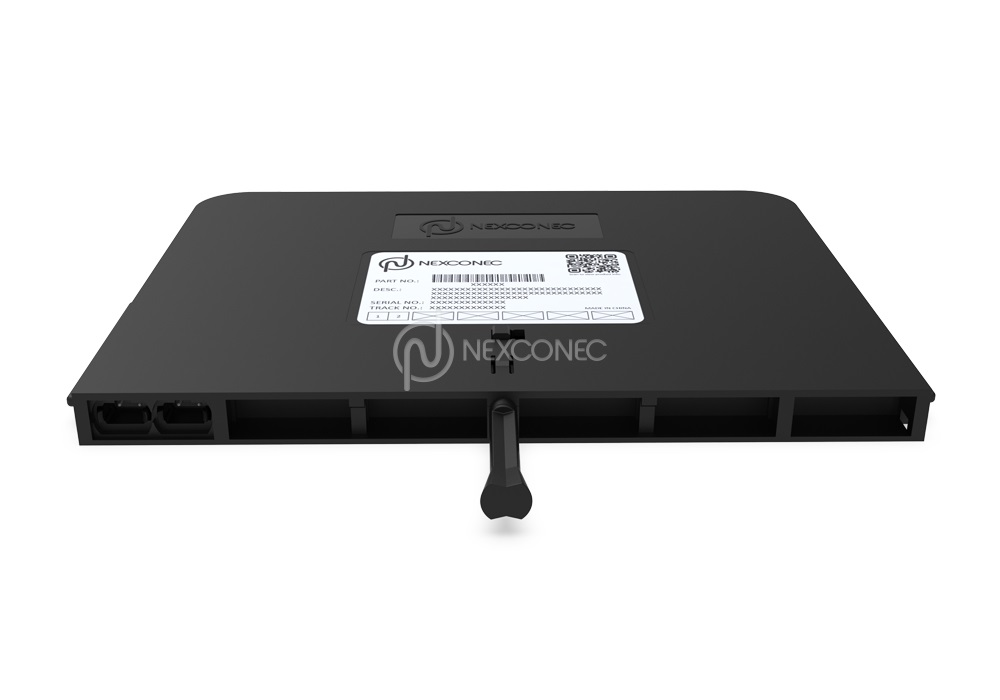

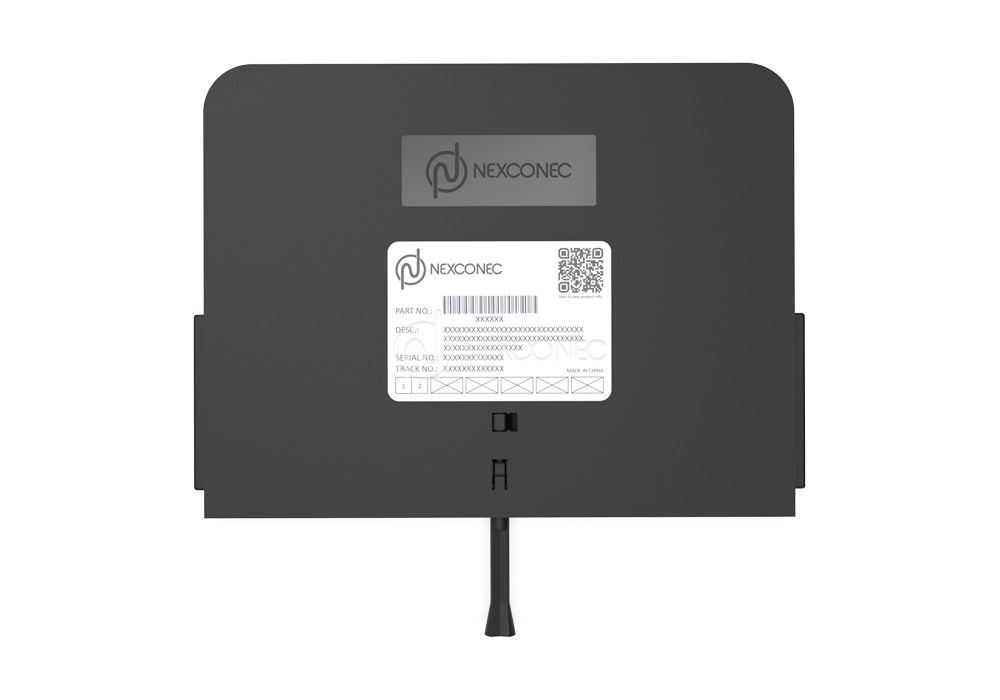

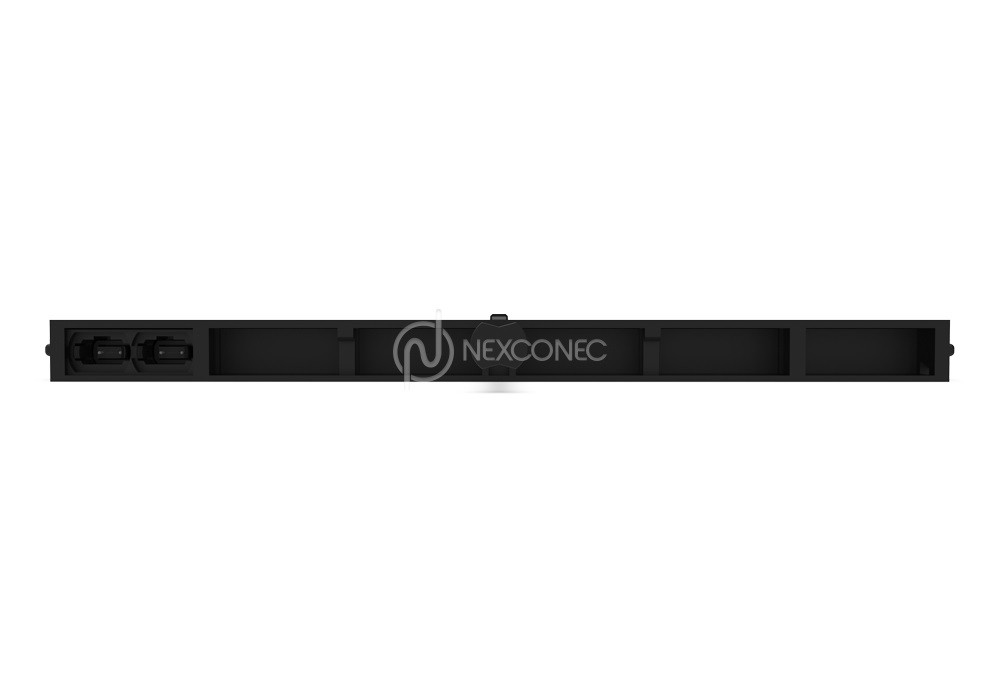

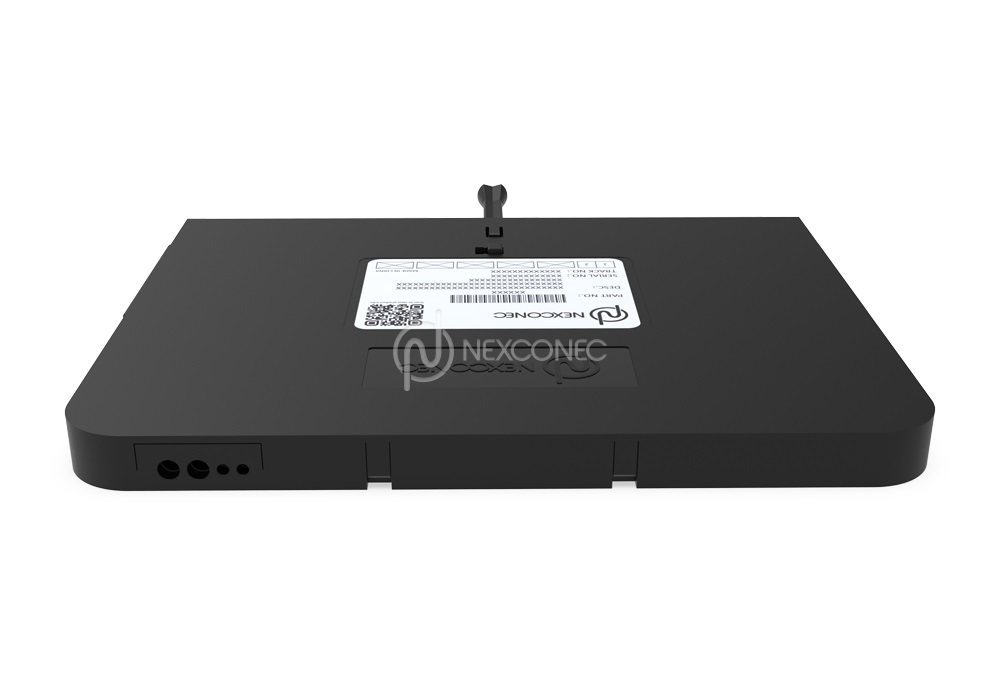

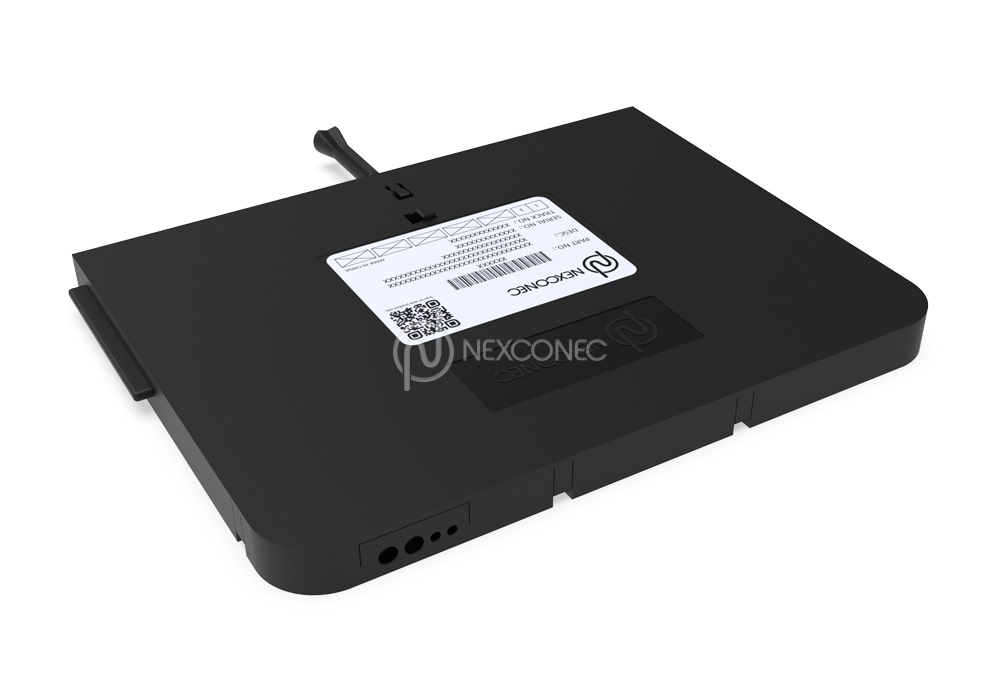

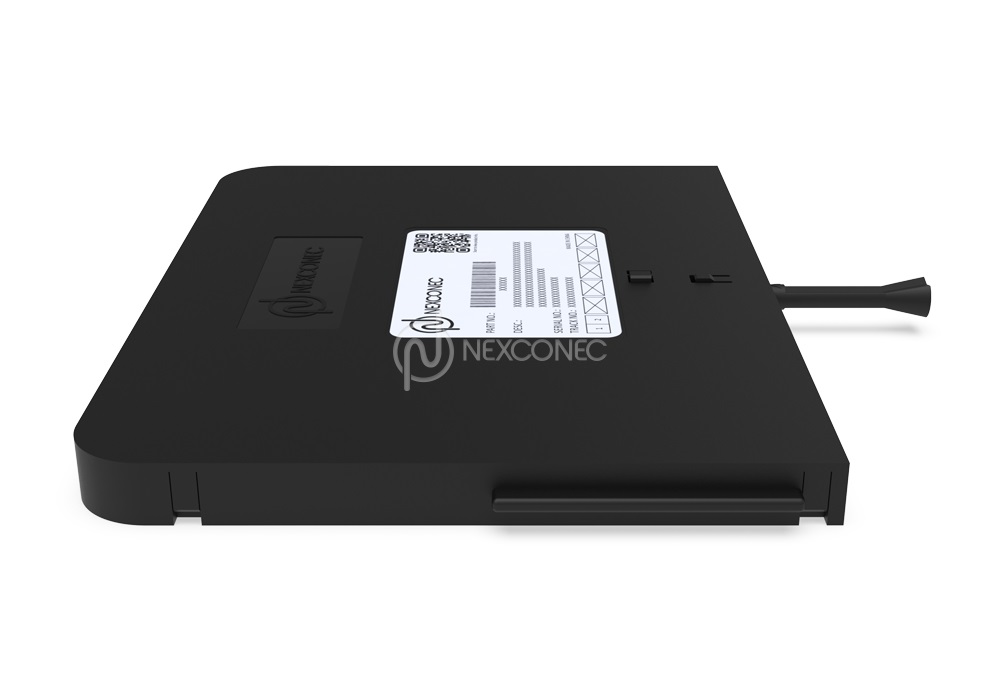

NGX MTP®/MPO SPLICE CASSETTE - NGXSPMxxx

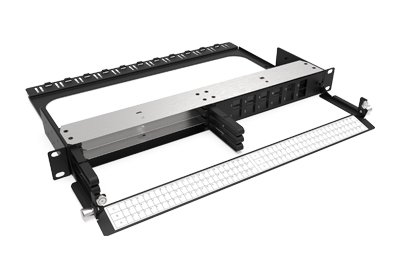

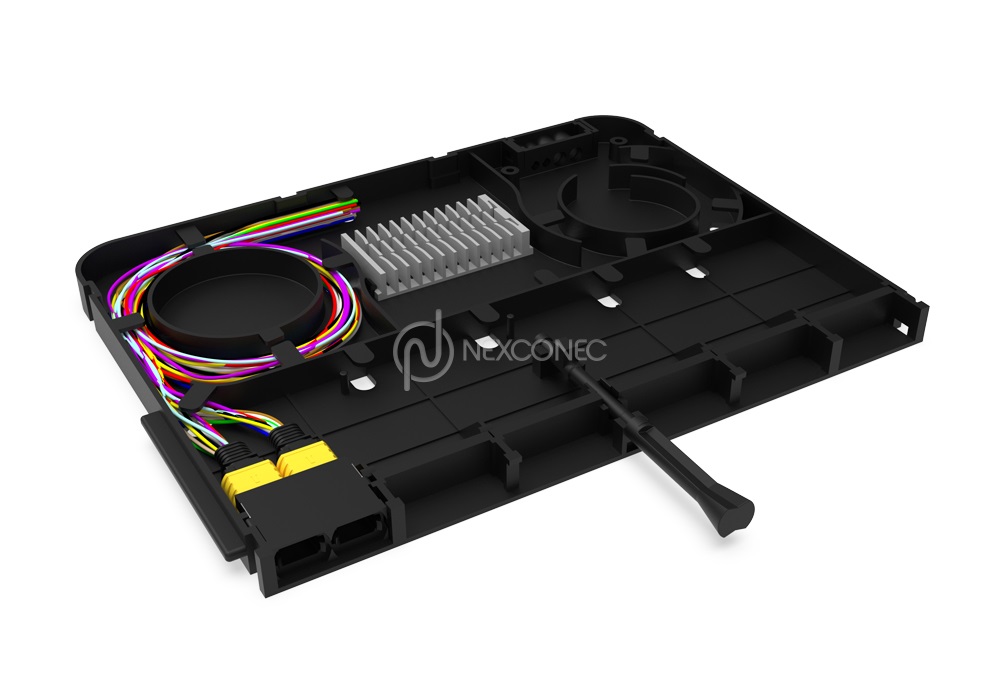

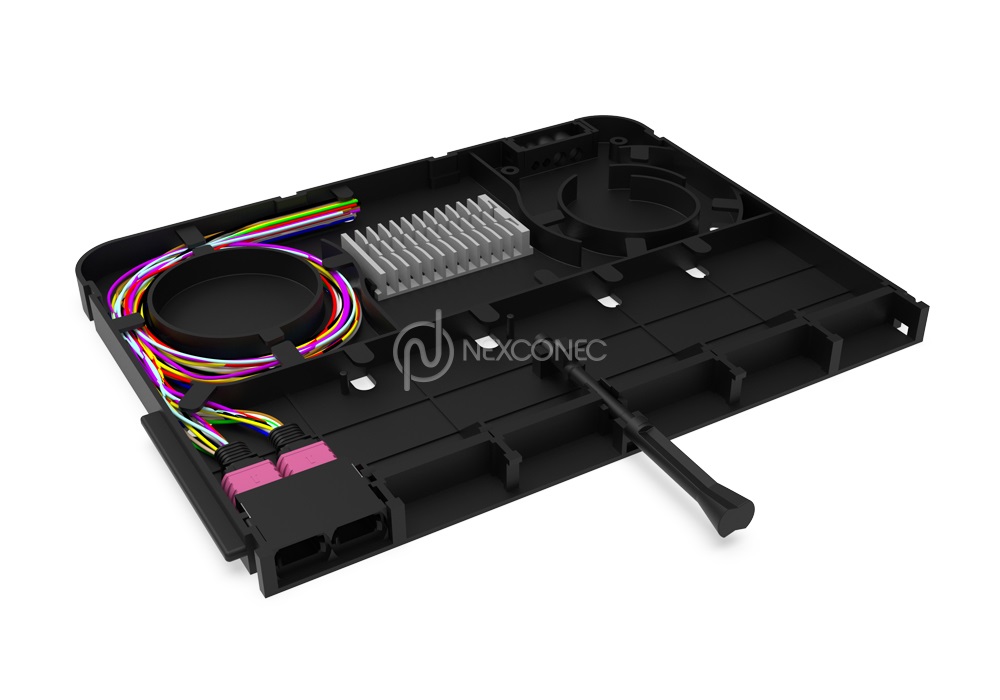

NEXCONEC® NGX MTP/MPO-Splicing cassettes are designed for splicing up to 24F in a cassette with 2xMPO Base-12 Single mode/Multimode MTP/MPO connectors. The NGX cassettes are designed to easy plug into Nexconec NGX 1U 6-slot panel and each chassis can populate up to 144F with LC and 72F with SC. The cassettes are preloaded with adaptors and pigtails supplied with splicing accessories.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof MPO adapters
- Available in Single and Multimode options
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
- Flame retardant ABS+PC material
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus Wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
| Footprint | NGX |
|---|---|
| Dimensions (WxDxH) | 182.2 x 140 x 12.6 mm |
| Material | ABS + PC |
| Housing Color | Black |
| Application | NGX Panels |
| Fiber Capacity | 24FO, 2xMPO Base-12 MTP/MPO connectors |
| Splice Holder | 40MM Heat Shrink Sleeves, or Ribbon |
| Max. Cable Diameter to Use | 5.5 mm |
| Weight | 0.25 Kg |
| Parameters | Units | SM MTP/MPO | MM MTP/MPO |
|---|---|---|---|
| Avg/Max IL– Premium Elite | dB | ≤ 0.10/0.35 | ≤ 0.10/0.35 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60 |
| Part Number | Product Description |
|---|---|
| NGXSPM401 | NGX Splice Module for 24FO 2xMPO (Male) Elite Base-12 SM SMF OS2 |
| NGXSPM402 | NGX Splice Module for 24FO 2xMPO (Male) Elite Base-12 OM4 |
Notes: Ribbon splice is available on request.
*Add ‘-FT’ for France Telecom color coding. (Example: NGXSPM401-FT)
*Add ‘-FT’ for France Telecom color coding. (Example: NGXSPM401-FT)
