NGX PRE-TERMINATED CASSETTE - NGXPMxx

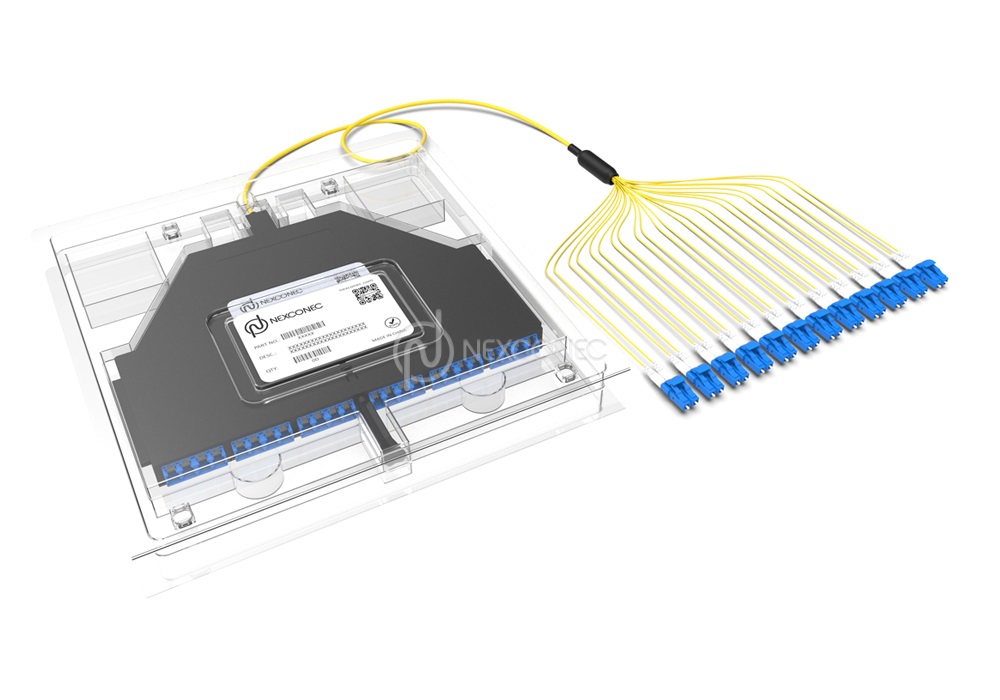

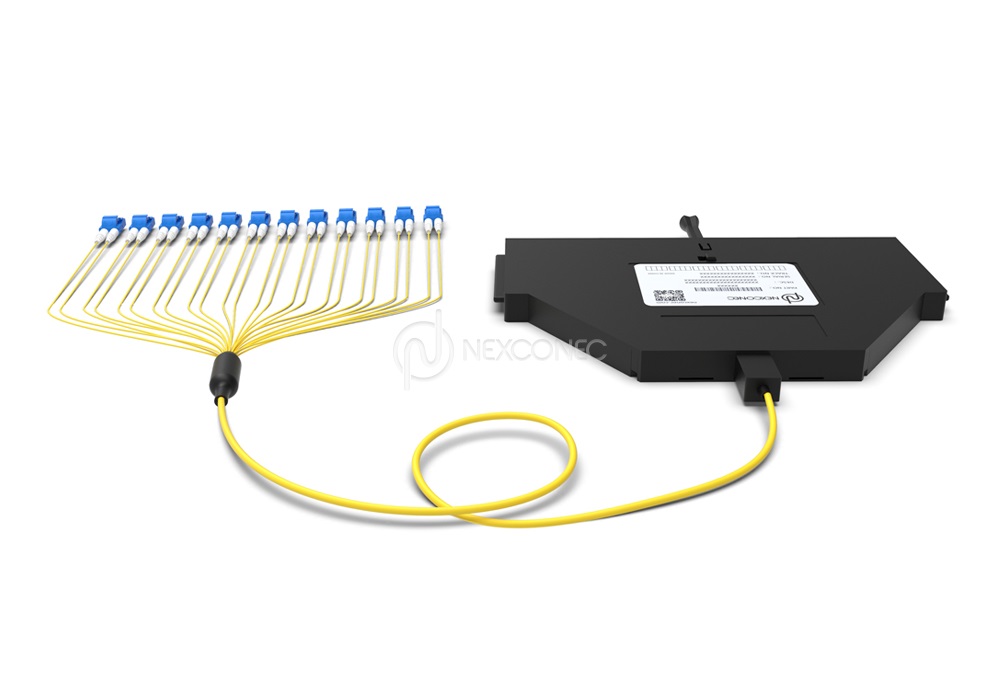

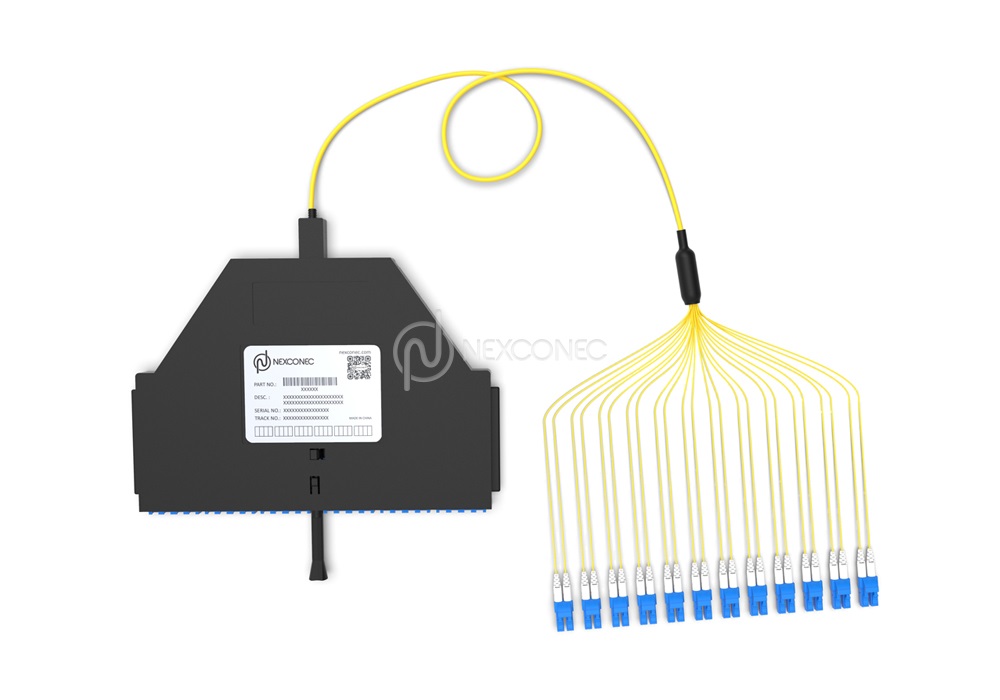

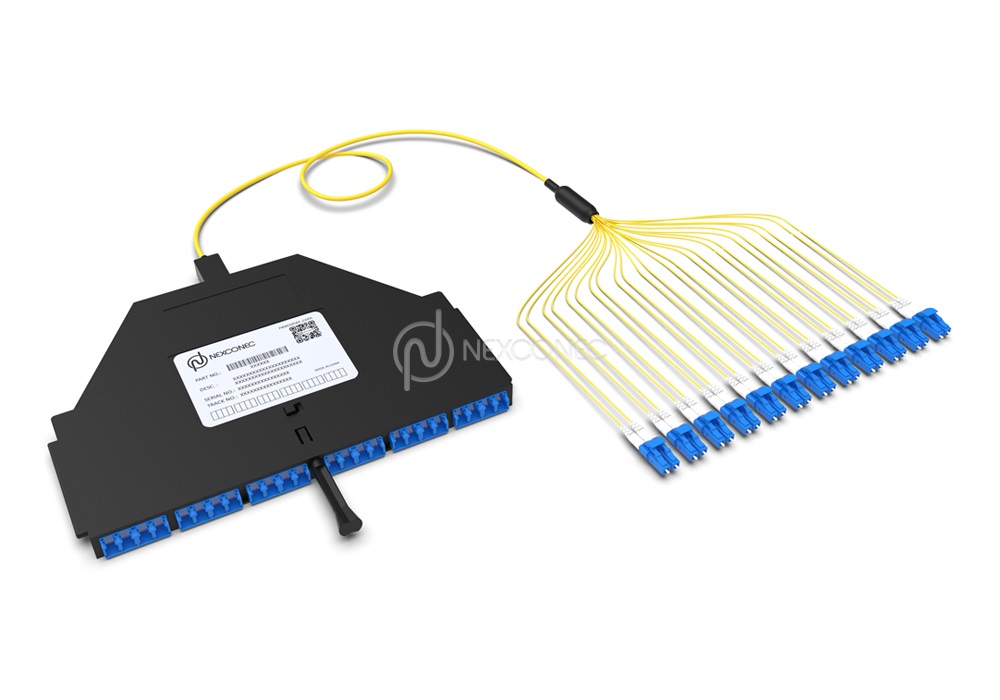

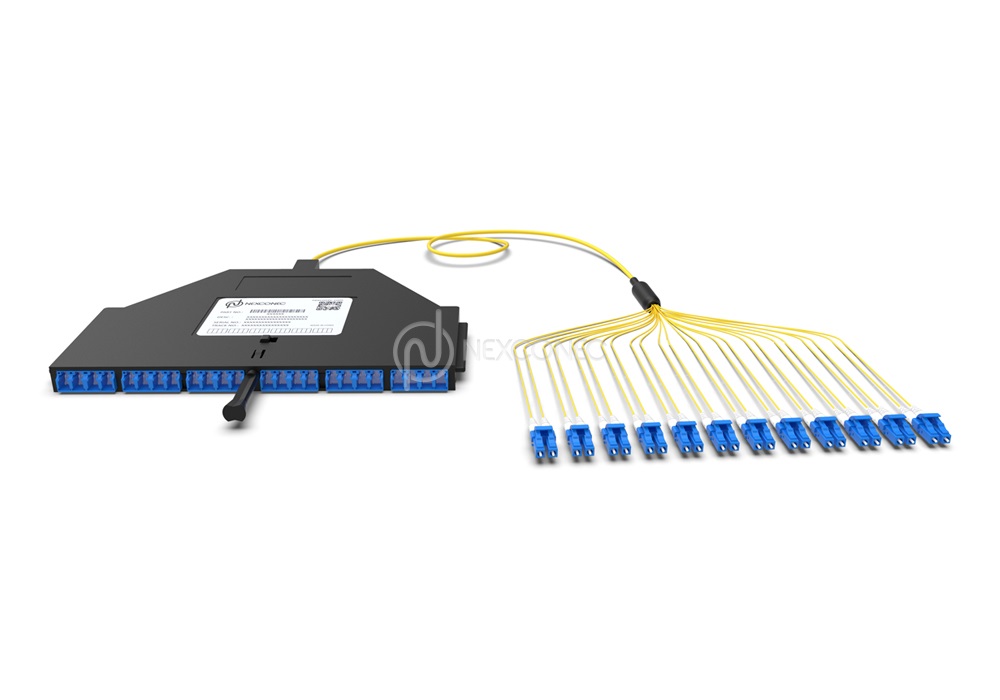

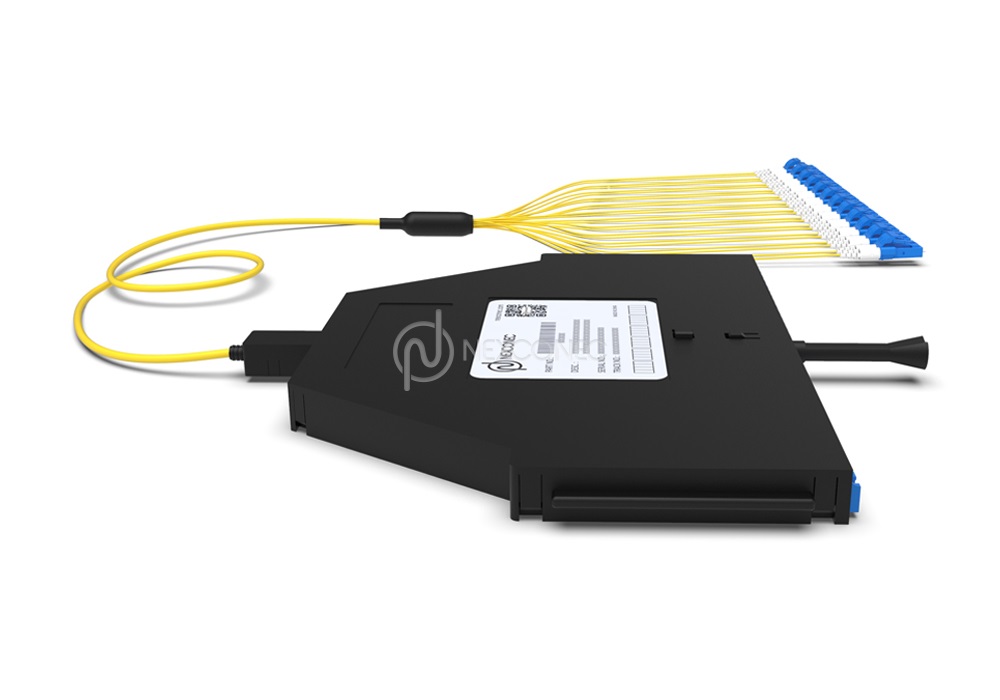

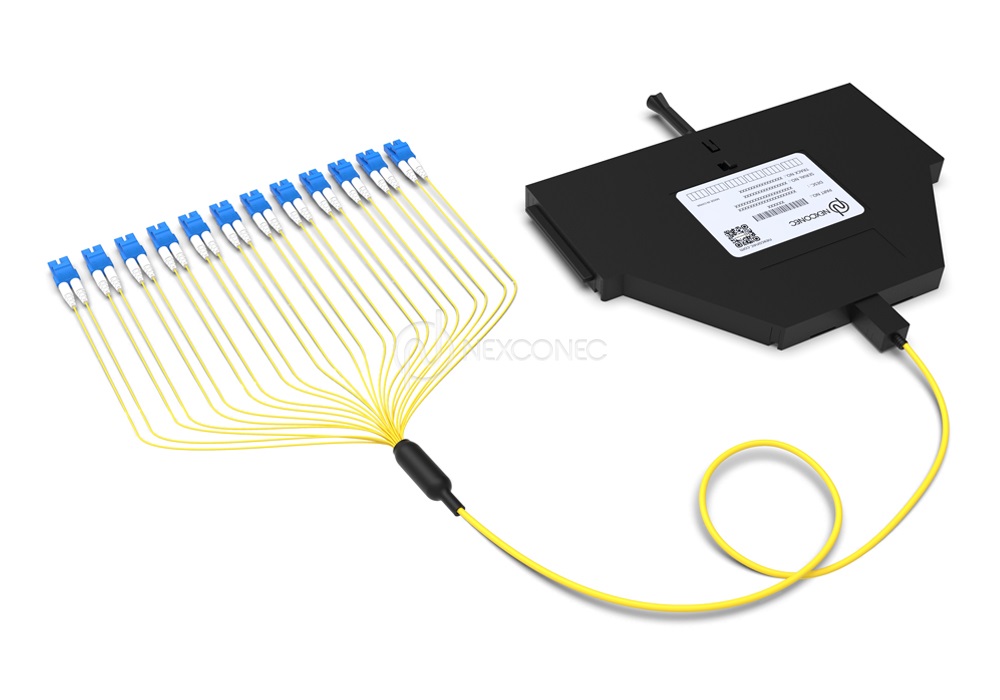

NEXCONEC NGX PRETERM cassettes are designed for pre-terminated assemblies and can be directly loaded into the cassettes with Nexconec patent pending breakout module. The NGX cassettes are designed to easily plug into NEXCONEC NGX 1U 6 slot panel and each chassis can populate up to 144F with LC and 72F with SC. The pre-terminated fiber optic assemblies are available in MTP/MPO and various single ferrule options.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- Shuttered dust proof LC adapters
- Available in 12F and 24F options
- Available in Single and Multimode options
- RoHS, REACH & SVHC compliant, Materials Conflict compliant
- Flame retardant ABS+PC material
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus Wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
| Parameters | Units | SM LC/SC | MM LC/SC |
|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.20/0.30 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60/65 | NA |
| Avg/Max IL– Premium | dB | ≤ 0.12/0.15 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60/65 | NA |
| Part Number | Product Description |
|---|---|
| NGXPM01 | NGX Preterm Module for 24FO LC SM Blue Adapters |
| NGXPM02 | NGX Preterm Module for 24FO LC SM Green Adapters |
| NGXPM03 | NGX Preterm Module for 24FO LC MM Aqua Adapters |
| NGXPM04 | NGX Preterm Module for 12FO SC SM Blue Adapters |
| NGXPM05 | NGX Preterm Module for 12FO SC SM Green Adapters |
| NGXPM06 | NGX Preterm Module for 12FO SC MM Aqua Adapters |
