ODVA MPO-MPO BOX (UP TO 24F) - ODVA-Bxx

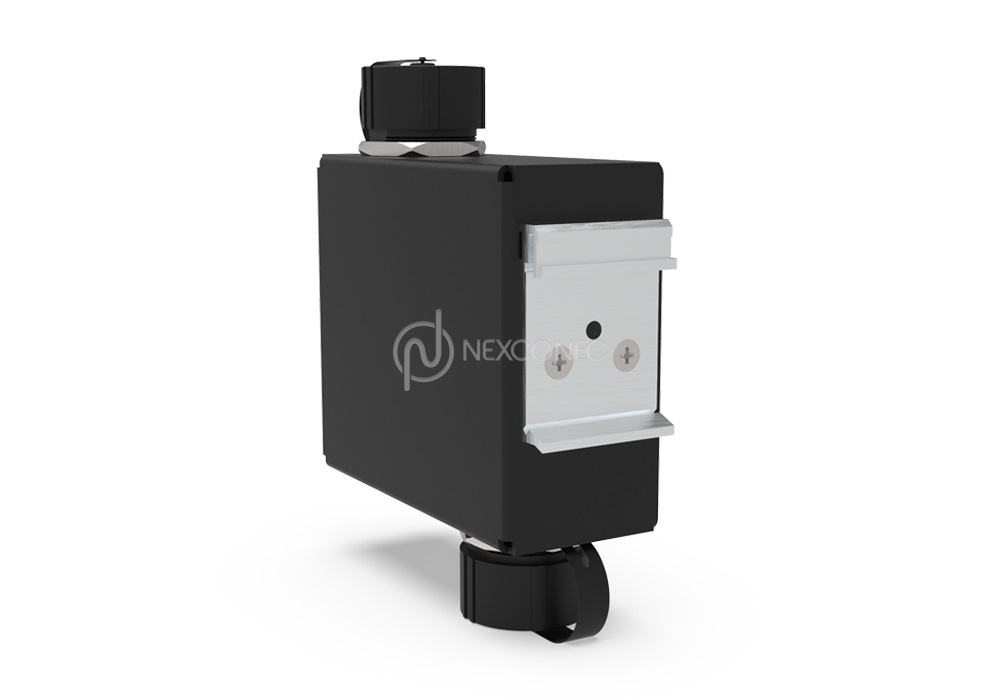

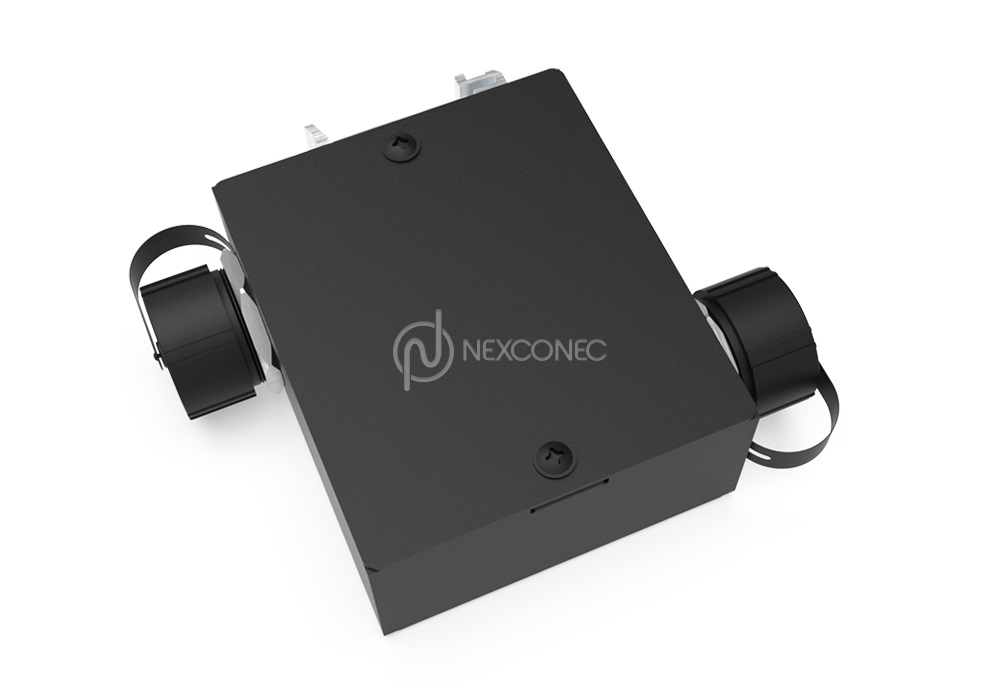

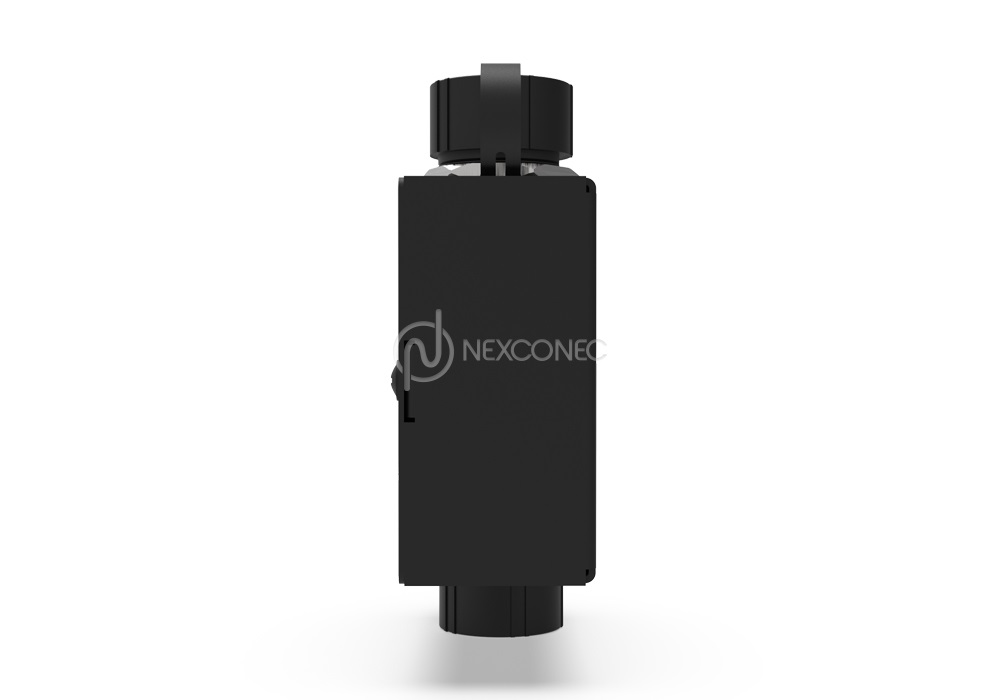

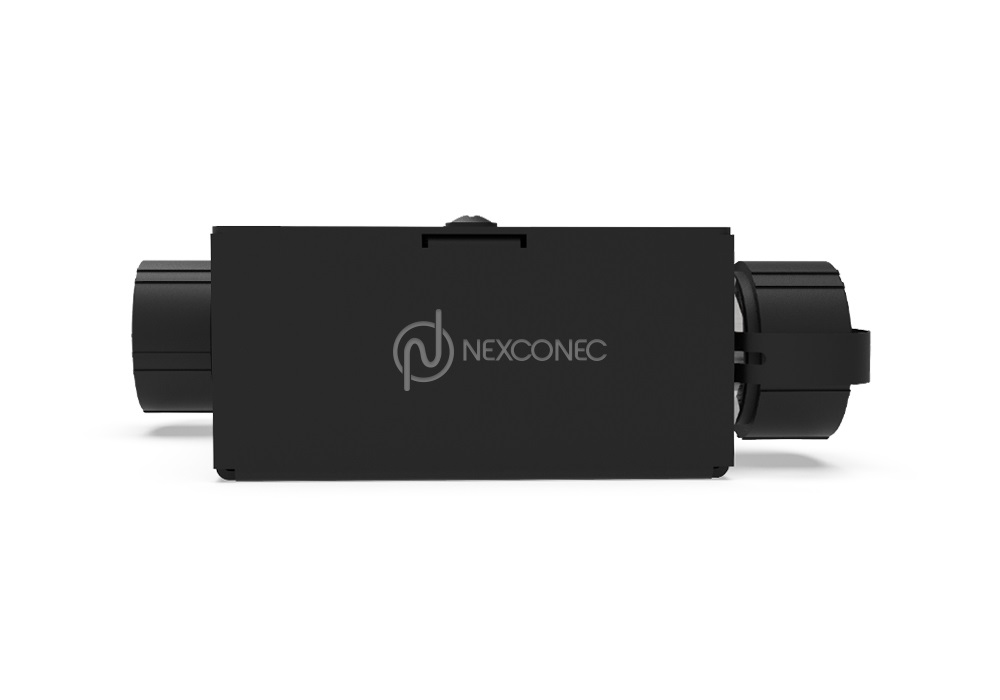

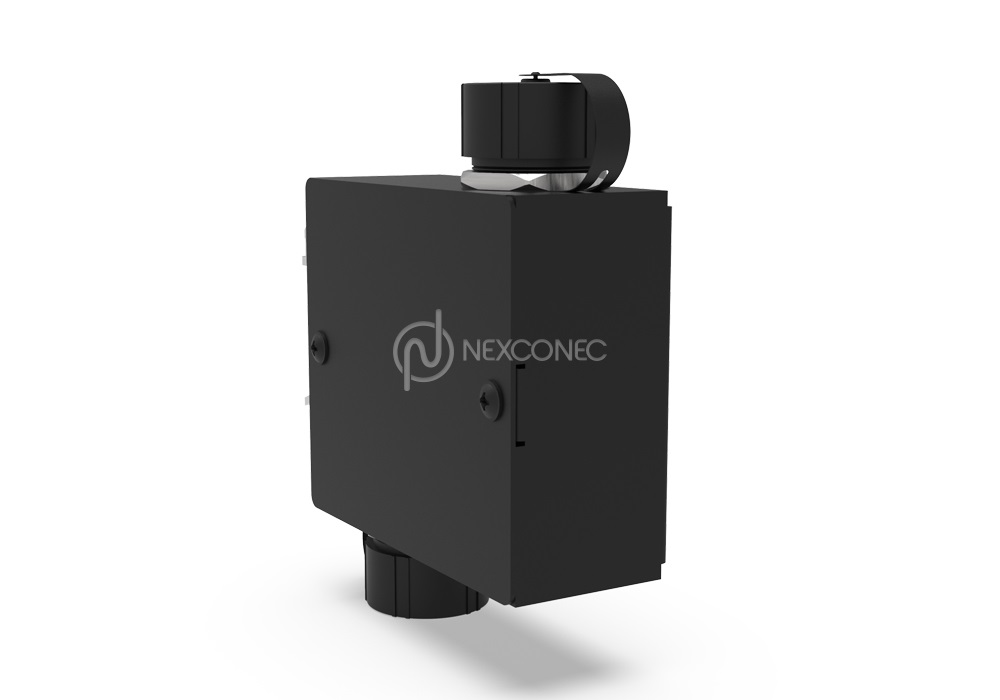

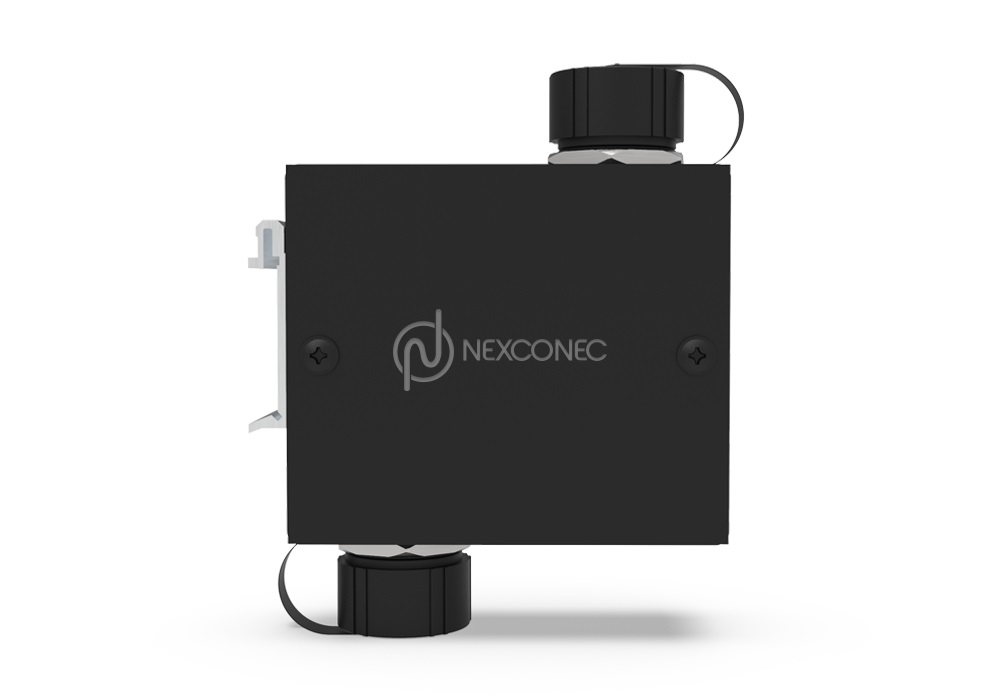

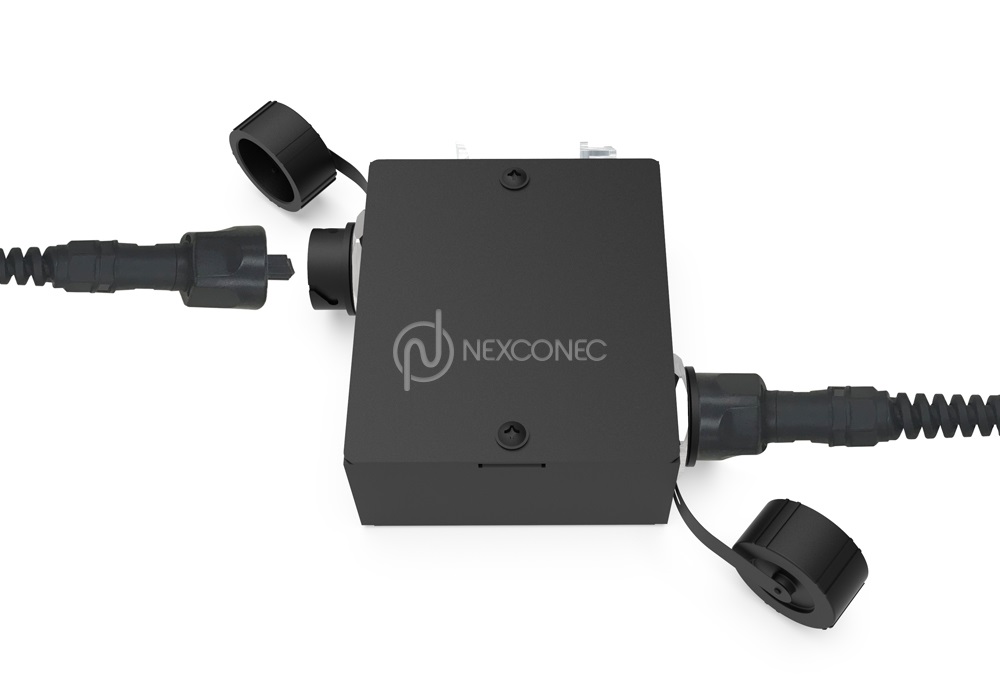

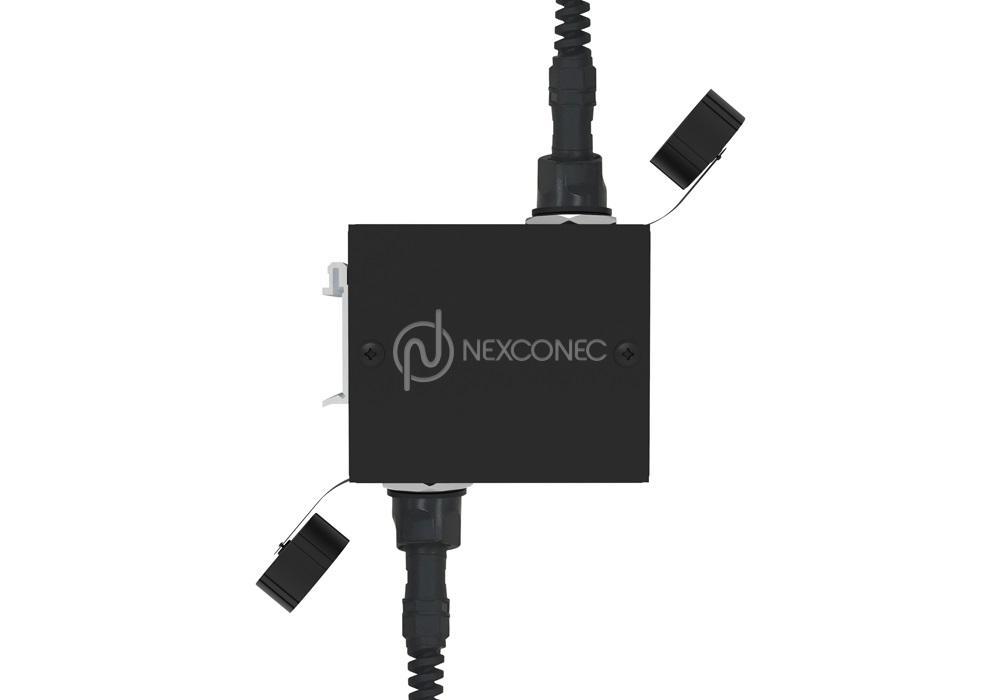

Nexconec compact ODVA Din Rail MPO-MPO junction box allows users to transition from an ODVA Base-12 or Base-24 MTP/MPO to another ODVA MTP/MPO ports to extend the link. ODVA box gives IP20 protection, where the ODVA connector gives IP68 protection. The ODVA entry guarantees an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch.
FEATURES AND APPLICATIONS
- ODVA IP68 protection Connector, salt-mist proof, humidity proof, dust proof
- ODVA IP20 protection din rail box
- 100% optically tested to ensure quality performance assemblies
- Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
- Industrial networks & Event sector
- Broadcasting
- LAN or Campus Network
- Broadband network
SPECIFICATIONS
| Entry Port | ODVA MTP/MPO Base-12 or Base-24 |
|---|---|
| Exit Port | ODVA MTP/MPO Base-12 or Base-24 |
| Material | Metal |
| Housing Color | Black |
| Fiber Capacity | 12FO /24FO |
| Dimensions (W x D x H in mm) | 99 x 85 x 41.20 |
| ODVA Connector IP Rating | IP68 |
| ODVA Box IP Rating | IP20 |
| Weight KG | 0.40 Kg |
PERFORMANCE
| Parameters | Unit | SM MPO | MM MPO |
|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.25/0.75 | ≤ 0.60 |
| Return Loss (PC/APC) | dB | ≥ 60 | NA |
| Avg/Max IL– Premium | dB | ≤ 0.10/0.35 | ≤ 0.10/0.35 |
| Return Loss (PC/APC) | dB | ≥ 60 | NA |
| Part Number | Product Description |
|---|---|
| ODVA-B02 | ODVA Junction Box 12FO MPO(Male) Elite Base-12 to MPO(Male) Elite Base-12 Pol A/C |
| ODVA-B03 | ODVA Junction Box 24FO MPO(Male) Elite Base-24 to MPO(Male) Elite Base-24 Pol A/C |
