Overhead Rack

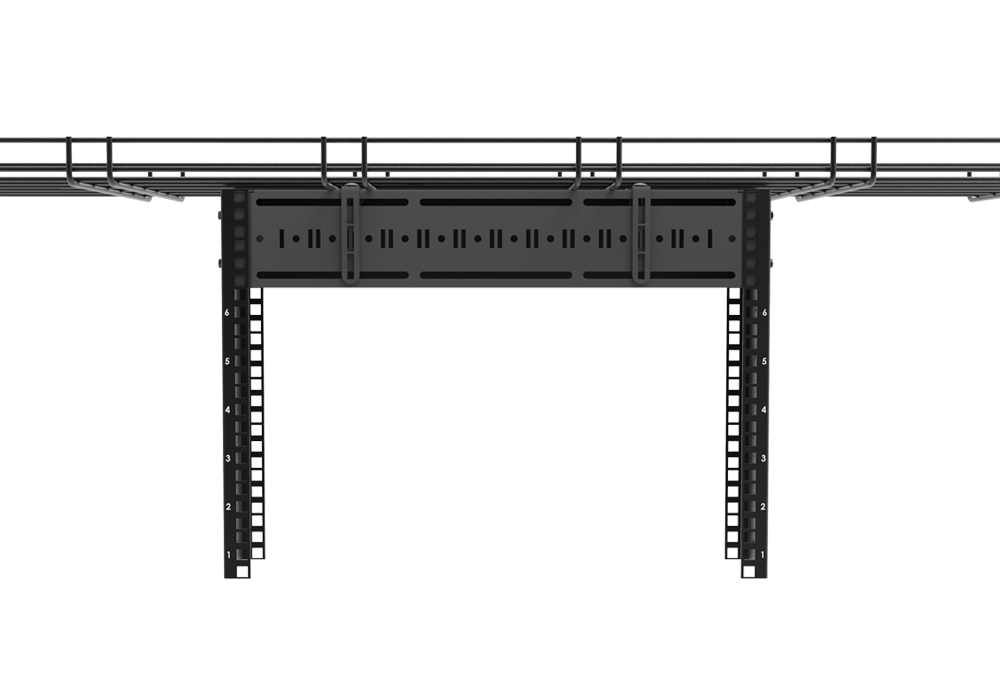

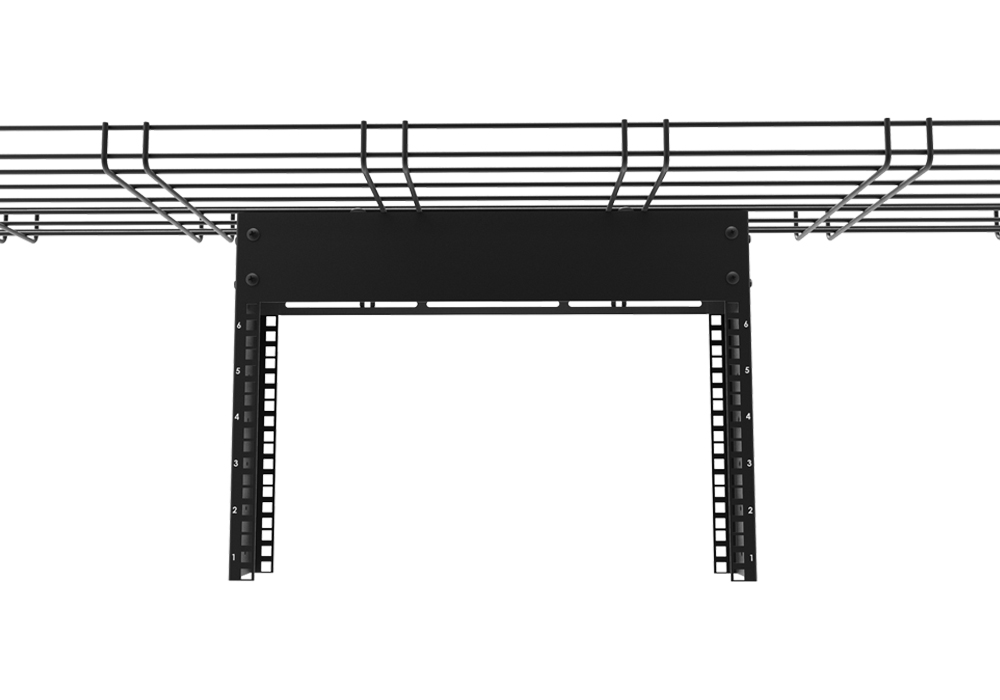

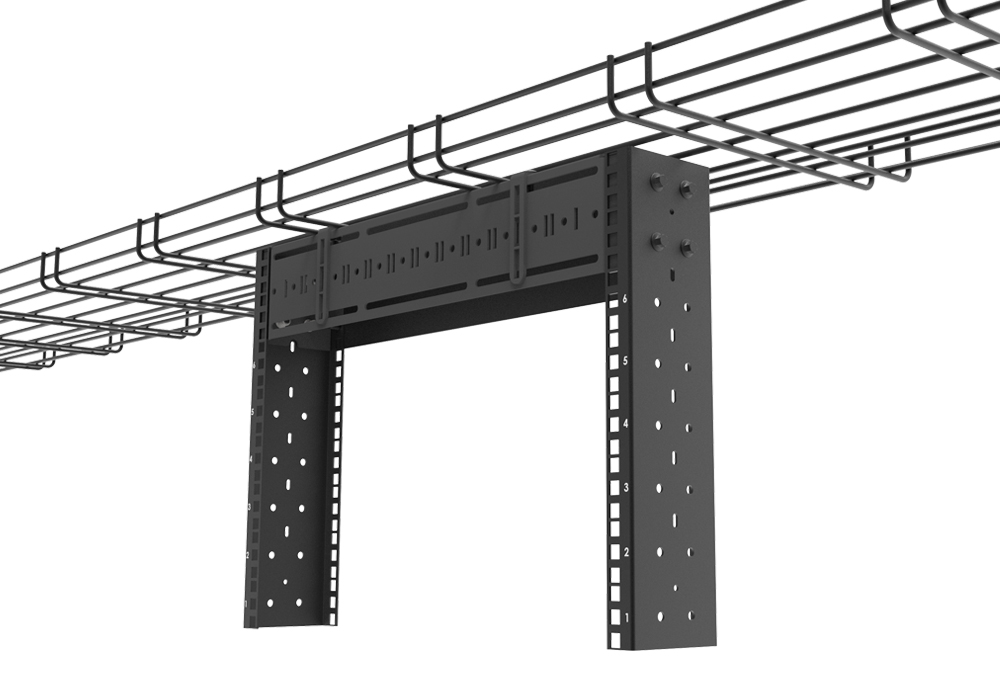

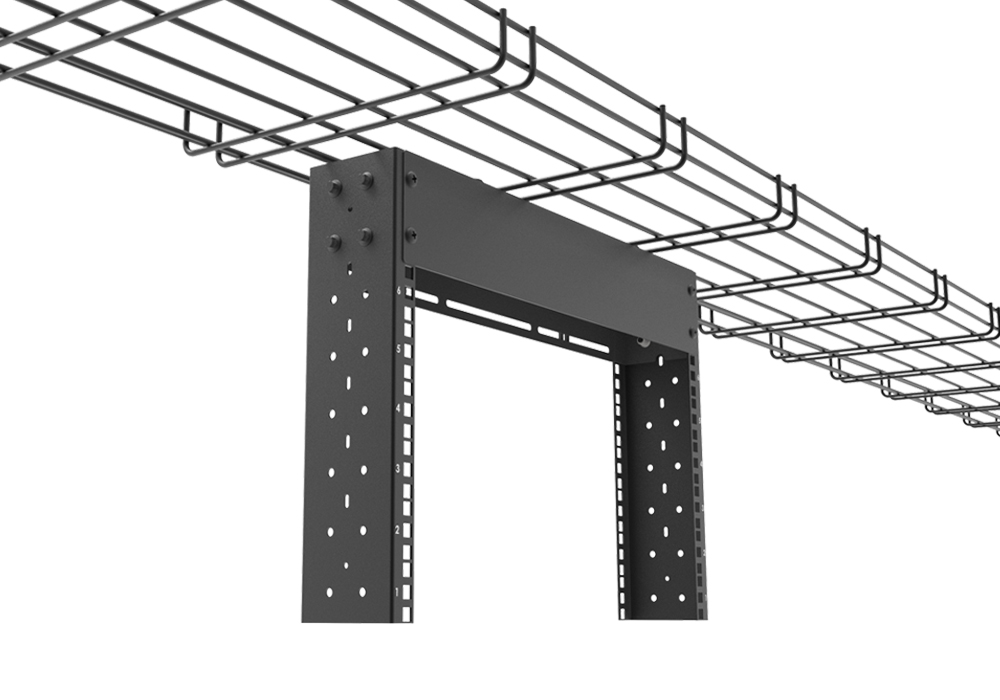

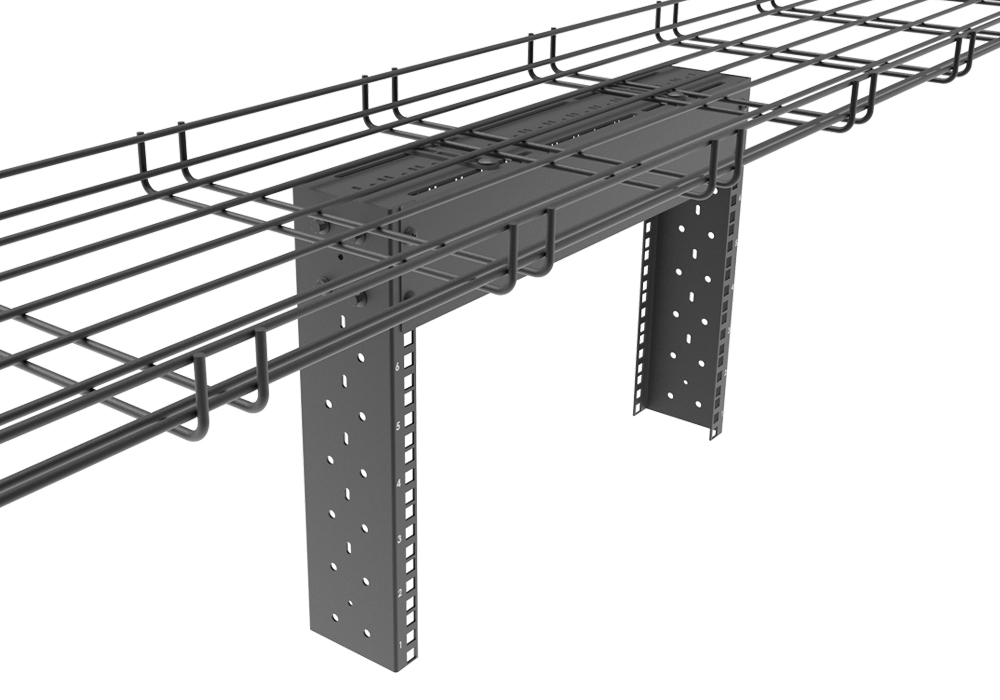

The NEXCONEC® Overhead Mini Rack is a specialized mounting solution designed to attach directly to overhead cable trays. It provides a dedicated 19-inch mounting space for patch panels and active equipment, optimizing data center footprints by utilizing previously unused overhead space. This rack facilitates seamless interconnect or cross-connect applications, offering an ad-hoc cabling environment for high-density "over-the-rack" scenarios.
PRODUCT HIGHLIGHTS
- Designed to support all standard 19-inch patch panels and networking gear
- Available in 4U, 6U, and 8U mounting height
- Quick and easy installation

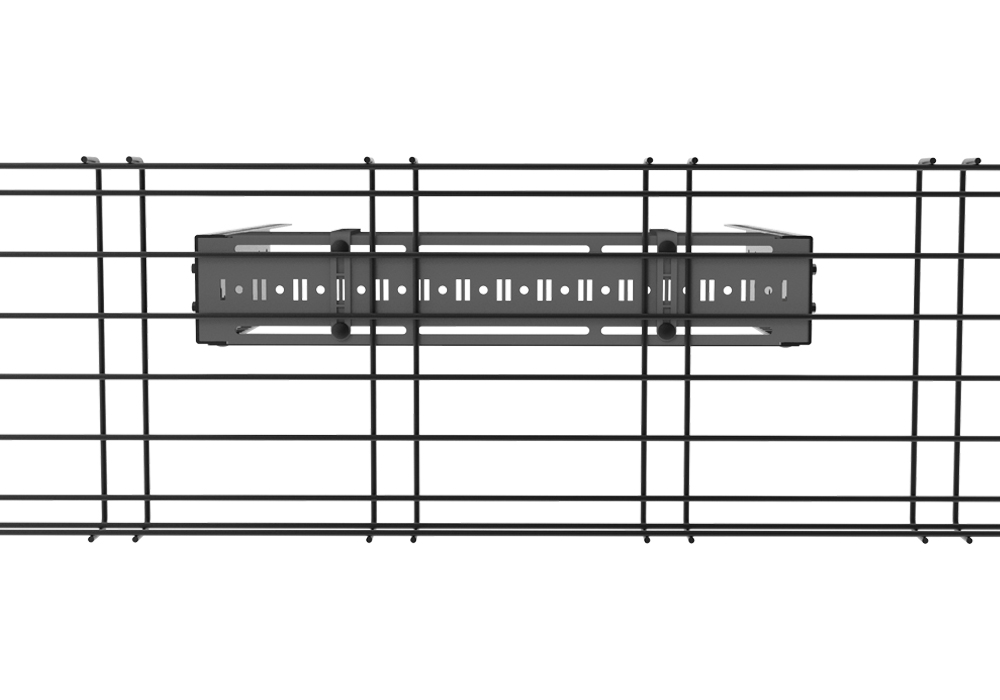

- Features specially designed hooks for quick and easy setup
- Simplifies cable transitions between overhead trays and equipment
- Over-the-Rack Application
- Data Centers & Enterprise Labs
FEATURES
- Designed to support all standard 19-inch patch panels and networking gear
- Available in 4U, 6U, and 8U mounting height
- Quick and easy installation
- Features specially designed hooks for quick and easy setup
- Simplifies cable transitions between overhead trays and equipment
- RoHS compliant
APPLICATIONS
- Over-the-Rack Application
- Data Centers & Enterprise Labs
- Indoor Telecommunication Networks
- Cross-Connect Points & Retrofit Projects
- Indoor Application
| Parameters | Value |
|---|---|
| Mounting Type | Standard 19” Rack |
| Height Units | 4U, 6U or 8U |
| Dimensions (H x W x D) mm | 4U: (Full Height)266.7 x (Mounting Height)178 x (W)500 x (D)90 mm 6U: (Full Height)355.6 x (Mounting Height)267 x (W)500 x (D)90 mm 8U: (Full Height)444.5 x (Mounting Height)356 x (W)500 x (D)90 mm |
| Material | Cold Rolled Steel |
| Housing Color | Black (RAL 9005) |
| Application | Indoor Application |
| Compliance | Compliant to RoHS |
| Part Number | Product Description |
|---|---|
| OV4U | Overhead Mini Rack Mount 4U |
| OV6U | Overhead Mini Rack Mount 6U |
| OV8U | Overhead Mini Rack Mount 8U |
