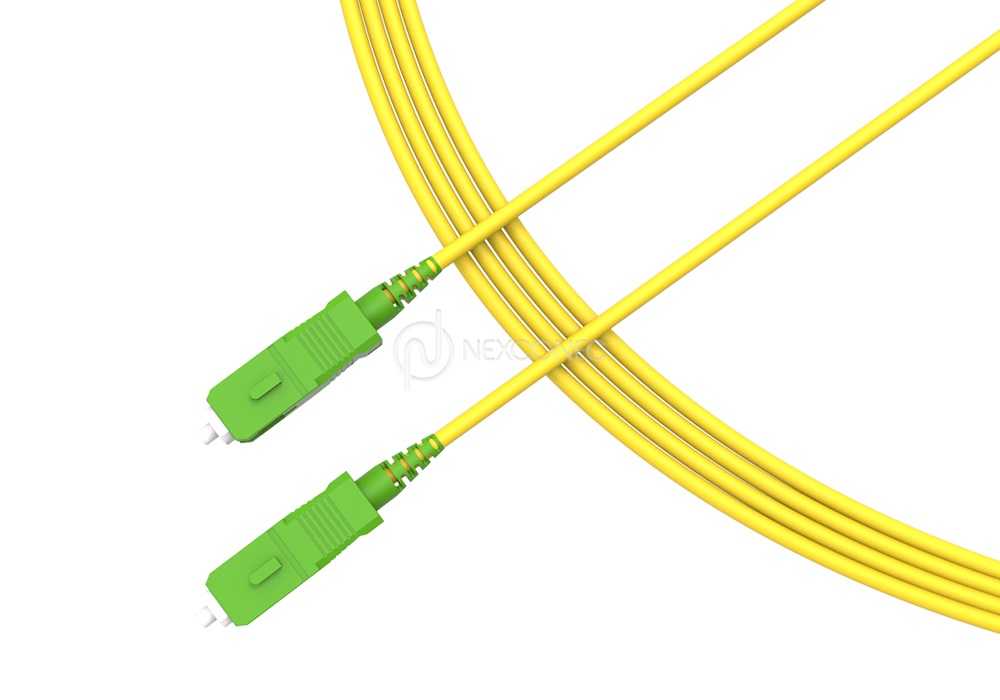

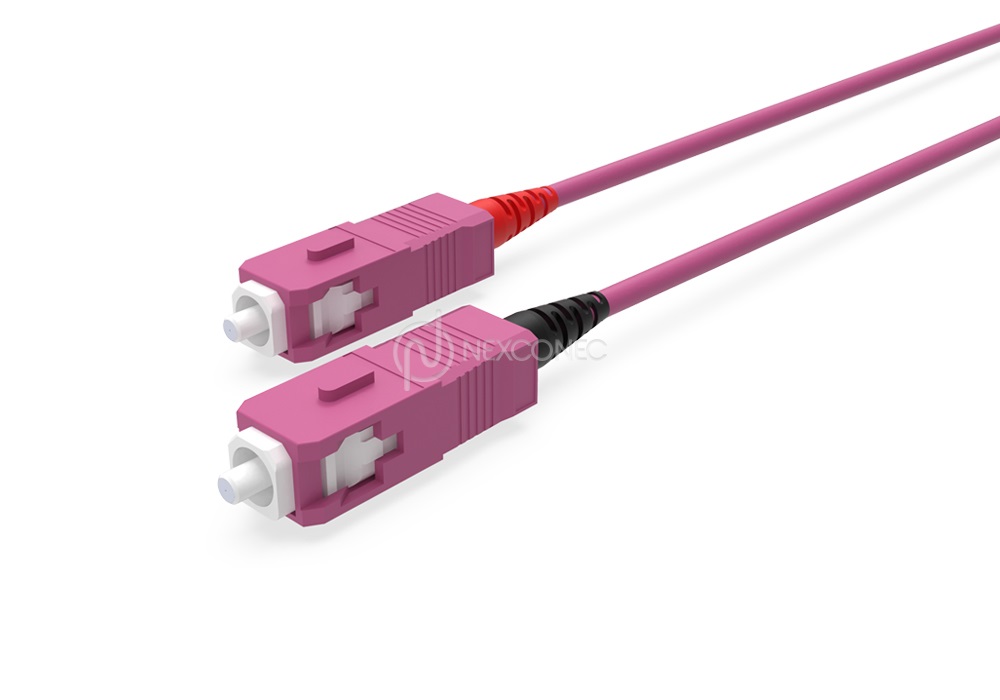

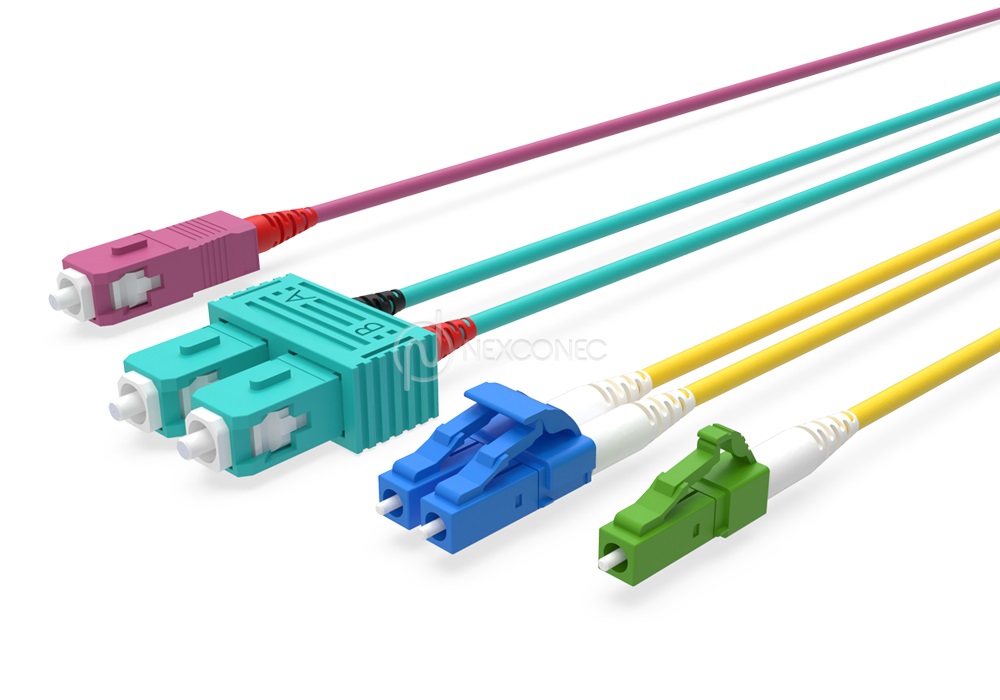

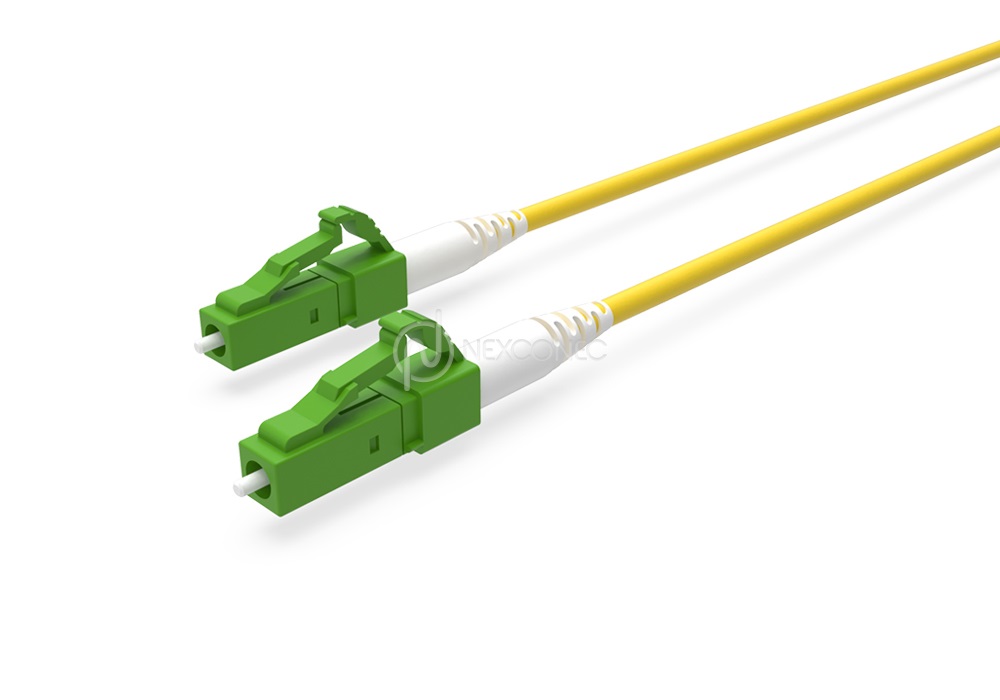

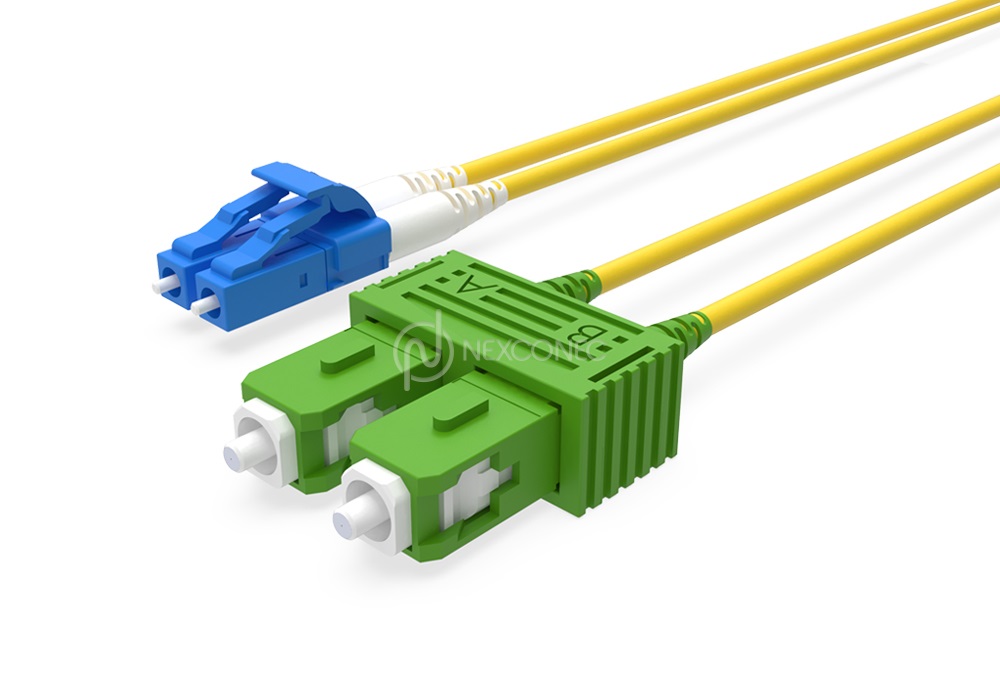

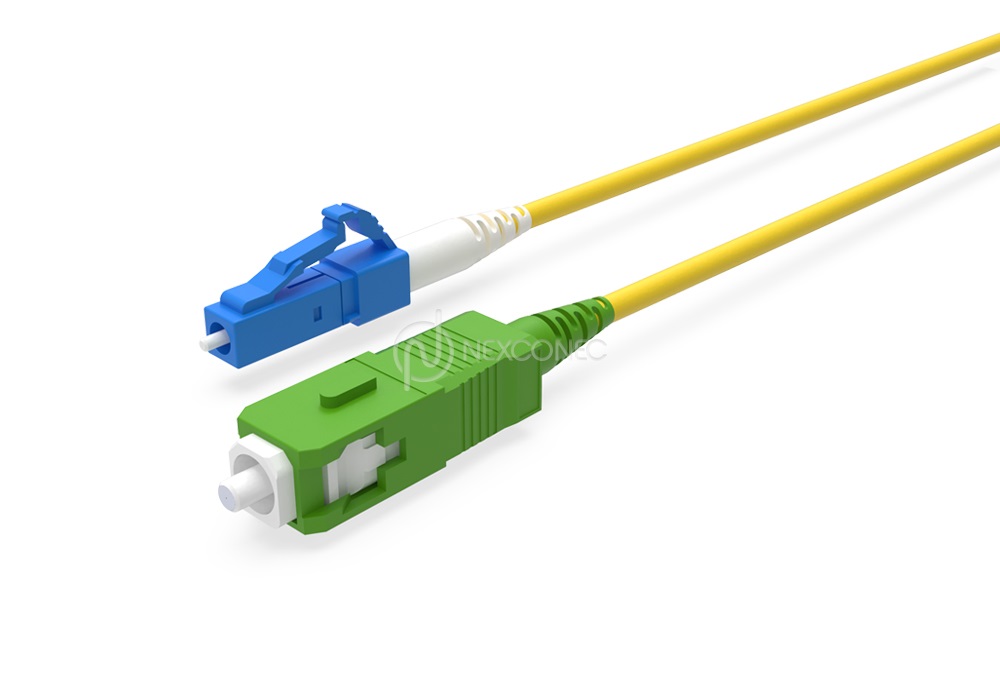

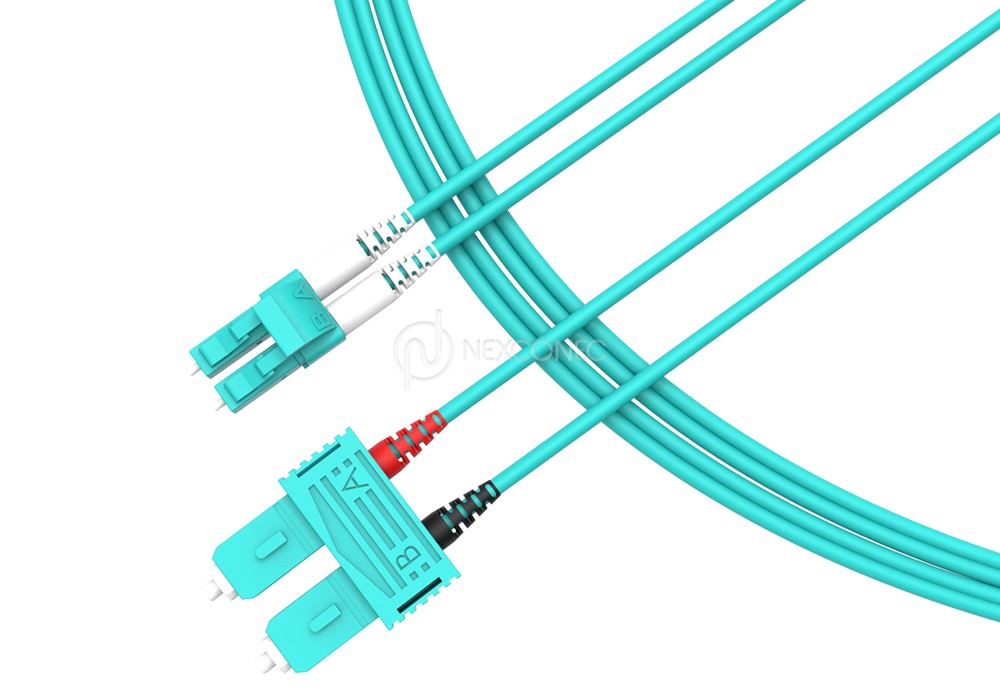

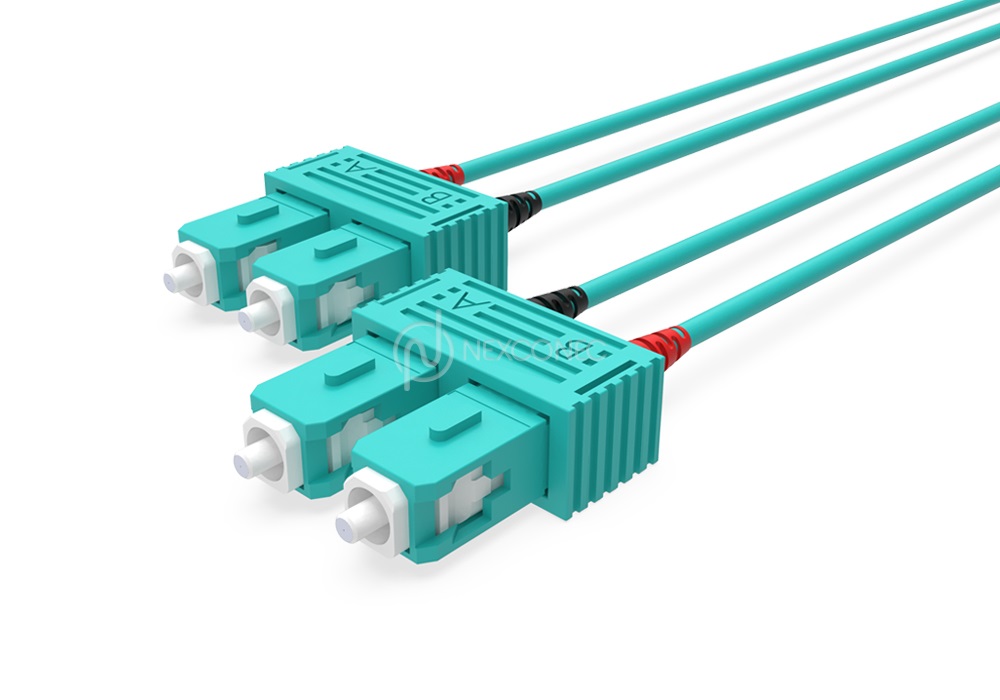

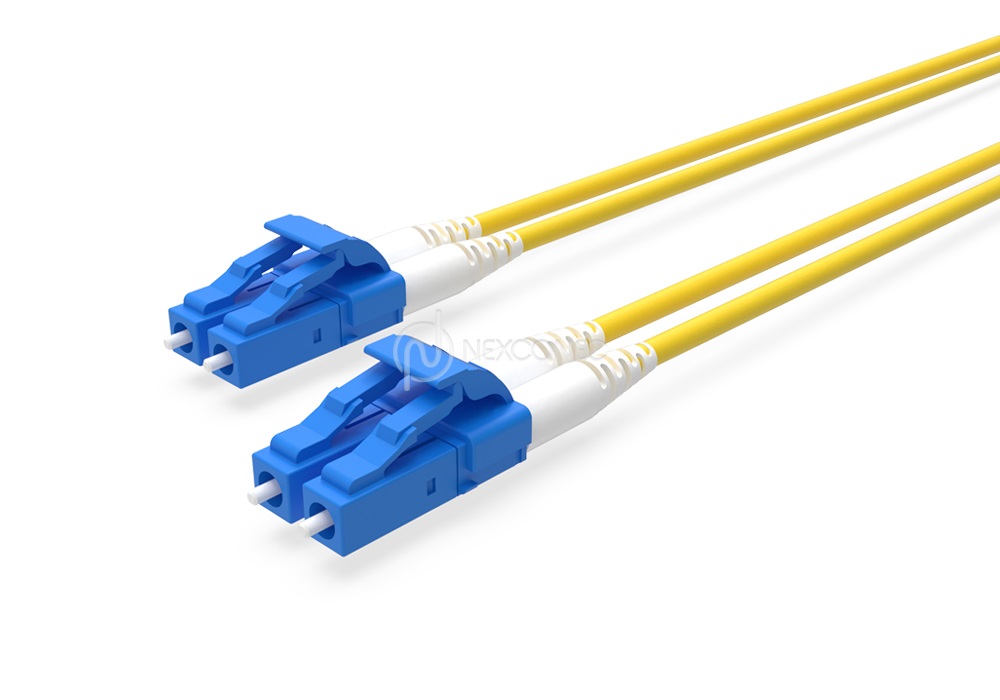

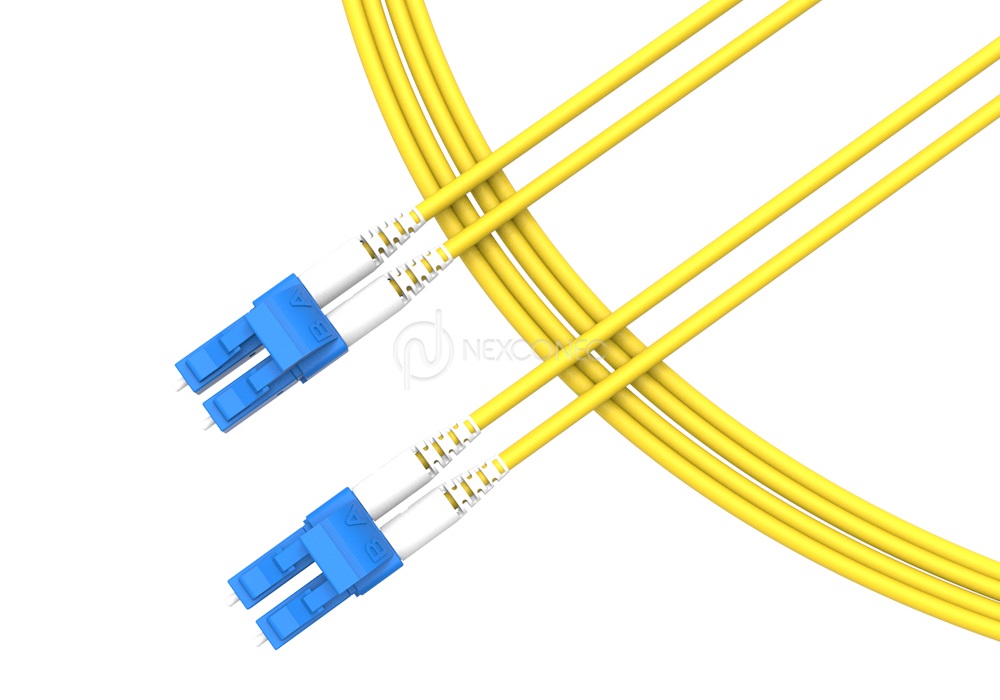

Patch Cord
NEXCONEC® Patchcord range is suitable for telecommunication networks, data processing networks, FTTx, FTTH and some critical applications. The patch cords provide flexible interconnection to active equipment, passive optical devices and cross-connect. We offers diverse range of single fiber ferrule connectors, which manufactured with precision factory mounting and polishing techniques to assure high transmission quality.
FEATURES AND APPLICATIONS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- All Assemblies are machine polished providing highest quality
- All Assemblies are factory tested and come with test certificate
- Available in custom length
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- Telecommunication networks
- Data centers
- FTTx
- Fibre-to-the-home (FTTH)
- Broadband network
SINGLE FERRULE CONNECTORS
| Parameters | IL – Max | IL – Typical | RL (PC/APC) |
|---|---|---|---|
| SM – Standard | ≤ 0.30 dB | ≤ 0.20 dB | > 55/65 dB |
| SM – Premium | ≤ 0.15 dB | ≤ 0.12 dB | > 55/65 dB |
| SM – Grade B/2 (E-2000TM) * | ≤ 0.25 dB | ≤ 0.12 dB | > 55/65 dB |
| SM – Grade A*/2 (E-2000TM) * | ≤ 0.15 dB | ≤ 0.07 dB | > 55/65 dB |
| MM – Standard | ≤ 0.30 dB | ≤ 0.18 dB | > 28 dB |
| MM – Premium | ≤ 0.15 dB | ≤ 0.08 dB | > 28 dB |
* The above IL and RL performance of E-2000TM connectors are according to definition from R&M.
CABLE CHARACTERISTICS
| Cable Characteristics | Units | Simplex | Duplex |
|---|---|---|---|
| Cable Material | LSZH PVC | LSZH or PVC | |
| Strength Member | Aramid | Aramid | |
| Crush | N | 1000 | 1000 |
| Operating Temperature | ˚C | -20 to 70 | -20 to 70 |
| Secondary Buffer Diameter (2mm and 3mm) | μm | 900+50 | 900+50 |
| Minimum Bending Radius | mm | 10D (installed) 20D (loaded) | 10D (installed) 20D (loaded) |
