Rear Cable Transition Breakout Bracket - PIV-TRK01

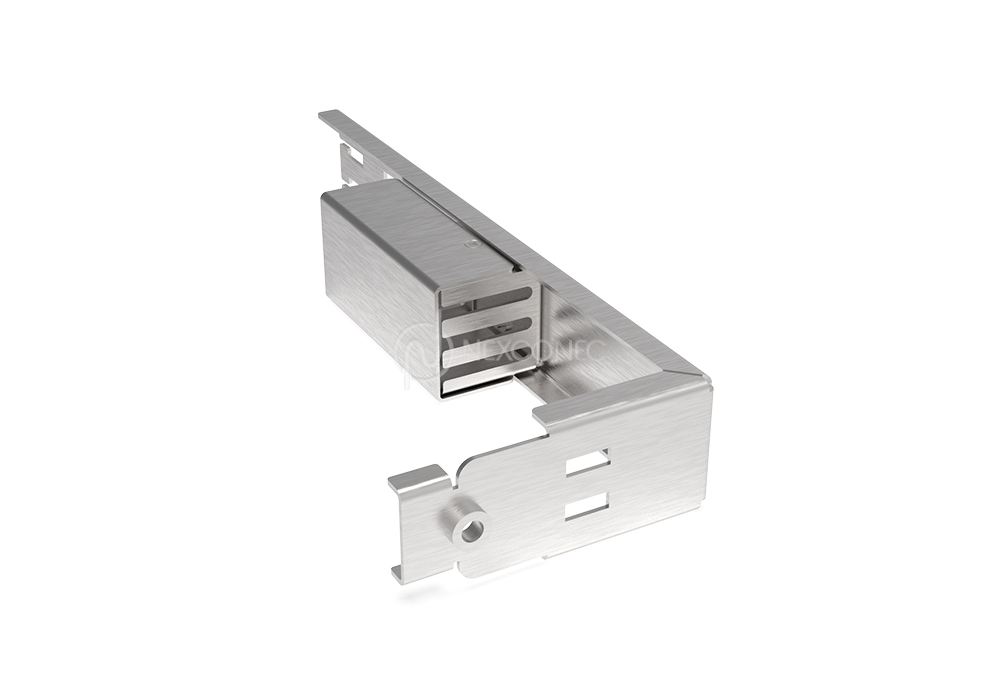

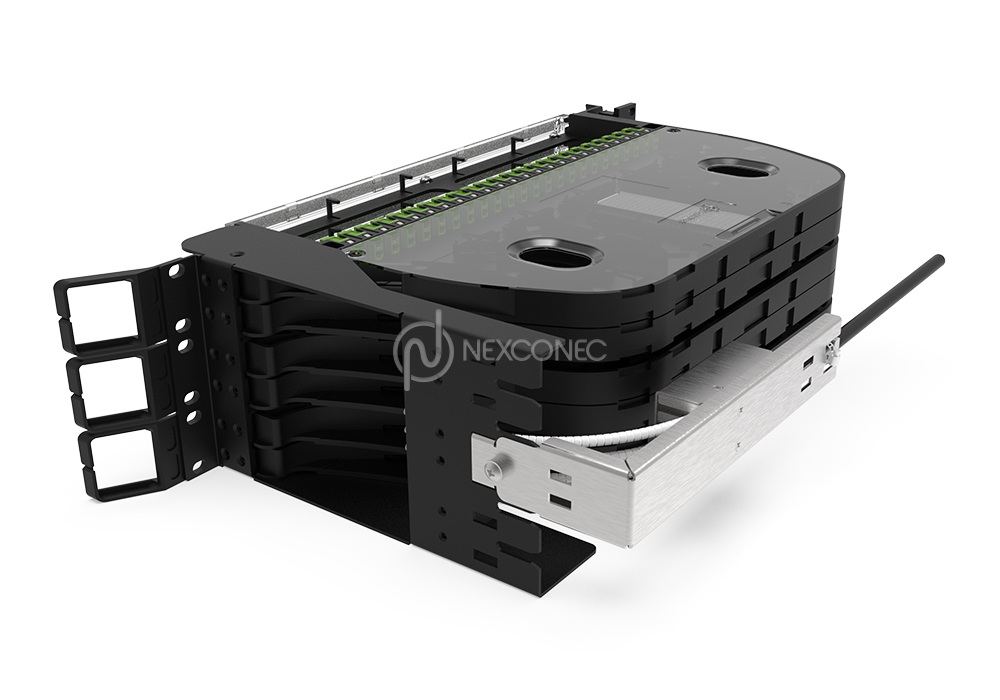

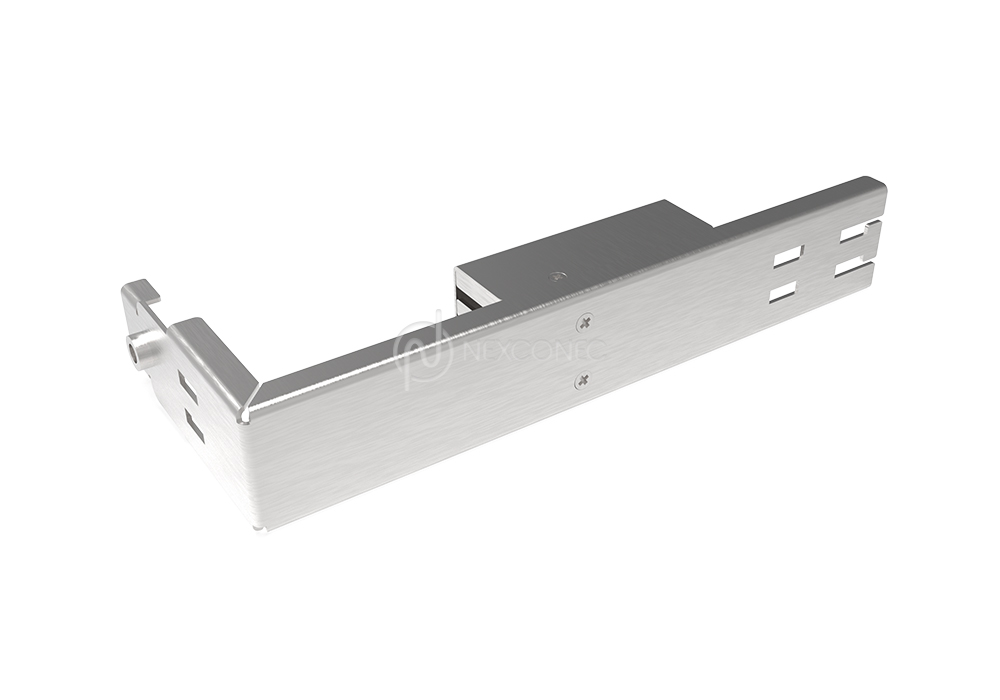

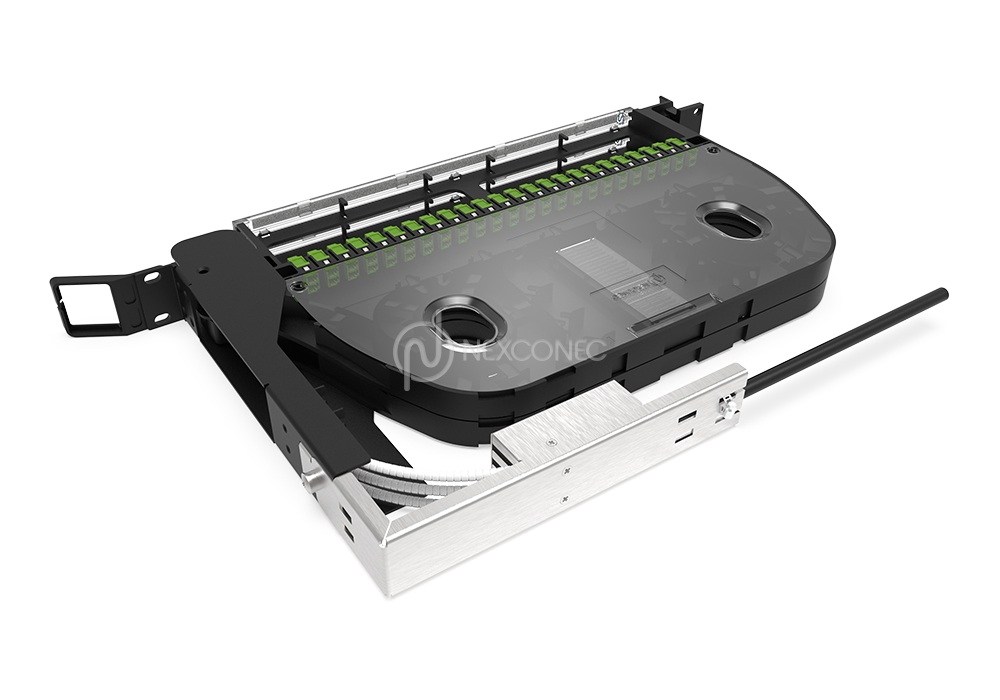

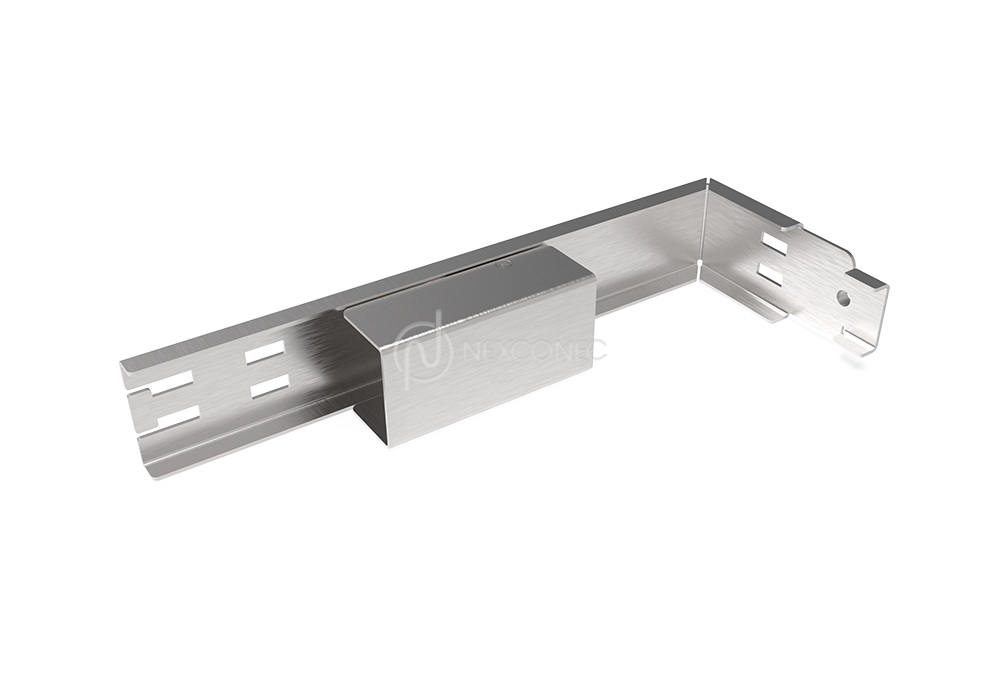

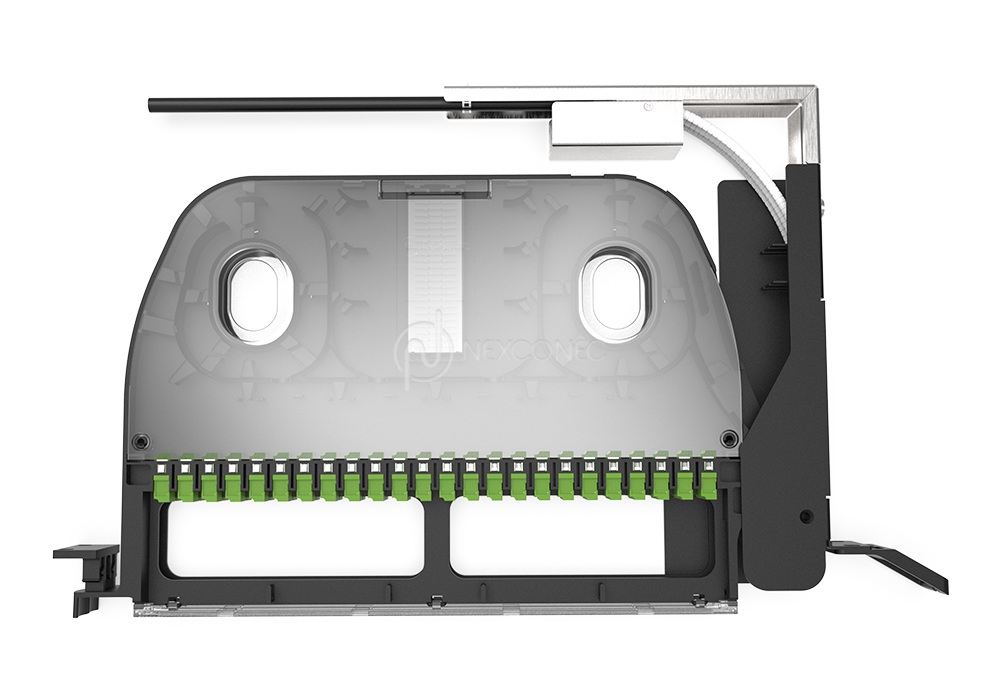

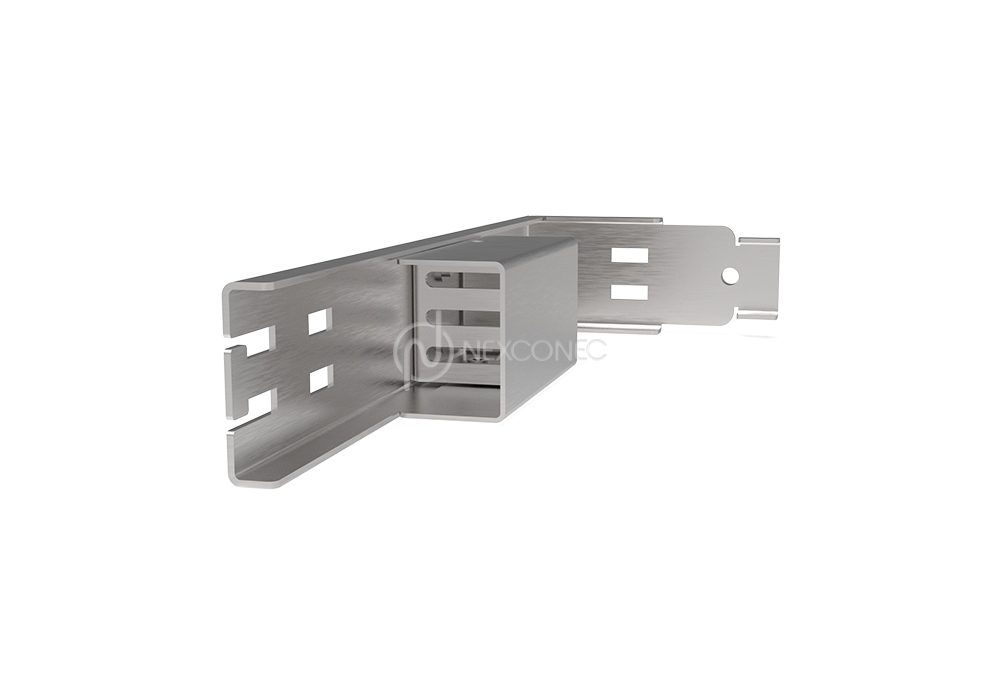

The Rear Cable Transition Breakout Bracket is a specialized rear-mount accessory designed for the Pivot Panel (PIV) series. Engineered to streamline high-density fiber management, this 1U bracket integrates the Transition Cable Breakout unit (TRBR) to facilitate seamless routing and protection of corrugated tubes. It supports up to 12 corrugated tubes of 5mm, providing a dedicated transition path from the rear of the rack to the pivot panel, reducing cable stress and improving bend radius control.
PRODUCT HIGHLIGHTS
- Rear-mount 1U bracket with integrated TRBR breakout unit for Pivot Panel PIV systems
- Supports up to 12 corrugated tubes of 5mm diameter for high-density fiber routing
- Ensures smooth cable transition and protects against kinking or excessive bending
- Enables cleaner rear cable management while keeping front panel unobstructed
FEATURES
- Rear-mount 1U bracket with integrated TRBR breakout unit for Pivot Panel PIV systems
- Supports up to 12 corrugated tubes of 5mm diameter for high-density fiber routing
- Ensures smooth cable transition and protects against kinking or excessive bending
- Enables cleaner rear cable management while keeping front panel unobstructed
APPLICATIONS
- Enterprise network & Datacenter
- FTTx, Central offices, Telecommunications
- Structured cabling & Indoor applications
- PIV series panel installation
| Parameters | Value |
|---|---|
| Product Type | Rear Cable Transition Breakout Bracket |
| Compatibility | Pivot Panel PIV Series |
| Integrated Unit | TRBR (Transition Cable Breakout Unit) |
| Mounting Position | Rear of rack / enclosure |
| Application | Fiber optic cable management, tube-to-fiber breakout |
| Height Unit | 1U |
| Material | Cold Rolled Steel |
| Housing Color | Metalic Steel |
| Number of Tubes | Up to 12 with 5mm conduits / 6 with 10mm conduits |
| Dimensions (W x D x H) | 230 x 90 x 40 mm |
| Net Weight | 0.5 Kg |
| Accessories Included | 1x Transition Module 2x Metal Cable Clamp Hose (W=8mm, MAX OD=19mm) 2x Plastic Cable Tie, 7x150mm (White) 1x M6x12 Pan Head Screw |
| Part Number | Product Description |
|---|---|
| PIV-TRK01 | Rear Cable Transition Breakout Bracket for Pivot Panel PIV |
