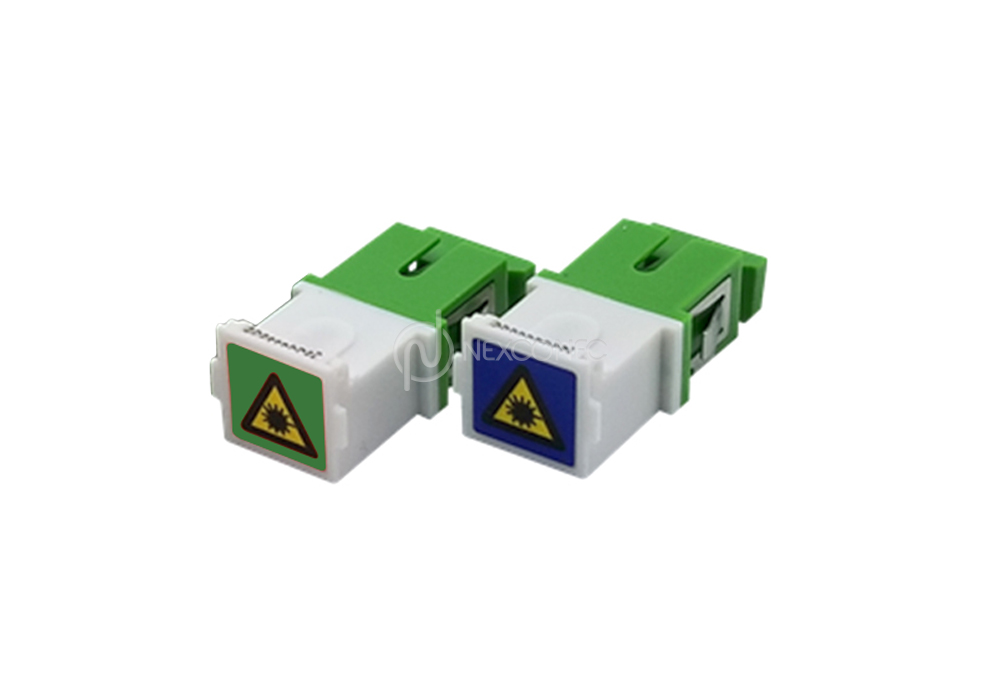

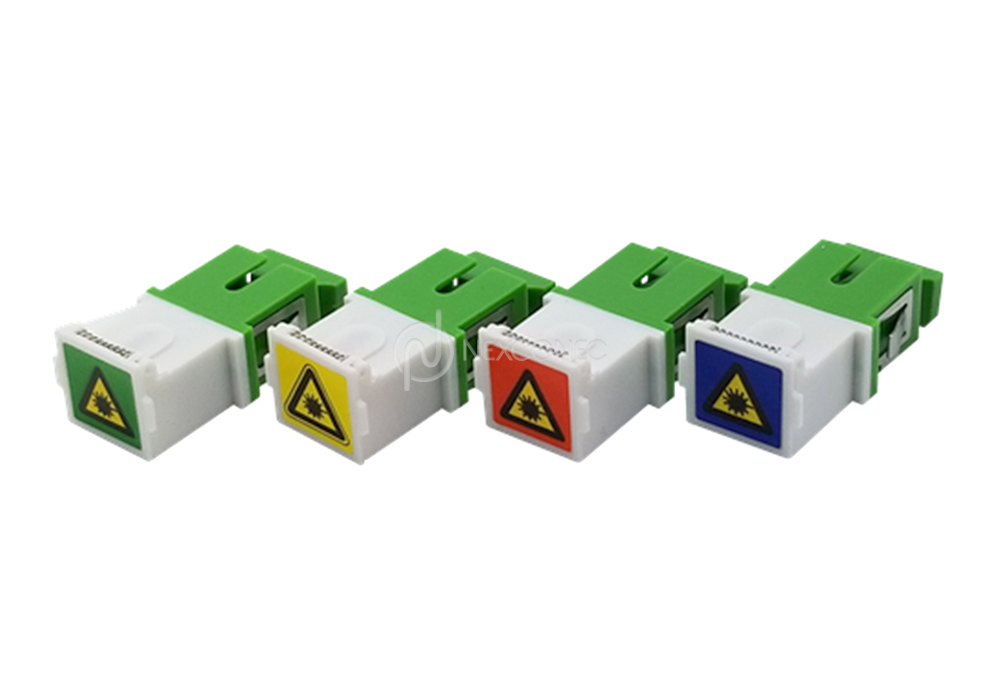

SC External Shutter Adapter
NEXCONEC SC Simplex Shutter Adaptor is designed for applications where laser safety and dust protection are important factors. It is suitable for FTTH and other telecom applications. It has a high precision zirconia alignment sleeve designed for high reliability and excellent repeatability in single mode networks.
FEATURES AND APPLICATIONS
- High precision zirconia alignment sleeves
- Low insertion loss
- High repeatability and stability
- High quality and durable shutters
- IEC, TIA and Telcordia compliant
- RoHS, REACH compliant
- Patch panels, wall outlets
- Fiber to the home applications
- Broadband
- Indoor applications
| Parameter | Value | Conformance Standard |
|---|---|---|
| Insertion Loss (Typical) | 0.1dB | IEC 61300-3-4 |
| Mating Durability | 500 | IEC 61300-2-2 |
| Receptacle Retention Force | 2N ~ 5.9N | IEC 61754-4 |
| Operating Temperature | -25 ~ +70 °C | IEC 61300-2-22 |
| Part Number | Product Description |
|---|---|
| NX00000 | DefaultDefault |
