Single Loose Tube Armored CST Fiber Cable

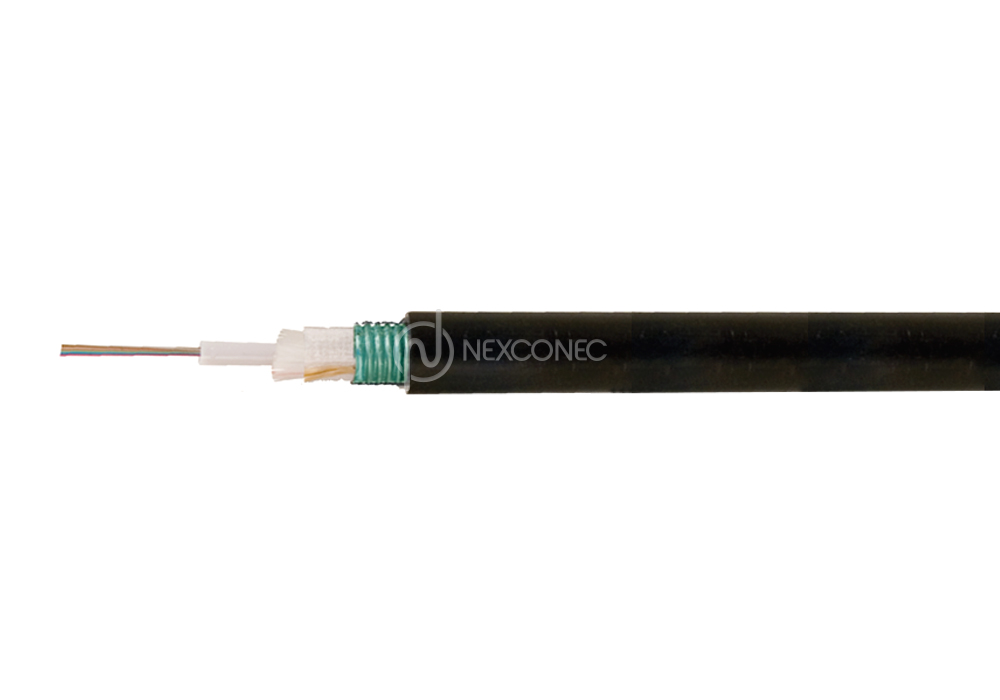

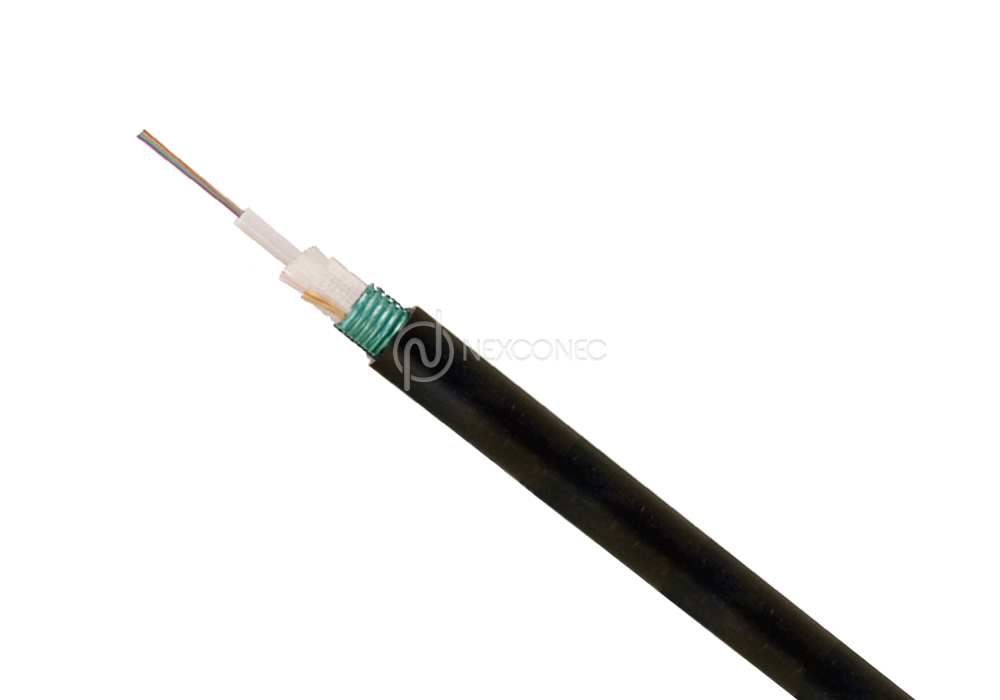

NEXCONEC Corrugated Steel Tube Armored Single Loose Tube is made of single gel filled PBT tube that consists of 2 to 24, 250μm optical fibers, the tube is surrounded with longitudinally applied E-glass non-metallic strength members, Corrugated Steel Tuber (CST) armor and UV resistant LSZH or HDPE jacket.
FEATURES AND APPLICATIONS
- Up to 24 fiber available
- Standard SM and MM options available
- High crush resistance
- High water resistant ability
- UV resistant outer jacket
- Conforms to IEC standard
- Suitable for internal / external or direct burial applications
- Suitable for environments where impact protection is required
- Ideal for extra building links
| Parameter | Unit | Value |
|---|---|---|
| Fiber Count | 2 to 24F | |
| Outer Diameter | mm | 9.0 |
| Long Term Tensile Strength | N | 500 |
| Short Term Tensile Strength | N | 1000 |
| Long Term Crush Resistance | N | 300 |
| Short Term Crush Resistance | N | 1000 |
| Storage Temperature | °C | -40 ~ +70 |
| Operating Temperature | °C | -40 ~ +70 |
| Installation Temperature | °C | -10 ~ +50 |
| Cable Weight | Kg/Km | 72 |
