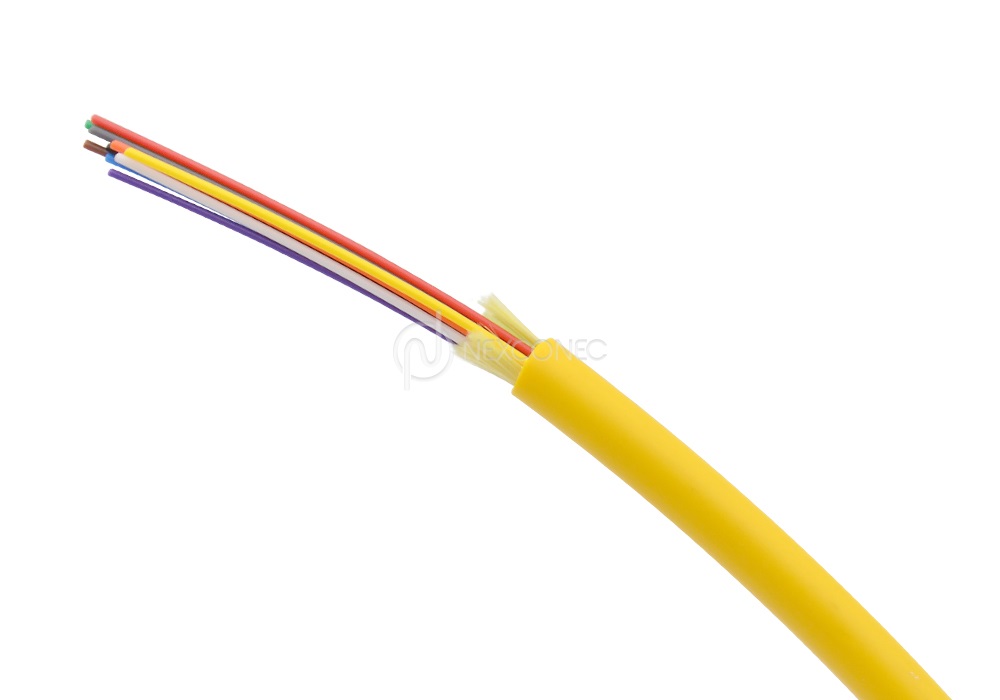

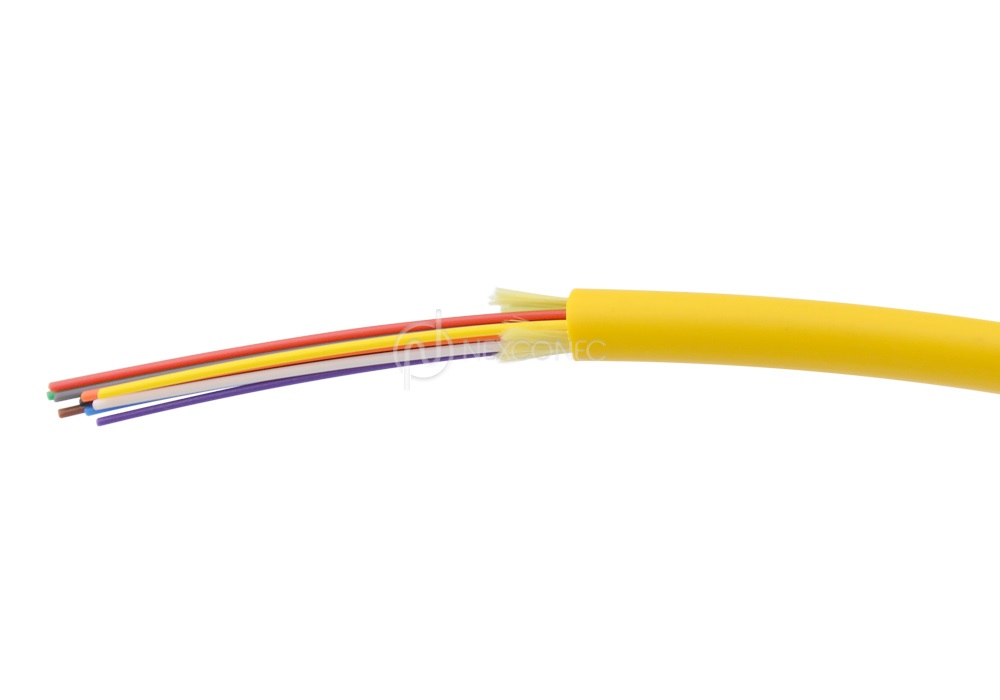

Tight Buffer Distribution Indoor/Outdoor Cable
NEXCONEC tight buffered indoor/outdoor distribution cable is made of 900um buffered fibers and rodent-resistant e-glass with water swellable tape and surrounded by an UV rated outer jacket. The cables are user friendly for installation in FTTX application for quick splicing in distribution cabinets.
FEATURES AND APPLICATIONS
- High strength aramid yarn strength member or e-glass
- UV Resistant
- Compact cable construction
- LSZH outer jacket in different colors
- RoHS, REACH & SvHC compliant*
- Conforms to IEC standard
- Suitable for internal / external applications
- Ideal for intra building links in campus environments
- Fiber backbones in riser and horizontal configurations
| Parameter | Unit | Value | ||||
|---|---|---|---|---|---|---|
| Fiber Core | 6F | 8F | 12F | 24F | 48F | |
| Outer Diameter | mm | 5.2 | 6.3 | 6.8 | 8.0 | 10.3 |
| Tensile Strength (Long Term) | N | 200 | 500 | |||
| Tensile Strength (Short Term) | N | 800 | 1200 | |||
| Crush Resistance (Long Term) | N/100mm | 300 | 500 | |||
| Crush Resistance (Short Term) | N/100mm | 1000 | 1200 | |||
| Storage Temperature | °C | -20 ~ +70 | ||||
| Operating Temperature | °C | -20 ~ +70 | ||||
| Cable Weight | Kg/Km | 23 | 30 | 36 | 65 | 95 |
