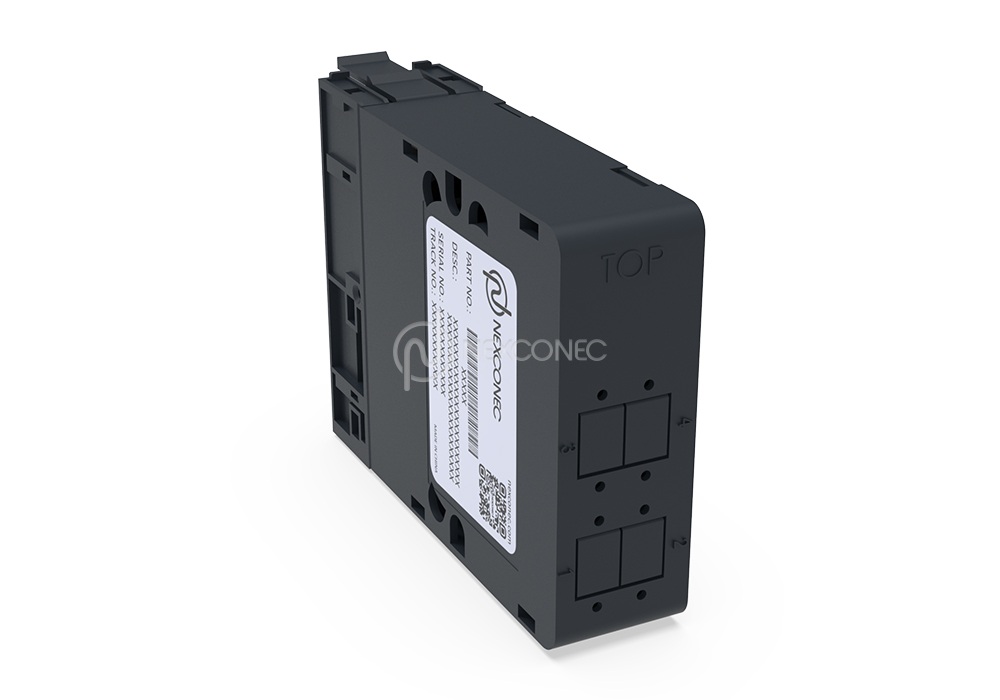

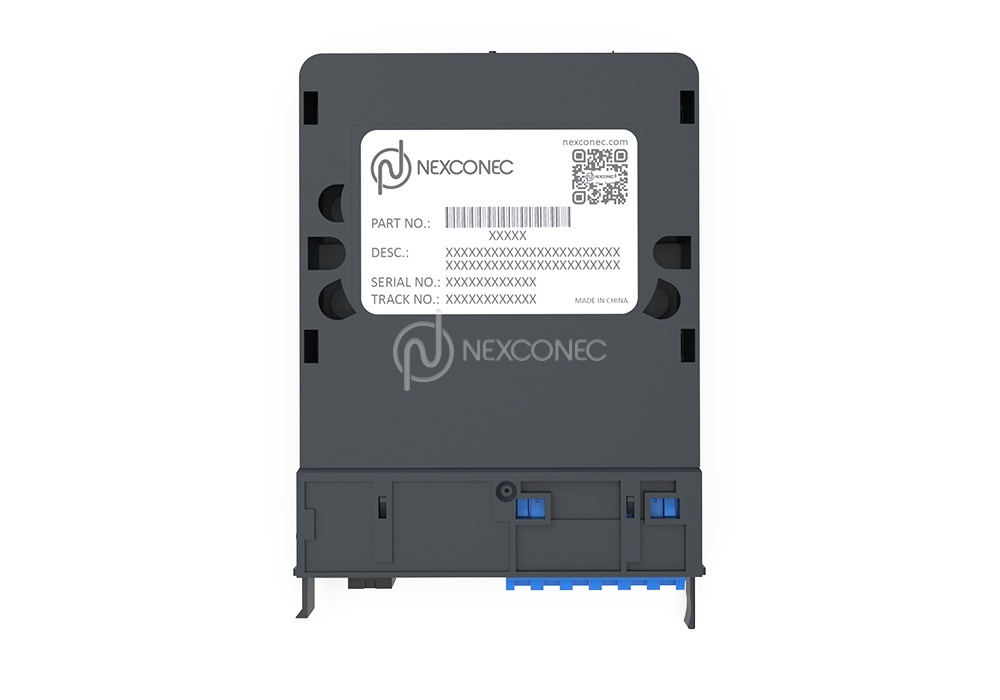

UPX CASSETTE 12FO (BASE-12) MTP®/MPO-LC (FRONT PATCH) - UPXCAxxF
NEXCONEC® UPX Fiber Cassette (BASE-12) MTP®/MPO-LC 12FO (Front Patch) is a pre-terminated module designed for up to 100G applications. It connects backbone cabling to equipment links with high density and minimal loss.
Each cassette fits into the NEXCONEC UPX 2U 12-slot chassis, supporting up to 144 fibers per chassis. The MTP®/MPO to LC fanout design eliminates field splicing, cutting installation time and cost. Available in Standard and Elite versions to meet different power budget needs.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- 6 Cores LC adapters
- Available in standard Single mode and Multimode fiber options

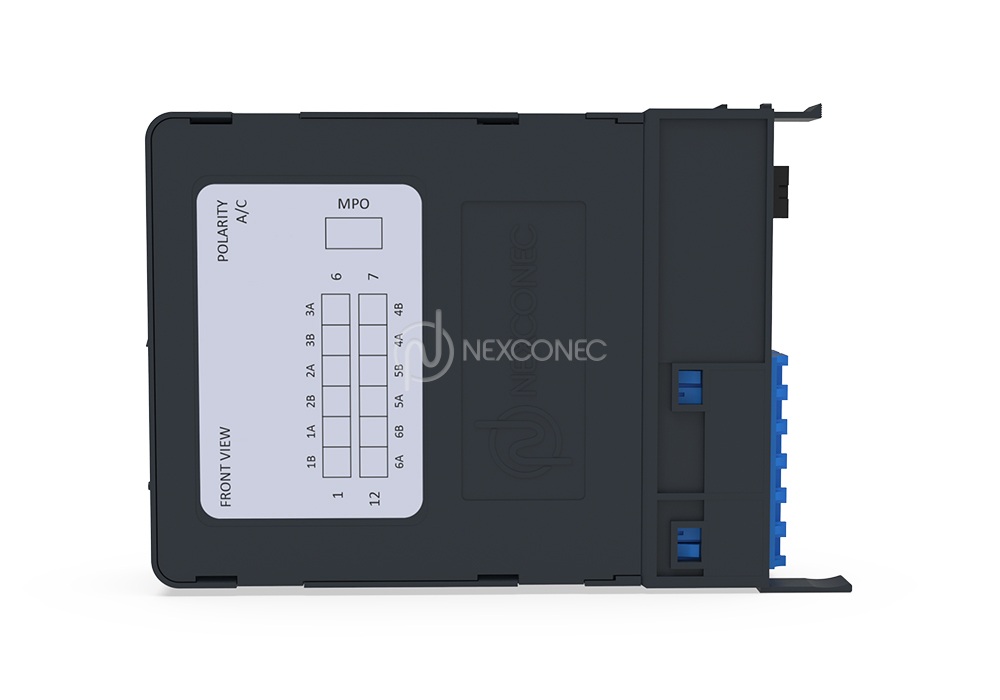

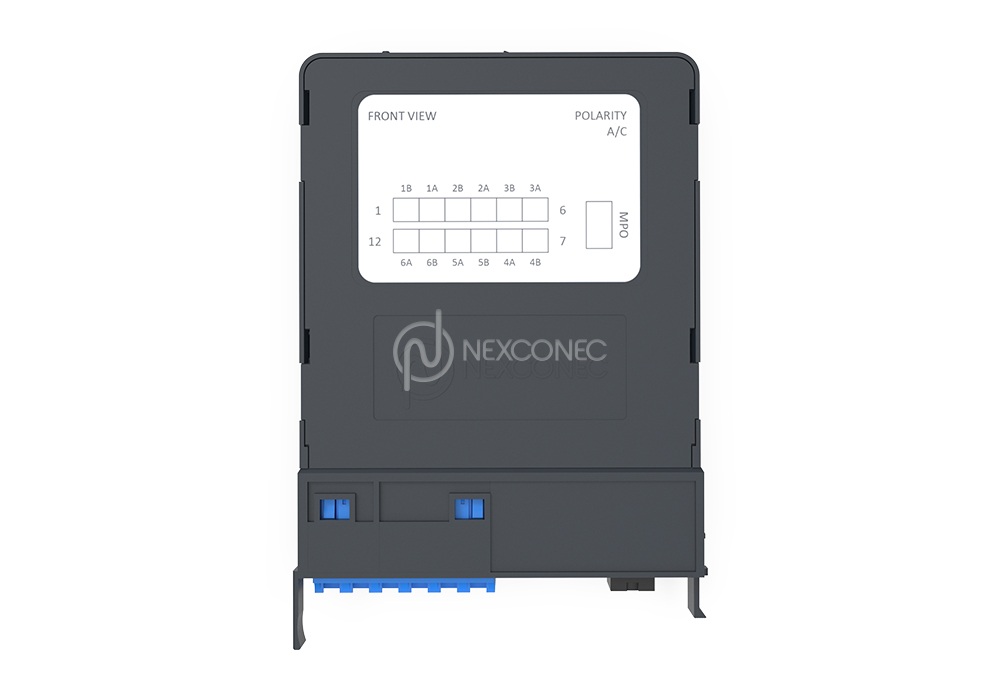

- Available in Polarity A/B/C as per TIA/EIA-568-C.3
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
FEATURES
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- 6 Cores LC adapters
- Available in standard Single mode and Multimode fiber options
- Available in Polarity A/B/C as per TIA/EIA-568-C.3
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
- 100G to 10G/ 40G to 10G transition
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Footprint | UPX |
| Dimensions (W x D x H) | 87.30 x 125 x 29.10 mm |
| Material | PC+ABS |
| Housing Color | Grey Blue (RAL 5008) |
| Application | UPX Panels |
| Fiber Capacity | 12FO in LC |

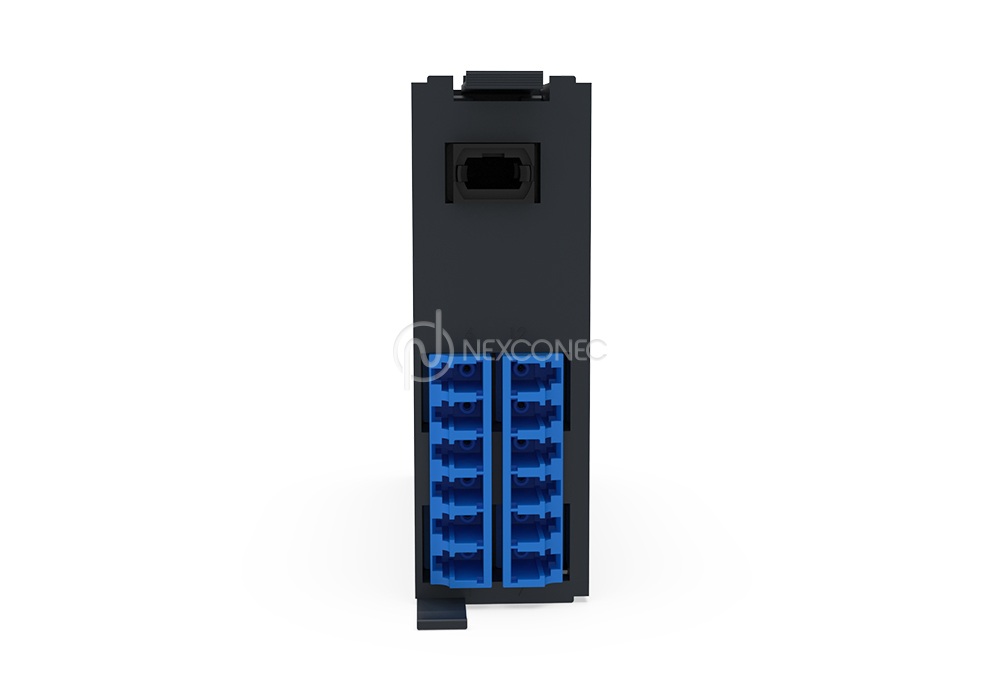

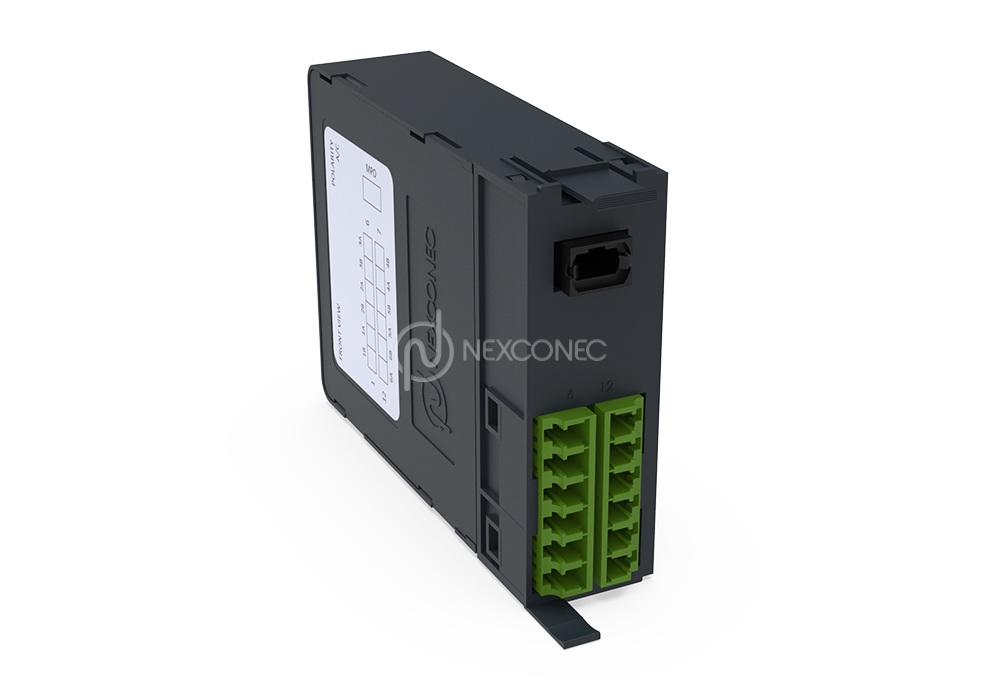

| Adapters Ports | 2x 6 Cores LC & 1x (Base-12) MTP®/MPO Adapters, Shuttered Ports |
| Weight | 0.25 Kg |
PERFORMANCE
| Parameters | Units | SM MPO | SM LC | MM MPO | MM LC |
|---|---|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.25/0.75 | ≤ 0.20/0.30 | ≤ 0.60 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Avg/Max IL– Premium | dB | ≤ 0.10/0.35 | ≤ 0.12/0.15 | ≤ 0.10/0.35 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Part Number | Product Description |
|---|---|
| UPXCA04F | UPX Module Front MPO-LC/UPC Elite 12FO SM Pol A/C |
| UPXCA05F | UPX Module Front MPO-LC/APC Elite 12FO SM Pol A/C |
| UPXCA06F | UPX Module Front MPO-LC/UPC Elite 12FO MMF OM3/4 Pol A/C |
* Polarity B Universal option is also available on request. For standard performance cassettes please ask sales.
* MTP®/MPO from Usconec available on request.
