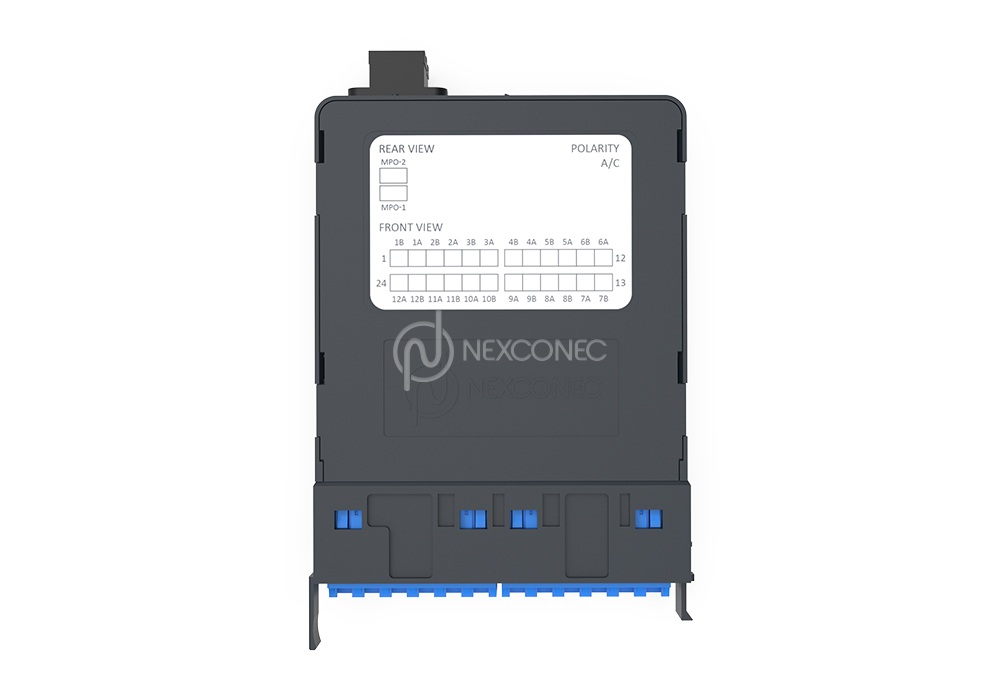

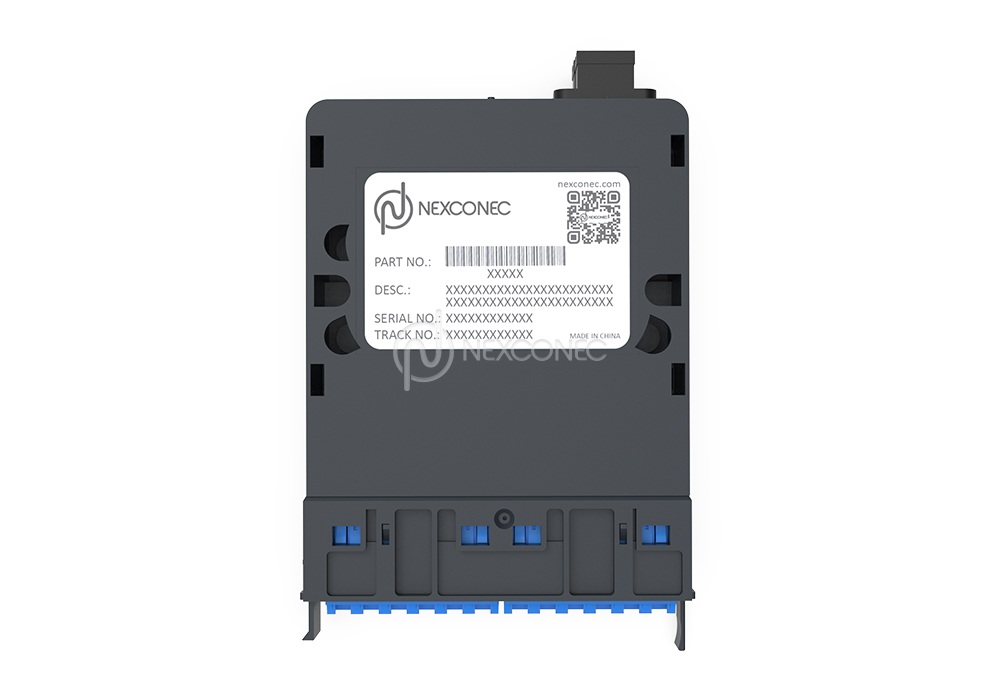

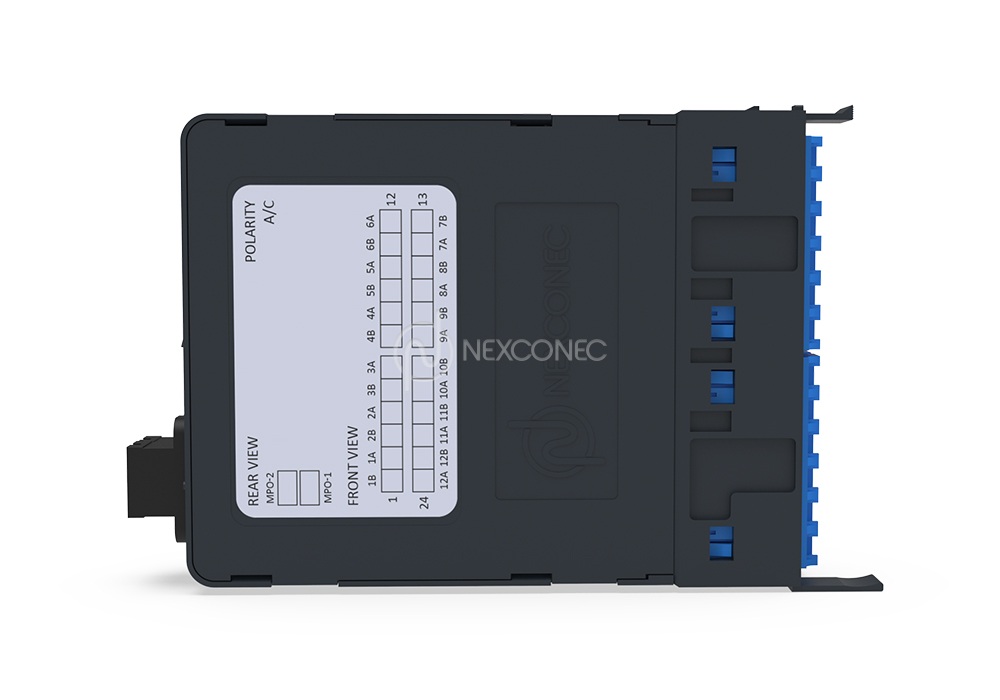

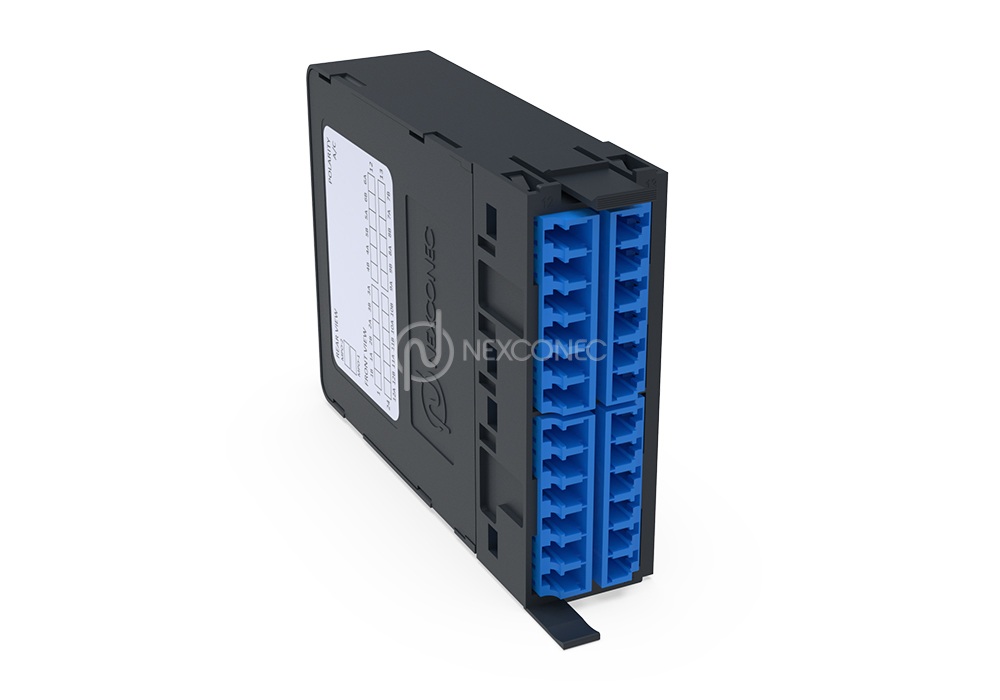

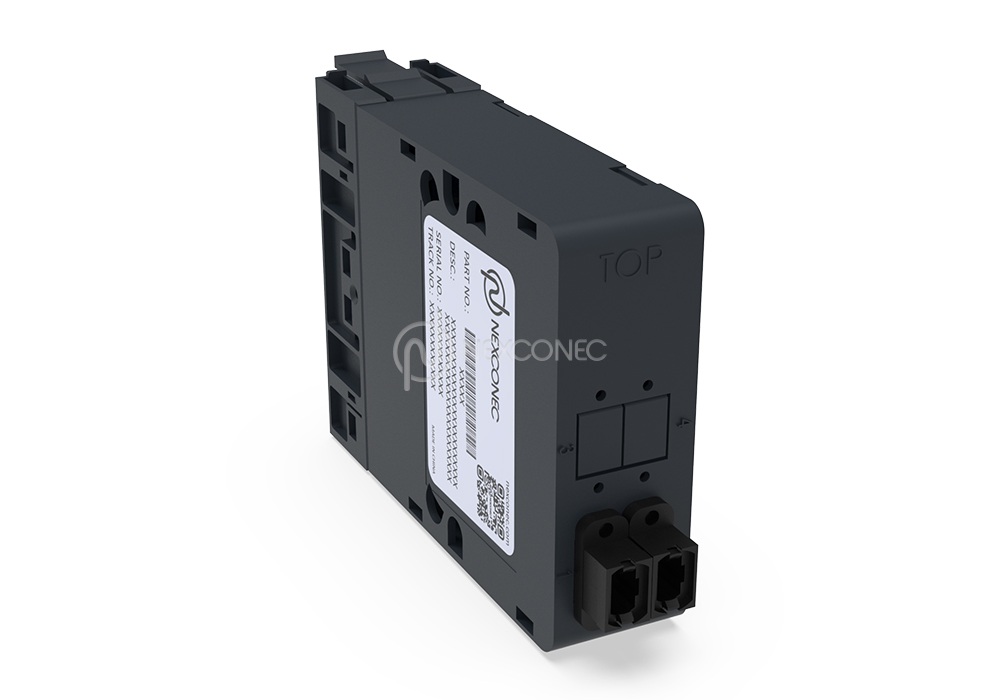

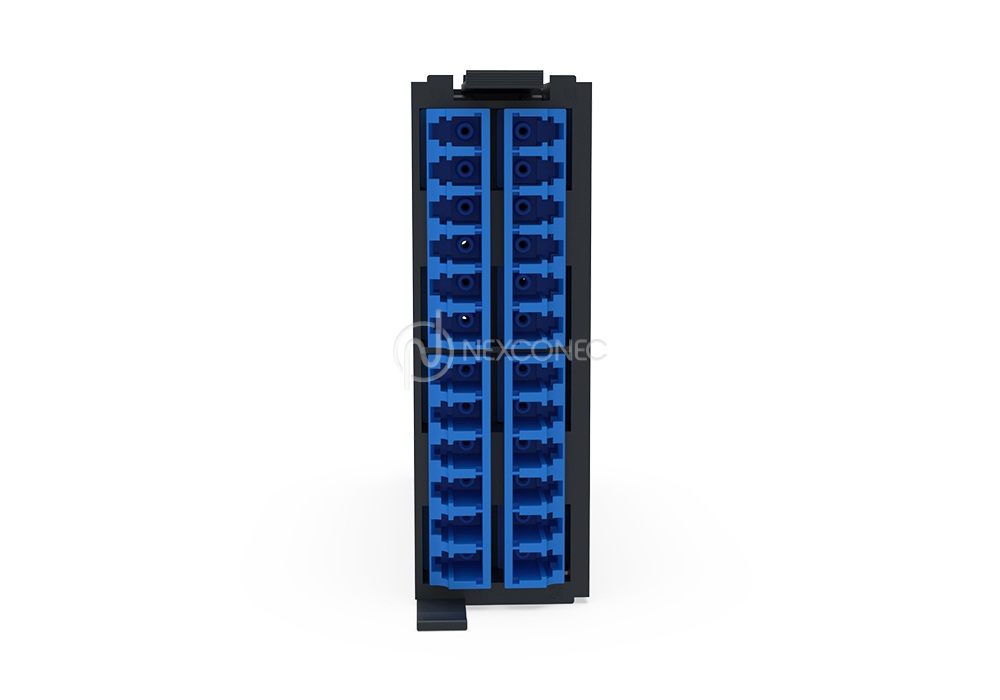

UPX CASSETTE MTP®/MPO (BASE-12) - UPXCAxx
NEXCONEC® UPX fiber optic cassettes are pre-terminated modules MPO-LC fanouts that are suitable for up to 100G applications to interconnect backbone with discrete connections. The UPX cassettes are designed to easily plug into NEXCONEC UPX 2U 12 slot chassis and each chassis can populate up to 288FO.
The cassettes eliminate the need for splicing by reducing costs. The MPO and single ferrule connectors are available in Standard and Elite versions to cater customer’s power budget requirements.
PRODUCT HIGHLIGHTS
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- 6 Cores LC adapters
- Available in standard Single mode and Multimode fiber options
- Available in Polarity A/B/C as per TIA/EIA-568-C.3
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
FEATURES
- Conform to IEC, EIA-TIA, and Telcordia performance requirements
- 6 Cores LC adapters
- Available in standard Single mode and Multimode fiber options
- Available in Polarity A/B/C as per TIA/EIA-568-C.3
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
APPLICATIONS
- Telecommunication networks
- Data centers, Co-location DC
- LAN or Campus wide Network
- Broadband network
- Supports SFP, QSFP, CFP applications
- 100G to 10G/ 40G to 10G transition
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Footprint | UPX |
| Dimensions (W x D x H) | 87.30 x 125 x 29.10 mm |
| Material | PC+ABS |
| Housing Color | Grey Blue (RAL 5008) |
| Application | UPX Panels |
| Fiber Capacity | 24FO/12FO in LC |
| Adapters Ports | 24FO: 4x 6 Cores LC & 2x (Base-12) MTP®/MPO Adapters, Shuttered Ports 12FO: 2x 6 Cores LC & 1x (Base-12) MTP®/MPO Adapter, Shuttered Ports |
| Weight | 0.25 Kg |
PERFORMANCE
| Parameters | Units | SM MPO | SM LC | MM MPO | MM LC |
|---|---|---|---|---|---|
| Avg/Max IL – Standard | dB | ≤ 0.25/0.75 | ≤ 0.20/0.30 | ≤ 0.60 | ≤ 0.18/0.30 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Avg/Max IL– Premium | dB | ≤ 0.10/0.35 | ≤ 0.12/0.15 | ≤ 0.10/0.35 | ≤ 0.12/0.15 |
| Return Loss (PC/APC) | dB | ≥ 60 | ≥ 60/65 | NA | NA |
| Part Number | Product Description |
|---|---|
| UPXCA01 | UPX Module MPO-LC Elite 24FO SM Pol A/C |
| UPXCA02 | UPX Module MPO-LC/APC Elite 24FO SM Pol A/C |
| UPXCA03 | UPX Module MPO-LC Elite 24FO MM OM3/4 Pol A/C |
| UPXCA04 | UPX Module MPO-LC Elite 12FO SM Pol A/C |
| UPXCA05 | UPX Module MPO-LC/APC Elite 12FO SM Pol A/C |
| UPXCA06 | UPX Module MPO-LC Elite 12FO MM OM3/4 Pol A/C |
* Polarity B Universal option is also available on request. For standard performance cassettes please ask sales.
* MTP®/MPO from Usconec available on request.
