UPX CS® PATCHING PLATES - UPXPLxx
NEXCONEC® provides a comprehensive selection of UPX-compatible fiber adapter plates, built to address a wide variety of connectivity and cable management requirements. Specifically developed for integration with all NEXCONEC UPX rackmount enclosures, the UPX CS® patching plates deliver exceptional performance. Featuring a capacity of 36FO (18 Channels) using CS® adapters, these plates ensure the dependable, high-density connections required to optimize today's enterprise and data center network infrastructures.
PRODUCT HIGHLIGHTS
- Large choice of pass-thru adapters: SC/LC/MPO/CS®/SN®
- Easy and fast installation
- High-density design supporting up to 36 fibers in minimal space
- Durable construction ensuring long-term performance and stability
FEATURES
- Large choice of pass-thru adapters: SC/LC/MPO/CS®/SN®
- Easy and fast installation
- High-density design supporting up to 36 fibers in minimal space
- Durable construction ensuring long-term performance and stability
APPLICATIONS
- Enterprise network & Datacenter
- Indoor application
- Most Common Footprint
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Mounting Type | Snap-in (UPX) |
| Dimensions (W x D x H) | 87.76 x 38 x 29.10 mm |
| Material | PC+ABS |
| Housing Color | Grey Blue (RAL 5008) |
| Weight | 0.25Kg |
| Part Number | Product Description |
|---|---|

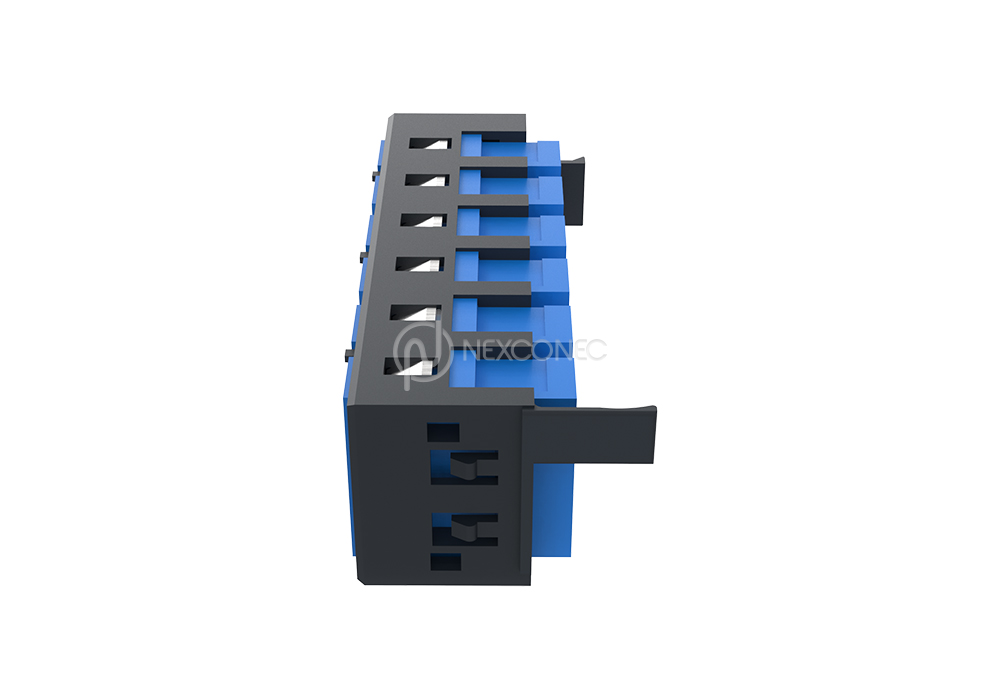

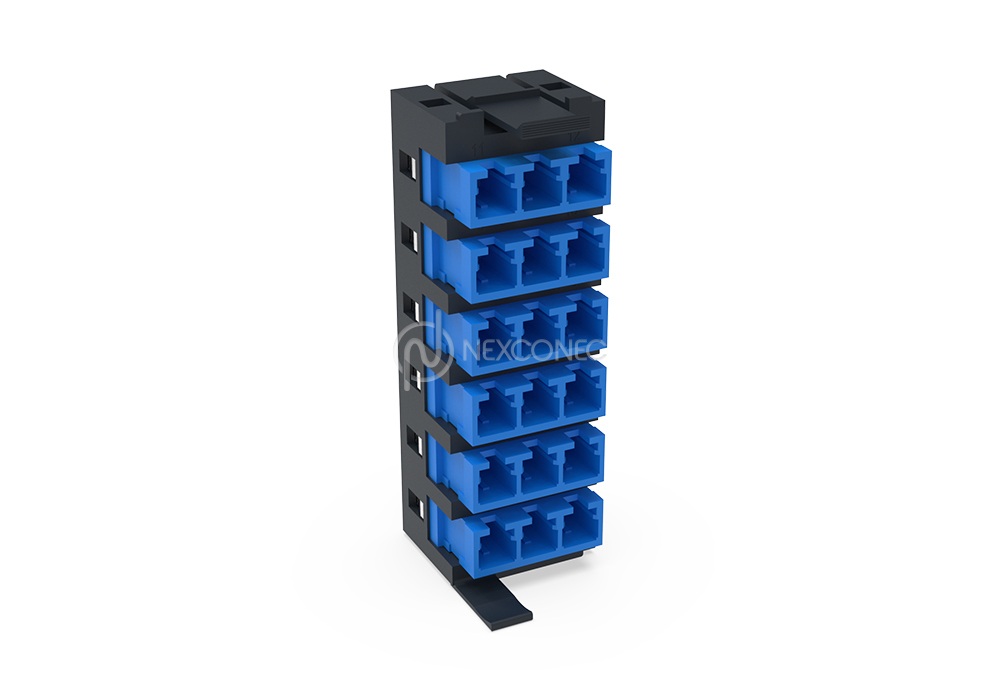

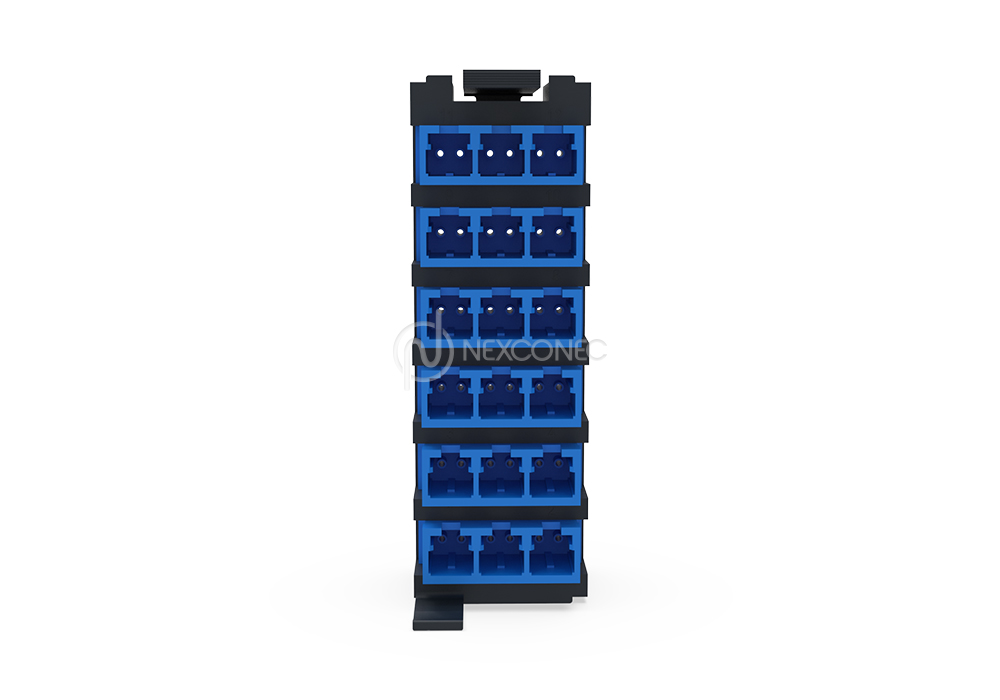

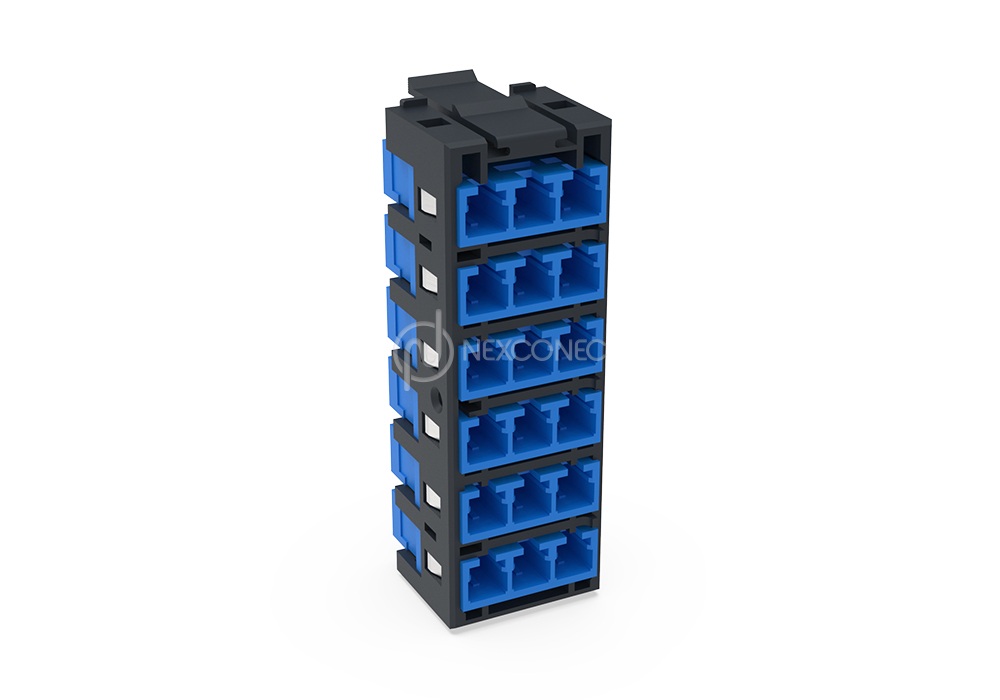

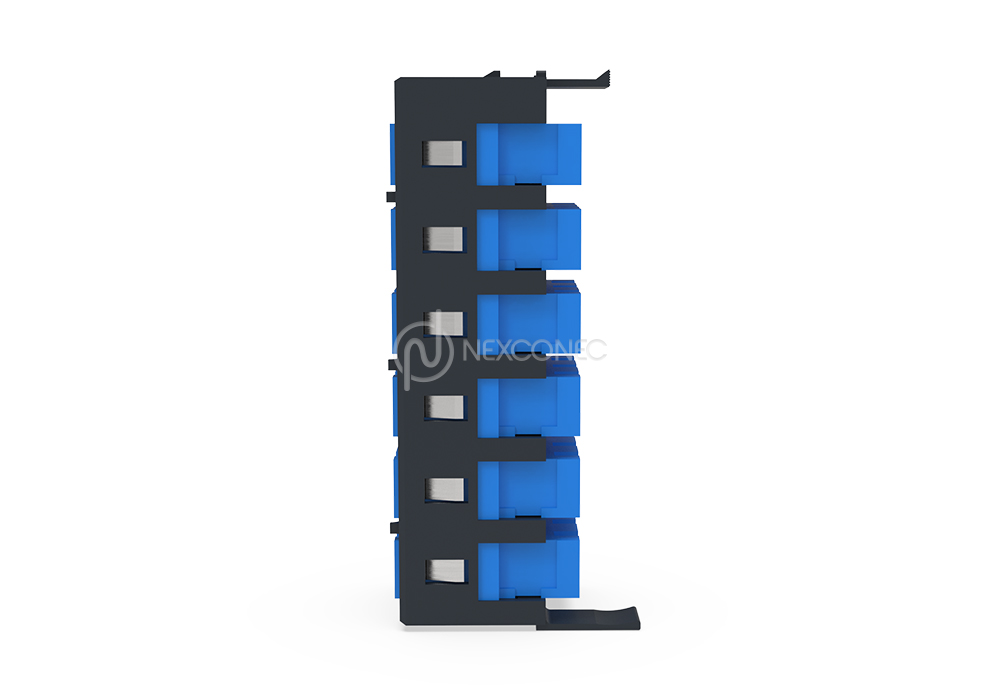

| UPXPL30 | UPX Adapter Plate CS® 36FO (18 Channels) SM Blue |
| UPXPL31 | UPX Adapter Plate CS®/APC 36FO (18 Channels) SM Green |
* Ask sales for other products and configuration not shown. sales[at]nexconec.com
