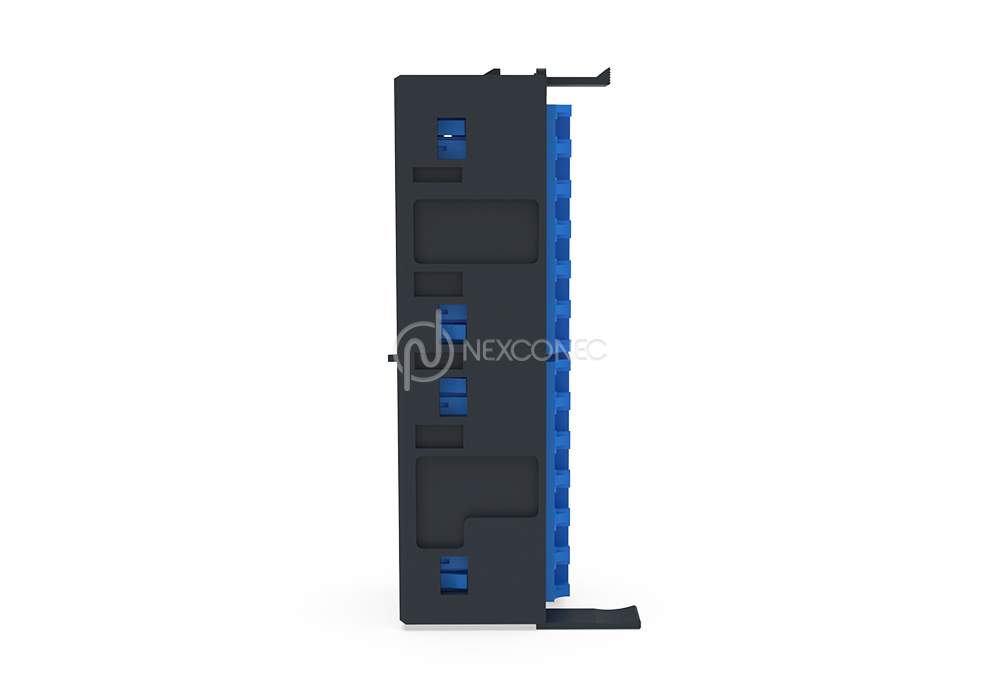

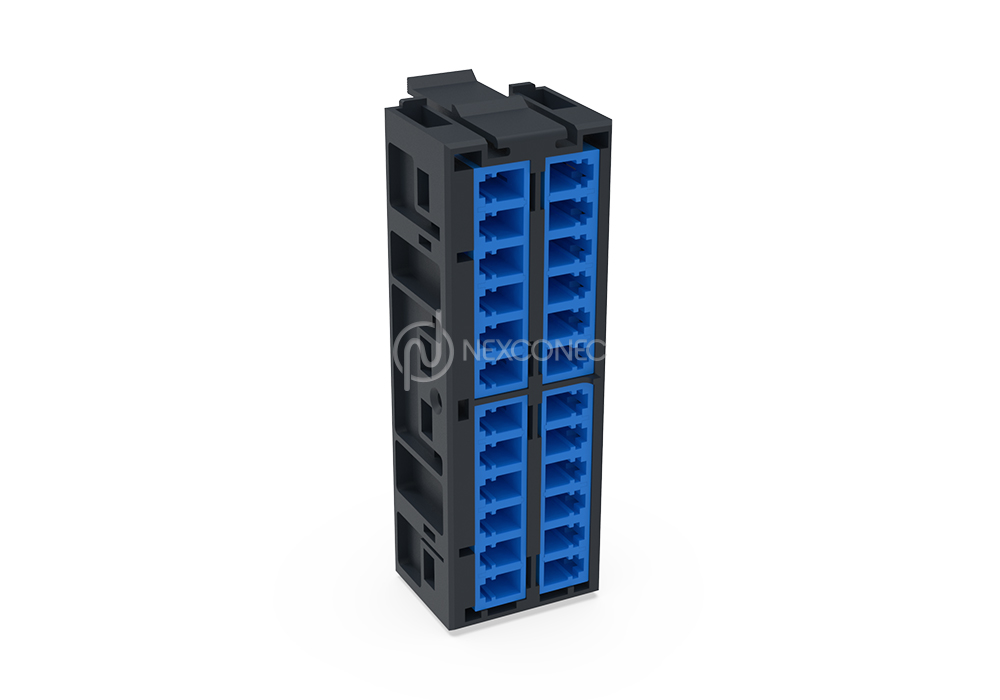

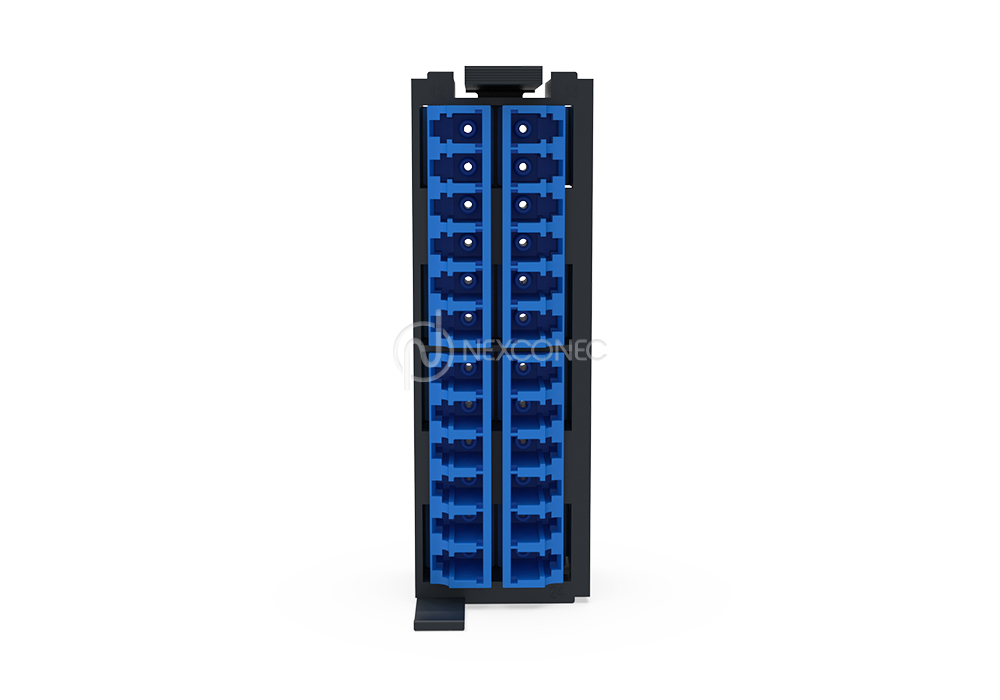

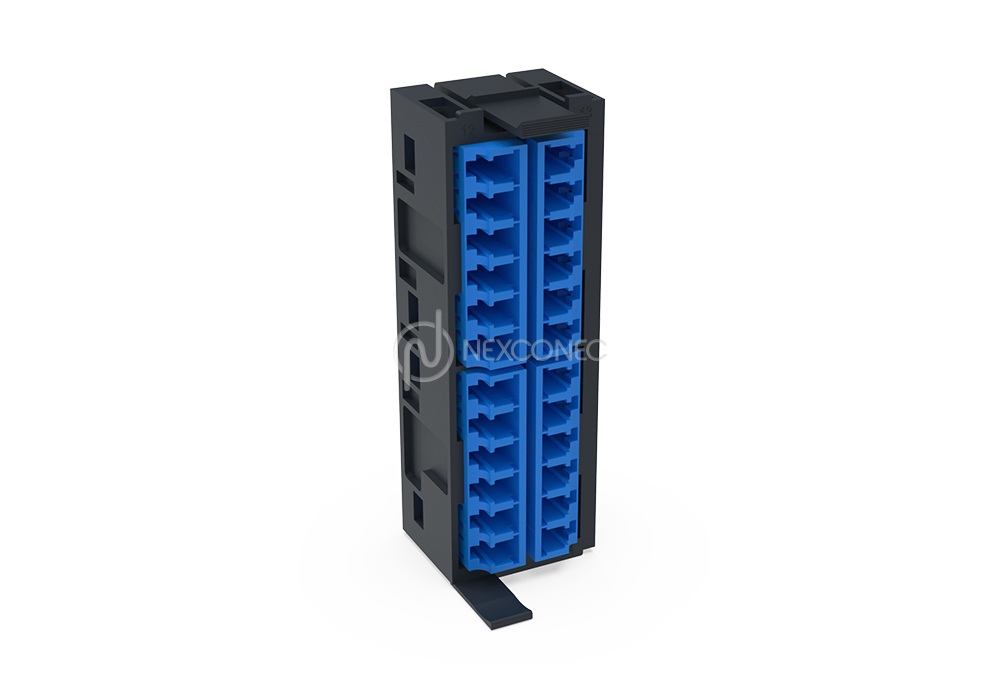

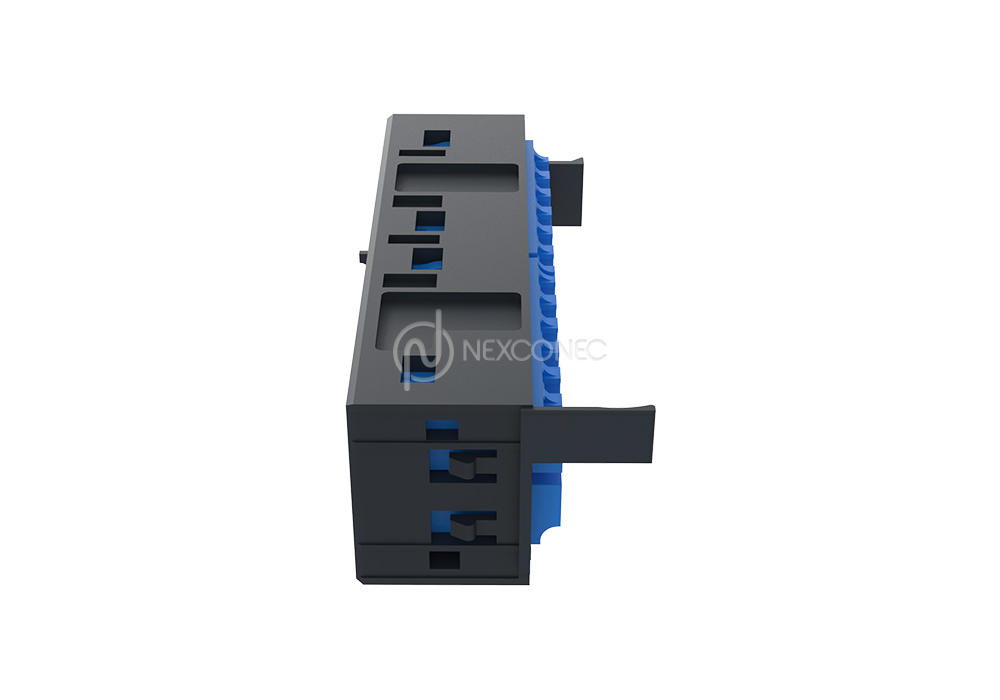

UPX LC ADAPTER PLATES - UPXPLxx
NEXCONEC® supplies a diverse collection of UPX-series fiber adapter plates to satisfy your specific network infrastructure goals. Designed for universal compatibility, these plates install easily into any NEXCONEC UPX rackmount fiber enclosure. This specific configuration features a 24FO density using 4x 6-core LC adapters, ensuring organized, reliable, and spaceefficient fiber distribution.
PRODUCT HIGHLIGHTS
- Large choice of pass-thru adapters: SC/LC/MPO/CS®/SN®
- Easy and fast installation
- Supporting up to 24 fibers in minimal space
- Durable construction ensuring long-term performance and stability
FEATURES
- Large choice of pass-thru adapters: SC/LC/MPO/CS®/SN®
- Easy and fast installation
- Supporting up to 24 fibers in minimal space
- Durable construction ensuring long-term performance and stability
APPLICATIONS
- Enterprise network & Datacenter
- Indoor application
- Most Common Footprint
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Mounting Type | Snap-in (UPX) |
| Dimensions (W x D x H) | 87.76 x 38 x 29.10 mm |
| Material | PC+ABS |
| Housing Color | Grey Blue (RAL 5008) |
| Weight | 0.25Kg |
| Part Number | Product Description |
|---|---|
| UPXPL01 | UPX Adapter Plate LC 24FO SM Blue |
| UPXPL02 | UPX Adapter Plate LC/APC 24FO SM Green |

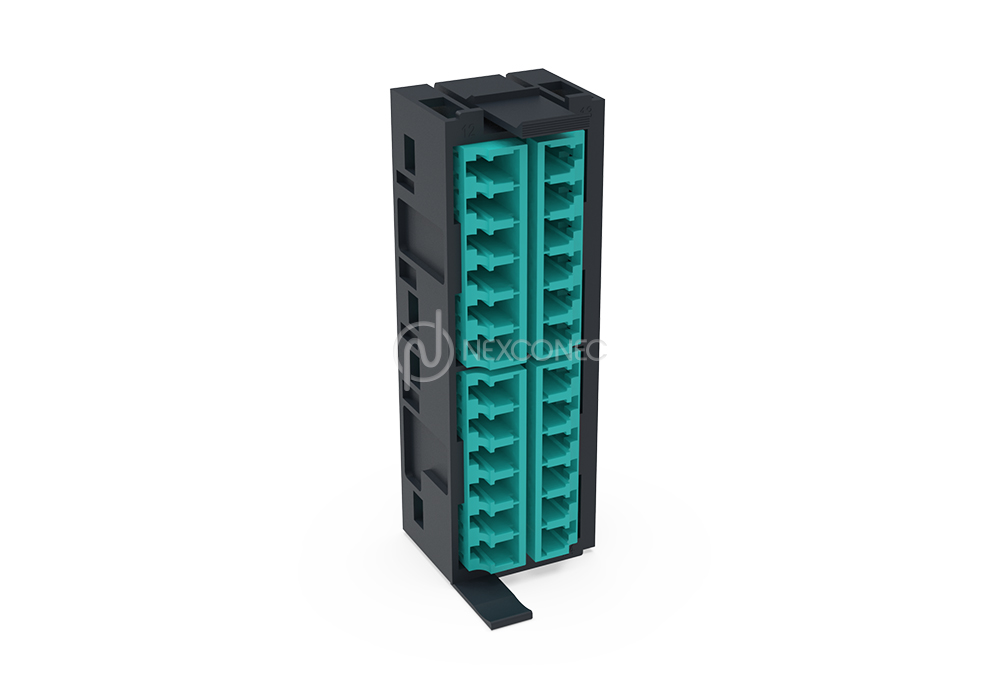

| UPXPL03 | UPX Adapter Plate LC 24FO MM Aqua |
| UPXPL03V | UPX Adapter Plate LC 24FO MM Erika Violet |
* Ask sales for other products and configuration not shown. sales[at]nexconec.com
