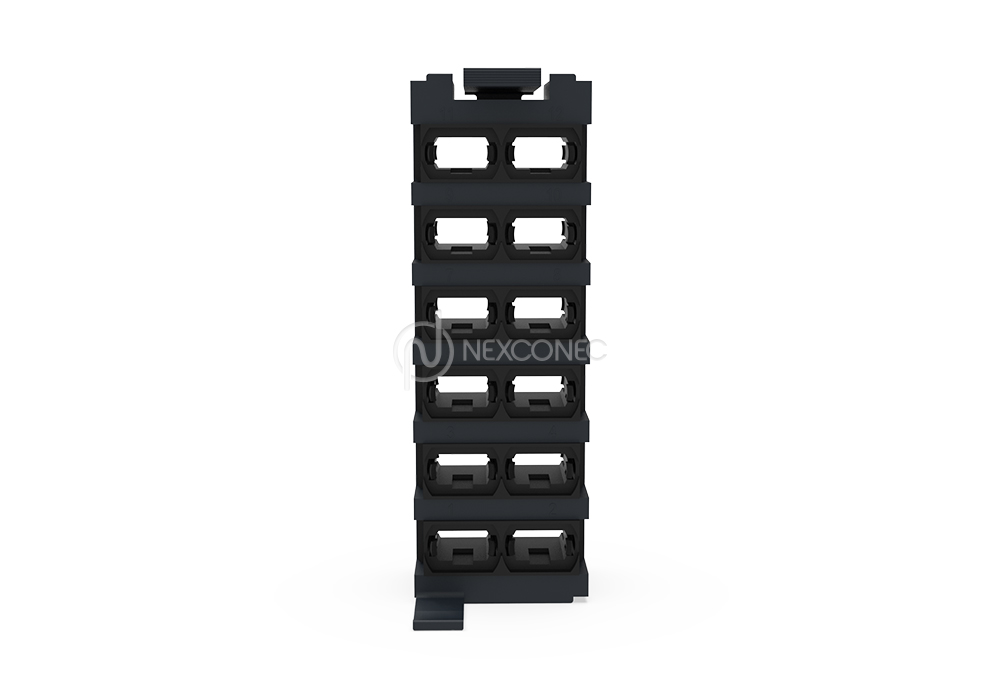

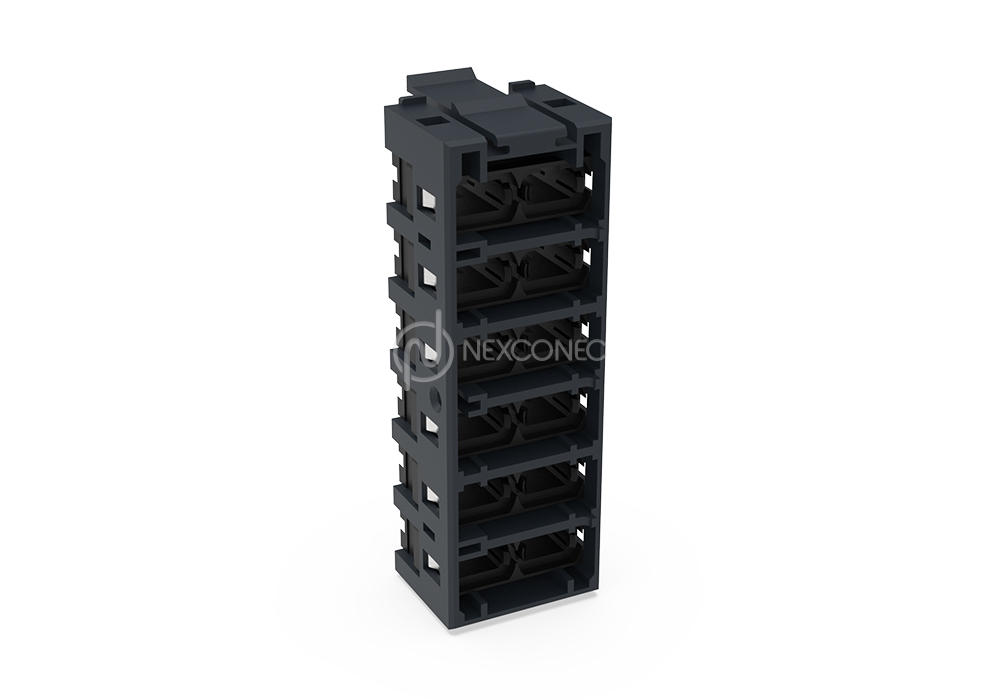

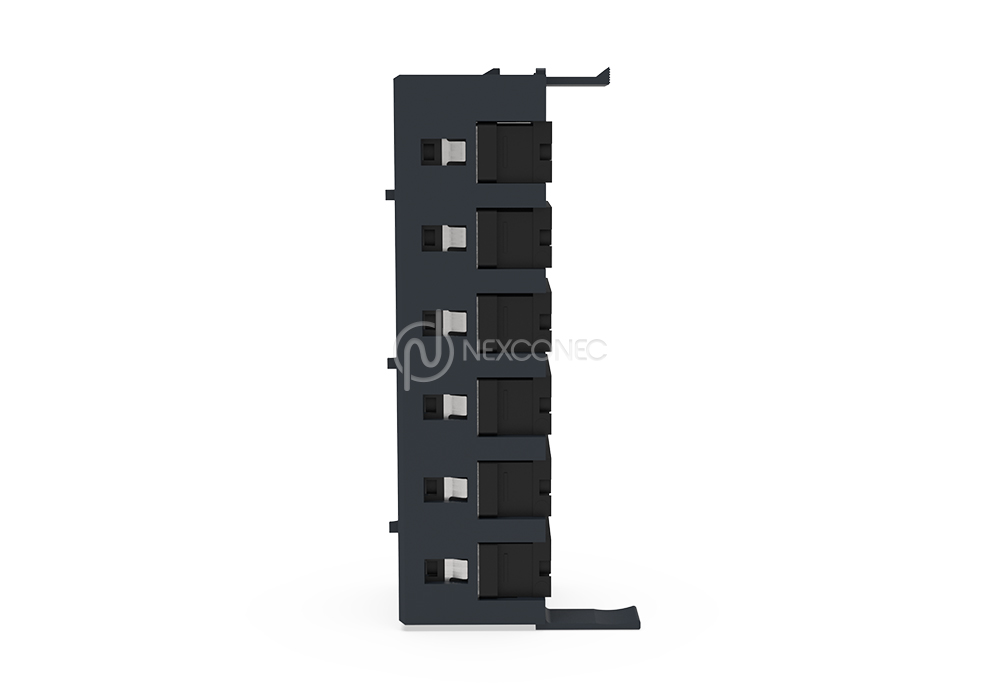

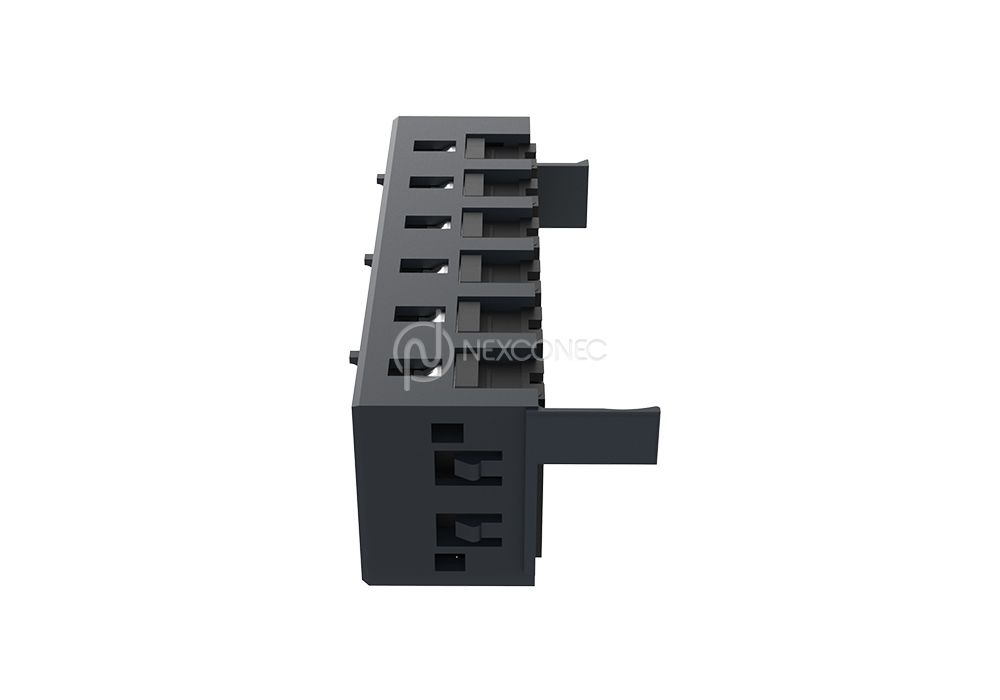

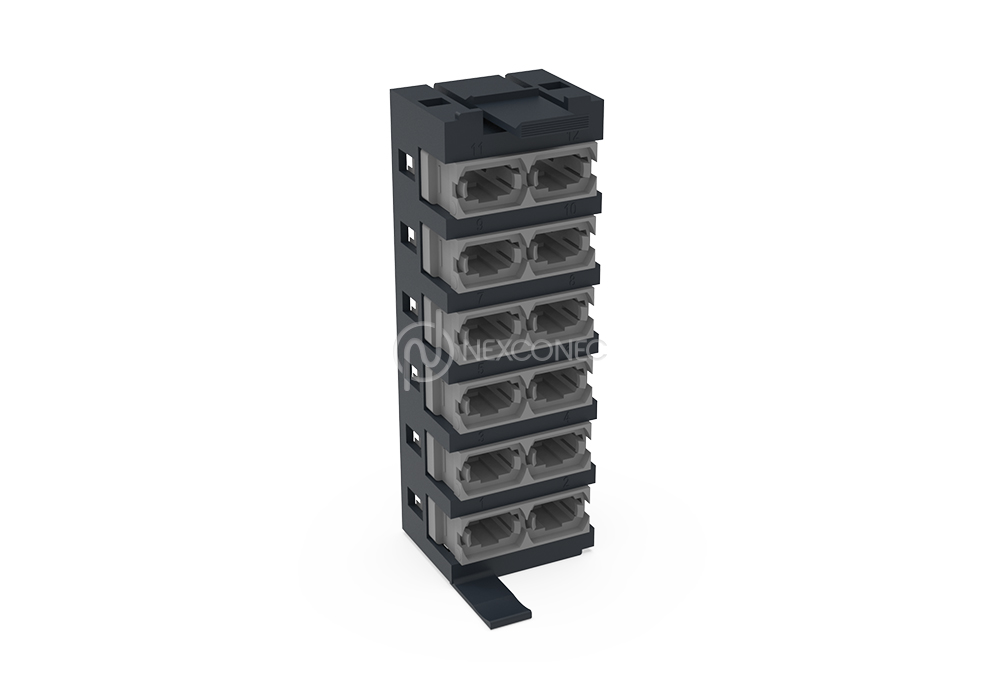

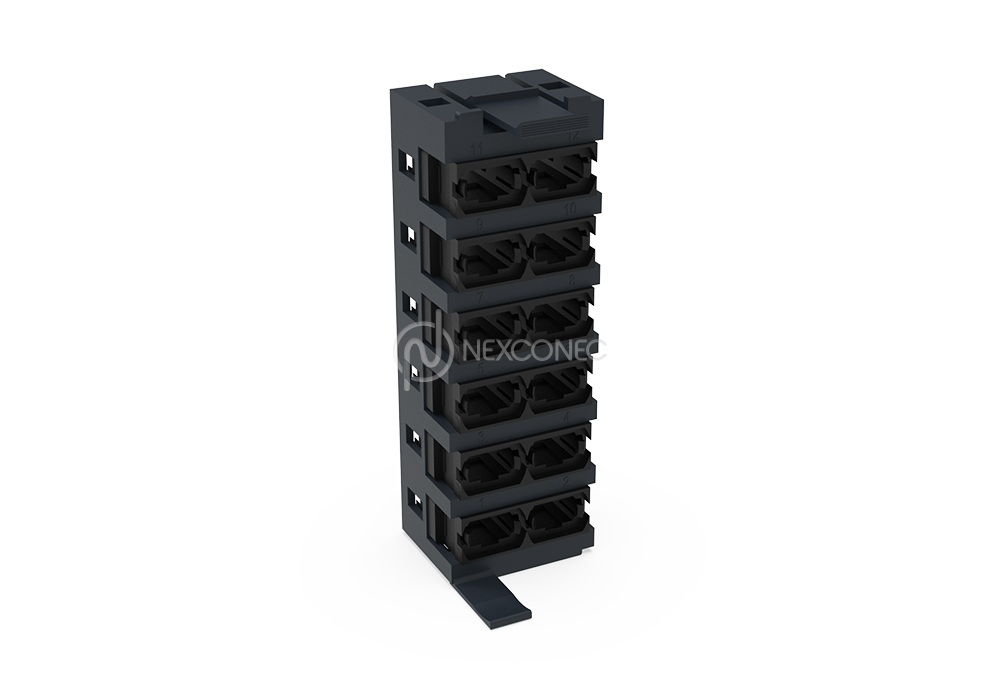

UPX MTP®/MPO ADAPTER PLATES - UPXPLxx
NEXCONEC® provides a wide selection of UPX-compatible fiber adapter plates designed to satisfy your specific network infrastructure goals. Engineered for universal fit, these plates integrate flawlessly with any NEXCONEC UPX rackmount fiber enclosure. This specific model accommodates 6x MPO Duplex adapters, delivering a high-density solution for parallel optic connectivity and ensuring organized, efficient fiber trunk management.
PRODUCT HIGHLIGHTS
- Large choice of pass-thru adapters: SC/LC/MPO/CS®/SN®
- Easy and fast installation
- Durable construction ensuring long-term performance and stability
FEATURES
- Large choice of pass-thru adapters: SC/LC/MPO/CS®/SN®
- Easy and fast installation
- Durable construction ensuring long-term performance and stability
APPLICATIONS
- Enterprise network & Datacenter
- Indoor application
- Most Common Footprint
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Mounting Type | Snap-in (UPX) |
| Dimensions (W x D x H) | 87.76 x 38 x 29.10 mm |
| Material | PC+ABS |
| Housing Color | Grey Blue (RAL 5008) |
| Weight | 0.25Kg |
| Part Number | Product Description |
|---|---|
| UPXPL11 | UPX Adapter Plate 12 Ports MTP®/MPO Duplex Key Up/Key Down |
| UPXPL21 | UPX Adapter Plate 12 Ports MTP®/MPO Duplex Key Up/Key Up |
* Ask sales for other products and configuration not shown. sales[at]nexconec.com
