UPX SC ADAPTER PLATES - UPXPLxx
NEXCONEC® offers a wide range of UPX-style fiber optic adapter plates to fulfill your fiber management and connectivity needs. These adapter plates are designed to fit perfectly into all NEXCONEC UPX rackmount fiber management solutions. This model supports 12FO capacity using 6x SC Duplex adapters, providing a reliable and organized interface for your network connections.
PRODUCT HIGHLIGHTS
- Large choice of pass-thru adapters: SC/LC/MPO/CS®/SN®
- Easy and fast installation
- Supporting up to 12 fibers in minimal space
- Durable construction ensuring long-term performance and stability
FEATURES
- Large choice of pass-thru adapters: SC/LC/MPO/CS®/SN®
- Easy and fast installation
- Supporting up to 12 fibers in minimal space
- Durable construction ensuring long-term performance and stability
APPLICATIONS
- Enterprise network & Datacenter
- Indoor application
- Most Common Footprint
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Mounting Type | Snap-in (UPX) |
| Dimensions (W x D x H) | 87.76 x 38 x 29.10 mm |
| Material | PC+ABS |
| Housing Color | Grey Blue (RAL 5008) |
| Weight | 0.25Kg |
| Part Number | Product Description |
|---|---|

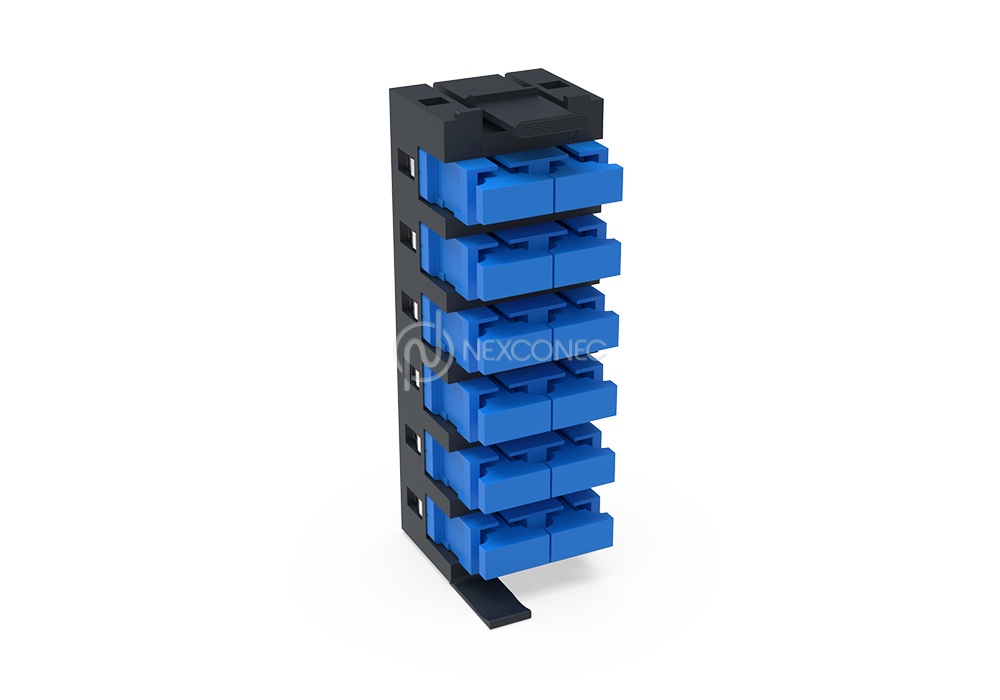

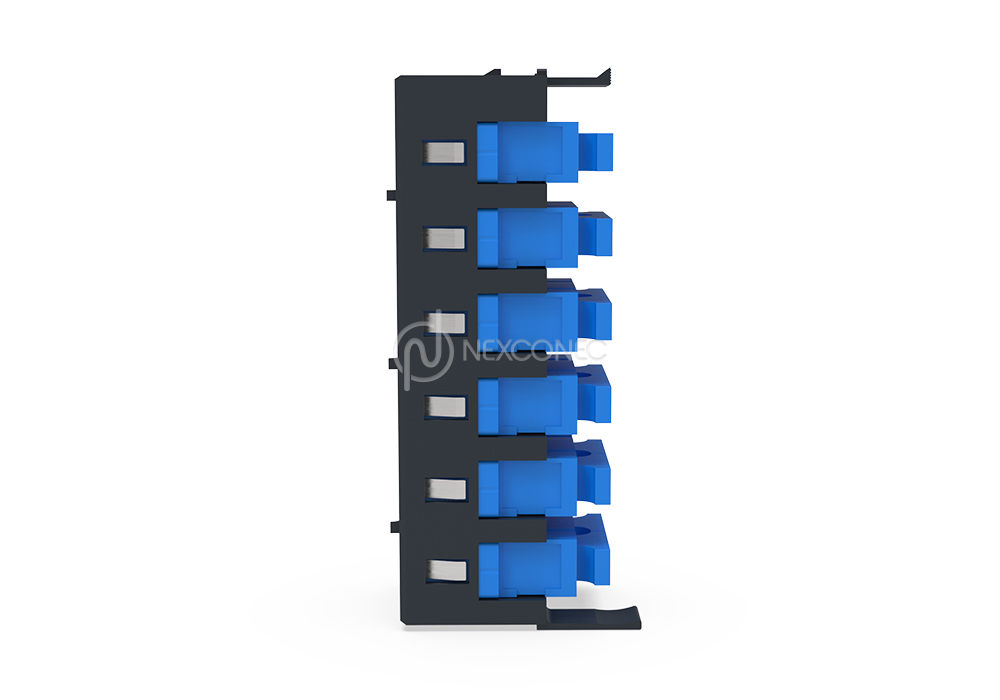

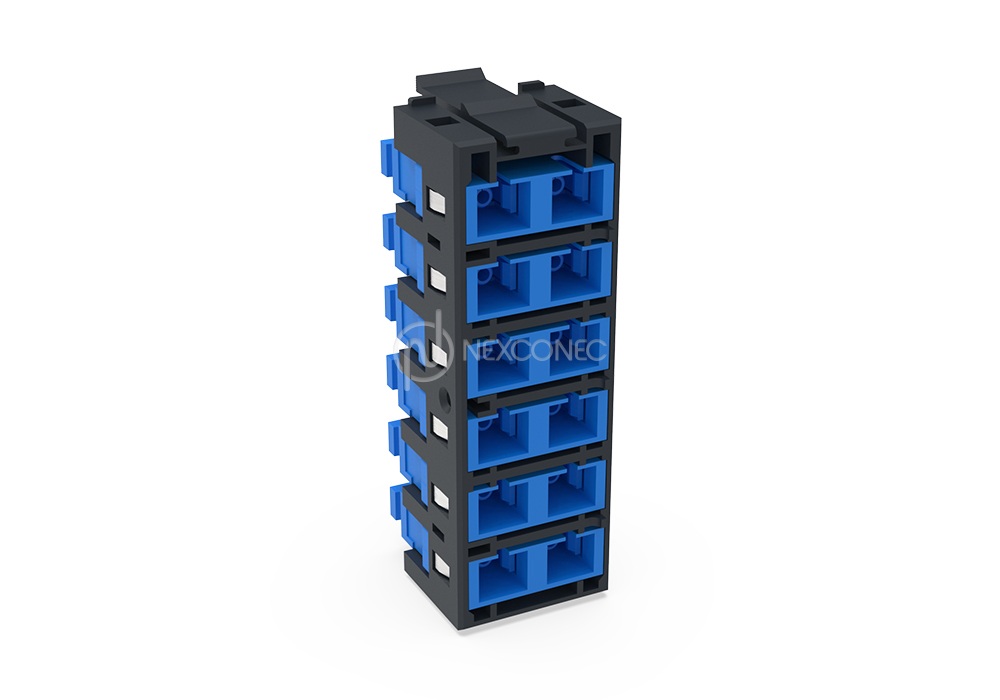

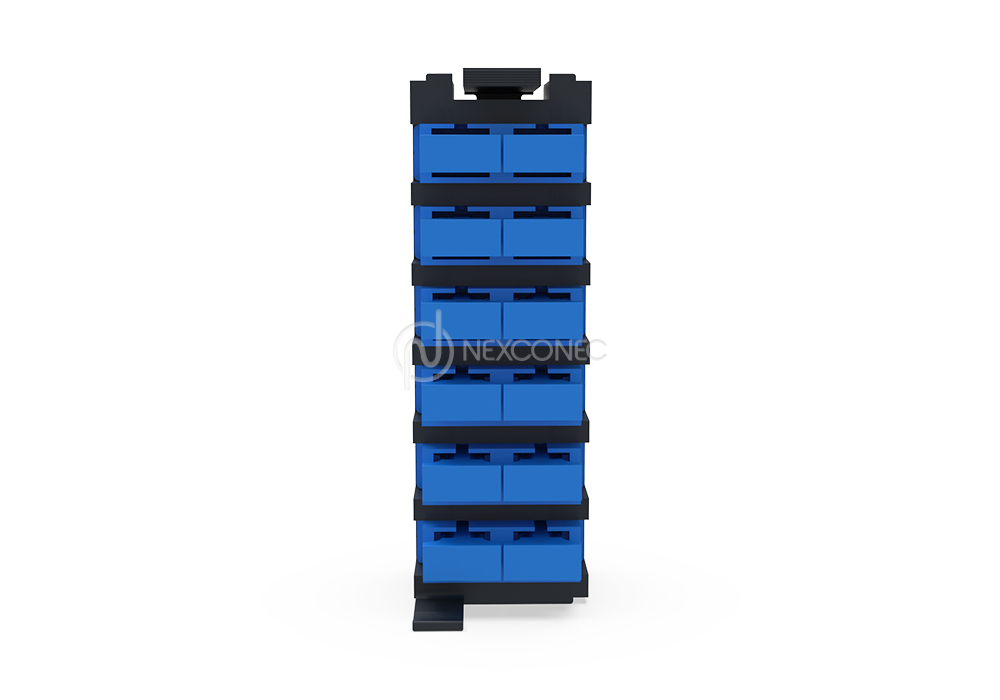

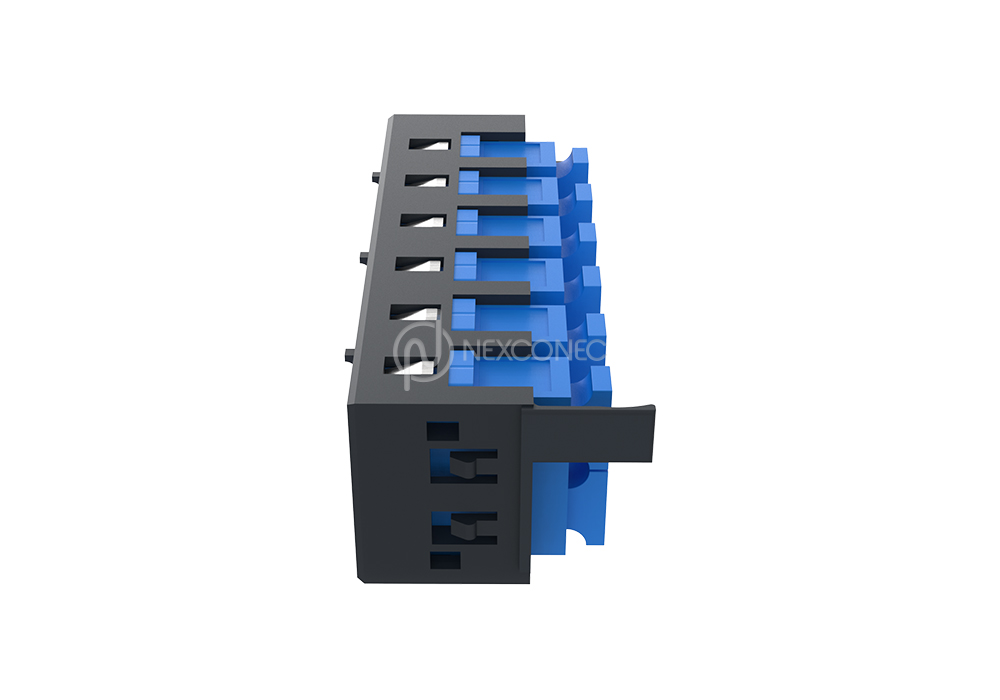

| UPXPL04 | UPX Adapter Plate 6x SC Duplex, 12FO SM Blue |
| UPXPL05 | UPX Adapter Plate 6x SCA Duplex, 12FO SM Green |

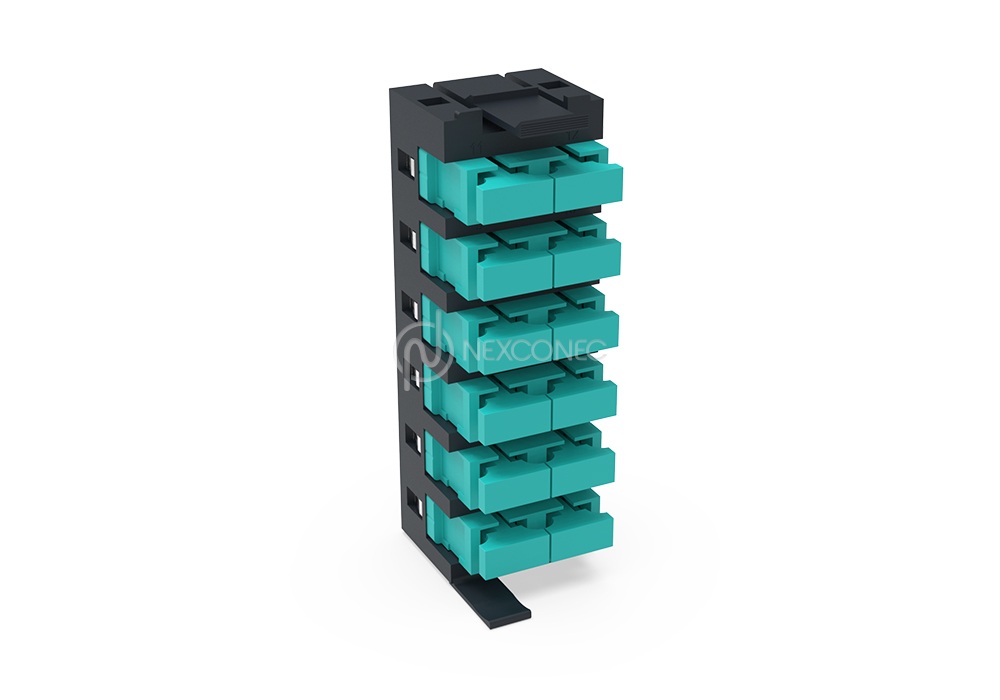

| UPXPL06 | UPX Adapter Plate 6x SC Duplex, 12FO MM Aqua |
| UPXPL06V | UPX Adapter Plate 6x SC Duplex, 12FO MM Erika Violet |
* Ask sales for other products and configuration not shown. sales[at]nexconec.com
