UPX SN® PATCHING PLATES - UPXPLxx
NEXCONEC® delivers a versatile array of UPX-compatible fiber adapter plates built to handle a variety of cable management and connectivity demands. The UPX SN® patching plates are constructed to integrate flawlessly with every NEXCONEC UPX rackmount fiber enclosure. Capable of supporting 48FO (24 Channels) via SN® adapters, each plate ensures ultra-high density, dependable performance, and streamlined connectivity necessary for today’s data center infrastructures.
PRODUCT HIGHLIGHTS
- Large choice of pass-thru adapters: SC/LC/MPO/CS®/SN®
- Easy and fast installation
- High-density design supporting up to 48 fibers in minimal space
- Durable construction ensuring long-term performance and stability
FEATURES
- Large choice of pass-thru adapters: SC/LC/MPO/CS®/SN®
- Easy and fast installation
- High-density design supporting up to 48 fibers in minimal space
- Durable construction ensuring long-term performance and stability
APPLICATIONS
- Enterprise network & Datacenter
- Indoor application
- Most Common Footprint
SPECIFICATIONS
| Parameters | Value |
|---|---|
| Mounting Type | Snap-in (UPX) |
| Dimensions (W x D x H) | 87.76 x 38 x 29.10 mm |
| Material | PC+ABS |
| Housing Color | Grey Blue (RAL 5008) |
| Weight | 0.25Kg |
| Part Number | Product Description |
|---|---|

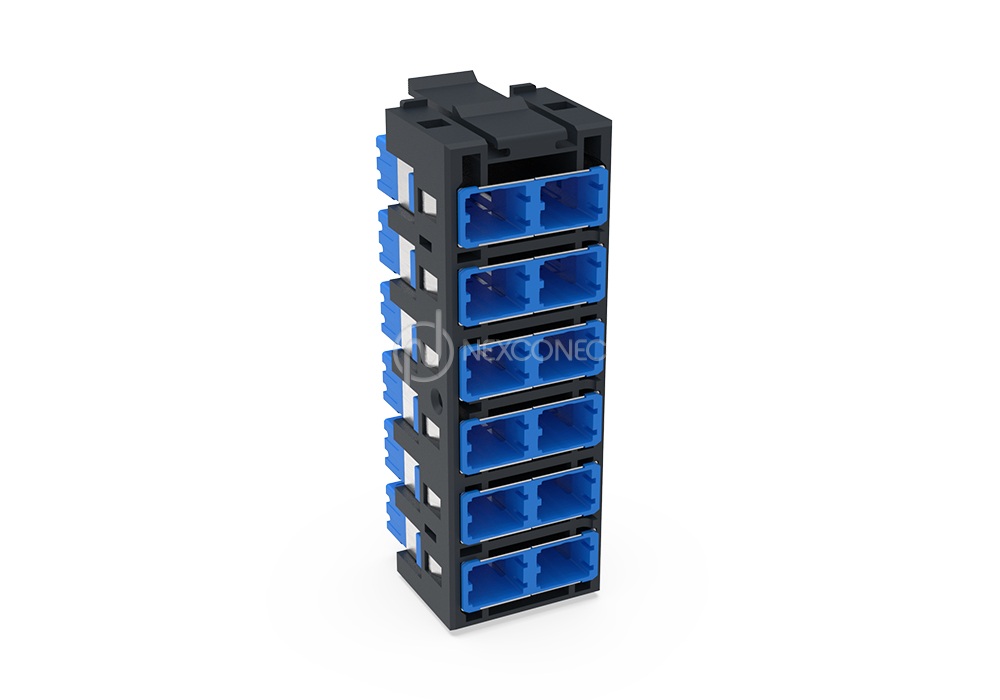

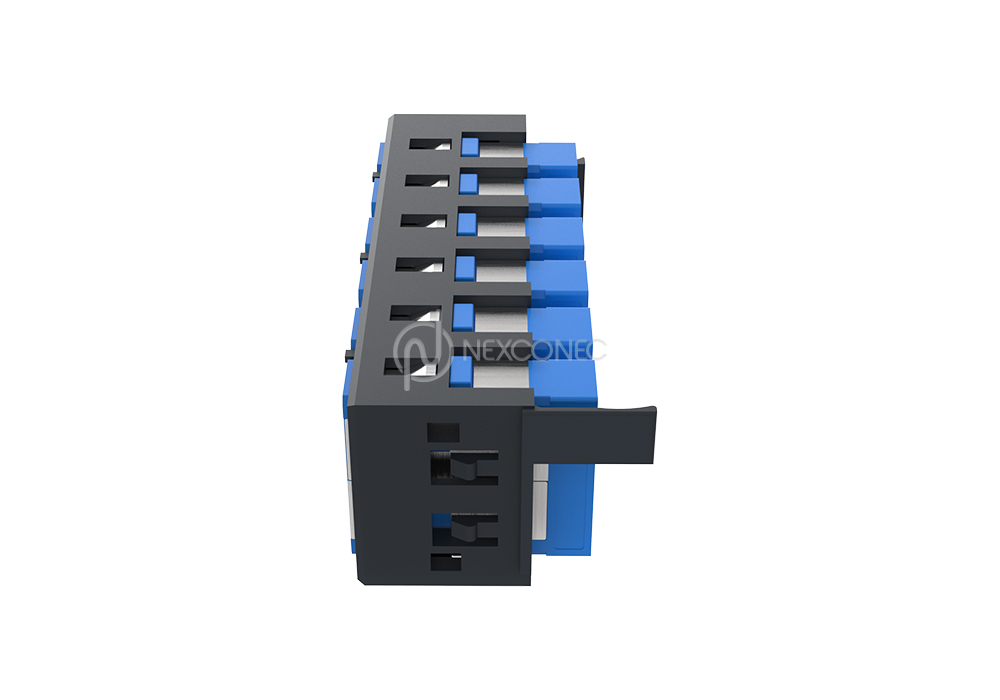

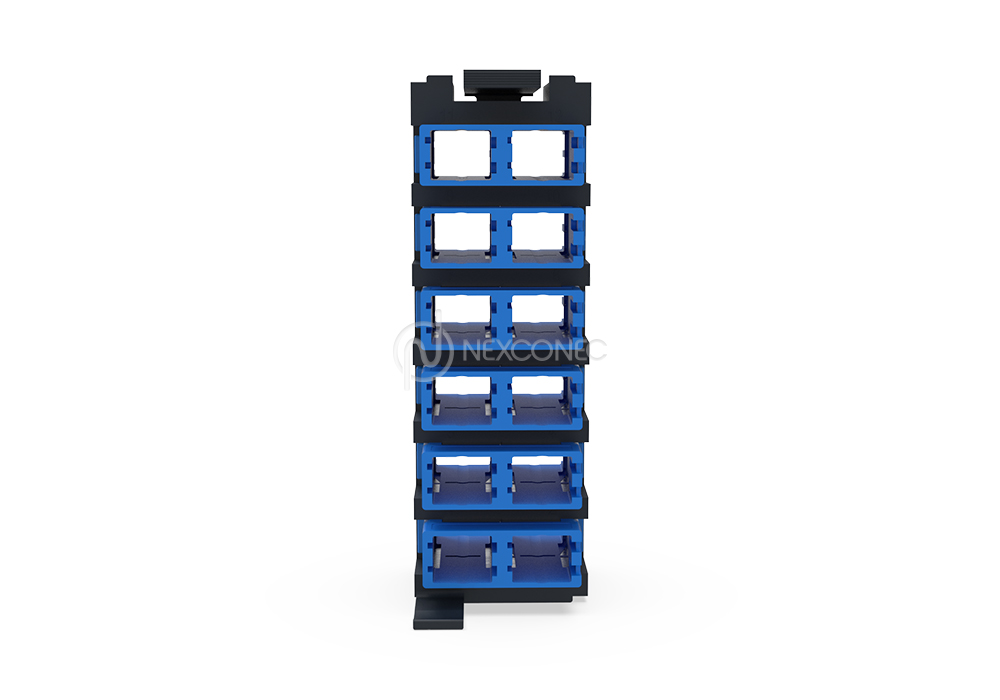

| UPXPL40 | UPX Adapter Plate SN® 48FO (24 Channels) SM Blue |

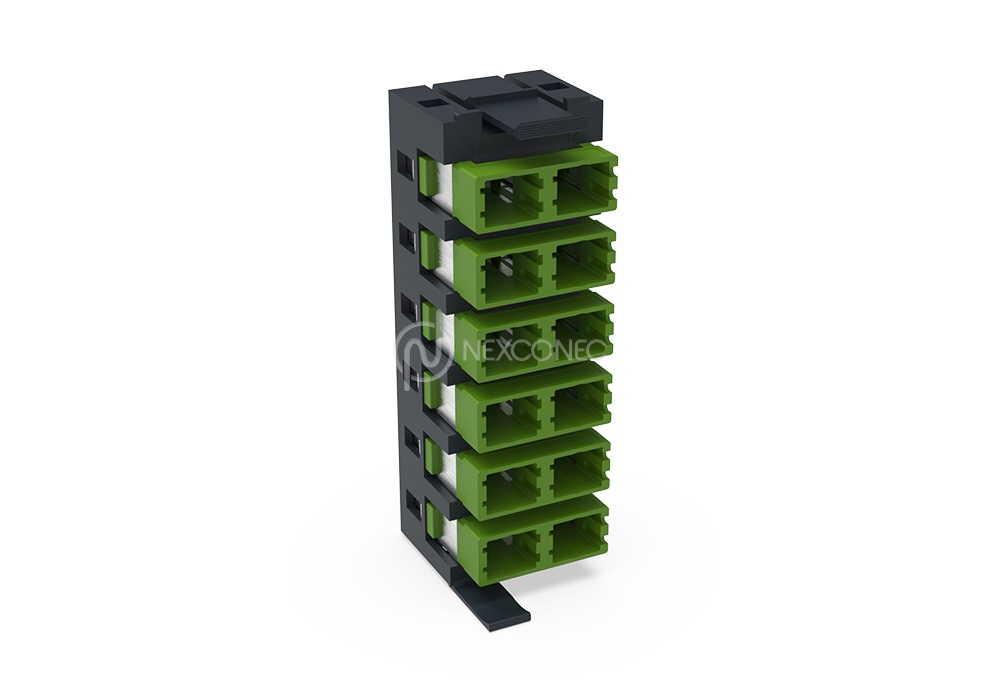

| UPXPL41 | UPX Adapter Plate SN®/APC 48FO (24 Channels) SM Green |
* Ask sales for other products and configuration not shown. sales[at]nexconec.com
