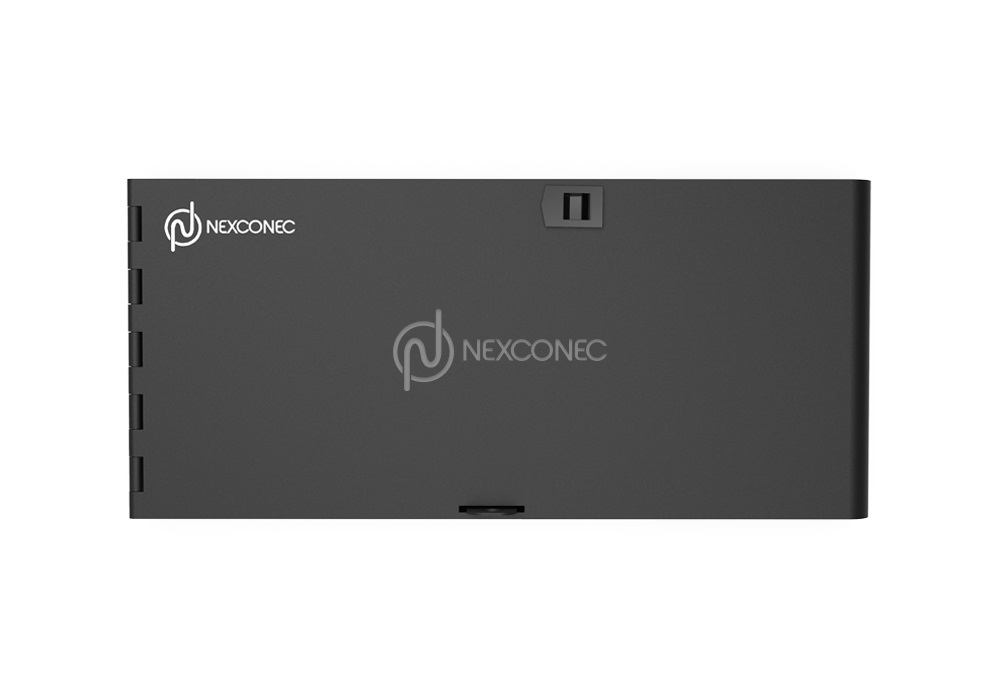

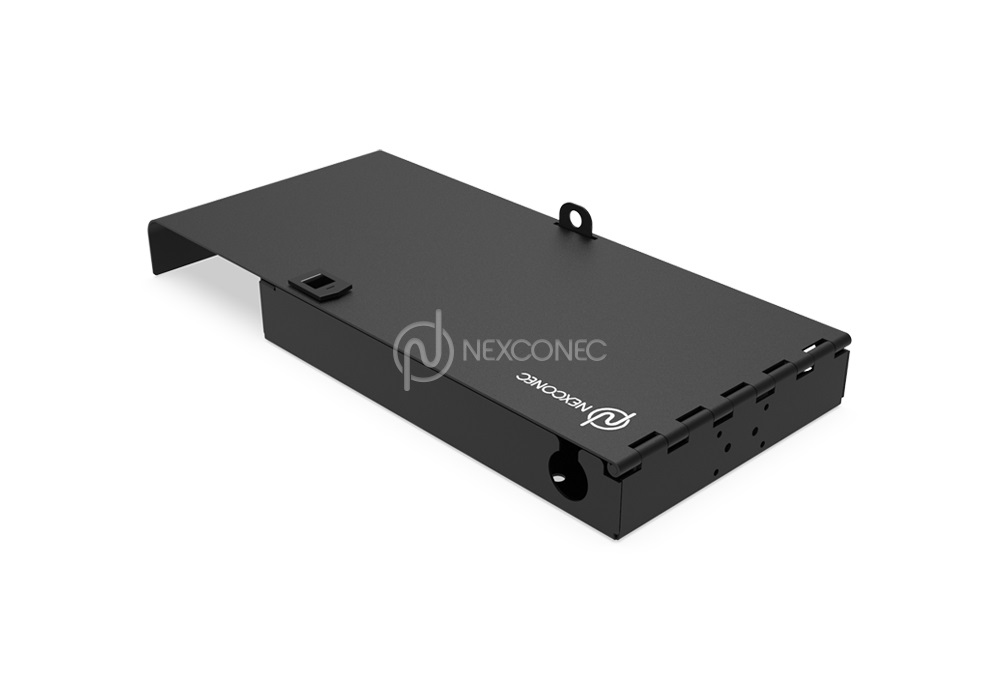

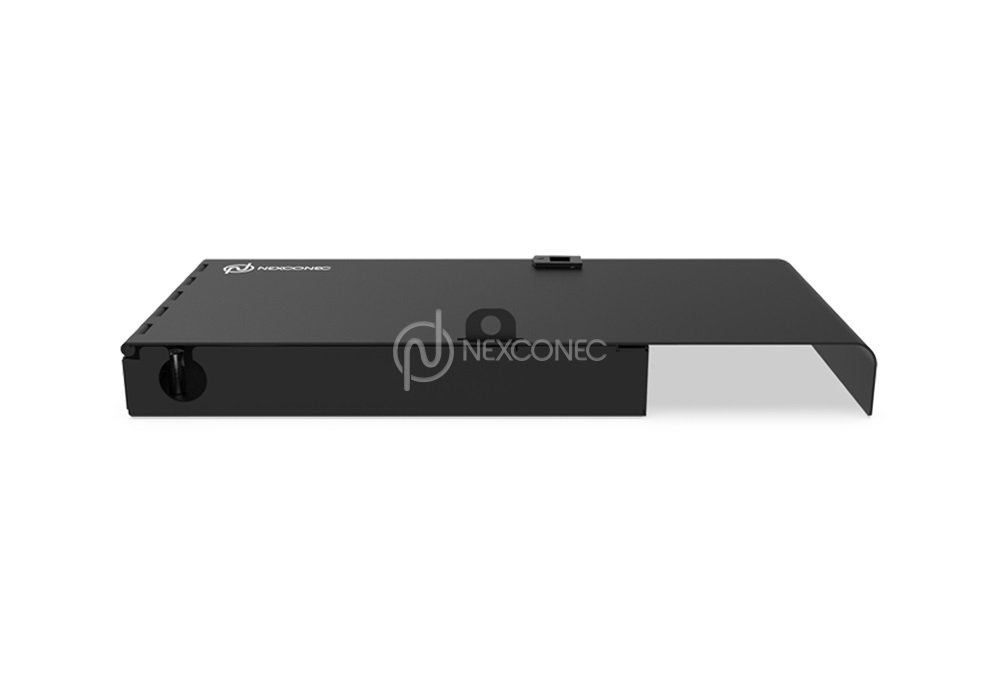

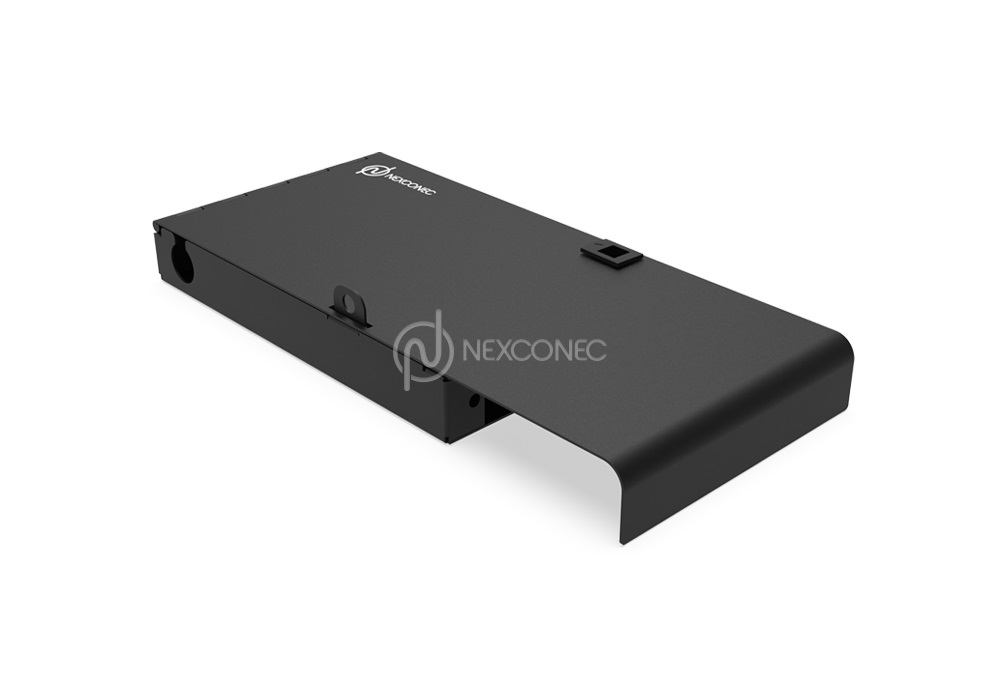

Wall Mount Modular Box 1 Slot LGX - FW1MP3
Nexconec compact & low-profile modular wall box accepts 1 LGX Modules or LGX pass-thru adapter plates for a total of 24FO with LC configuration. Modular small factor box for multi-application with MPO System, Pre-terminated cables or conventional splicing.

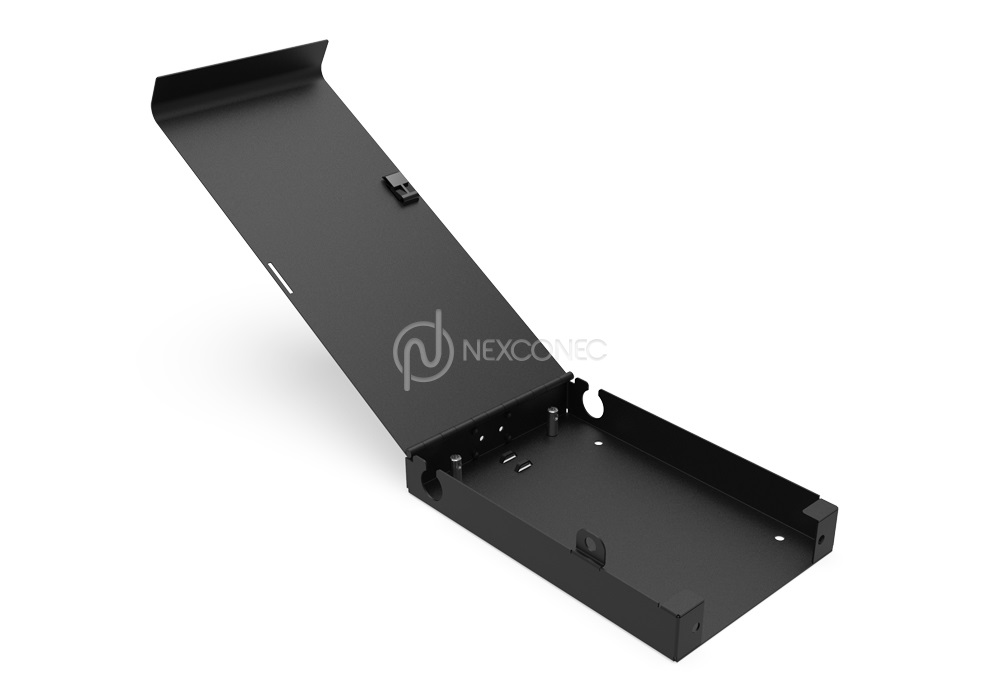

Box is supplied unloaded and the modules and plates are supplied separately, as well as splicing accessories.
FEATURES AND APPLICATIONS
- 1 Slot LGX
- Up to 24FO in LC

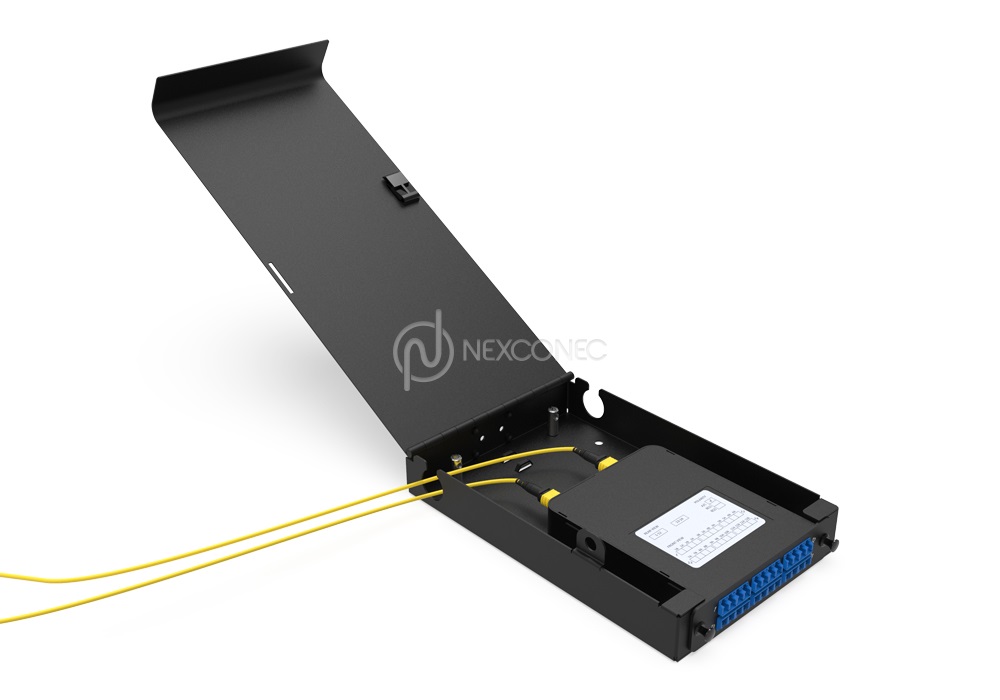

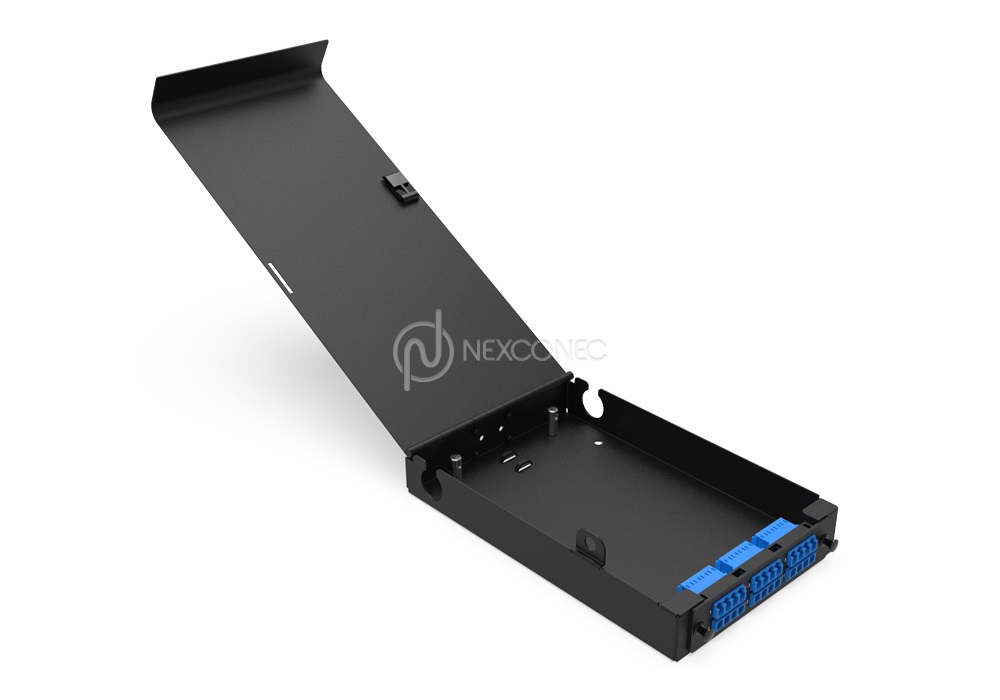

- Modular with MPO Cassette or Adapter plates
- RoHS, REACH and svHC
- FTTx Deployment & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Pre-terminated cables and MTP system or Splicing
| Mounting Type | Wall |
|---|---|
| Material | Cold rolled steel |
| Housing Colour | Black |
| Application | Indoor IP20 |
| Lockable | Yes |
| Dimensions (W x D x H in MM) | 330 x 150 x 35 |
| Net Weight | 1.75Kg |

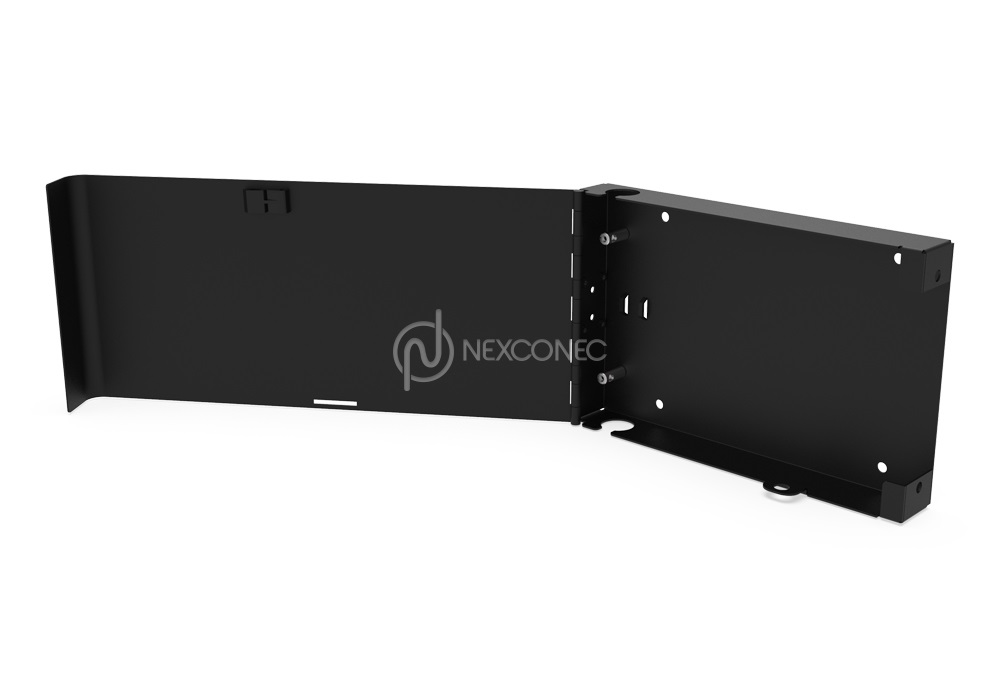

| Opening Type | Hinged Door |
|---|---|
| Access Type | Side access |
| Cable Management | No |
| Cable Entry Direction | Sides (Top/Bottom) |
| Slot Type | LGX Module and LGX Plate |
| Number of Slots | 1 |
| Fiber Capacity | 24 in LC |
| Part Number | Product Description |
|---|---|
| FW1MP3 | Wall Mount Modular Box 1 slot LGX Unloaded |
