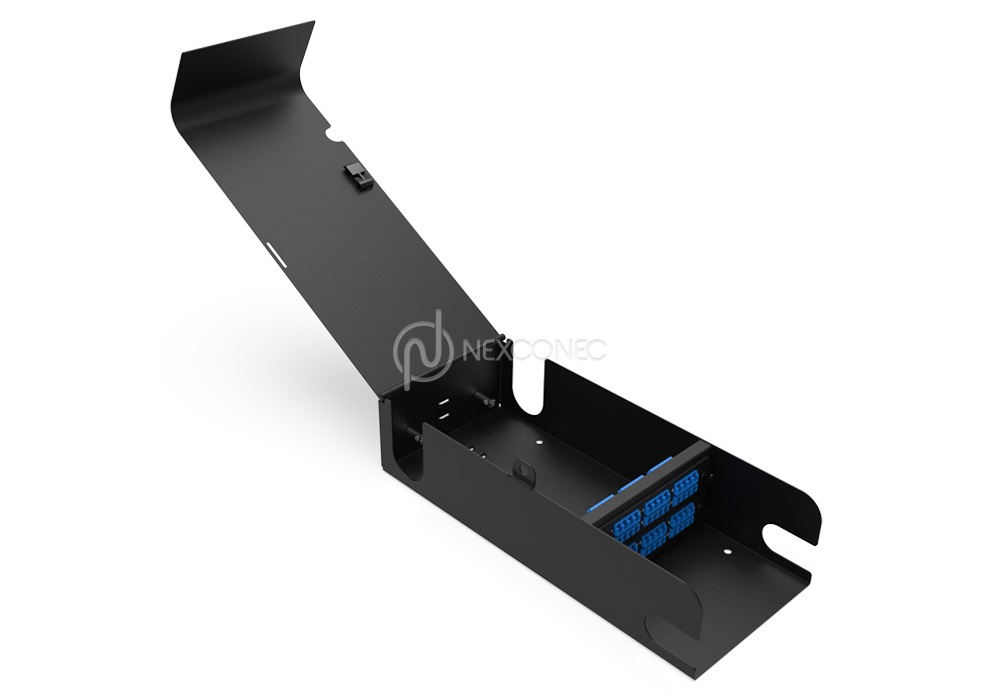

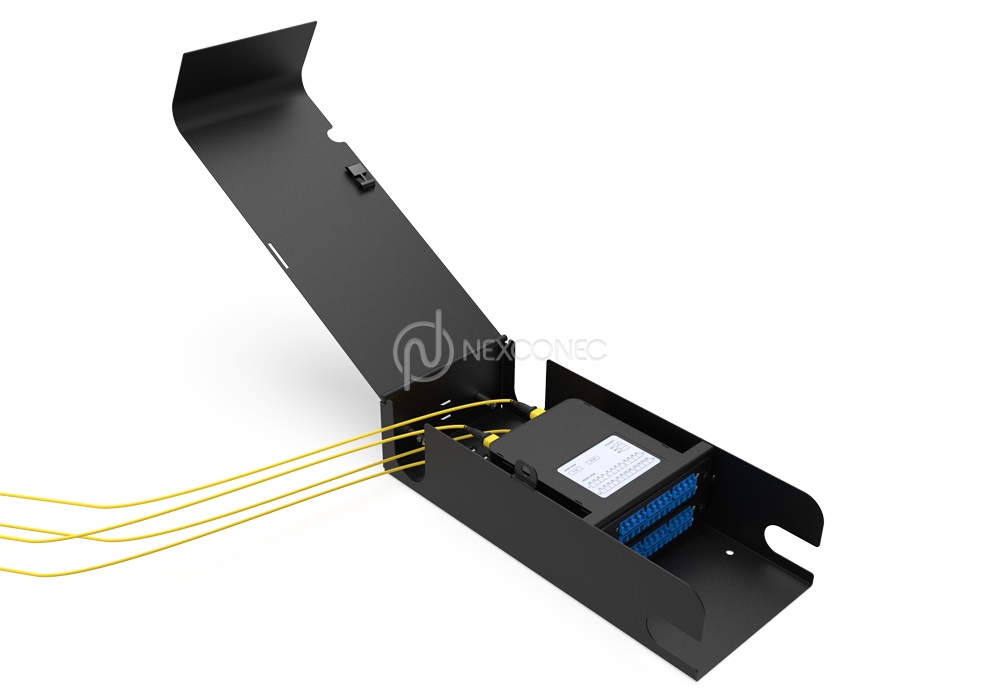

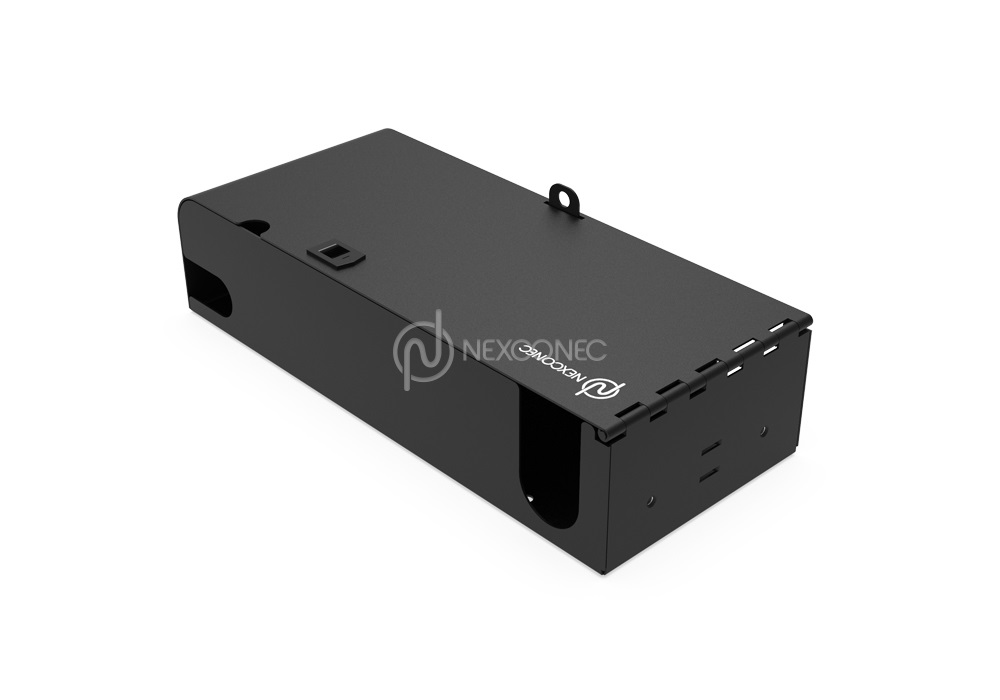

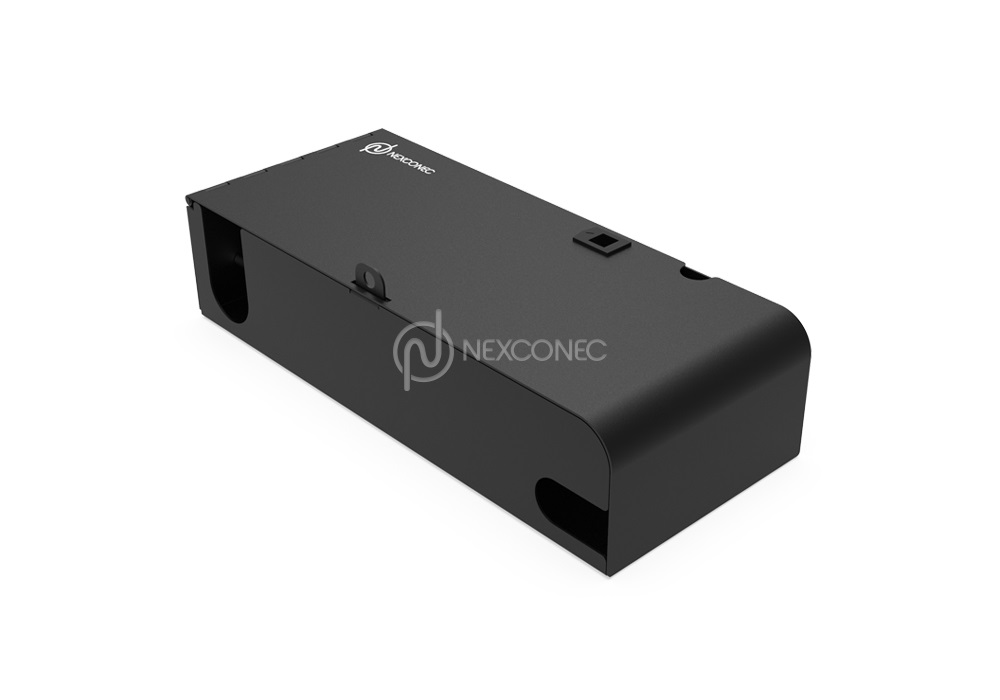

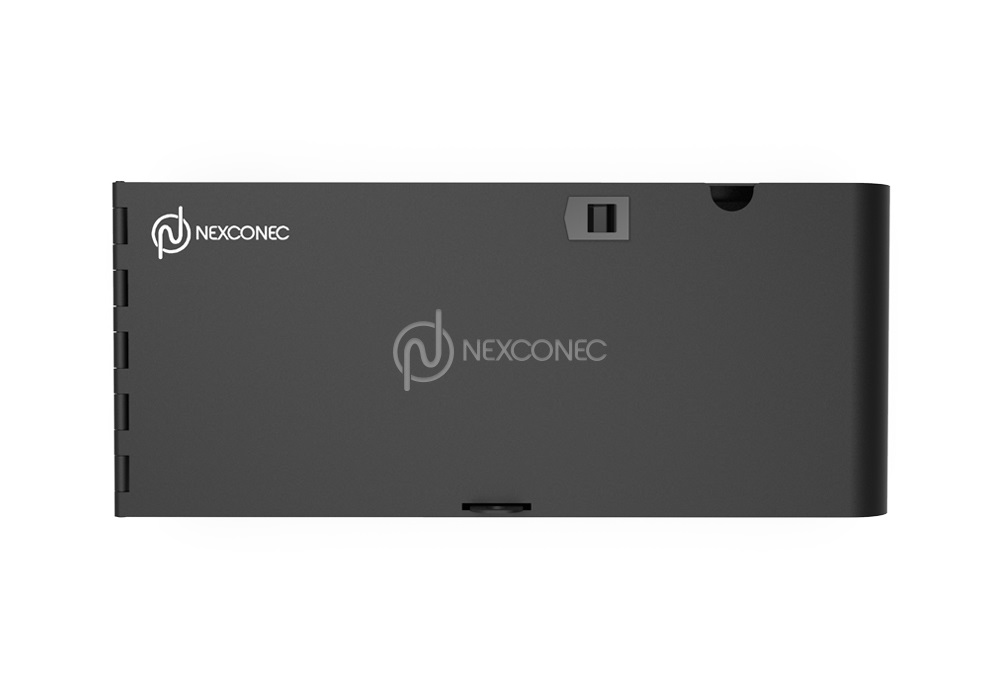

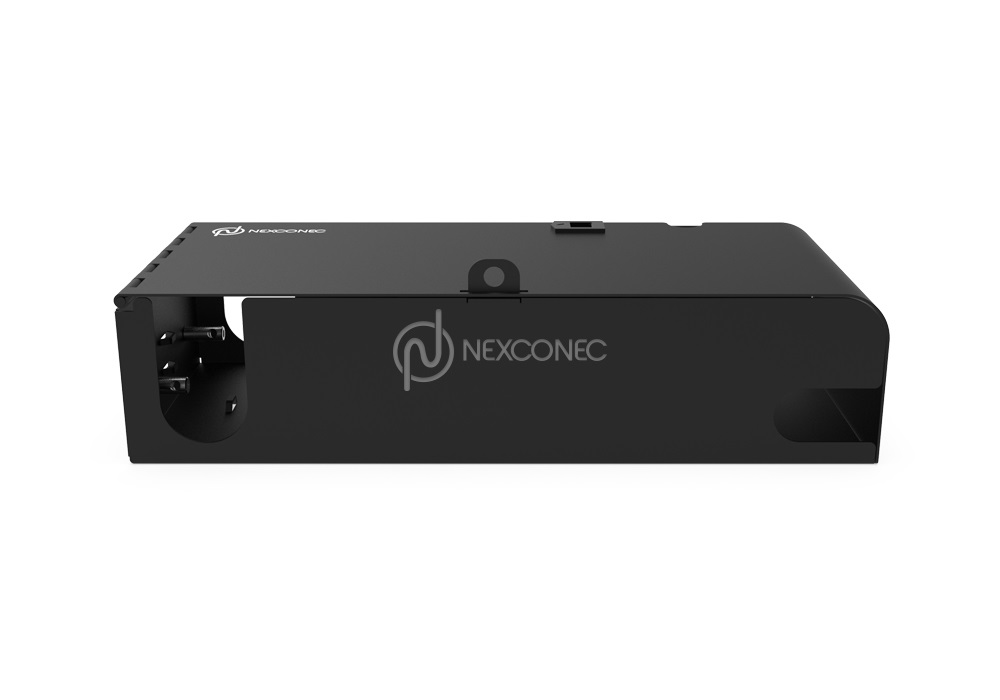

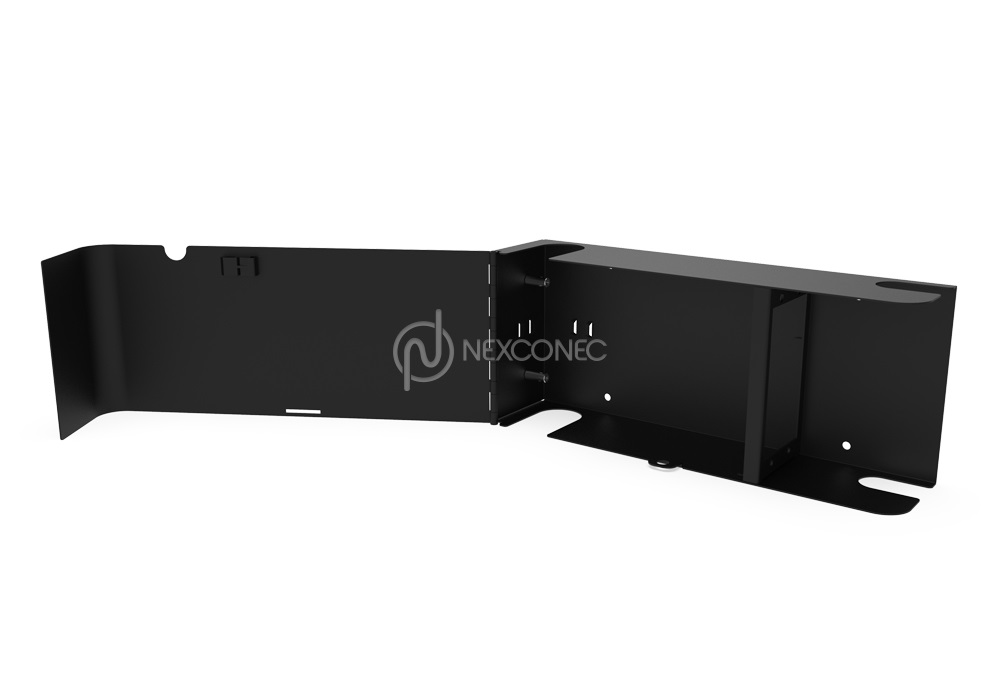

Wall Mount Modular Box 2 Slots LGX - FW2MP3
Nexconec modular wall box accepts 2 LGX Modules or LGX pass-thru adapter plates for a total of 48FO with LC configuration. Modular small factor box for multi-application with MPO System, Pre-terminated cables or conventional splicing.
Box is supplied unloaded and the modules and plates are supplied separately, as well as splicing accessories.
FEATURES AND APPLICATIONS
- 2 Slot LGX
- Up to 48FO in LC
- Modular with MPO Cassette or Adapter plates
- RoHS, REACH and svHC
- FTTx Deployment & Enterprise network
- Indoor application
- Accepts Indoor and Outdoor Pre-terminated cables and MTP system or Splicing
| Mounting Type | Wall |
|---|---|
| Material | Cold rolled steel |
| Housing Colour | Black |
| Application | Indoor IP20 |
| Lockable | Yes |
| Dimensions (W x D x H in MM) | 330x140x83 |
| Net Weight | 2.5kg |
| Opening Type | Hinged Door |
|---|---|
| Access Type | Side access |
| Cable Entry Direction | Sides (Top/Bottom) |
| Slot Type | LGX Module and LGX Plate |
| Number of Slots | 2 |
| Fiber Capacity | 48 in LC |
| Part Number | Product Description |
|---|---|
| FW2MP3 | Wall Mount Modular Box 2 slot LGX Unloaded |
