Products | Fiber Systems | Cables

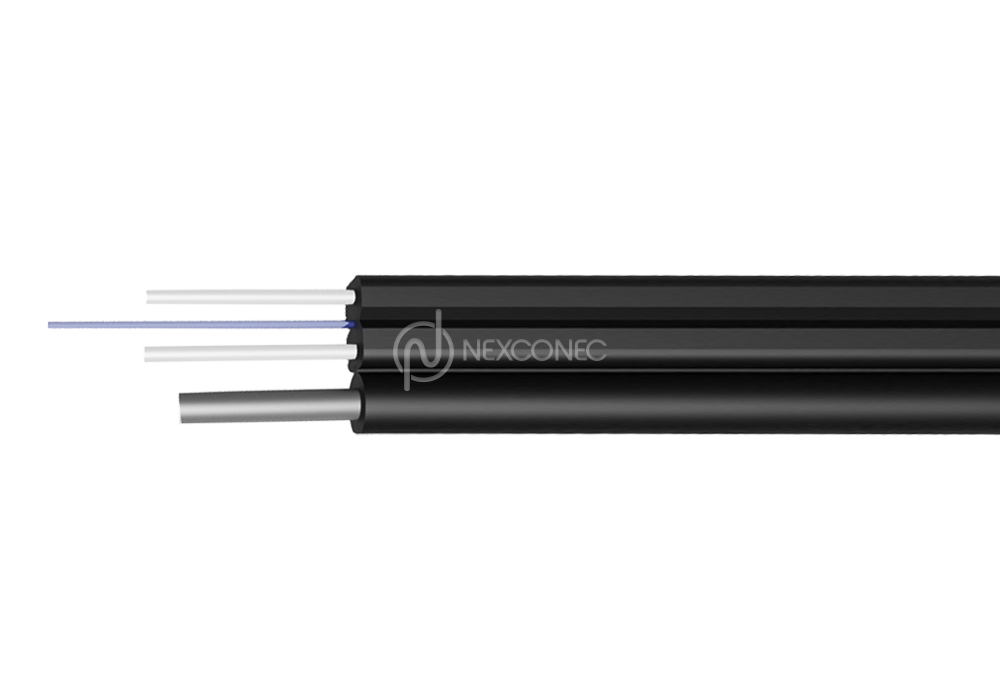

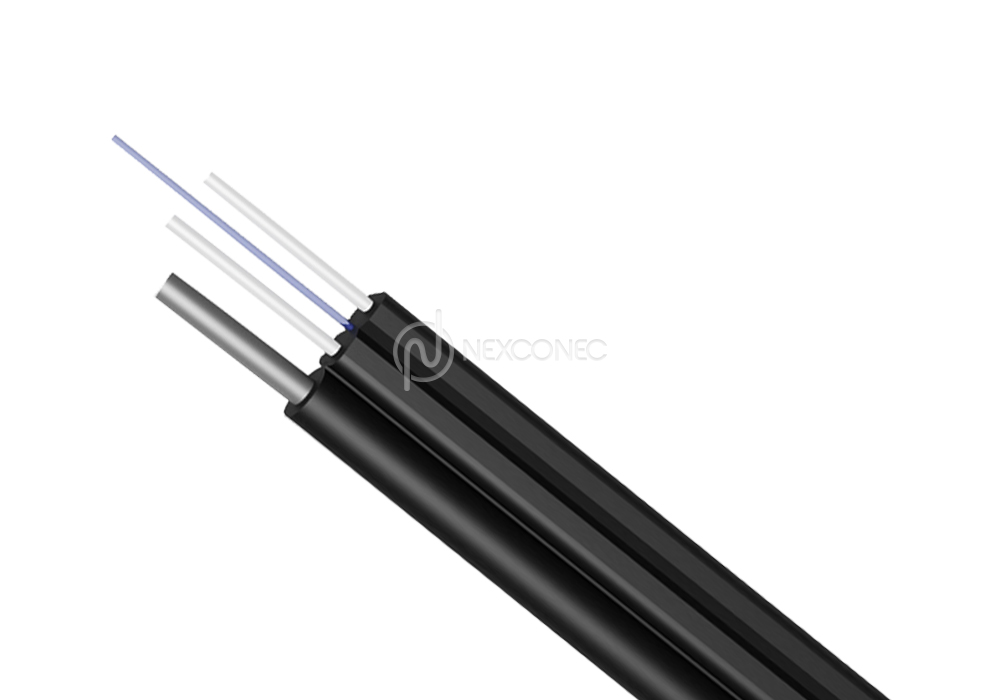

FTTH Aerial Fig8 Drop Cable Indoor/Outdoor
NEXCONEC FTTH Drop Cable is made of 1 to 4, 250μm individually colored optical fibers with fiber reinforced strength members, steel wire which also acts as messenger wire and UV resistant Low Smoke Zero Halogen (LSZH) or PE jacket. The steel wire provides additional strength suitable for aerial applications.
FEATURES AND APPLICATIONS
- Singlemode options available
- Compact cable construction
- FRP strength member
- Metal messenger wire
- Individually coloured optical fibers
- Conforms to IEC, TIA and Telcordia standards
- FTTH
- Horizontal cabling
- Aerial cabling
| Parameter | Unit | Value |
|---|---|---|
| Outer Diameter | mm | 5.0 x 2.0 |
| Long Term Tensile Strength | N | 300 |
| Short Term Tensile Strength | N | 600 |
| Long Term Crush Resistance | N/100mm | 1000 |
| Short Term Crush Resistance | N/100mm | 2000 |
| Storage Temperature | °C | -20 ~ +70 |
| Operating Temperature | °C | -20 ~ +70 |
| Nominal Cable Weight | Kg/Km | 20 |
| Part Number | Product Description |
|---|---|
| NX00000 | DefaultDefault |
