Multi Loose Tube Fiber Cable Indoor/Outdoor

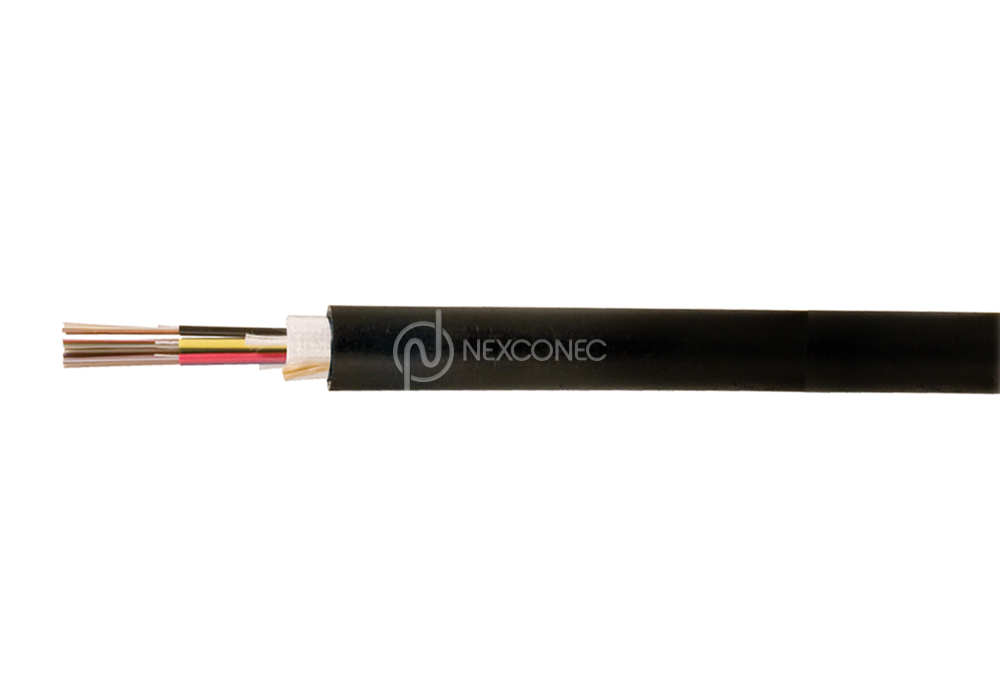

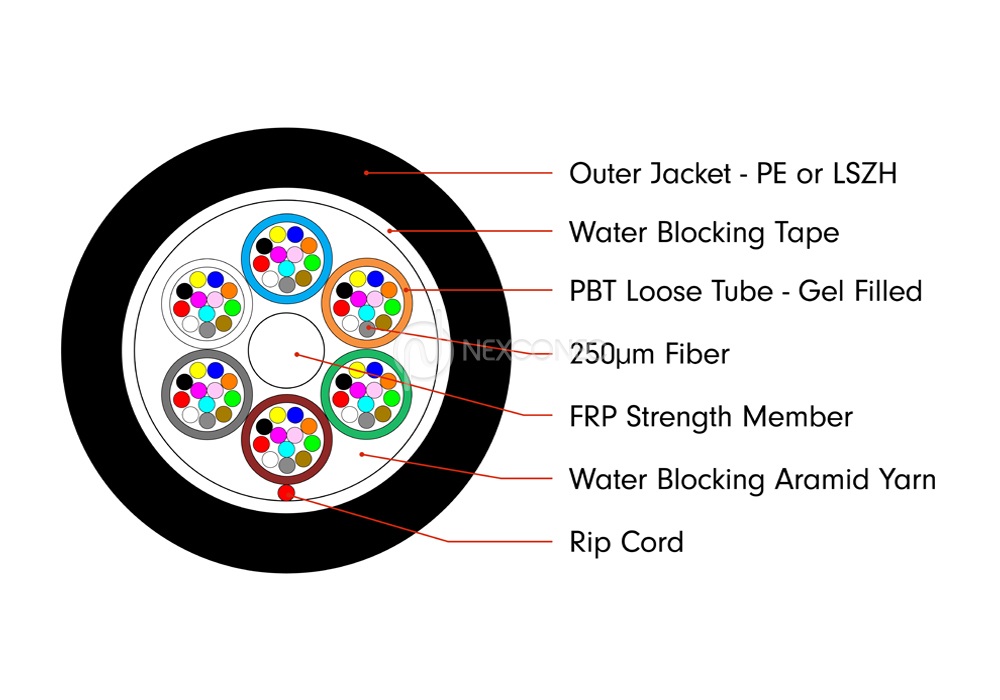

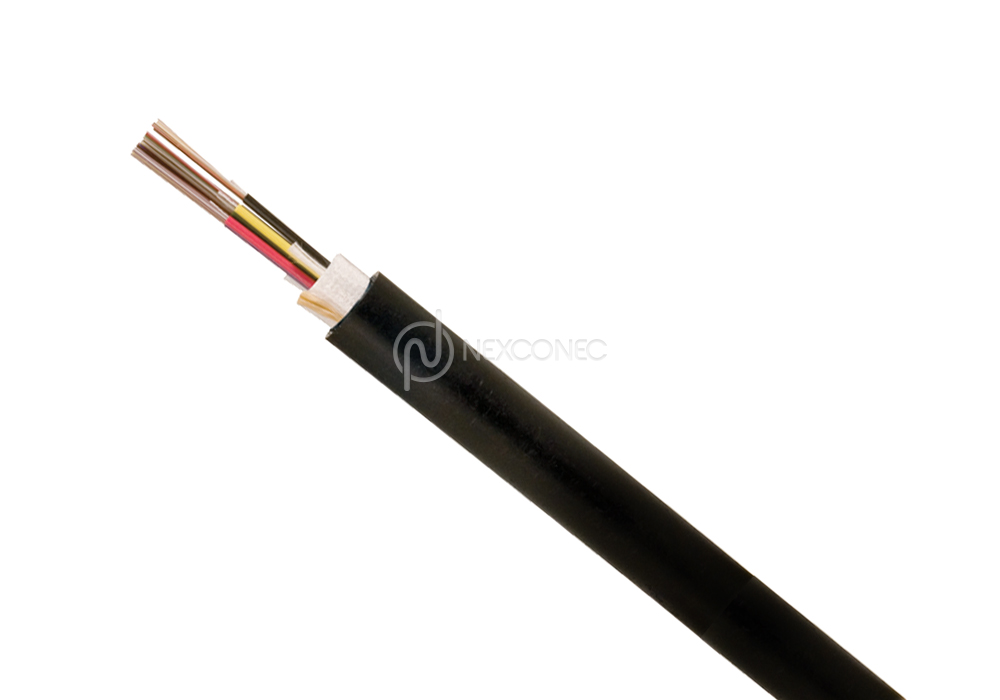

NEXCONEC Multi Loose Tube is made of multiple single gel filled PBT tubes and each tube consists of 12, 250μm optical fibers, the tubes are surrounded with longitudinally applied E-glass non-metallic strength members, UV resistant LSZH or HDPE jacket.
FEATURES AND APPLICATIONS
- Up to 144 fiber available
- Standard SM and MM options available
- High water resistant ability
- UV resistant outer jacket
- Conforms to IEC standard
- Suitable for internal / external duct applications
- Suitable for environments where rodent resistance is required
- Ideal for intra building links in campus environments
| Parameter | Unit | Value | |||
|---|---|---|---|---|---|
| Fibre Count | 24-48FO | 72FO | 96FO | 144FO | |
| Outer Diameter | mm | 10.5 | 11.1 | 12.6 | 15.6 |
| Long Term Tensile Strength | N | 600 | |||
| Short Term Tensile Strength | N | 1500 | |||
| Long Term Crush Resistance | N | 300 | |||
| Short Term Crush Resistance | N | 1000 | |||
| Storage Temperature | °C | -40 ~ +70 | |||
| Operating Temperature | °C | -40 ~ +70 | |||
| Installation Temperature | °C | -10 ~ +50 | |||
| Cable Weight | Kg/Km | 65-85 | 90 | 140 | 160 |
| Part Number | Product Description |
|---|---|
| NX00000 | DefaultDefault |
