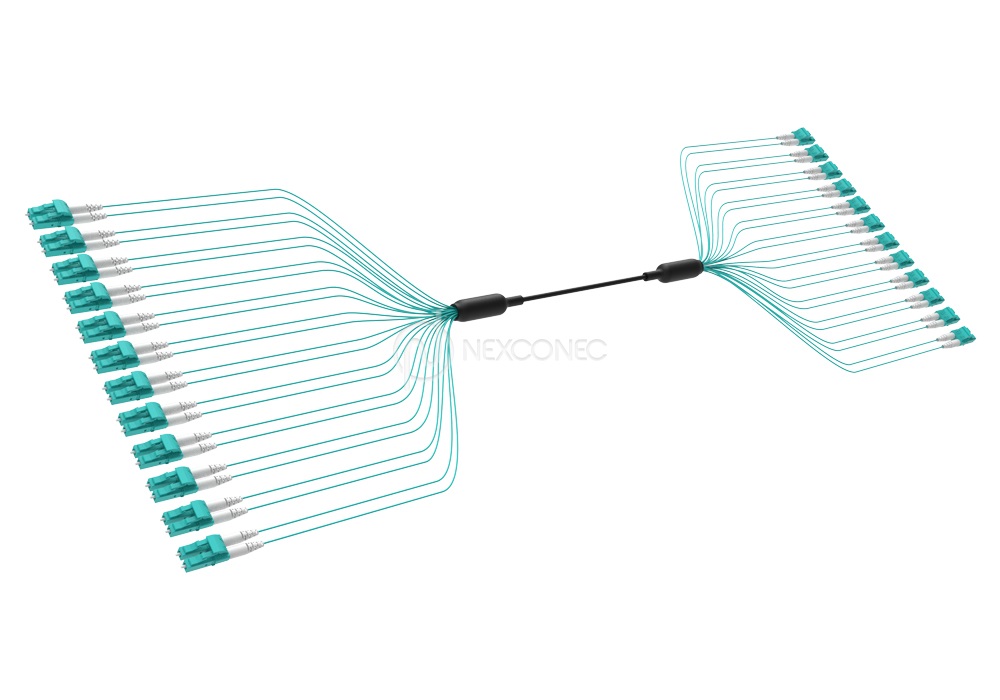

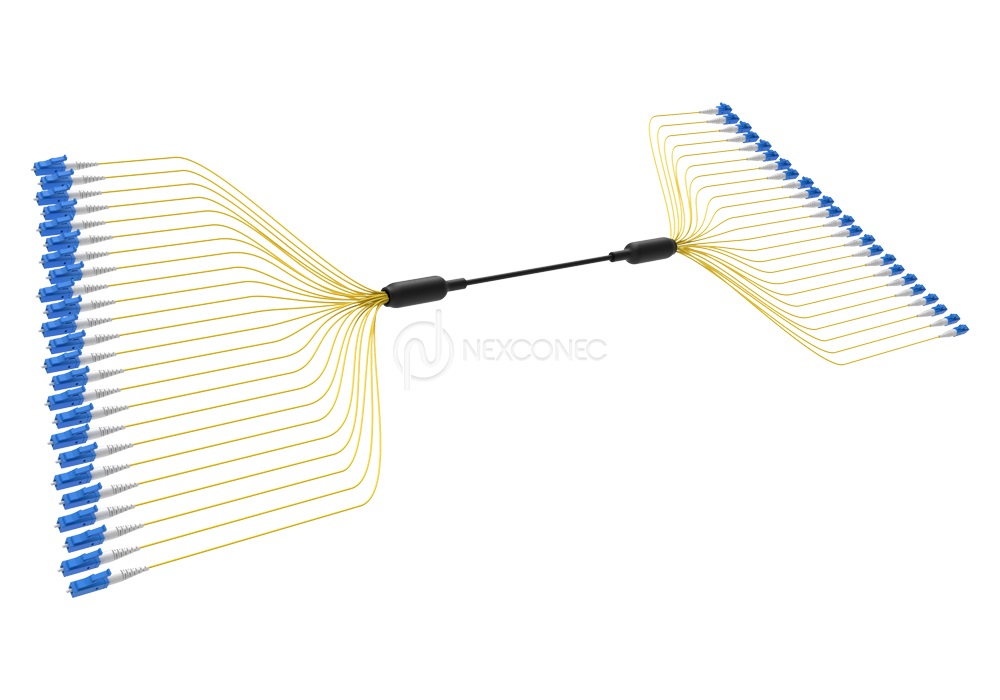

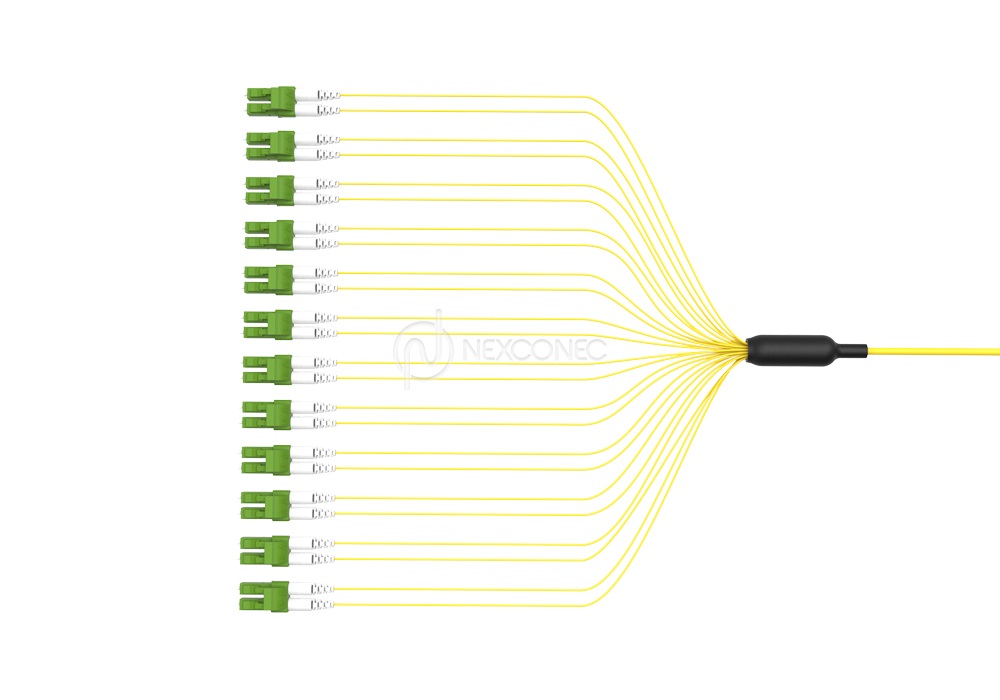

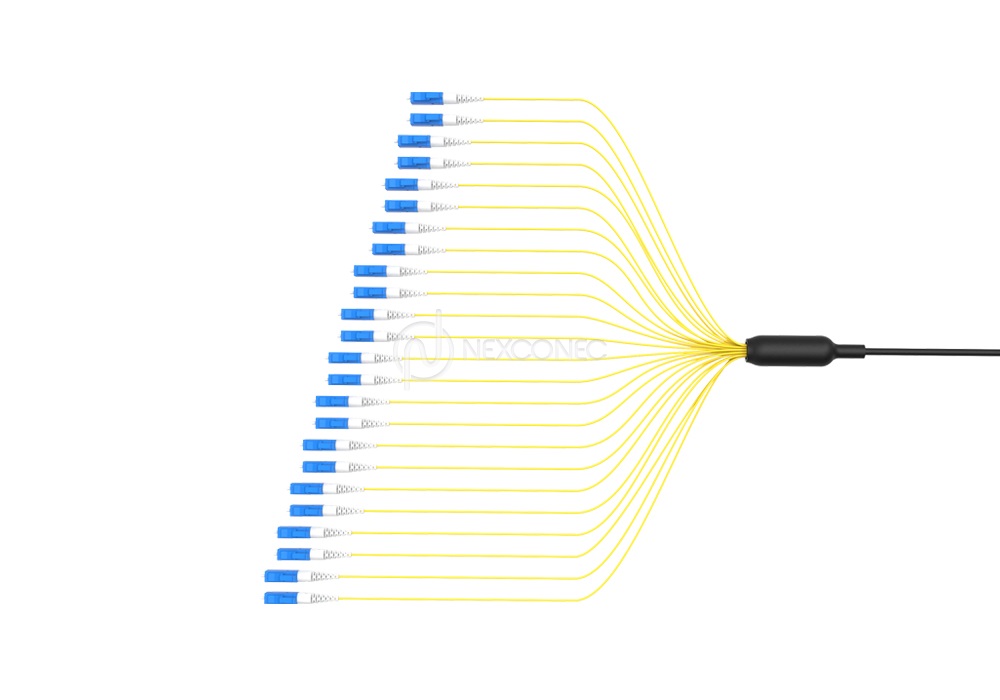

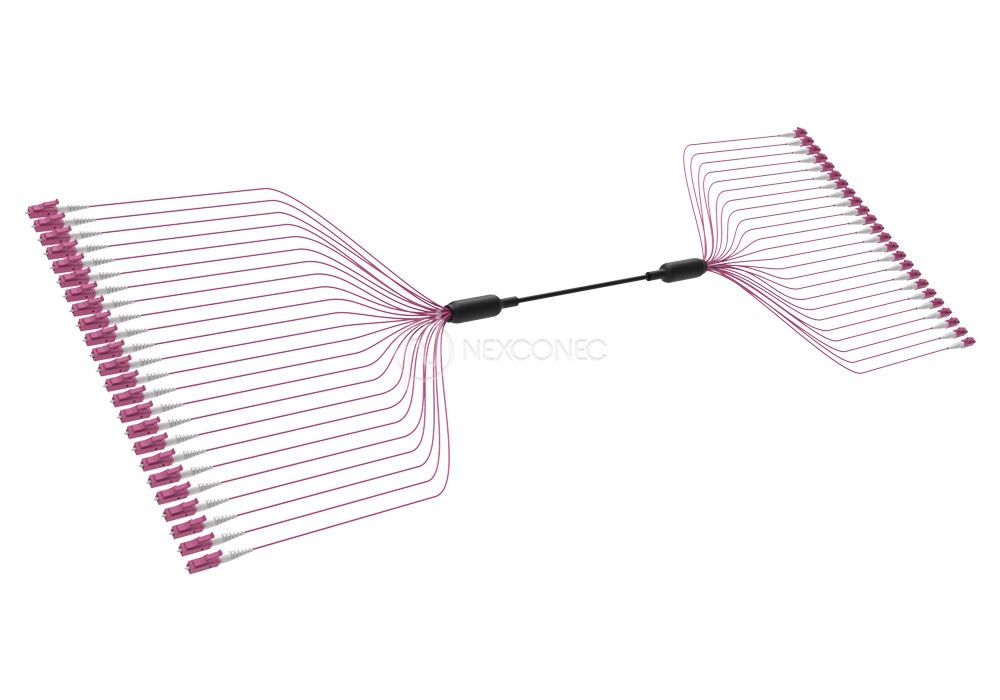

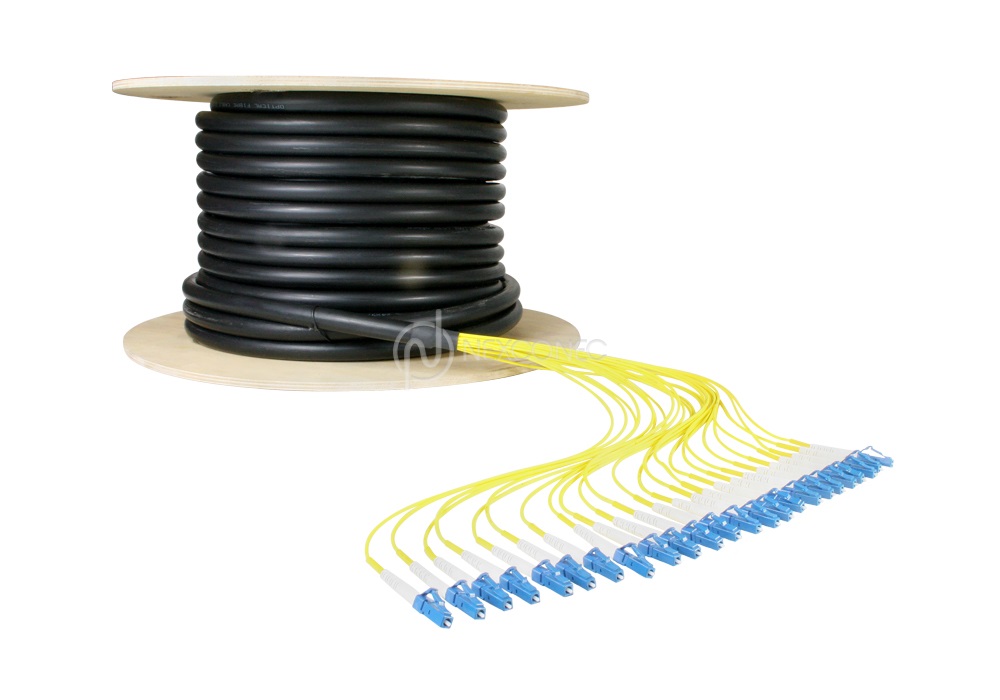

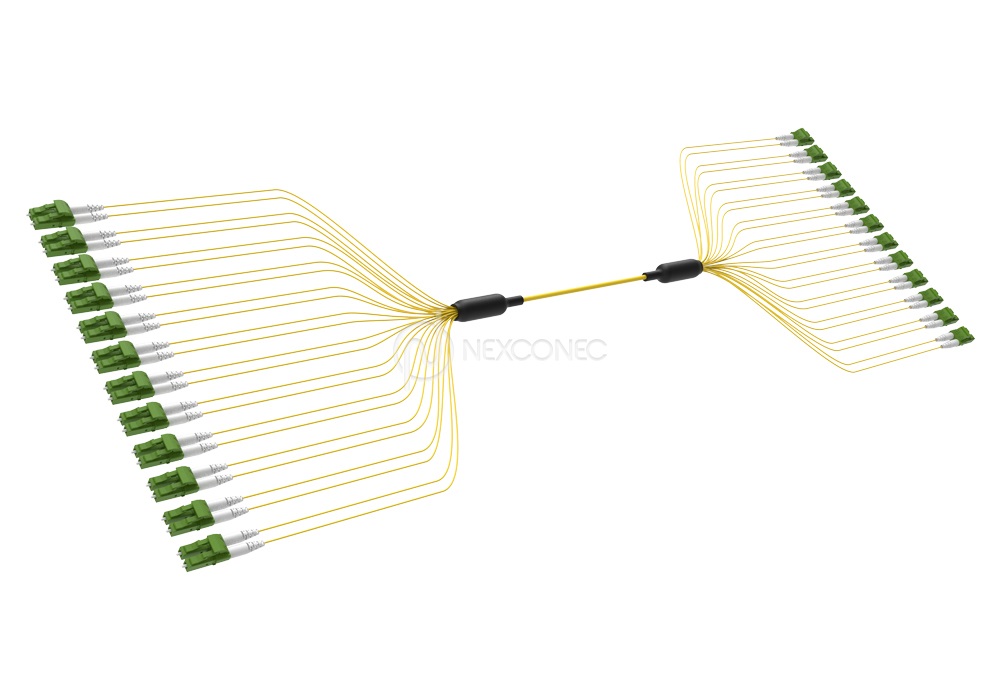

Indoor/Outdoor Preterms Single/Multi Loose Tube (Up to 144FO)
NEXCONEC® Indoor/Outdoor Preterms offers quick and cost-effective installation for interbuilding, LAN or Campus wide network. The indoor/outdoor preterms are available in Loose Tube and Tight Buffer cable options with special designed modules to breakout individual fibers.
We manufacture preterms with superior fiber/cable performance to withstand outdoor harsh environments and high quality connectors, which offers improved link loss budgets. These preterms are available in 12 up to 144 single-mode or multimode fibers.
PRODUCT HIGHLIGHTS
- Up to 144 fibers available
- Available in standard Single mode and Multimode fiber options
- Available in LC, SC, FC, ST and other connector types
- Pulling system optional
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- 900μm or 2mm ruggedized tails
FEATURES
- Up to 144 fibers available
- Available in standard Single mode and Multimode fiber options
- Available in LC, SC, FC, ST and other connector types
- Pulling system optional
- Conforms to IEC, EIA-TIA, and Telcordia performance requirements
- RoHS, REACH & SvHC compliant, Materials Conflict compliant
- 900μm or 2mm ruggedized tails
APPLICATIONS
- Telecommunication networks
- LAN or Campus wide Network
- Internal/External Application
- Supports up to 100G applications
- Indoor & Outdoor Jacket Material
SINGLE FERRULE CONNECTOR SPECIFICATIONS
| Parameters | IL – Max | IL – Typical | RL (PC/APC) |
|---|---|---|---|
| SM – Standard | ≤ 0.30 dB | ≤ 0.20 dB | > 55/65 dB |
| SM – Premium | ≤ 0.15 dB | ≤ 0.12 dB | > 55/65 dB |
| MM – Standard | ≤ 0.30 dB | ≤ 0.18 dB | > 28 dB |
| MM – Premium | ≤ 0.15 dB | ≤ 0.08 dB | > 28 dB |
CABLE CHARACTERISTICS
| Parameters | Unit | Value | |||||
|---|---|---|---|---|---|---|---|
| Fiber Count | 12F | 24F | 48F | 72F | 96F | 144F | |

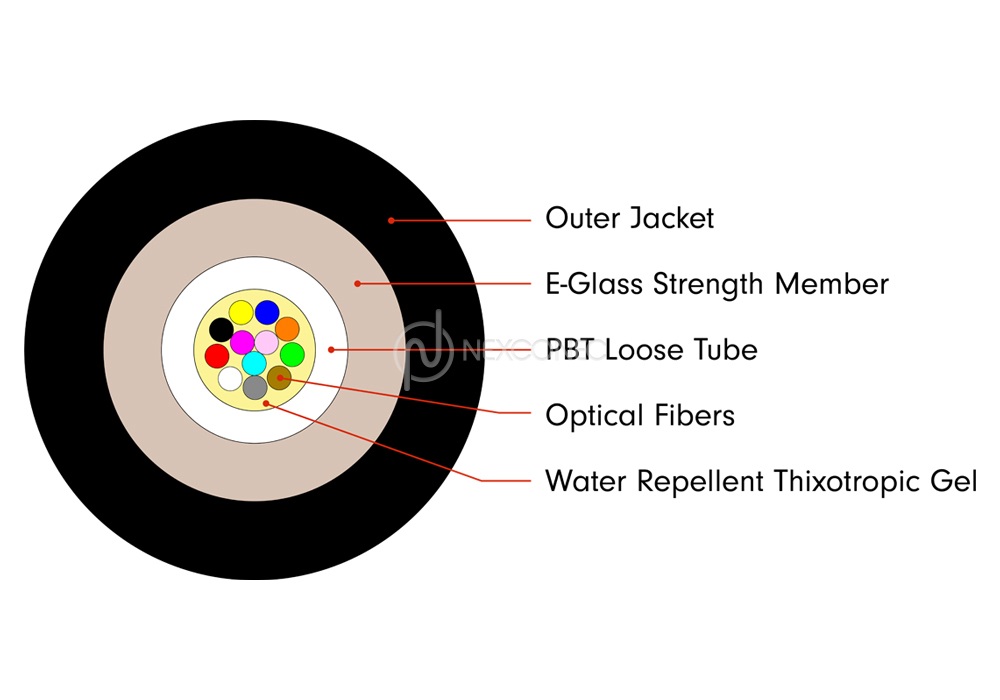

| Number of Fibers per Tube | 12 | 24 | 12 | 12 | 12 | 12 | |

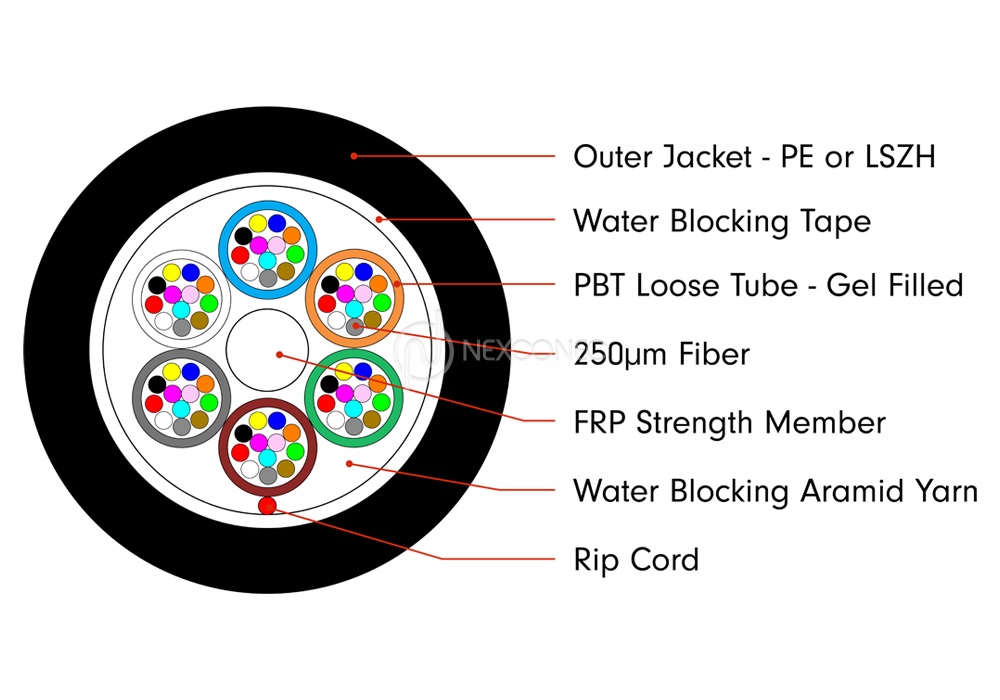

| Number of Loose Tubes | 1 | 1 | 4 | 6 | 8 | 12 | |
| Outer Diameter (±0.3) | mm | 6.8 | 6.8 | 10.5 | 11.1 | 12.6 | 15.6 |
| Tail Diameter | mm | 900μm or 2.0mm | |||||
| Tensile Strength (Long Term) | N | 500 | 500 | 600 | 600 | 600 | 600 |
| Tensile Strength (Short Term) | N | 1000 | 1000 | 1500 | 1500 | 1500 | 1500 |
| Crush Resistance (Long Term) | N/100mm | 200 | 200 | 300 | 300 | 300 | 300 |
| Crush Resistance (Short Term) | N/100mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Min. Bending Radius | mm | 10D (Static) / 20D (Dynamic) | |||||
| Loose Tube Material | PBT | ||||||
| Cable Jacket Material | LSZH or PE | ||||||
| Central Strength Member | FRP | ||||||
| Strength Member | E-glass | ||||||
| Storage Temperature | ˚C | -40 ~ +70 | |||||
| Operating Temperature | ˚C | -40 ~ +70 | |||||
| Installation Temperature | ˚C | -10 ~ +50 | |||||
| Compliance | RoHS, REACH & SvHC | ||||||
